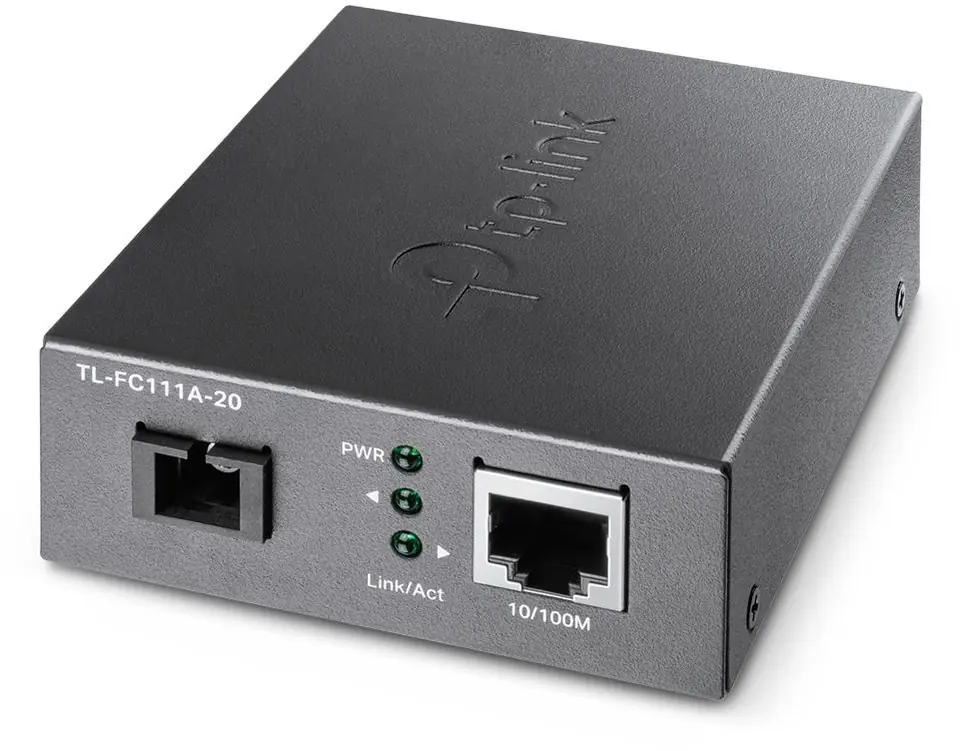

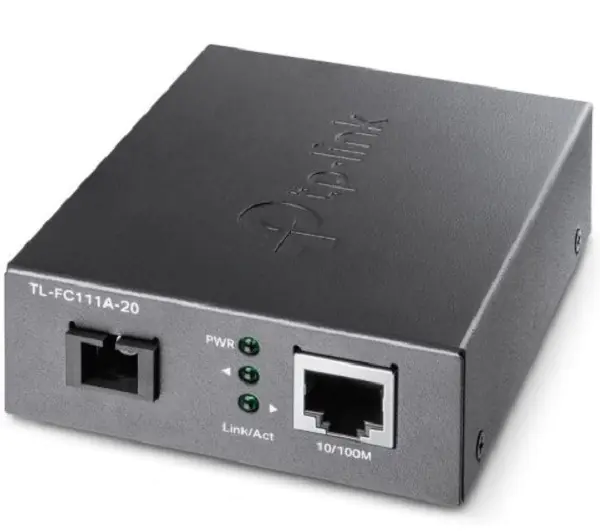

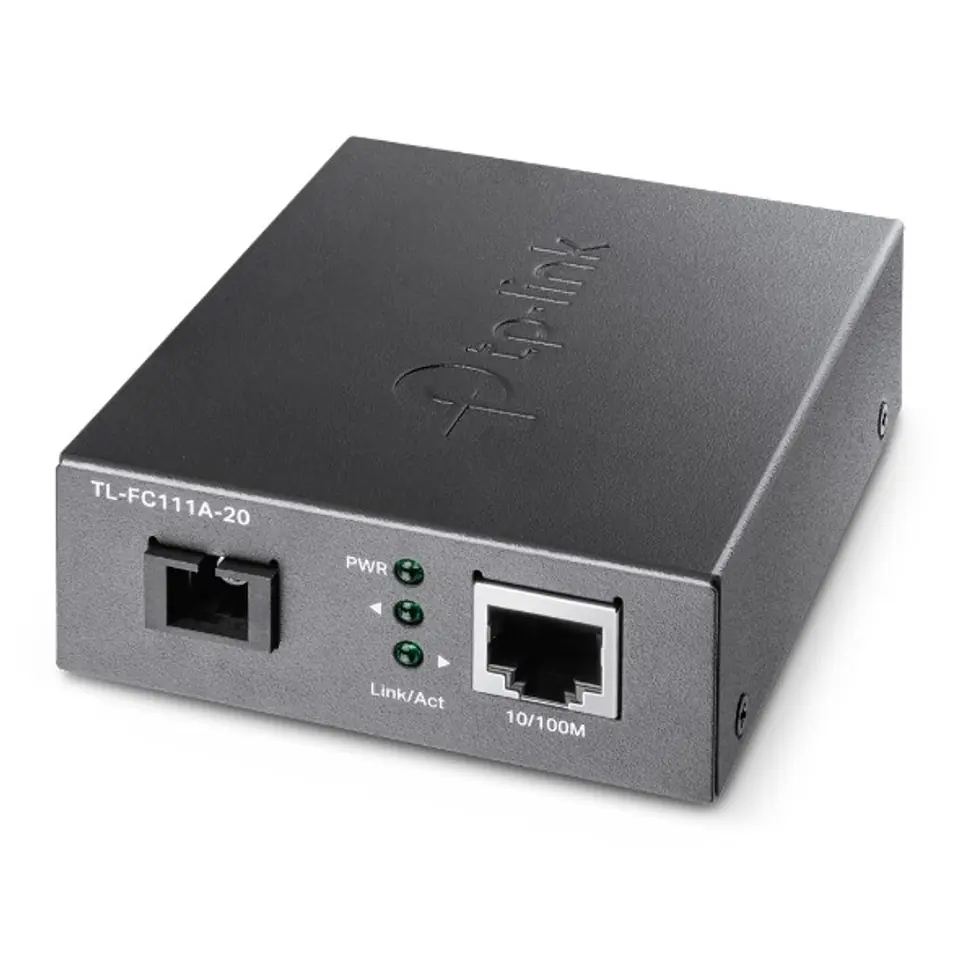

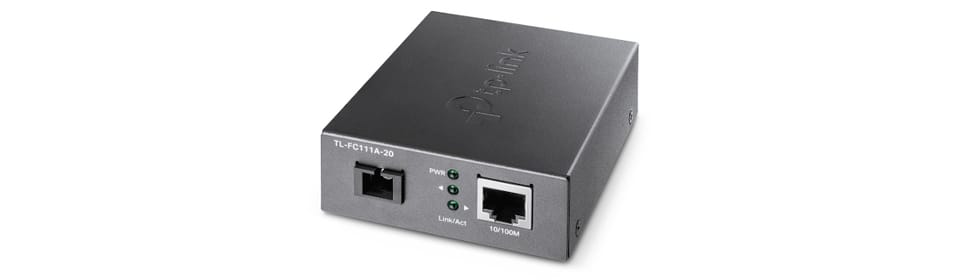

MEDIA KONWERTER WDM TP-LINK TL-FC111A-20
- Model: TL-FC111A-20
- Typ okablowania: Światłowód jednomodowy
- Typ złącza 1: SC
- Typ złącza 2: RJ45
- Maksymalny zasięg: 20 km
Auto mdi/mdi-x: | Yes |
---|---|
Auto-negotiation: | Yes |
Cable types supported: | Cat4, Cat5, Cat5e, Cat3 |
Compliance certificates: | RoHS |
Connectivity technology: | Wired |
Copper ethernet cabling technology: | 10BASE-T, 100BASE-T |
Depth: | 73 mm |
Duplex system: | Half, Full |
Ethernet lan (rj-45) ports: | 1 |
Ethernet lan data rates: | 100, 10 |
Fiber cable diameters supported (core/cladding): | 9/125 µm |
Fiber ethernet cabling technology: | 100BASE-FX |
Fiber mode structure: | Single-mode |
Fiber optic connector: | SC |
Fiber ports quantity: | 1 |
Flow control support: | Yes |
Harmonized system (hs) code: | 85176990 |
Height: | 27 mm |
Internal: | No |
Led indicators: | Power, Activity, Link |
Maximum data transfer rate: | 100 Mbit/s |
Maximum transfer distance: | 20000 m |
Networking standards: | IEEE 802.3i, IEEE 802.3u, IEEE 802.3 |
Operating relative humidity (h-h): | 10 - 90% |
Operating temperature (t-t): | 0 - 50 °C |
Output current: | 0.6 A |
Output voltage: | 5 V |
Package depth: | 204 mm |
Package height: | 65 mm |
Package weight: | 360 g |
Package width: | 165 mm |
Product colour: | Black |
Storage relative humidity (h-h): | 5 - 90% |
Storage temperature (t-t): | -40 - 70 °C |
Sustainability certificates: | RoHS |
Width: | 94.5 mm |
