TORQUE WRENCH SAFE-TORQUE A1 ,1/4',2-12NM,10CZ

Specifications:

Dimension: 275x140x65 mm
Part Number: 05075830001
Weight: 1023 g
item-no.: Safe-Torque A 1 Set 1
Country of origin: CZ



Safe-Torque A 1 Set 1, with quadrangular carrier 1/4", 2-12 Nm, 10 pcs.

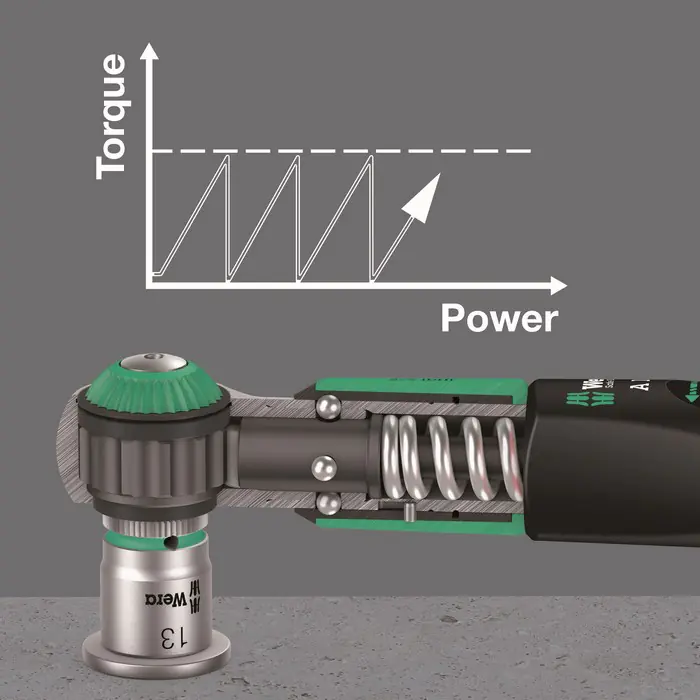

Slip mechanism prevents the set torque value from being exceeded

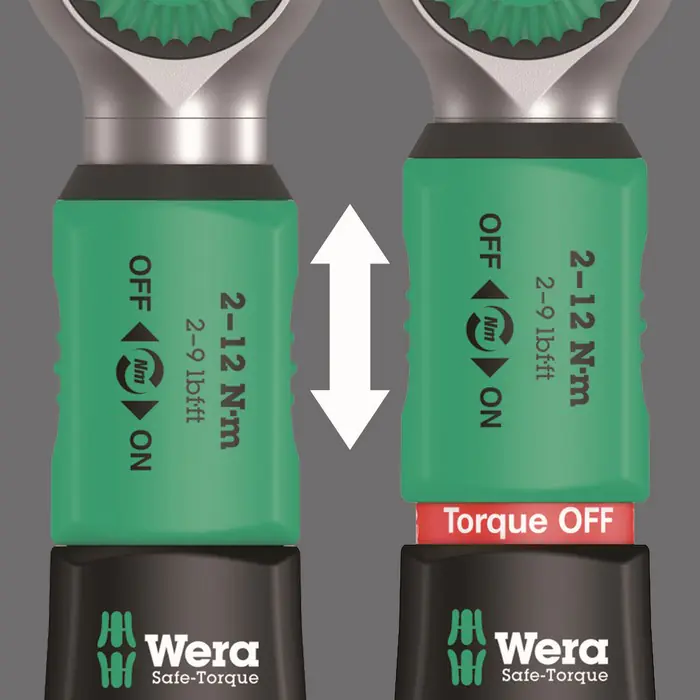

Torque Lock function: the ability to disable the torque function means that the tool can also be used as
Standard ratchet with high trigger torques and for applications requiring angled key rotation

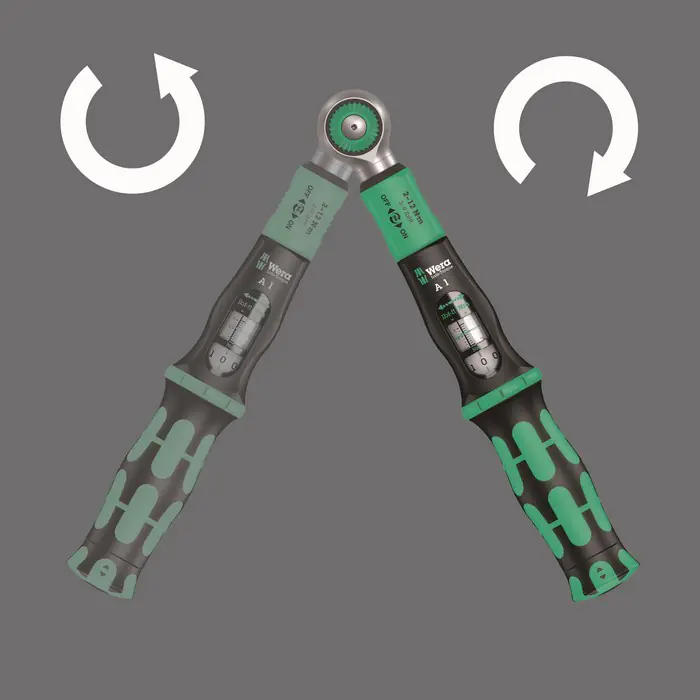

For controlled right and left tightening - tightening and loosening with or without torque

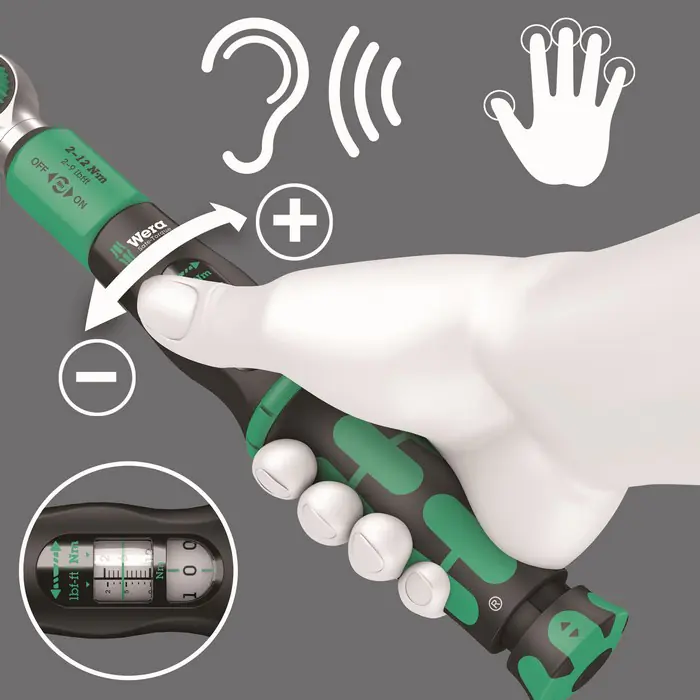

Simple adjustment and protection of the desired torque by means of an audible and perceptible blockage after
reaching the scale value

When the target torque is reached, the trigger angle is only 30°

Fine-toothed ratchet mechanism with 72 teeth for a small ratchet return angle of only 5°

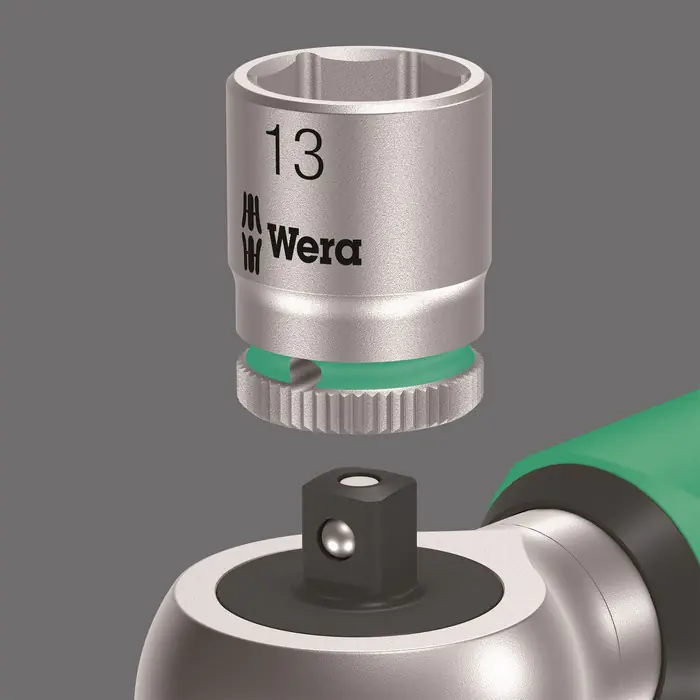

1/4" square grip with socket wrench lock

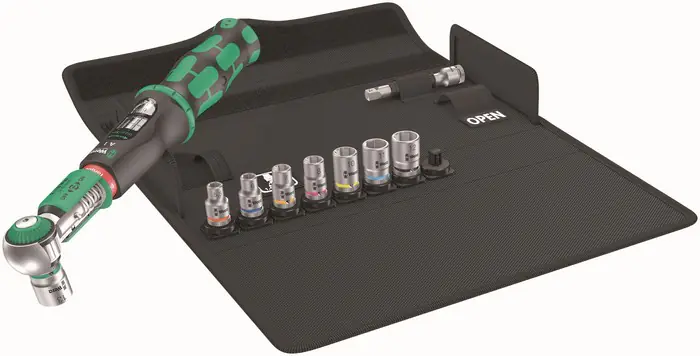

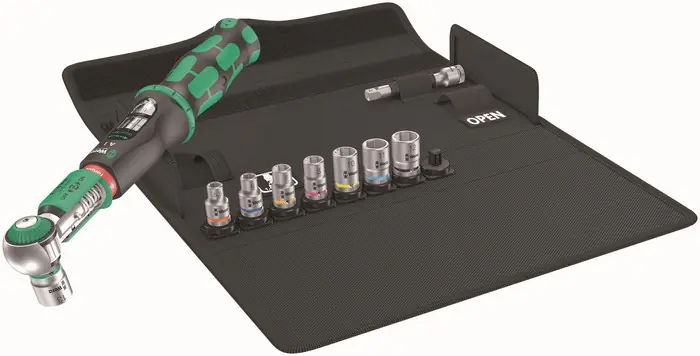

Kit Contents:

Torque wrench Safe-Torque A 1 with 1/4" square carrier, 2-12 Nm, 1/4" x 2-12 Nm
05075800001 1x 1/4" x 2-12 Nm
8790 HMA Zyklop socket wrench, 1", 5.5 x 23 mm
05003504001 1x 5.5 x 23 mm
05003505001 1x 6 x 23 mm
05003506001 1x 7 x 23 mm
05003507001 1x 8 x 23 mm
05003509001 1x 10 x 23 mm
05003510001 1x 11 x 23 mm
05003511001 1x 12 x 23 mm
05003512001 1x 13 x 23 mm
8794 SA Zyklop extension cord with swivel sleeve, short, 1/4", 1/4" x 75 mm
05003525001 1x 1/4" x 75 mm

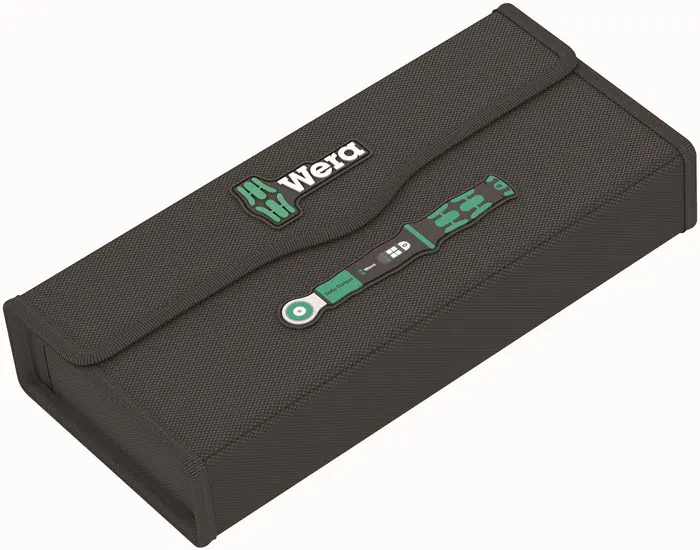

Velcro set 240, 50 x 240 mm
1x 50 x 240 mm

**
