Torque wrench, electromechanical 714R/1 STAHLWILLE

PLN 5,568.50
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
STAHLWILLE
Product code:
714R/ 1 / 4018754212712

Specification

Quadcopter:9 x 12 mm
Scale range in (lbf) max.:7,5 lbf·ft
Scale range in (lbf) min.:0,7 lbf·ft
Scale range in (nm) max.:1 N·m
Scale range in (nm) min.:10 N·m
Trigger accuracy:± 1 %
Two-way ratchet:1/4 inch

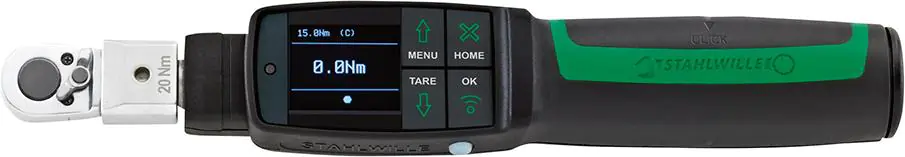

Electromechanical torque wrench MANOSKOP® 714R

Design: Torque wrench for measuring torque/rotation angle, ergonomic design with multi-component plastic handle. With micro USB port for programming torque wrench for torque/angle measurement and documentation of torque data using laptop and PC. Torque set using multifunction buttons. The ability to switch N·m, ft·lb, in·lb, is presented on a high-contrast color OLED screen. For controlled tightening to the right and left and to the angle of rotation. Rotational angle range summed 0° to 999°. Quadruple indication of tightening course with acoustic signal (buzzer), vibrations , current digital indicator and clearly visible LED display from all sides , with traffic light function. Menu locking function to protect against unauthorized change of setting values. 4 measurement modes: torque, rotation angle, torque with control quantity, rotation angle and rotation angle with control quantity in the form of torque. Possibility to program sets of parameters and procedure plans (25 each). Delivery with two-way ratchet with SENSOMASTER Basic software, USB cable, 4 batteries (AAA/LR03, 1.5 V) and 2 test certificates (torque and angle of rotation).
Application: for highly accurate torque/rotation bolted connections for which there is a requirement for high accuracy or documentation obligations, e.g. for engine components, in particular cylinder head bolts, or in mechanical engineering with increased requirements, e.g. in robotics, etc.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
