Torque wrench 730NR/5FK STAHLWILLE

This product is not available
Availability:
expected delivery
Brand:
STAHLWILLE
Product code:
730NR / 5FK / 4018754229376

Specification

Delivery in:Plastic suitcase
Quadcopter:3/8 inch
Scale breakdown:5 N·m
Scale range in (lbf) max.:37 lbf·ft
Scale range in (lbf) min.:7 lbf·ft
Scale range in (nm) max.:50 N·m
Scale range in (nm) min.:10 N·m
Trigger accuracy:± 4 %

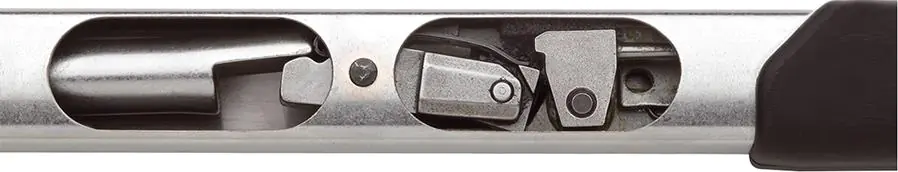

Torque wrench MANOSKOP® 730NR

Design: resistant and durable construction with steel tube body, with two-component plastic handle. Torque set at the end of the handle. Thanks to the integrated ratchet function, controlled tightening to the right and left is possible. An audible and felt signal of liberation. Reversing to 0 is redundant because the measuring element is only loaded during tightening. Further loading after triggering or loads directed in the opposite direction of action, e.g. when unscrewing sealed screws, do not affect the triggering mechanism, so it is protected from damage. Delivery in a suitcase, with a test certificate.
Application: for controlled tightening of bolts in the range of appropriate torques in all areas of industrial production.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
