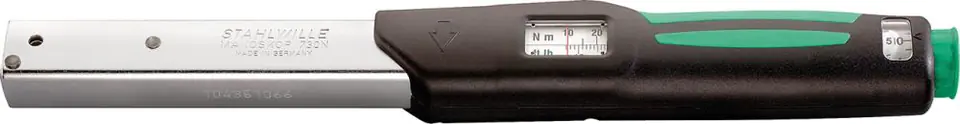

Torque wrench 730N/5 10-50Nm 9x12mm STAHLWILLE

€300.81
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
STAHLWILLE
Product code:
730N/5 / 4018754139514

Specification

Diameter:17.5 mm
Quadcopter:9 x 12 mm
Scale breakdown:5 N·m
Scale range in (lbf) max.:37 lbf·ft
Scale range in (lbf) min.:7 lbf·ft
Scale range in (nm) max.:50 N·m
Scale range in (nm) min.:10 N·m
Trigger accuracy:± 3 %

Torque wrench MANOSKOP® 730N

Design: very stable and resistant. Double scale for reading N·m and lbf·ft, scale window readout. With steel tube body, with 2-component plastic handle, head with attachment to plug-in tools. QuickRelease security lock ensures secure latching and quick replacement of plugged-in tools. For controlled right- and left-hand tightening. Retraction to 0 is superfluous, since the measuring element is loaded only during tightening, the bar bent instead of the spring. Clear, acoustic and perceptible trigger signal. Easy and convenient setting of the scale using the scale ring with precise adjustment, the possibility of justification without disassembly. Delivery with test certificate.
Application: for controlled tightening of bolts in the appropriate torque range in all areas of industrial production. Ideal for assembly work in hard-to-reach places.
