Torque wrench 730/20Q 40-200Nm 14x18mm STAHLWILLE

€330.60
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
STAHLWILLE
Product code:
730/20 QUICK / 4018754268870

Specification

Diameter:25 mm
Quadcopter:14 x 18 mm
Scale breakdown:5 N·m
Scale range in (lbf) max.:145 lbf·ft
Scale range in (lbf) min.:30 lbf·ft
Scale range in (nm) max.:40 N·m
Scale range in (nm) min.:200 N·m
Trigger accuracy:± 4 %

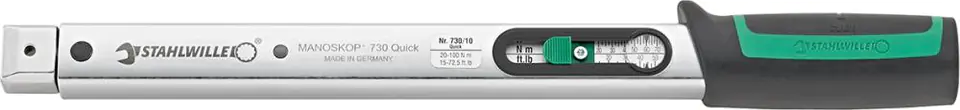

Torque wrench MANOSKOP® 730 Quick

Design: very stable and resistant. Scale for reading N · m or lbf · ft, reading in the scale window. With steel tube body, with 2-component plastic handle, head with attachment to plug-in tools. QuickRelease security lock ensures secure latching and quick replacement of plugged-in tools. For controlled right- and left-hand tightening. Retraction to 0 is superfluous, since the measuring element is loaded only during tightening, the bar bent instead of the spring. Clear acoustic and perceptible trigger signal. Easy and convenient setting of the scale using the adjustment slider, the possibility of justification without disassembly. Delivery with test certificate.
Application: for controlled tightening of bolts in the appropriate torque range in all areas of industrial production. Ideal for assembly work in hard-to-reach places.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
