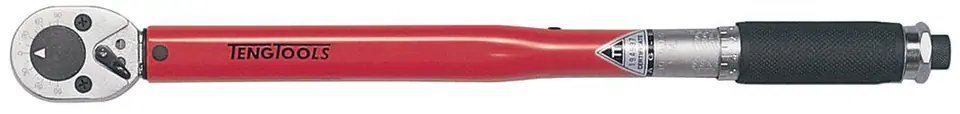

TORQUE WRENCH 3/4'' 140-980 NM

€734.62
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
UN
Product code:
73190407 / 5020385030985

Specification

Accuracy:+/- 4%
Direction of work:left, right
Item number:73190407
Length (mm):1,213.00
Minimum moment:140.00
Number of teeth (pcs):24
Package dimensions (mm):90x145x1330
Package quantity (pcs):1
Scope:140 - 980 Nm
Shank size:3/4"



Specifications:

- Teng Tools brand
- Length (mm) 1,213.00
- Number of teeth (pcs) 24
- Minimum moment 140.00
- Direction of work left, right
- Equipped with a built-in angle indicator for easy tightening
- Click torque wrench indicates reaching the required torque
- Additional reference scale ft.lb
- Marked to show the correct place where the emphasis should be applied
- Ratchet mechanism ensures that the set tightening torque is maintained
- 24-tooth ratchet mechanism (DIN3122) with right-left direction switched lever provides a 15° progress angle
- For screws with right and also with left thread
- Accuracy +/- 4% is in accordance with ISO6789 in terms of required accuracy
- Each torque wrench has its own individual certification number
- Supplied in a handy plastic box
- Grip size 3/4"
Range 140 - 980 Nm
- Accuracy +/- 4%
- Box dimensions (mm): 90x145x1330
- Package quantity (pcs) 1
- EAN code 5020385030985


With ratchet mechanism allowing both normal screwing/unscrewing and final control of the torque value. Operation in both directions (switchable by a lever), but control of torque values only when turning to the right. Equipped with an angular scale - for final tightening. Graduation in Nm and pound×foot. It has a setting protection. Accuracy ±4 %. Matt surface for better visibility of the torque value being set. Graduation for final tightening of e.g. engine head bolts. No. 1292AG-ER and 1292AG-E4R with torque control at both right and left rotations. Each key is accompanied by a calibration certificate.


**

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
