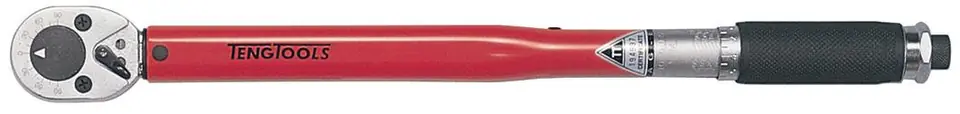

Torque wrench 3/4" 140-700 Nm Teng Tools

€636.57
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Teng Tools
Product code:
73190308 / 5020385030282

Specification

Accuracy:+/- 4%
Direction of work:left, right
Item number:73190308
Length (mm):1,065.00
Minimum moment:140.00
Number of teeth (pcs):24
Package dimensions (mm):145x90x1330
Package quantity (pcs):1
Scope:140 - 700 Nm
Shank size:3/4"

With ratchet mechanism allowing both normal screwing/unscrewing and final control of the torque value. Operation in both directions (switchable by a lever), but control of torque values only when turning to the right. Equipped with an angular scale - for final tightening. Graduation in Nm and pound×foot. It has a setting protection. Accuracy ±4 %. Matt surface for better visibility of the torque value being set. Graduation for final tightening of e.g. engine head bolts.

No. 1292AG-ER and 1292AG-E4R with torque control at both right and left rotations.

Each key is accompanied by a calibration certificate.

  • Equipped with a built-in angle indicator for easy tightening
  • Click-on torque wrench indicates that the required tightening torque has been reached
  • Additional reference scale ft.lb
  • Marked to show the correct place to apply pressure
  • The ratchet mechanism ensures that the set torque is maintained
  • 24-tooth ratchet mechanism (DIN3122) with right-left direction of operation switched lever provides a progress angle of 15°
  • For screws with right and also with left thread
  • Accuracy +/- 4% complies with ISO6789 in terms of required accuracy
  • Each torque wrench has its own individual certification number
  • Supplied in a handy plastic box
