Technical data:
Index Number YT-0751
UNIT PCA
Gross Weight (packaged) 0.8750
Master Carton MC 24
Pal 576
Length [mm] 281
BMC Packaging
Drive size [inch] 1/4"
Torque value [Nm] 2-10

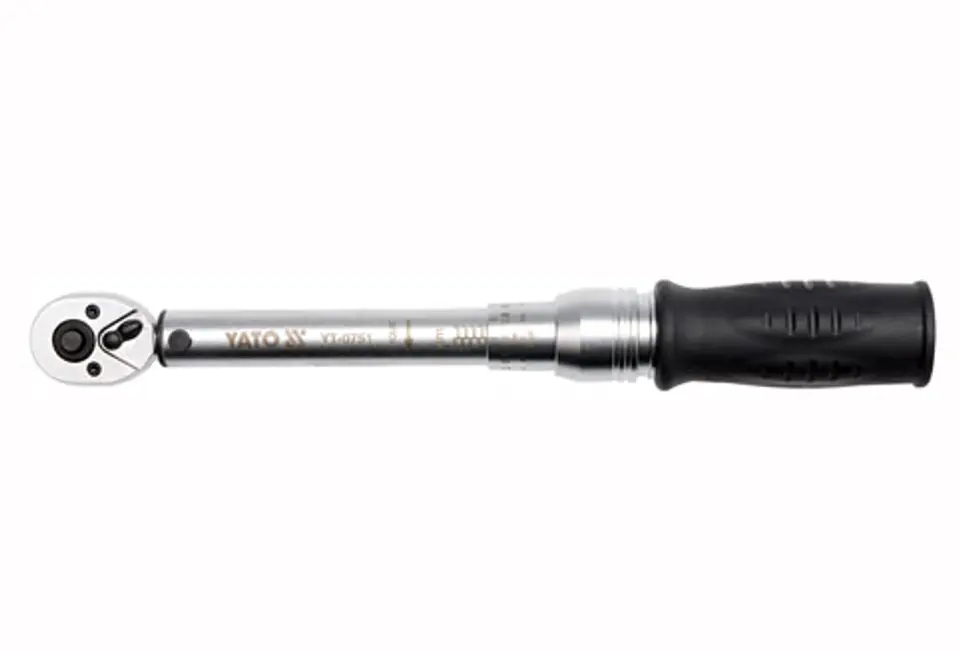

Product description
The wrench is made of chrome-vanadium steel, which ensures its durability and strength. It has a mechanical tension of a torque ratchet, which, after reaching the desired tightening force, jumps one clove, making a characteristic sound. The scale of moments is placed in the handle of the key, its adjustment takes place by its rotation. After setting the desired moment, lock the key with security at the end of the handle.
The key is GS certified.
Comparative comparison of moments in different units of length and force:
1 KGF*cm = 13,887 OZ*IN (ounce x inch)
1 kgf*cm = 0.867 LB*IN (lb x inch)
1 kG*m = 9.80665 N*m (Newton x meter)
1 kgf*m = 7,233 LB*FT (lb x foot)
1 FT*LB = 12 LB*IN (pound x inch)
1 dm*N = 14.16 OZ*IN (ounce x inch)
Purpose / Application
It is mainly used in automotive technology for precise fastening and wherever the manufacturer has specified the required torque for tightening the joint.
How to use
- Select the appropriate Nm or in-lbs scale. Unlock the micrometric knob.
- While holding the unlocked micrometric knob, rotate the wrench handle so that the "0" on the knob scale coincides with the vertical line on the wrench arm.
- Rotate the handle clockwise until the desired torque is set. The desired torque is set when the scale on the micrometric knob coincides with the vertical line on the wrench arm.
- Then you need to lock the micrometric knob, making sure that the lock "surprised" and it is impossible to rotate the handle, then set the appropriate direction of rotation of the rattle, after that the key is ready for use.
- A suitable cap should be put on the key holder. When tightening, the achievement of the set moment is indicated by clicking the key. If you hear or feel a click, stop tightening.
Contents
- torque wrench
- factory Calibration Certificate (Individual for each key, marked with the serial number of the key)
- instruction manual
- warranty card
- suitcase
