Product Description:

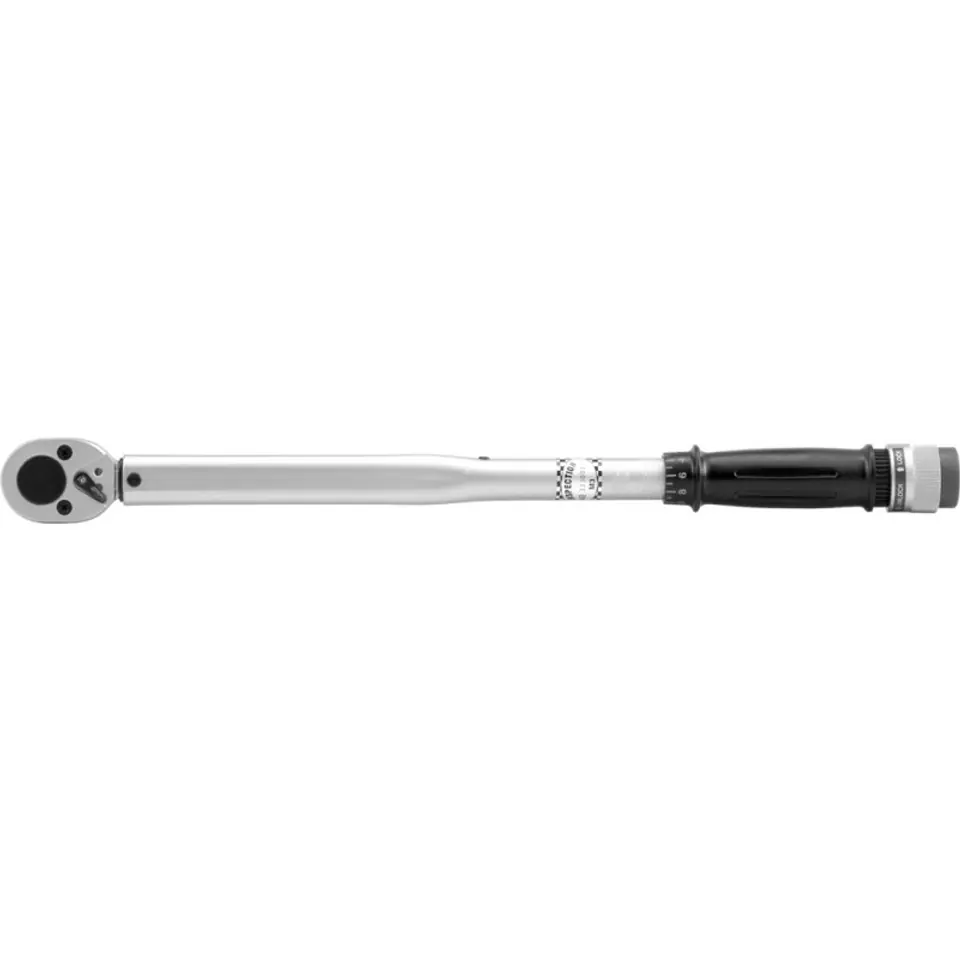

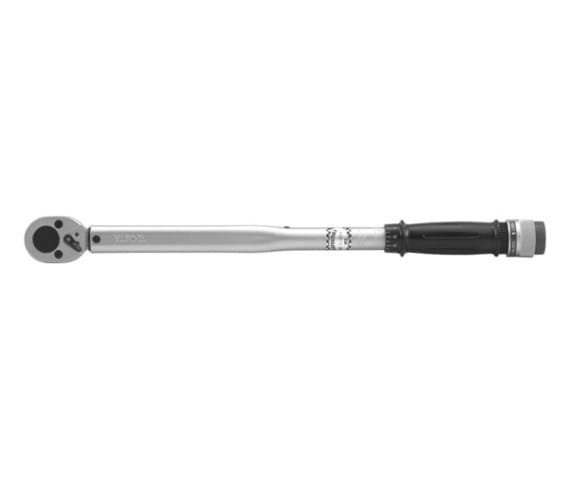

The wrench is made of chrome-vanadium steel, which ensures its durability and strength. It has a mechanical tension of a torque ratchet, which, after reaching the desired tightening force, jumps one clove, making a characteristic sound.

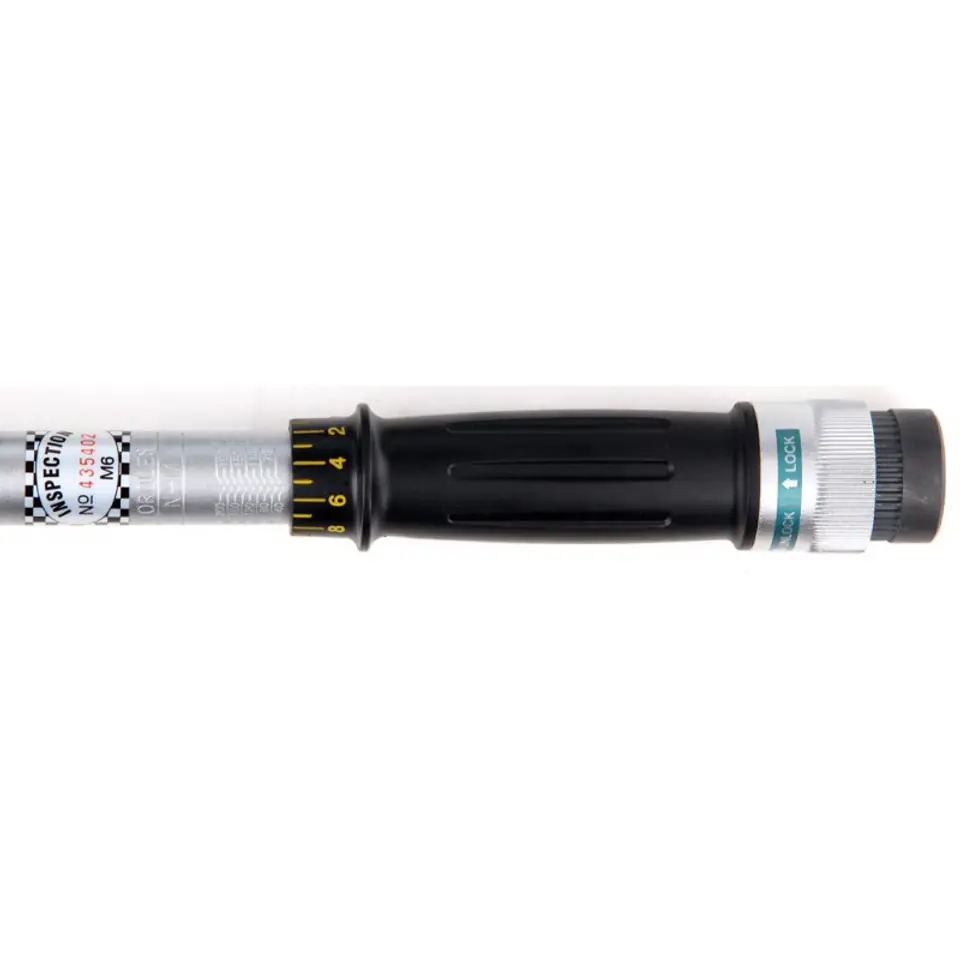

The scale of moments is placed in the handle of the key, its adjustment takes place by its rotation. After setting the desired moment, lock the key with security at the end of the handle.
The key is GS certified.
Comparative comparison of moments in different units of length and force:
1 KGF*cm = 13,887 OZ*IN (ounce x inch)
1 kgf*cm = 0.867 LB*IN (lb x inch)
1 kG*m = 9.80665 N*m (Newton x meter)
1 kgf*m = 7,233 LB*FT (lb x foot)
1 FT*LB = 12 LB*IN (pound x inch)
1 dm*N = 14.16 OZ*IN (ounce x inch)
Purpose / Application:
It is mainly used in automotive technology for precise fastening and wherever the manufacturer has specified the required torque for tightening the joint.
Directions for use:
- Select the appropriate Nm or in-lbs scale. Unlock the micrometric knob.
- Set the micrometric knob so that the "0" on the knob scale coincides with the vertical line on the wrench arm.
- Micrometric knob rotate clockwise until the desired torque is set.
- The desired torque is set when the graduation on the micrometric knob coincides with the vertical line on the wrench arm.
- Then lock the micrometric knob and set the appropriate direction of rotation of the rattle, after which the key is ready for use.
- A suitable cap should be put on the key holder. When tightening, the achievement of the set moment is indicated by clicking the key. If you hear or feel a click, stop tightening.
Contents:
- torque wrench
- factory Calibration Certificate (Individual for each key, marked with the serial number of the key)
- instruction manual
- warranty card
- suitcase
Technical data:
- Gross Weight (kg) 2.2000
- Length [mm] 535
- Drive size [inch] 1/2"
- Torque value [Nm] 40-210
