Manufacturer no: 10060776

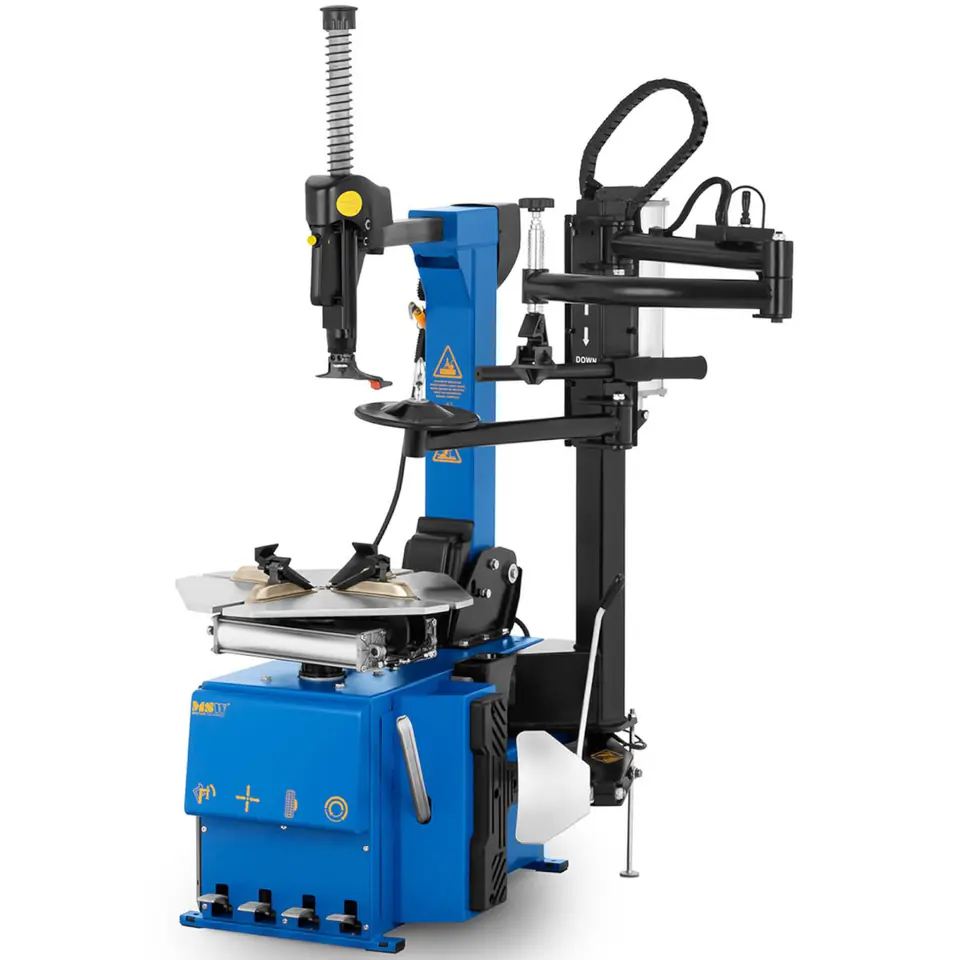

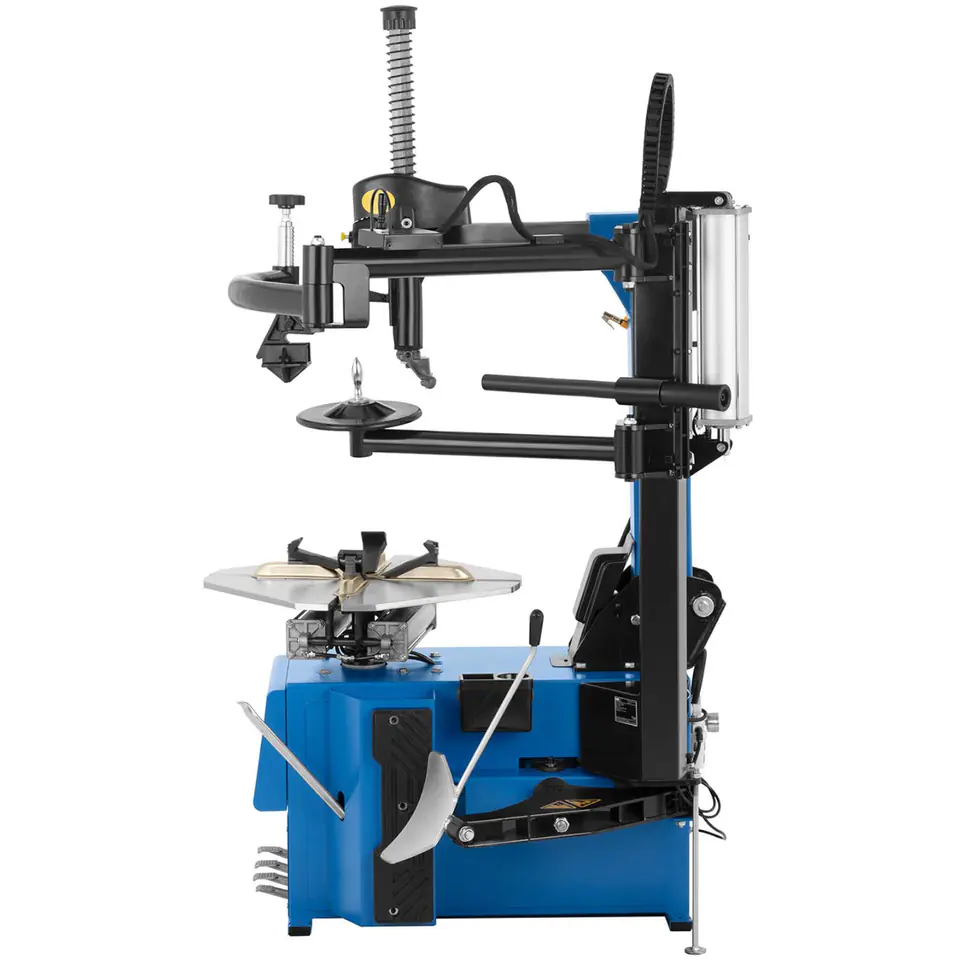

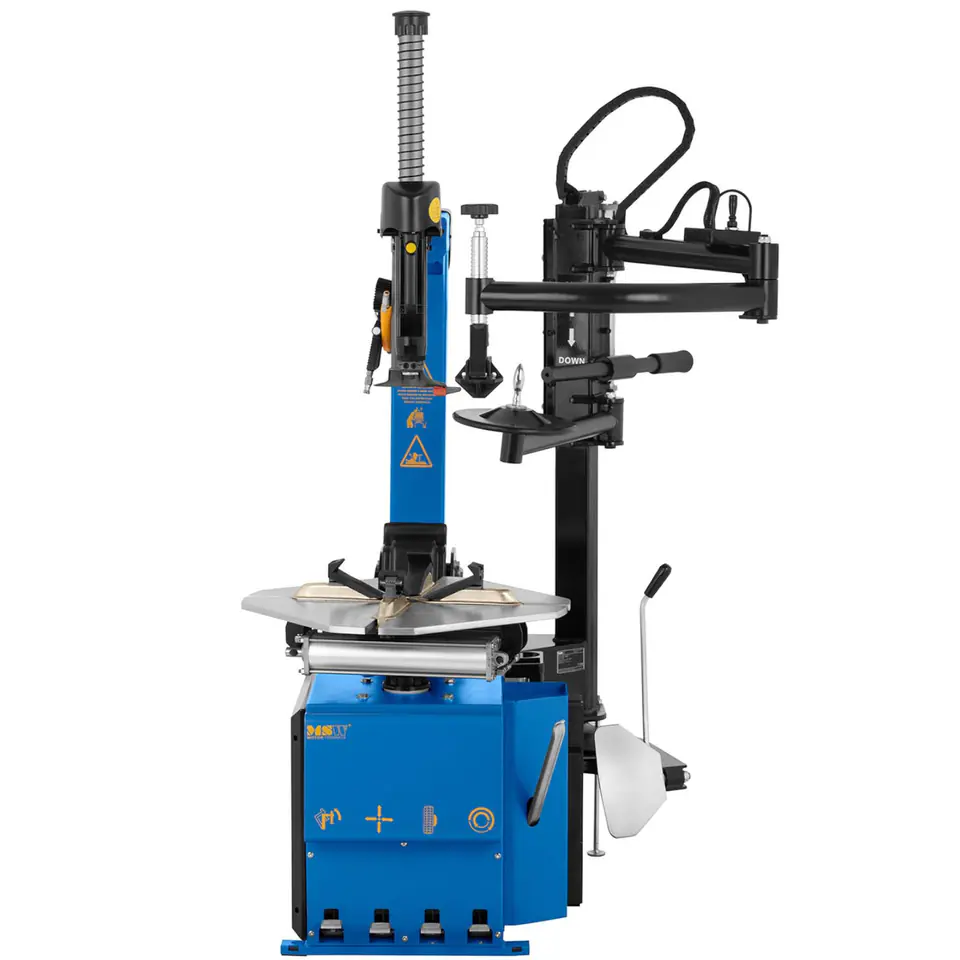

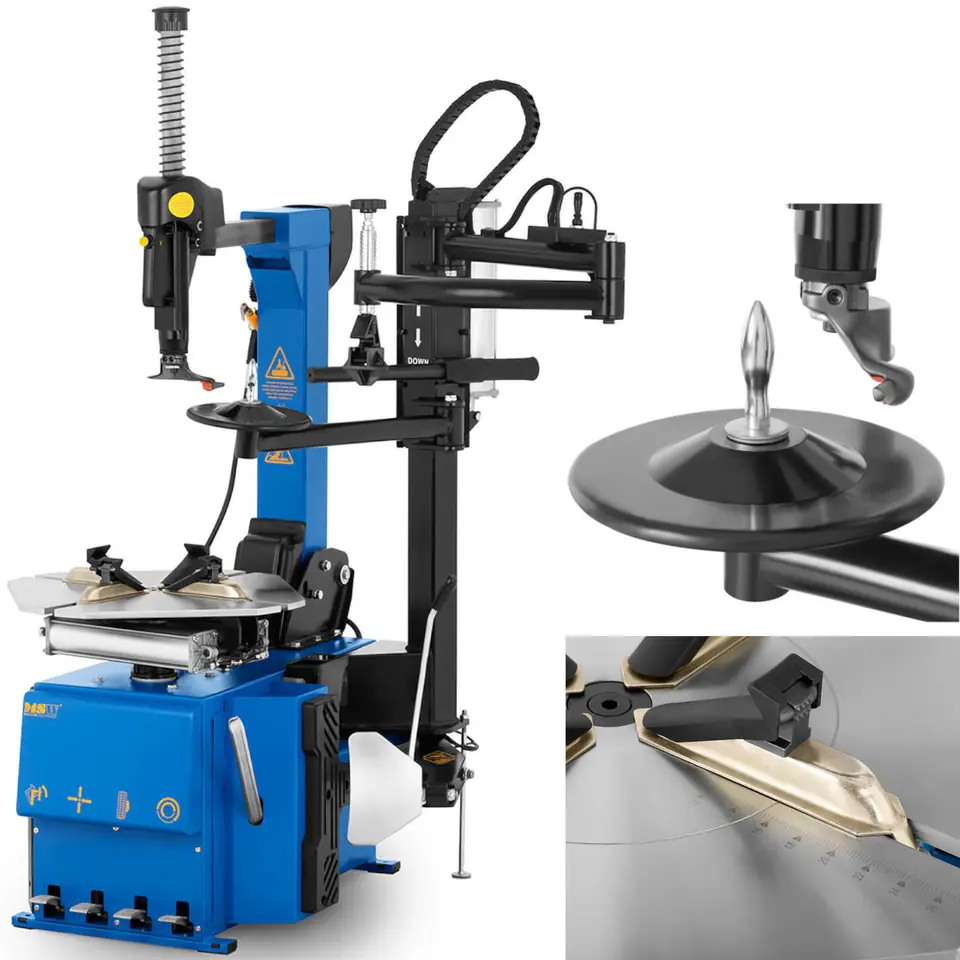

The tire mounting machine of the German brand MSW is perfect for workshops or car services. It will make it easier to remove and put on tires for trucks, cars and motorcycles.

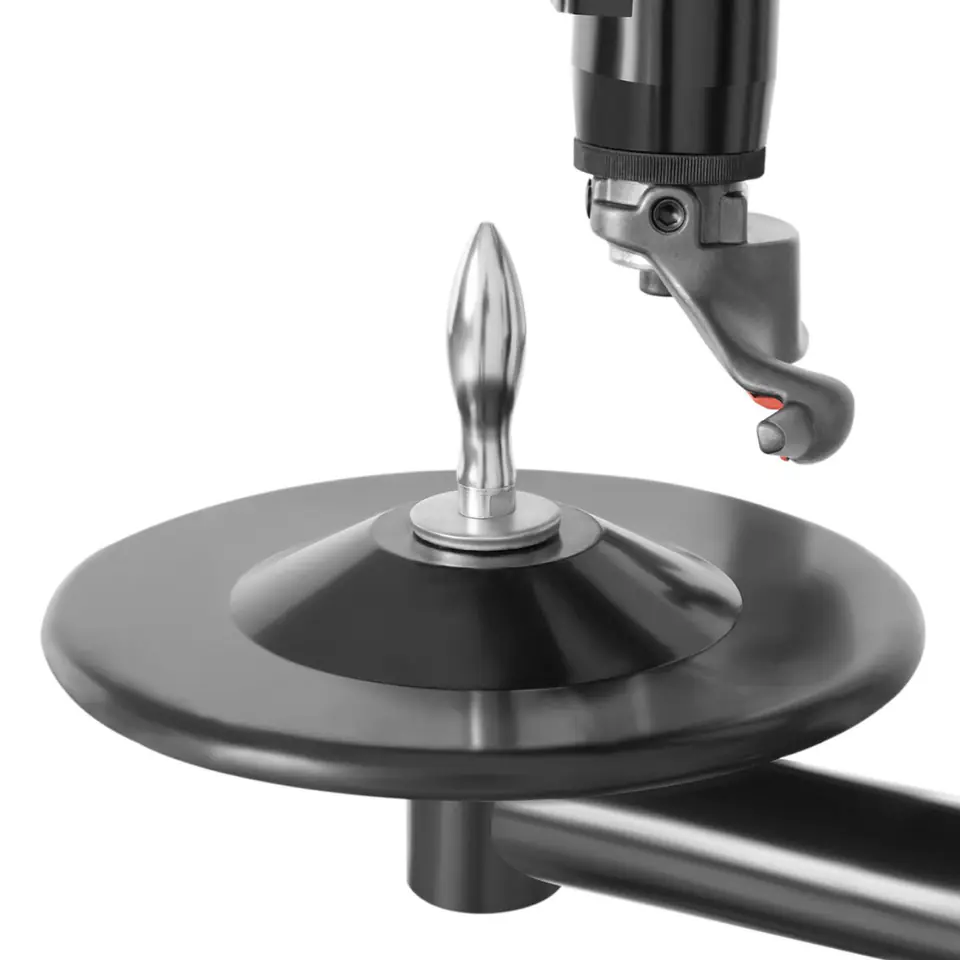

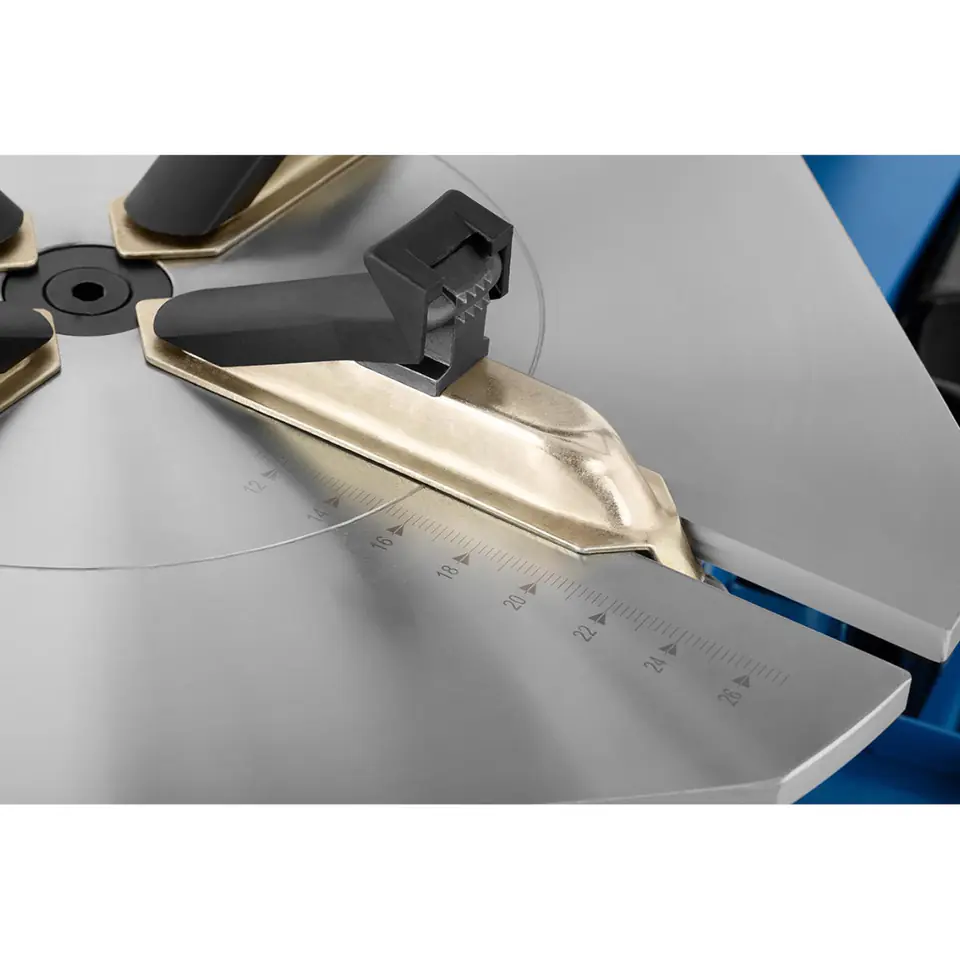

The device allows you to change tires on rims with a diameter of 12-24''. The mounting machine has a 4-jaw self-centering system that stabilizes the rim in the desired position. A 2500 kg compactor tears the tire away from the rim. The shape of the head and the overlay protect the rim from damage during disassembly. The device allows you to tilt the column forward or backward to make it easier to remove the punctured tire. Pedal operation leaves hands free. The working surface is 630 x 630 mm , which allows you to work comfortably with rims up to 24 inches in size. The ergonomic table rotates with a force of 1100 Nm, improving the assembly and disassembly of the tire. The device has a rubber cover that protects the rim and the machine from damage.
Product features:
- - Universality - replacement of tires of most passenger cars, vans,
- - Comfort of use - free hands thanks to the use of pedals,
- - Effectiveness - applied solutions for difficult cases, e.g. flat tires,
- - Completeness - the set includes, m.in, an air pistol with a pressure gauge for inflating wheels and additional auxiliary arms,
- - Safety - rubber guards prevent damage to both the machine and the rim.
- - Model - MSW-TC-1100HA
- - Catalog no. - 10060776
- - Article status - New
- - Maximum tire width - 310 mm
- - Working pressure - 8 - 10 bar
- - Input voltage - 230 V
- - Power - 1100 W
- - Sound intensity - 60 dB
- - Rim dimensions (internal locking) - 11 - 21
- - Wheel dimensions (external locking) - 12 - 25
- - Breaker force - 2500 kg
- - Power cord length - 2 m
- - Optional dual auxiliary arms - Yes
- - Tilting the column forward/backward (for punctured tires) - Yes
- - User Manual - Yes
- - Table torque - 1100 Nm
- - Maximum table speed - 9 rpm
- - Protection class - I
- - Degree of protection of electrical components - IP2X
- - User Manual - Yes
- - Dimensions (LxWxH) - 150 x 204 x 188 cm
- - Weight - 279 kg
- - Shipping dimensions (LxWxH) - 110 x 88 x 96 cm
- - Shipping weight - 320,5 kg
- - Tire mounter

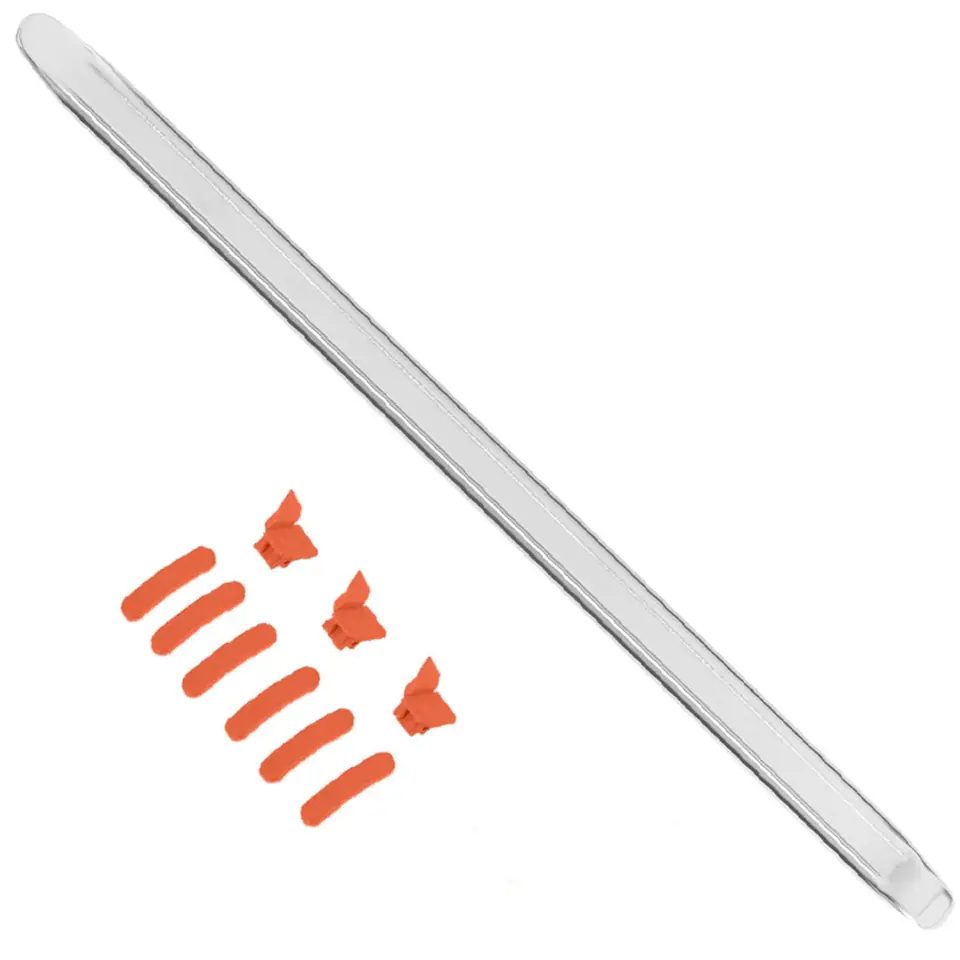

- - Arm (1100 x 870 x 940 mm)
- - Arm (1200 x 930 x 350 mm)
- - Plastic basket
- - Air hose
- - Air pistol with pressure gauge
- - Tire bucket
- - Plastic overlays for aluminum rims - 1 set.
