| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.025 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 x no/nc: | Egress: |
| 10 ... 16 vdc: | Power: |
| 10 a (max) @ 30 v dc / 50 v ac (max): | Contact load capacity: |
| 3 years: | Warranty: |
| 35 ma (max): | Current consumption: |
| 47 x 40 x 23 mm: | Dimensions: |
| Delta: | Manufacturer / Brand: |
| Time setting range1. range : 2 s ... 60 s ,2. range : 10 s ... 10 minutes led signaling: | Selected features: |

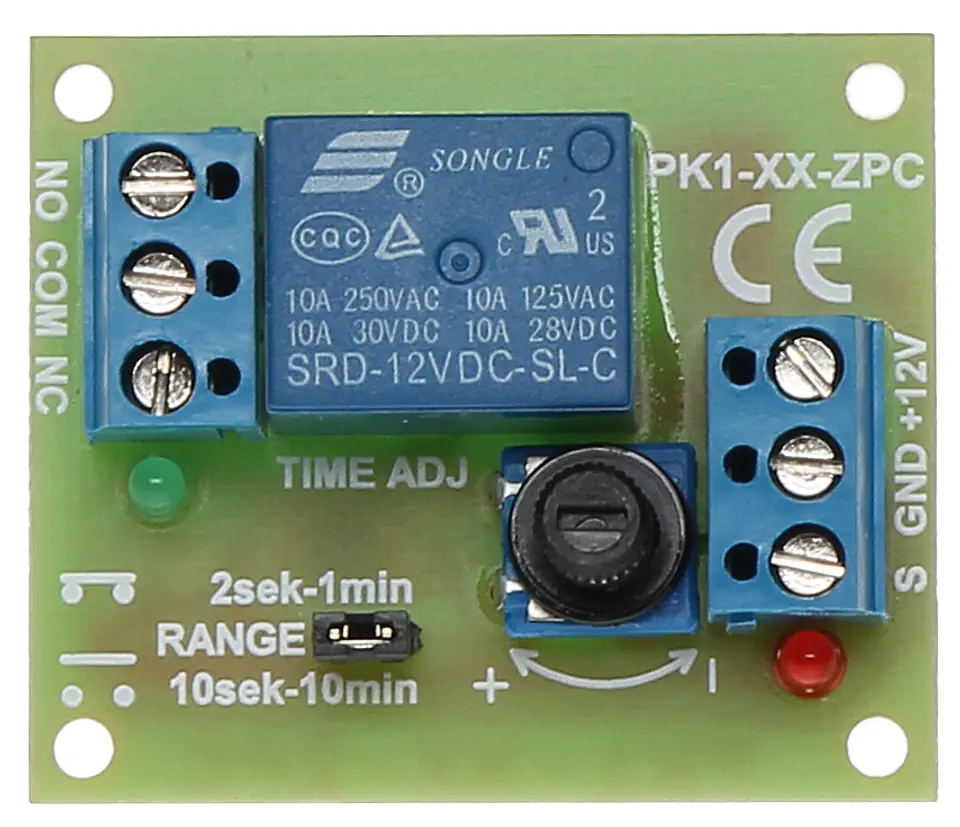

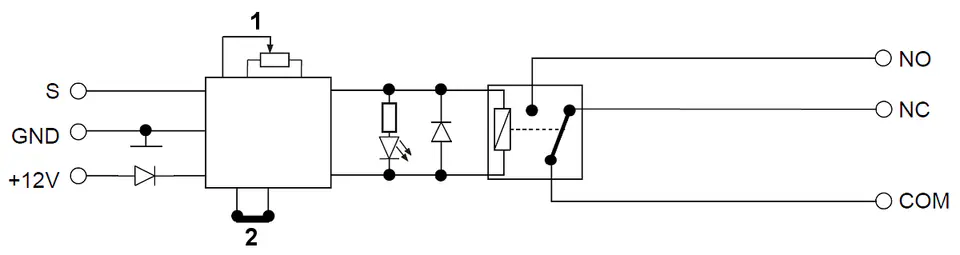

PK1-12-ZPC allows you to extend a short trigger pulse by the time set by a potentiometer
The device can be used to extend short pulses controlling e.g. the operation of bolts, solenoid valves, bistable control, as well as to make a transition in access control projects, with logical dependencies on the status: controller, door opening sensor (reed switch), output button, etc.
