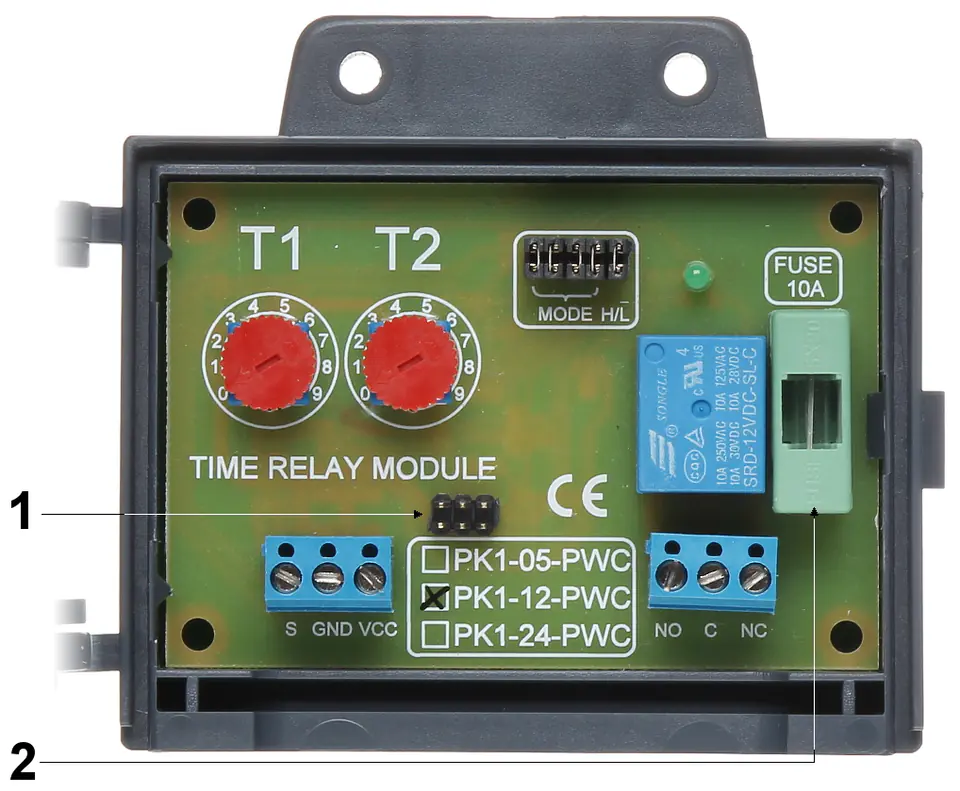

The PK1-12-PWC time relay has 8 modes of operationThe operation of the device may depend on the power supply itself, or on the signal at the control input The control input can react to an increasing or falling slope, to a high or low state depending on the setting of the jumper H / LThe device has 2 time ranges: 230 ms ... 60 s and 2 s ... 10 min
TIMER MODULE PK1-12-PWC
€27.29
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PK1-12-PWC / 5902887031397
Share this product:
Specification
| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| 0.092 kg: | Scales: |
| 1: | Number of relay outputs: |
| 1 x no/nc: | Egress: |
| 10 ... 16 vdc: | Power: |
| 10 a (max) @ 30 v dc / 50 v ac (max): | Contact load capacity: |
| 120 x 91 x 36 mm: | Dimensions: |
| 3 years: | Warranty: |
| 35 ma (max): | Current consumption: |
| Delay of switching on the voltage delayed voltage shutdown cyclic operation - alternating switching on and off delayed shutdown without the possibility of extension delayed shutdown with the possibility of extension generation of pulse with extension triggered by slope bistable operation controlled by control input s cyclic operation with adjustable pulse filling: | Operating modes: |
| Delta: | Manufacturer / Brand: |
| Time setting range1. range : 0.23 s ... 60 s ,2. range : 2 s ... 10 minutes led signaling fuse fuse 10 a: | Selected features: |
