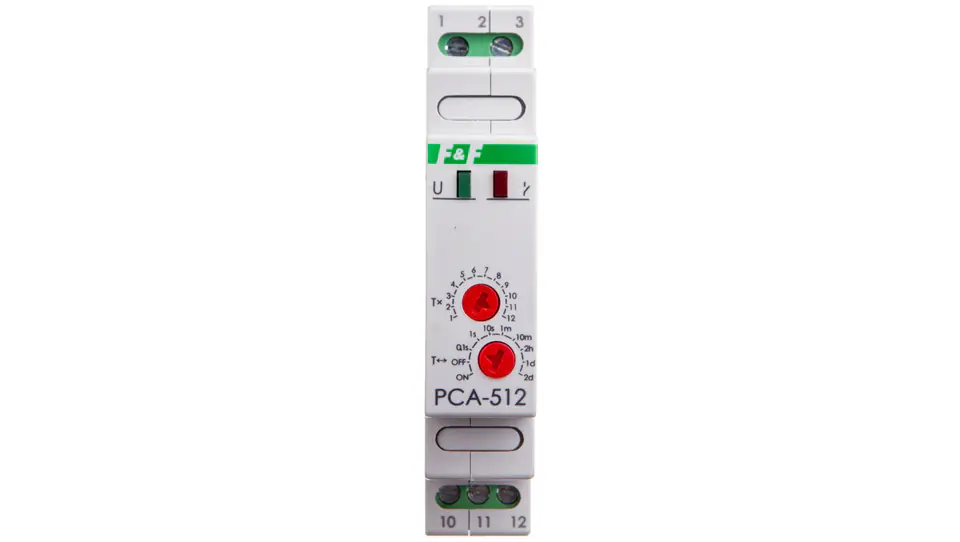

Timer 1P 10A 0,1sek-576h 24V AC/DC delayed shutdown PCA-512-24V
€27.94
Shipping from warehouse: T2
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- F&F
- Product code:
- PCA-512-24V / 5908312595571
Share this product:
Specification
| Auxiliary contact block mounted on the contactor: | No |
|---|---|
| Delayed shutdown function: | Yes |
| Delayed switching function: | No |
| Depth [mm]: | 65 |
| Ean: | 5908312595571 |
| Exits, reversible delayed/immediate: | No |
| Falling slope clock function, adjustable time: | No |
| Flicker function, descending slope switching, fixed time: | No |
| Flicker function, rising slope switching, fixed time: | No |
| Height [mm]: | 90 |
| Number of immediate outputs, nc contact: | 0 |
| Number of immediate outputs, no contact: | 0 |
| Number of immediate outputs, switching contact: | 0 |
| Number of time-lag outputs, nc contact: | 0 |
| Number of time-lag outputs, no contact: | 0 |
| Number of time-lag outputs, switching contact: | 1 |
| Only suitable for remote control systems: | No |
| Possibility of remote control: | No |
| Pulse forming function: | No |
| Pulse shutdown function: | No |
| Pulse switching function: | No |
| Rated control voltage us for ac 50 hz [v] from: | 24 |
| Rated control voltage us for dc [v] from: | 24 |
| Rising slope clock function, adjustable time: | No |
| Star-triangle function: | No |
| Time setting range [s] from: | 0,1 |
| Time setting range [s] to: | 86400 |
| Type of control voltage: | AC |
| Type of electrical connection: | Screw connection |
| Width [mm]: | 18 |
| With plug socket: | No |
| With semiconductor output: | No |
