TILTING GATE APTI-BG-1G

€769.17
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ATLO
Product code:
APTI-BG-1G / 5902887065187

Specification

Allowable uninterrupted operation time:Unlimited
Control operating voltage:12 volts DC
Dimensions:1200 x 186 x 985 mm (one module)
Dimensions of one gate wing:Width : 375 mm Height : 540 mm
Drive operating voltage:24 volts DC
Gateway throughput:.max. 35 people/min
Passage width:760 ... 780 mm
Power:230 VAC
Producer / brand:ATLO
Sash closing time:0.5 ... 1 sec
Sash opening time:0.5 ... 1 sec
Scales:29.1 kg (module 1)27.8 kg (module 2)56.9 kg (total)
Selected features:Possibility of gate operation in one or both directions Leaving the passage open after a power outage Possibility of voltage control or via RS-485 interface Protection against trapping a passer-by (4 photocells + force protection) Housing made of stainless steel The gate wings and additional shutters are made of acrylic glass (plexiglas) Dedicated places for mounting your own code locks or RFID readers
Voltage control:NO/NC
Warranty:3 years

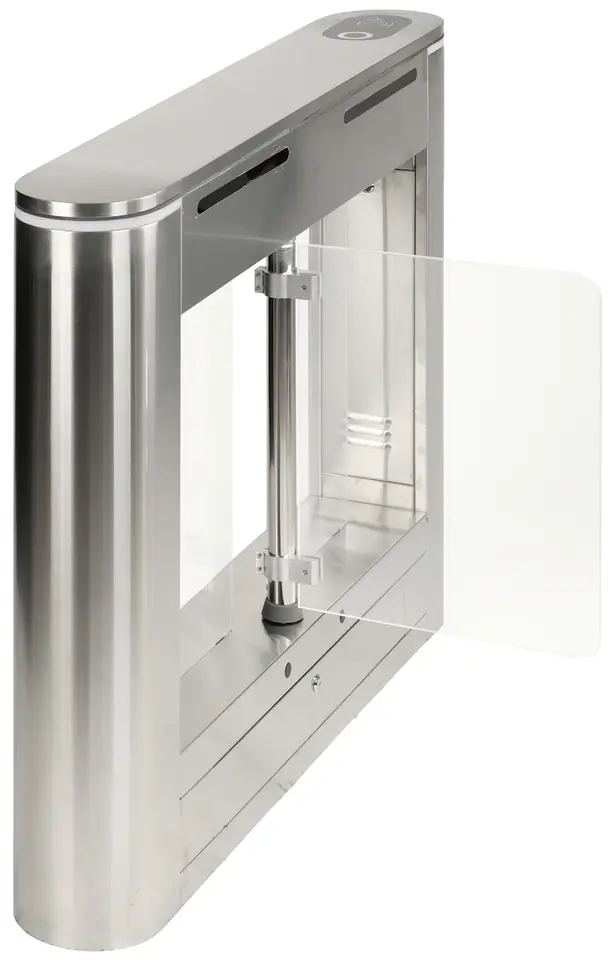

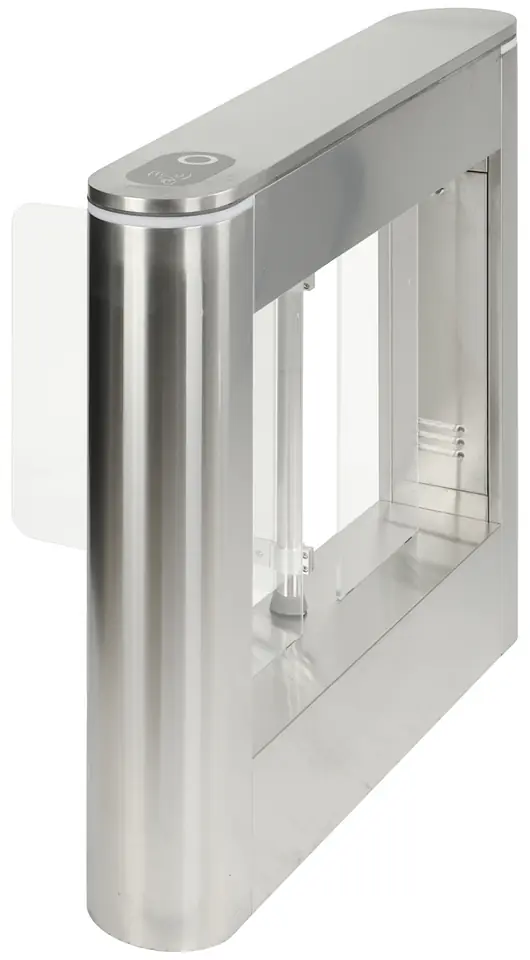

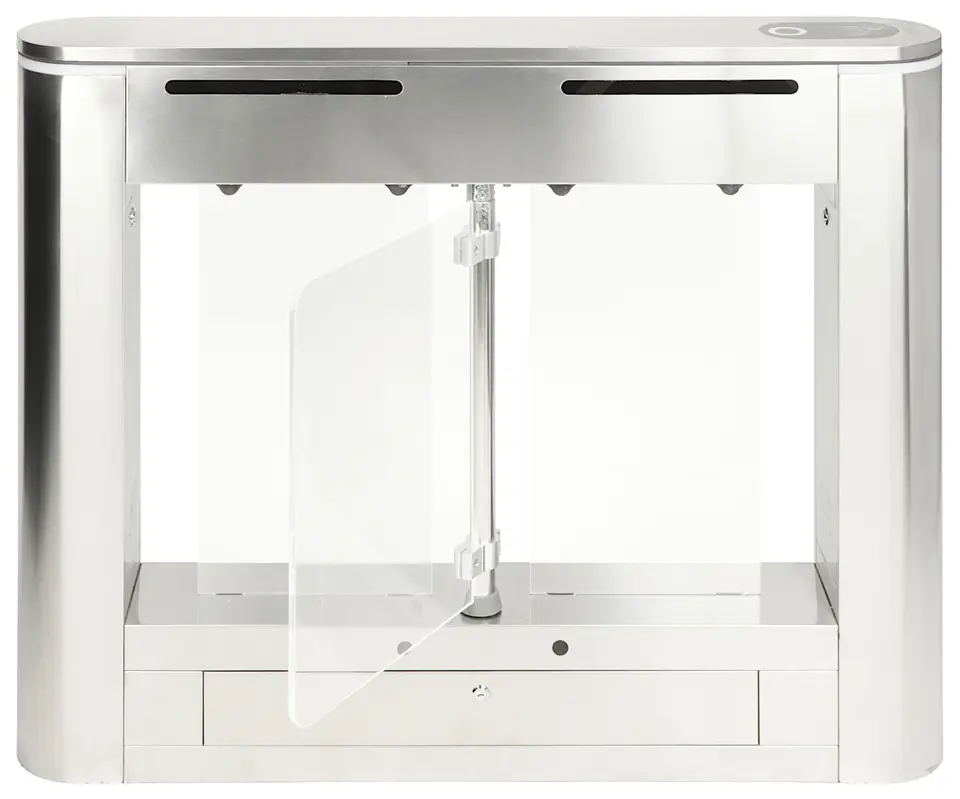

The APTI-BG-1G up-and-over gate is designed to work with access control systems in facilities requiring high throughput of passage, such as: airports, metro stations, exhibition halls, concert halls, swimming pools, sports halls, etc. The device allows you to check and let through approx. 35 people per minuteBoth one-sided and two-way control of the passage is possibleIn addition, the power outage leaves the gate open to facilitate the evacuation of people from the facility

The gate has been equipped with a system of protection against trapping a person based on photocells placed in the housing and an additional resistance detection mechanism when closing the door

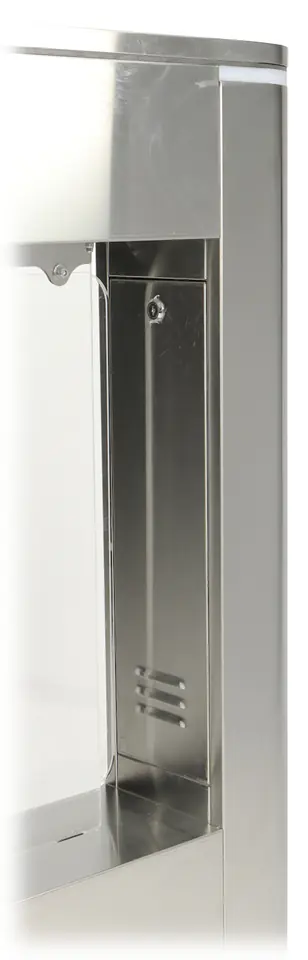

Remark! The gateway does not have RFID card readers, it is only an executive elementRFID card readers and code locks with a reader are available separately, after purchase, they should be mounted in dedicated places of the device housing and configure the system

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
