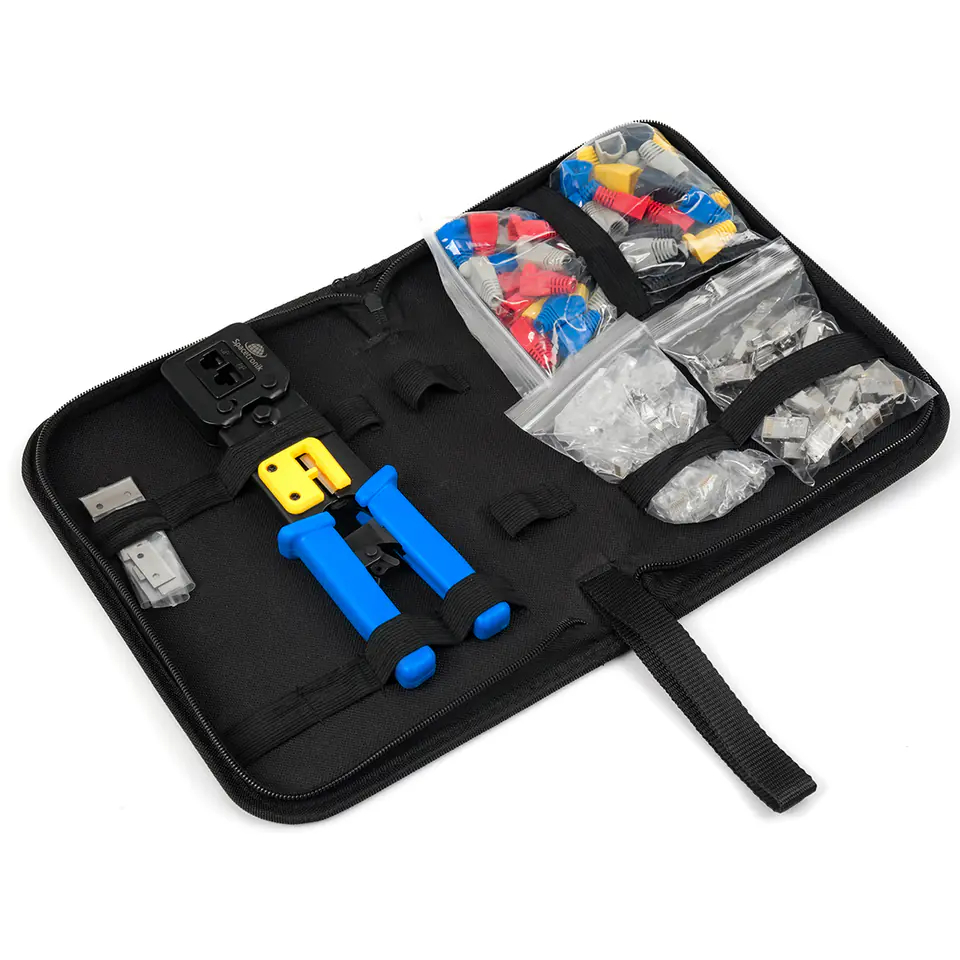

Crimping kit for through-plugs consisting of crimping machine and RJ45 plugs
A complete set that allows you to process ICT and telecommunications cables. Kit contents:
- Spacetronik PT-CT01 crimping machine with 5 interchangeable blades
- 25 RJ45 CAT6 UTP Pass Through plugs
- 25 RJ45 CAT5e UTP Pass Through plugs
- 50 RJ45 plug covers (color mix)
The high-quality Spacetronik PT-CT01 tool for crimping RJ pass-through plugs is an indispensable tool for every installer who has contact with ICT and telecommunications networks on a daily basis. A tool designed for crimping, cutting and removing insulation from telephone cables. The crimping machine has the ability to earn RJ 11/12 (6-pole) and RJ 45 (8-pole) plugs. In addition, an insulation stripper has been built into the tool. Thanks to a special ratchet mechanism, insufficient pressure of the connectors has been prevented. The device, thanks to its simplicity and multifunctionality, will meet the expectations of amateurs, professional fitters and professionals.

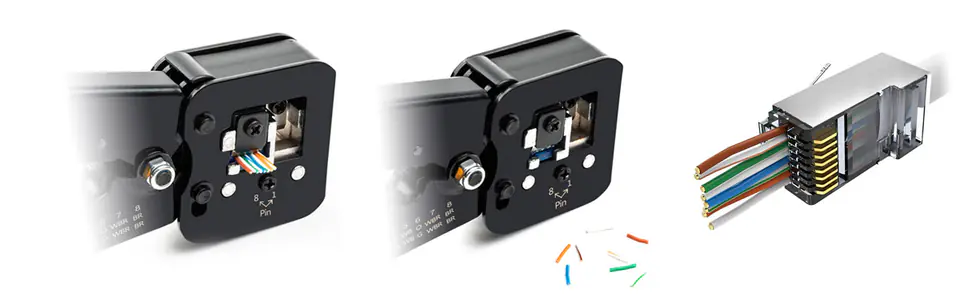

- Remove insulation from the cable
- Arrange the cables properly as you want to earn the tip
- Insert the wires into the RJ through terminal
- Place the RJ tip with cable in the device and tighten
- Crimping tools can be used for various applications:
- Maintenance and repair
- ICT and telecommunications installations
- Cable assemblies
- Crimping, cutting and removing insulation from cables
- 6 and 8-pin through terminal sockets
- Accurate clamping process due to parallel crimping
- Effective, high quality crimping
- Length and cutting blade for ribbon cables 6 and 12 mm long

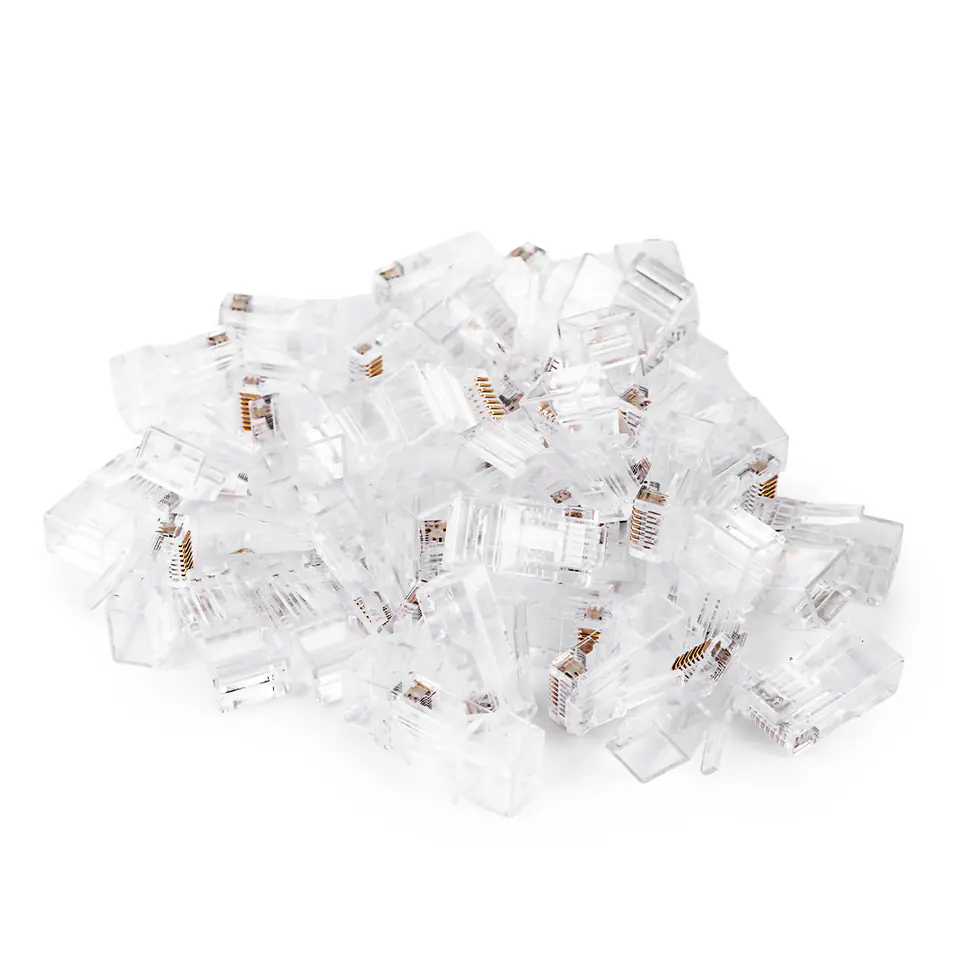

- Manufacturer: Spacetronik
- Type: RJ45 through plug (8P8C)
- Category 6
- Shielding: No (UTP)
- Compatible crimping machines: PT-CT01, PT-CT02
- Color: transparent
- Set of 25 pcs.
- For veins 26-23 AWG
- gold-plated contacts made of pure copper (3-5u gold)
- for both types of cables
- to the wire and to the cord
- holes in one row (hole 1.1 mm)

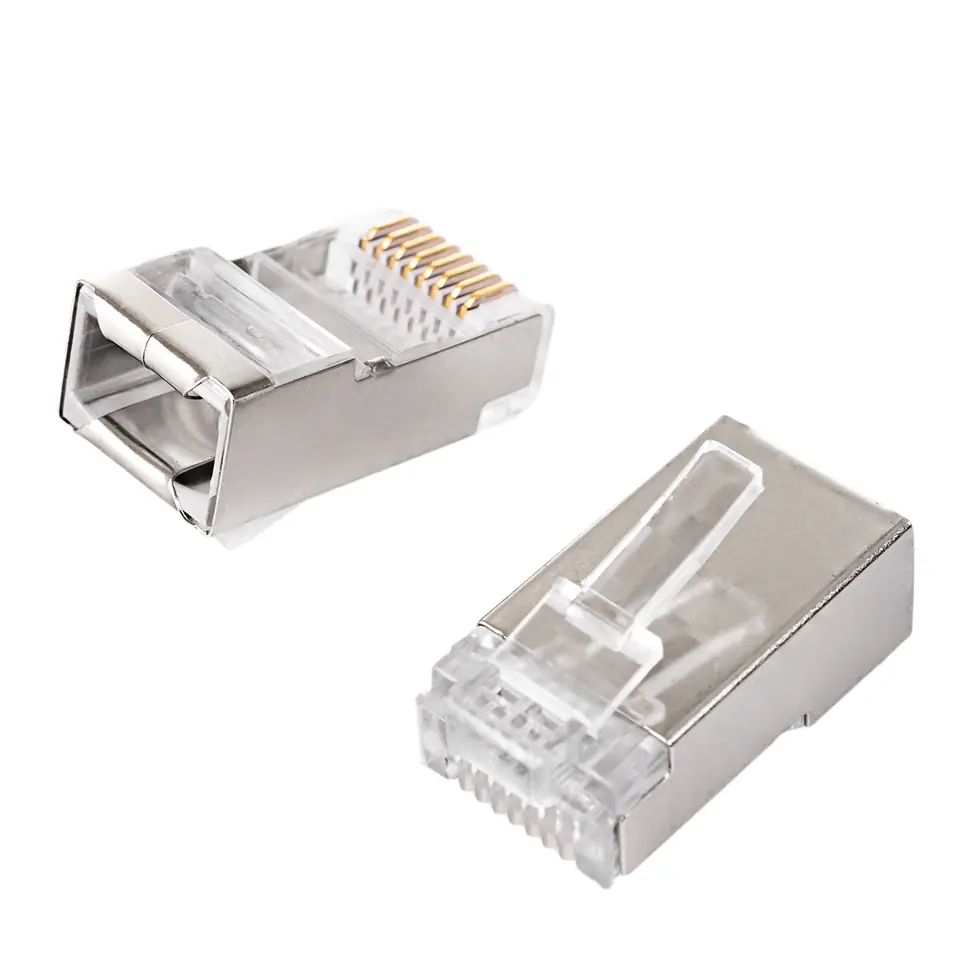

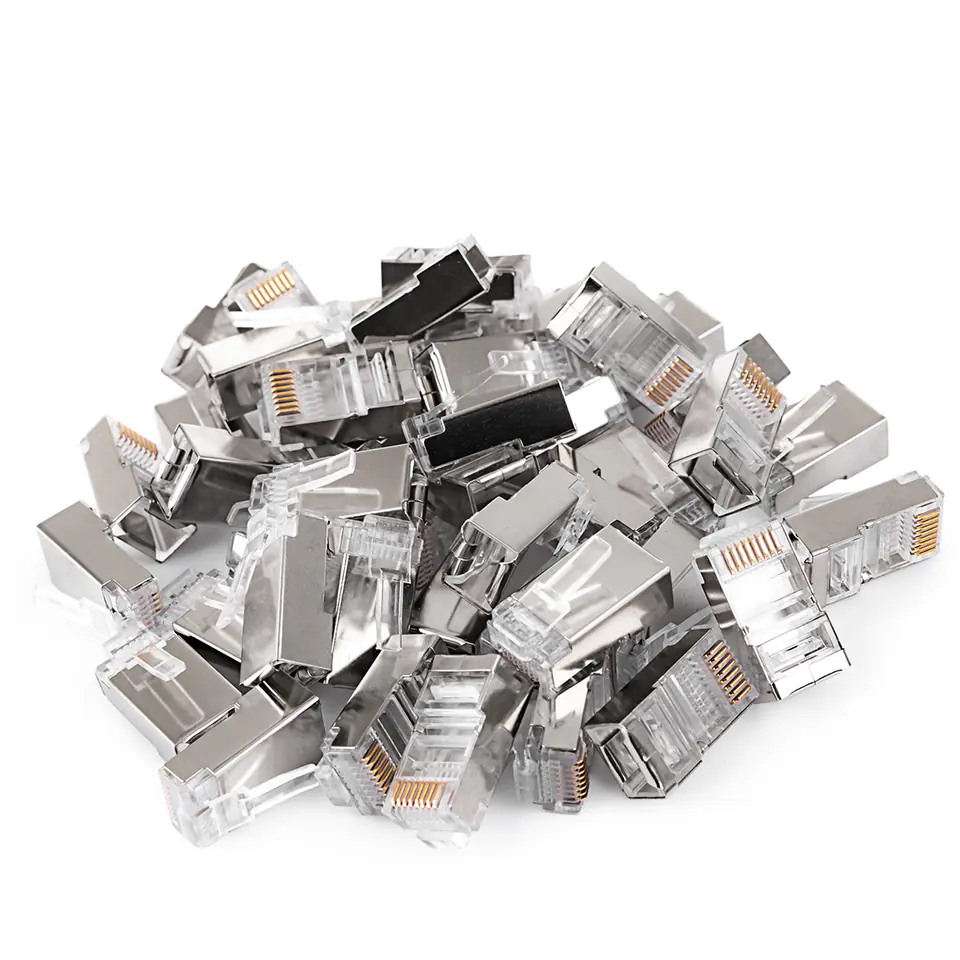

- Manufacturer: Spacetronik
- Type: RJ45 through plug (8P8C)
- Category 5E
- Shielding: Yes (FTP)
- Housing: metal
- Compatible crimping machines: PT-CT01, PT-CT02
- Color: transparent
- Set of 25 pcs.
- For veins 26-23 AWG
- gold-plated contacts made of pure copper (3-5u gold)
- for both types of cables
- to the wire and to the cord
- holes in one row (hole 1.0 mm)

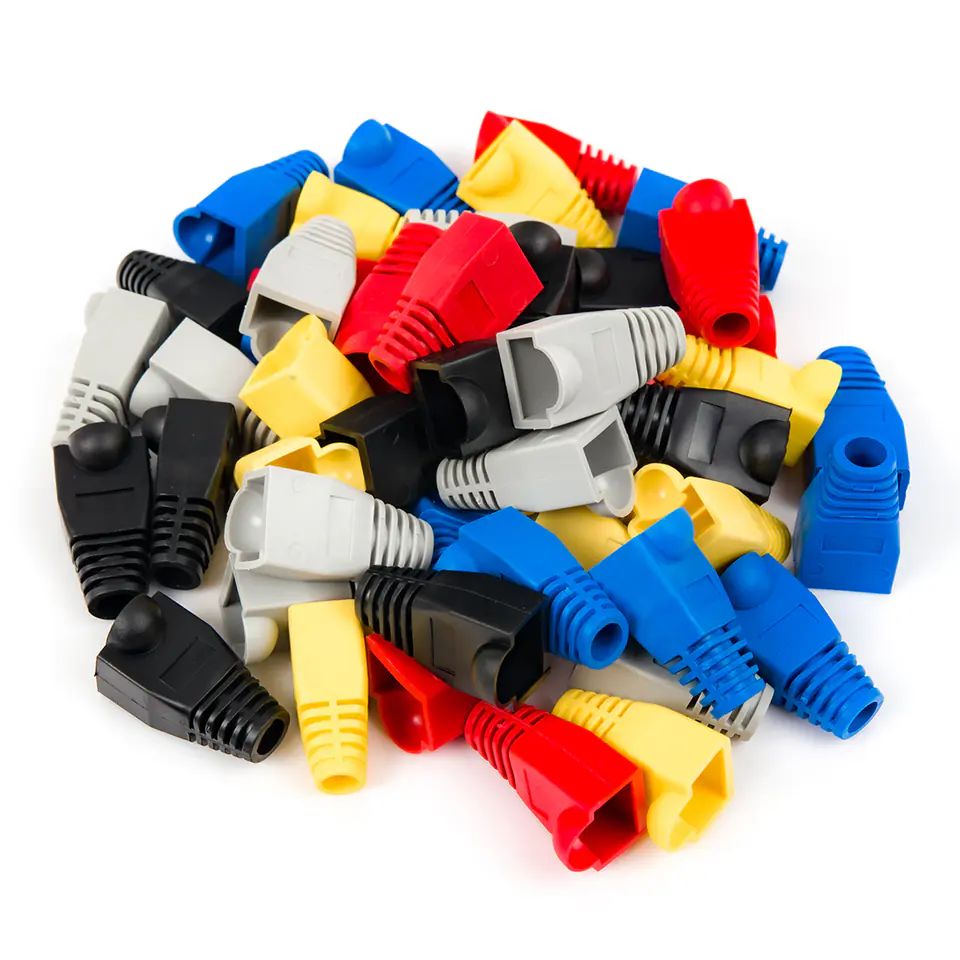

The high-quality cover made of flexible plastic allows for an aesthetic termination of the LAN cable. The use of casings in different colors will allow for faster identification of individual wires within one installation. In addition, it is designed to protect the cable from dust, moisture and the clip from breaking. After clamping the plugs on both sides of the cable, it is not possible to remove the cover. The flexibility of the cover makes it suitable for various UTP, FTP, STP cables, etc.
- designed for RJ45 plugs
- fits round cables up to 6 mm in diameter
- protects the cable from dust and moisture
- protects the clip against unwanted breakage
- in a package of 50 pcs.
- color mix
