V-COIL rapid thread repair kit
Drilling: drill the damaged thread with a V-COIL rapid twist drill.
Check: check that the tap and threaded pins match in thread and stroke.
Thread: use a special V-COIL tap to cut the thread into the drilled hole. It is recommended to use oil for machining.
Thread insert: put the insert on the tool and screw it in. Screw the insert in accordance with the thread coil under light pressure.
Pinch breakage: after insertion, unscrew the tool at the left rotation of the cordless drill and remove the collecting journal with the journal breaker.
Thanks to tight and accurate tolerances and the forming process, a thread is created at the end of these operations, which is often better and stronger than the original thread.
Application: thread reinforcement from materials with limited shear strength, e.g. aluminum and magnesium alloys, application in machine manufacturing, automotive, electrotechnical, medical and aerospace industries, repair of damaged or worn threads, reuse of defective product.

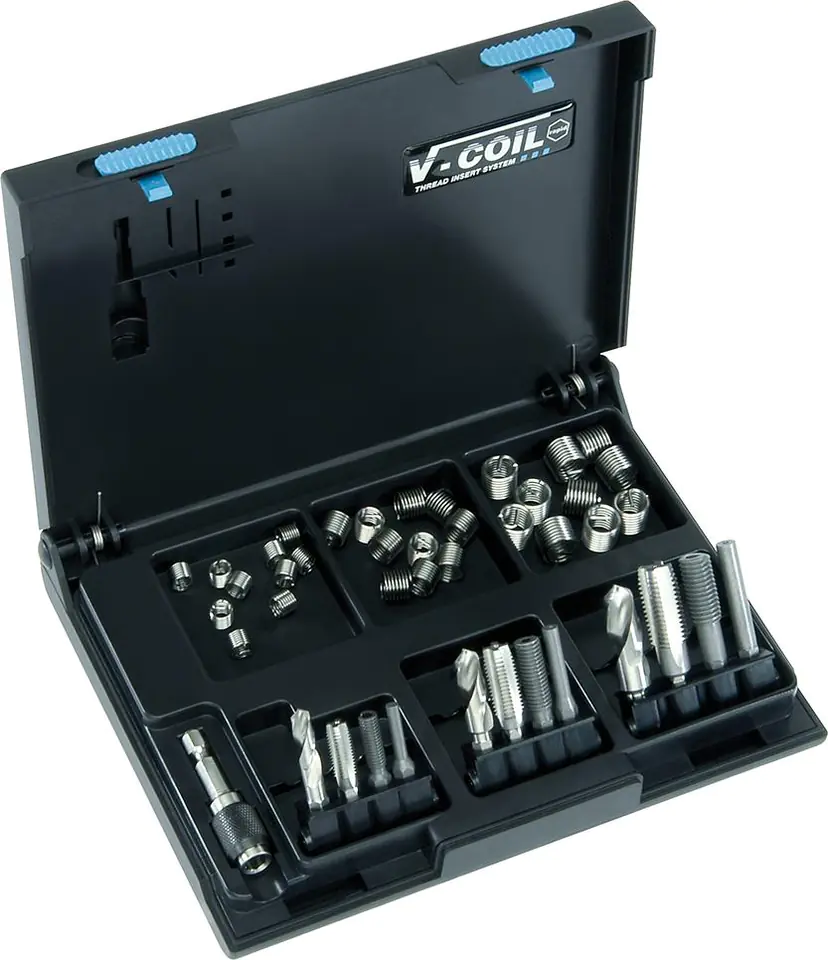

Supplied: in plastic cassette, tap, twist drill in thread hole dimensions, mounting tool, pivot breaker with 1/4" hexagon mount, universal chuck with quick-change holders and thread inserts (1.5 x D).
