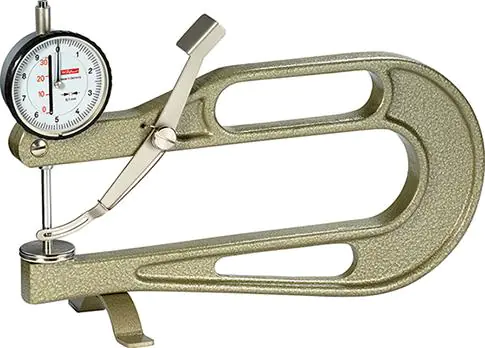

Thickness gauge K200, bail indentation depth200mm KÄFER

This product is not available
Availability:
expected delivery
Brand:
Käfer
Product code:
K200 / 4031452200065

Specification

Indentation depth:200 mm
Measuring range:0-30 mm
Ø dial gauge:58 mm
Ø of measuring surfaces:10.0 mm
Read:0.1 mm

Thickness gauge

Design: aluminum bail, zeroing with a rotating outer ring, with flat measuring tips. 1 turn of the pointer = 10 mm. Delivery in a plastic cassette.
Application: for measuring soft leather, cardboard, paper, film, etc.
Note: thickness gauges in different measuring ranges and with different notch depths and different measuring tips for other materials available on request.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
