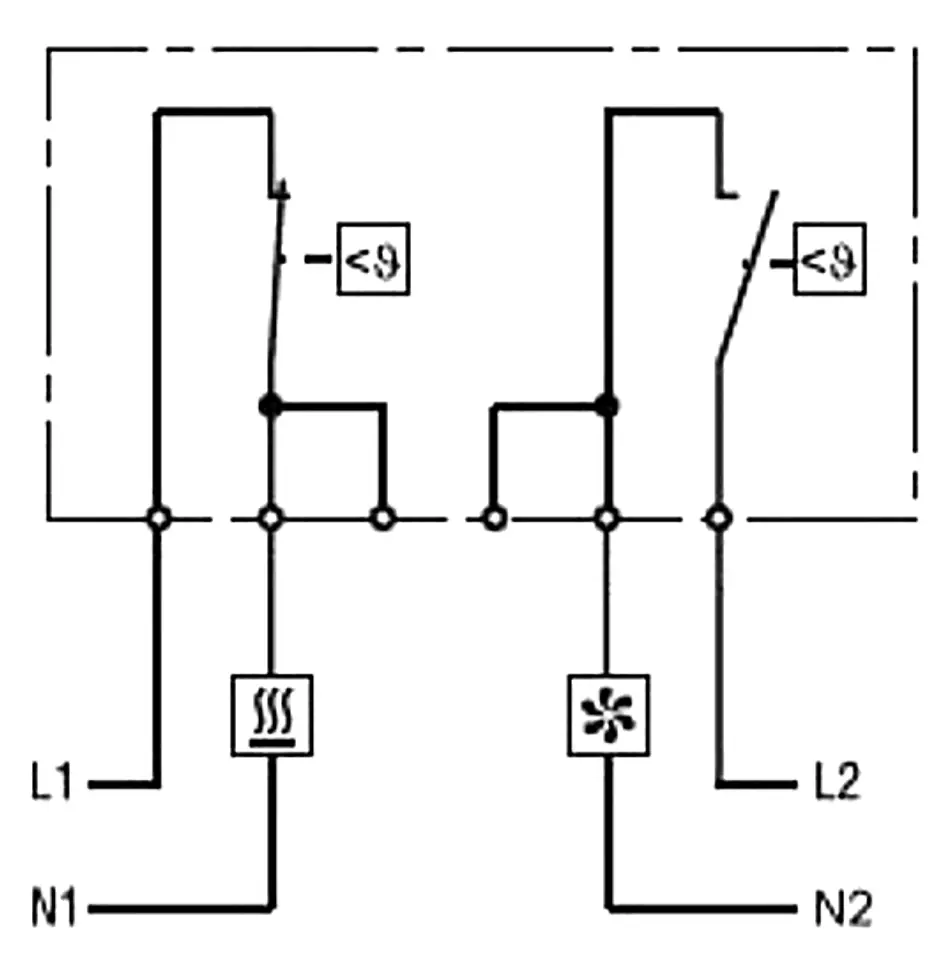

The ZR-011 dual thermostat has two independently controlled current paths
Track 1 is equipped with NCTor 2 contact and NO contact
THERMOSTAT ZR-011
€12.09
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- ZR-011 / 5902887012129
Share this product:
Specification
| Assembly:: | DIN rail TS-35 |
|---|---|
| Contact load capacity:: | 10 A |
| Contact type:: | 1 pc. NC - opener after exceeding the set temperature, 1 pc. NO - shorted after exceeding the set temperature Each of the contacts has its own temperature setting |
| Dimensions:: | 65 x 50 x 46 mm |
| Hysteresis:: | 7 °C ± 4 °C |
| Maximum supply voltage:: | 250 V AC |
| Operating temperature:: | -20 °C ... 80 °C |
| Scales:: | 0.090 kg |
| Sealing:: | IP20 |
| Sensor type:: | Bimetallic |
| Temperature setting range:: | 0 °C ... 60 °C |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
