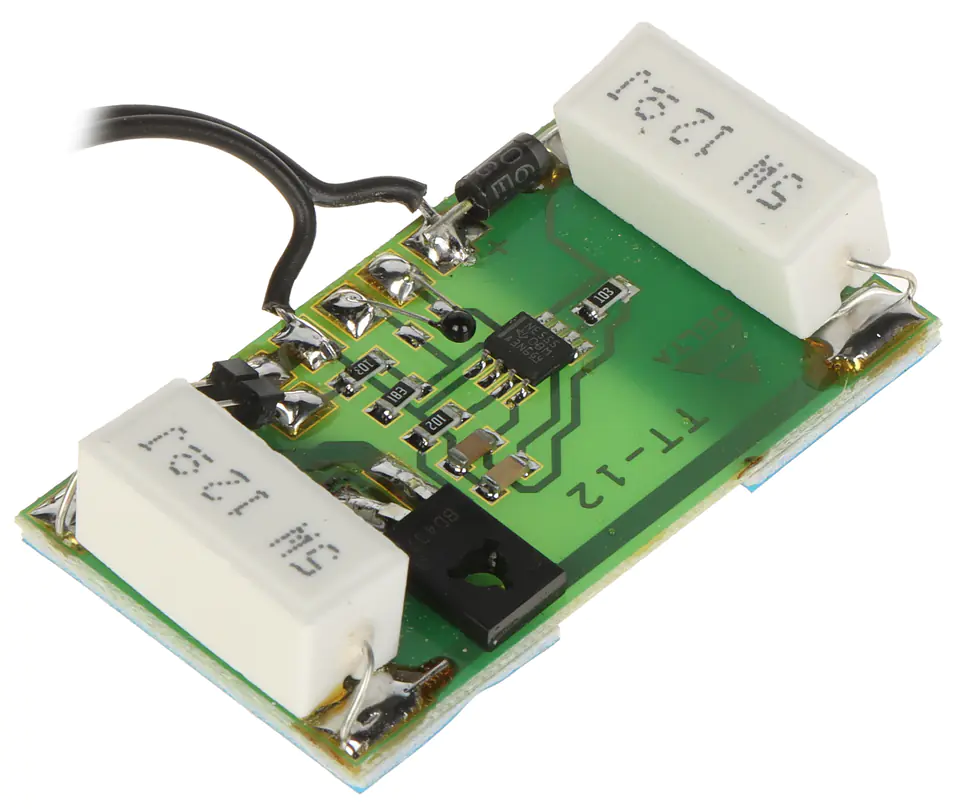

THERMOSTAT TT-12E

€9.94
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
TT-12E / 5902887016745

Specification

Dimensions:57 x 32 x 15 mm (plate with heaters)
Enclosure type:TP-601, TP-606, TP-607, TH-200
Power:12 volts DC
Power/power consumption:.max. 5.5 W / 460 mA
Producer / brand:DELTA
Thermostat activation temperature:3 °C
Warranty:3 years

The use of a heater with a thermostat inside the external housing allows to maintain appropriate and safe operating conditions of the camera and lens, and eliminates such undesirable phenomena as: sweating, freezing and sprinkling fast camera housing at low temperaturesThe device switches on the heaters when the temperature inside the housing drops below a certain value

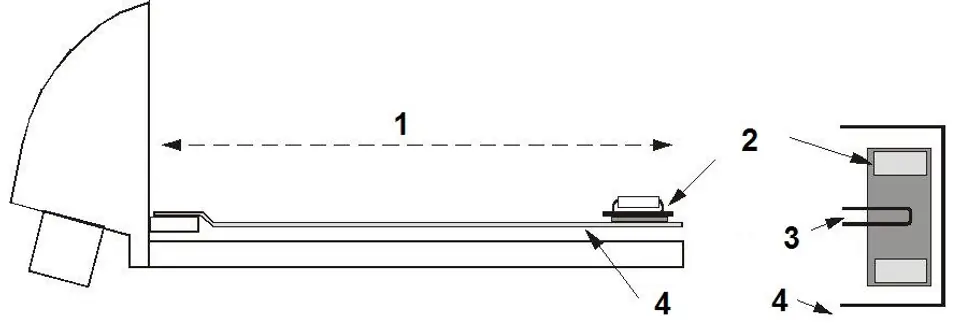

After unscrewing the housing, glue the thermostat plate at the end of the housing mounting base, and connect DC +12V voltage to the red wire and the ground to the black oneThe device has protection against reverse connection of the supply voltageAfter installation, it is necessary to carry out a test consisting in shorting the jumper located on the thermostat plate (eg with a screwdriver), which will turn on the heaters, allowing you to check the correctness of the camera's operation

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
