Switching thermostat allows automatic switching of power between connected devices when the temperature exceeds the set value
THERMOSTAT FZK-011
€18.06
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- FZK-011 / 5902887005381
Share this product:
Specification
| Assembly:: | DIN rail TS-35 |
|---|---|
| Contact load capacity:: | 10 A - NC, 5 A - NO |

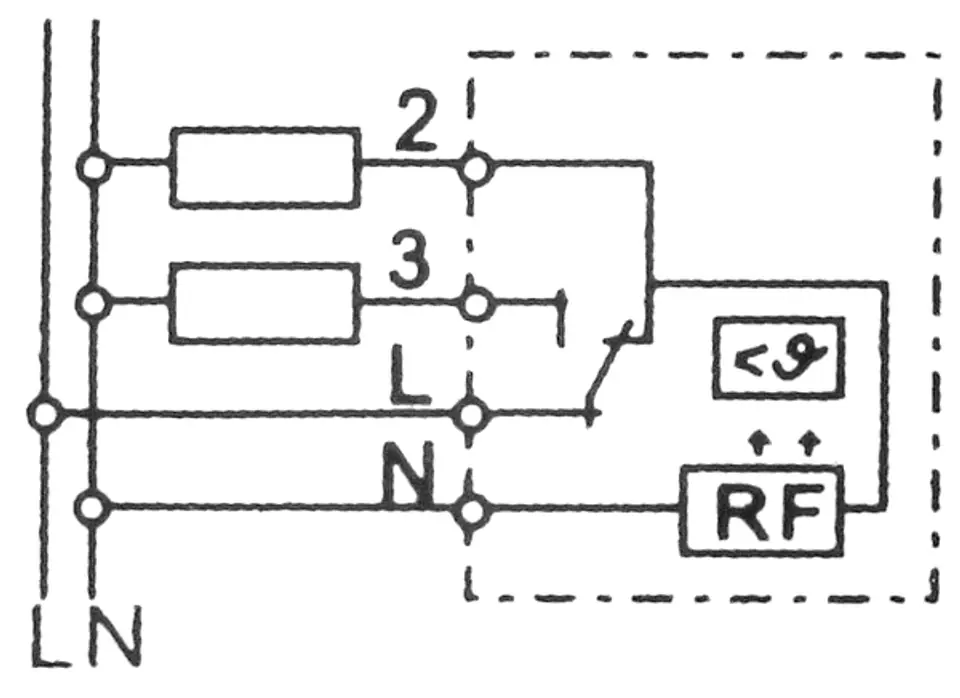

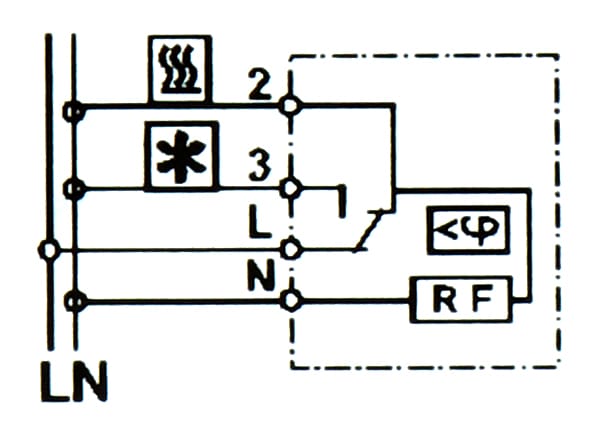

| Contact type:: | 1 x NC - open after exceeding the set temperature, 1 x NO - shorted after exceeding the set temperature |
| Dimensions:: | 65 x 50 x 38 mm |
| Hysteresis:: | 7 °C ± 4 °C |
| Maximum supply voltage:: | 250 V AC |
| Operating temperature:: | -20 °C ... 80 °C |
| Scales:: | 0.062 kg |
| Sealing:: | IP20 |
| Sensor type:: | Bimetallic |

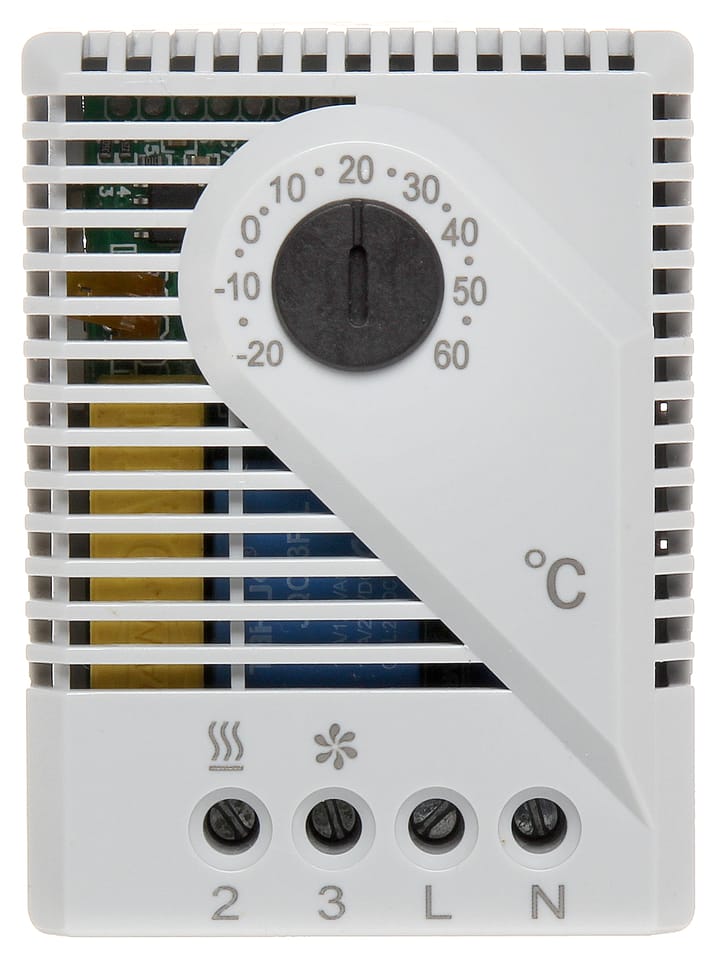

| Temperature setting range:: | -20 °C ... 60 °C |
| Warranty:: | 2 years |
