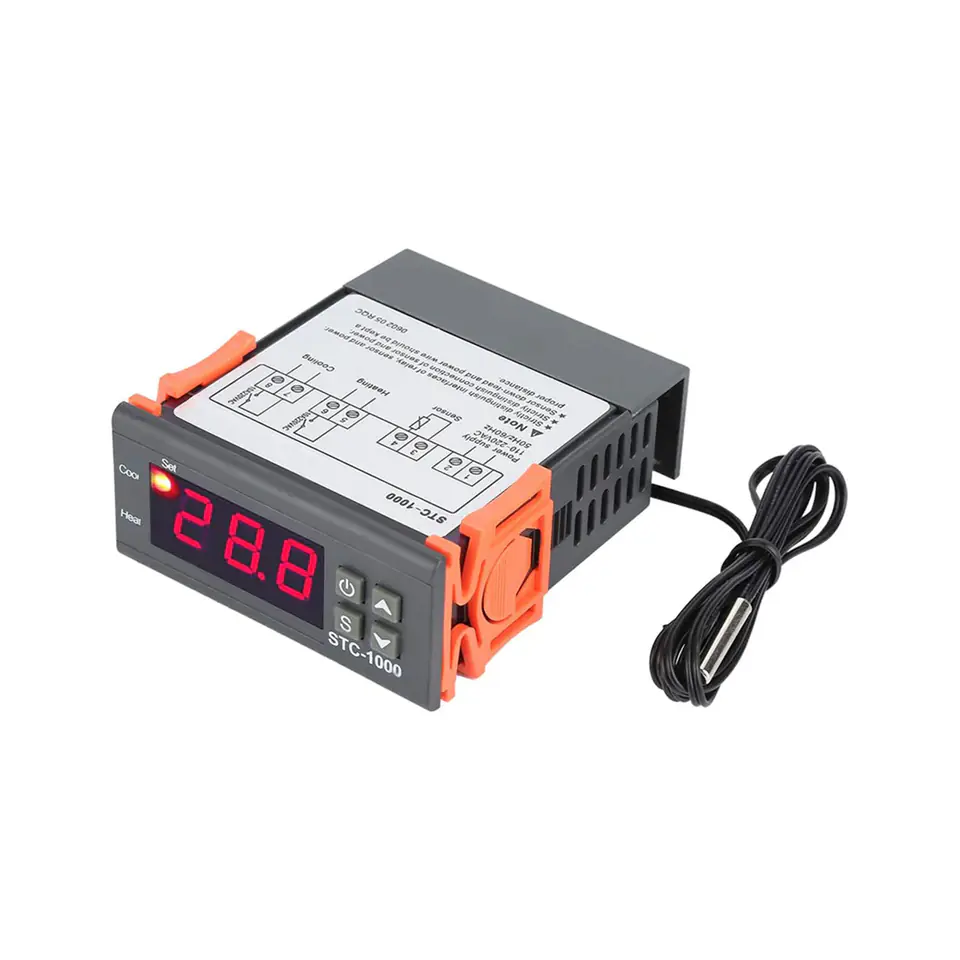

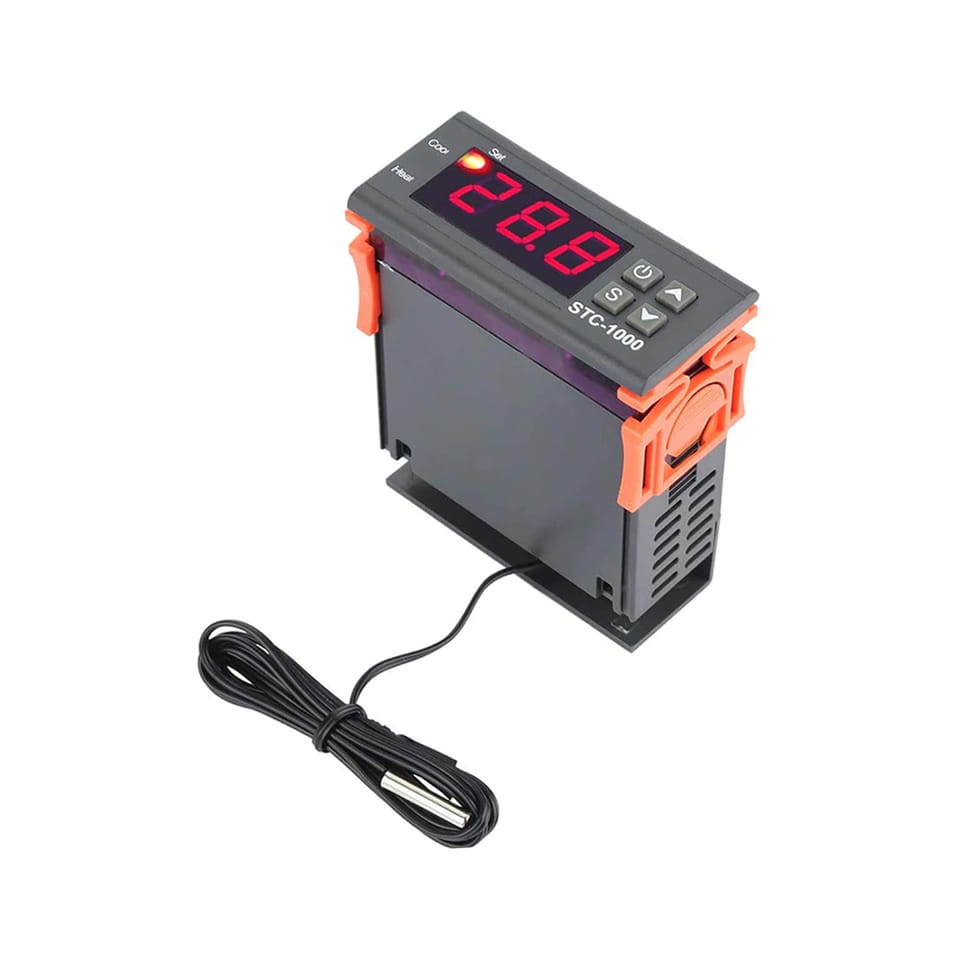

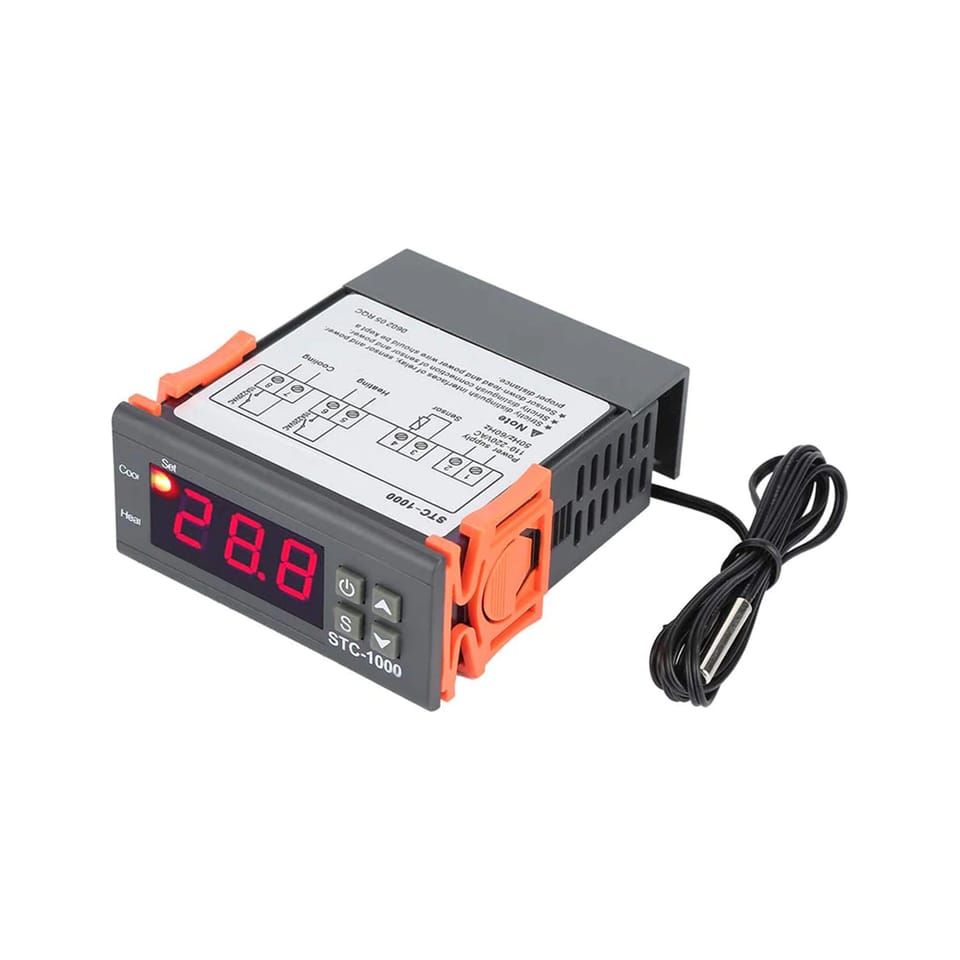

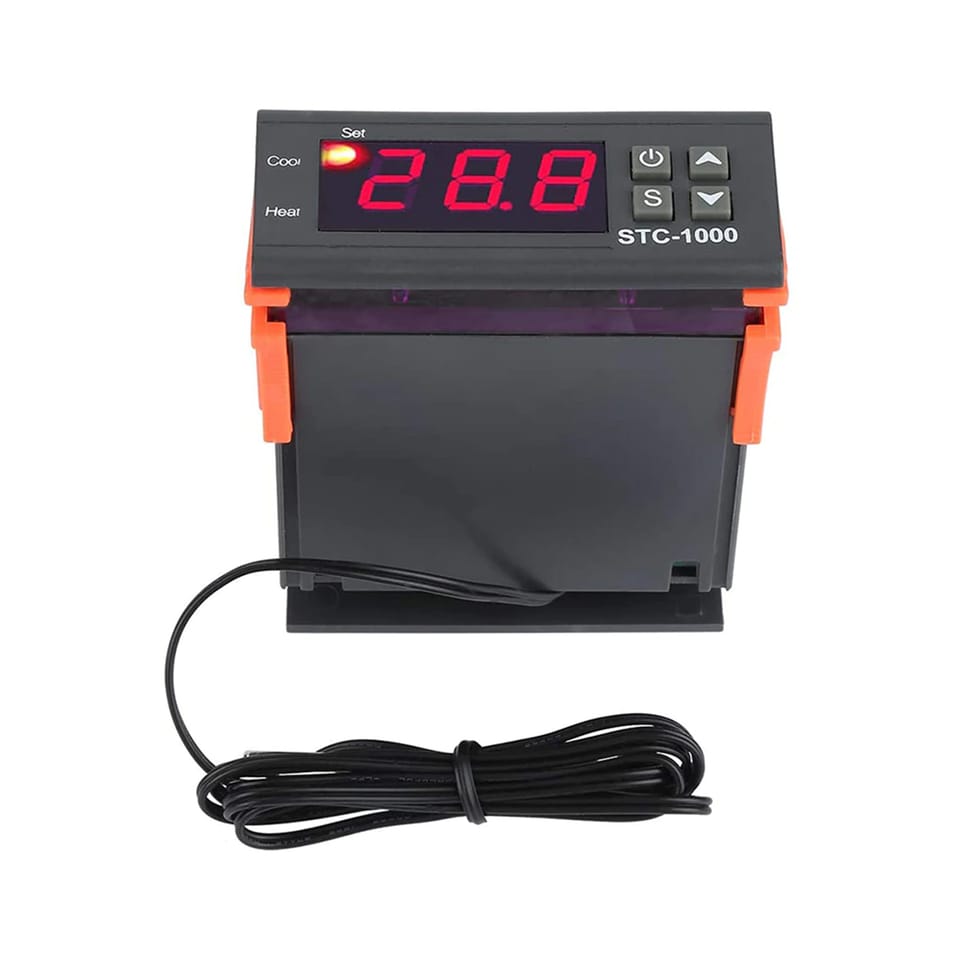

Thermostat 230V STC-1000

Temperature controller with sensor

Model: STC-1000 STC1000

The universal regulator is used in the operation of central heating pumps, circulation pumps, fans and many similar devices.

Switch between cooling and heating modes

Temperature control

Temperature calibration

External thermostat


Main functions:

Heating - in this mode, the relay is switched on until the temperature rises to the set value

Cooling - in this mode, the relay is switched on until the temperature drops to the set value

Temperature control by setting a set value and hysteresis value.

Temperature calibration.

Compressor deceleration.

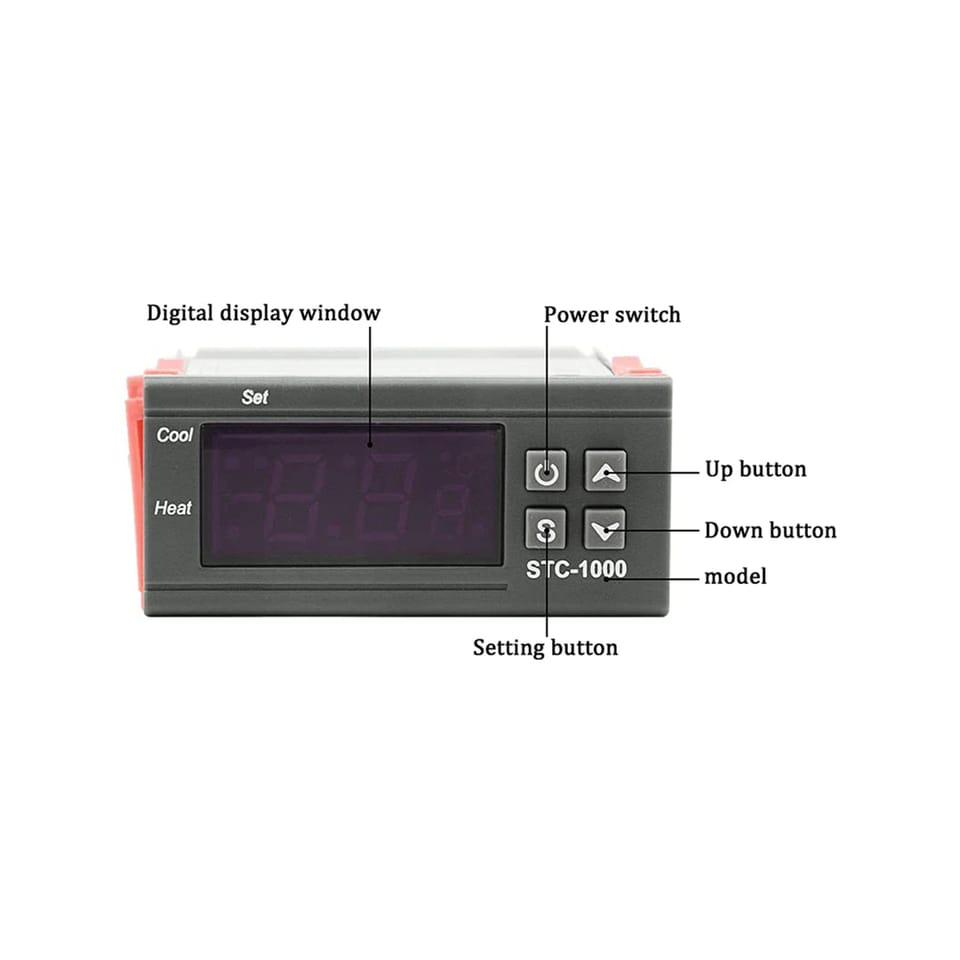

Large and clear LCD display.

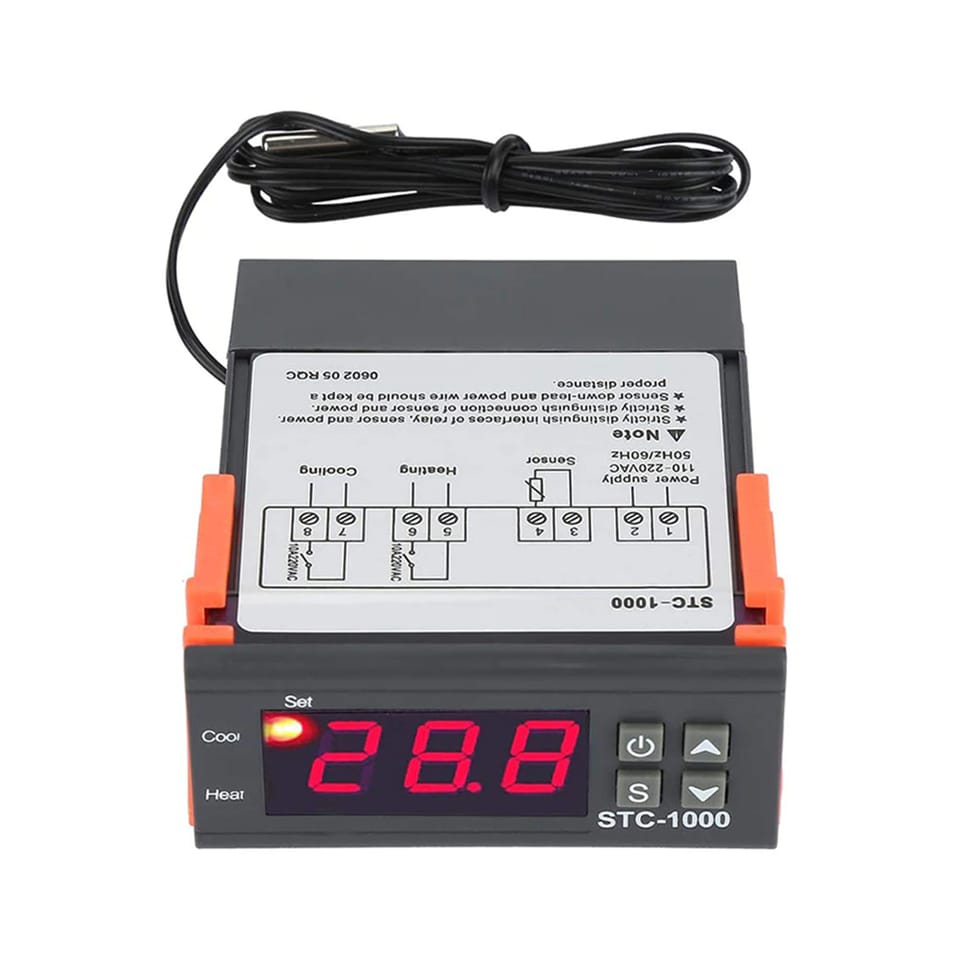

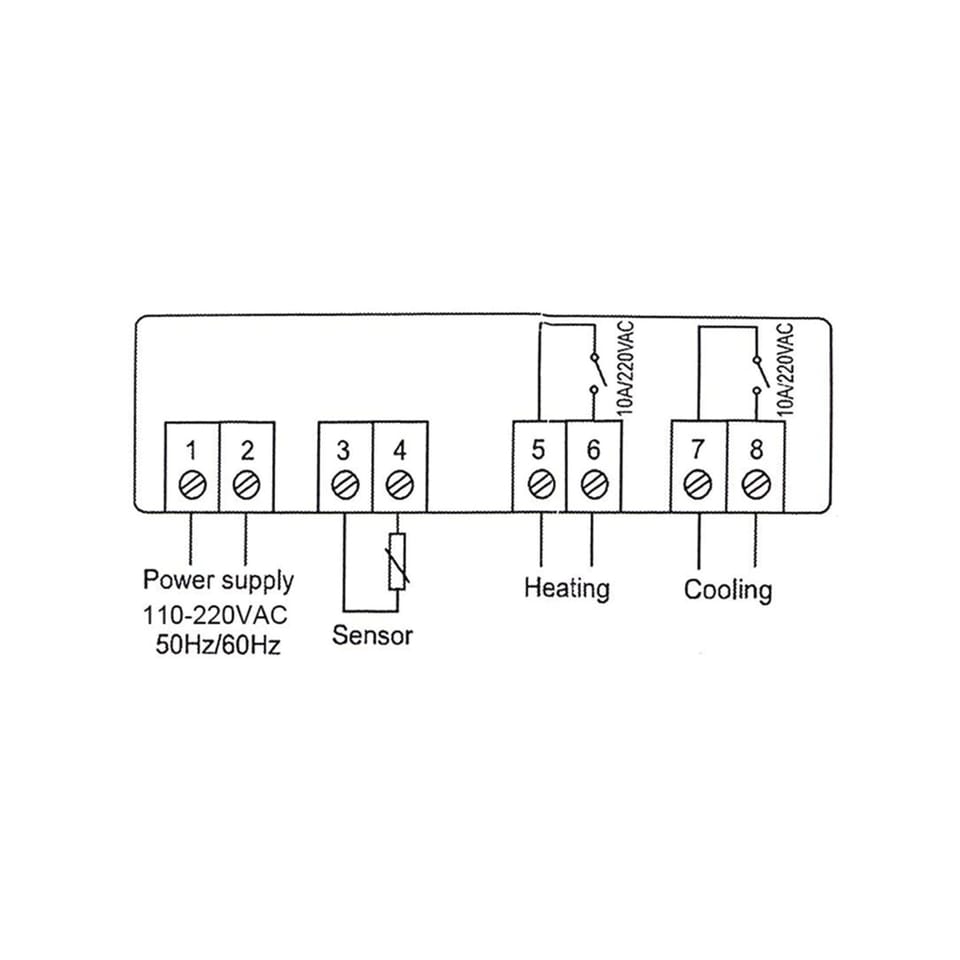

Connection diagram on the housing.

Minimalist and lightweight design made of premium components.

Wide temperature control range (-50 to 90 degrees C).

Automatic alarm for exceeding the temperature or when a sensor error occurs.


Technical parameters and specifications:

Temperature measuring range: -50°C ? 99°C

Accuracy: ?1°C for range (-50°C ? 70°C)

Power supply: 220VAC ?10%, 50/60Hz

Sensor: NTC sensor (1)

Relay contact capacity: Cooling (10A/250VAC), Heating (10A/250VAC)

Maximum contact power: Cooling 2.5kW, Heating 2.5kW

Operating temperature: 0°C ? 60°C

Permissible humidity: 20% ? 85%

Measurement resolution: 0.1°C

Sensor error delay: 1 minute

Power consumption: <3W

Storage temperature: -30°C ? 75°C

Product dimensions:

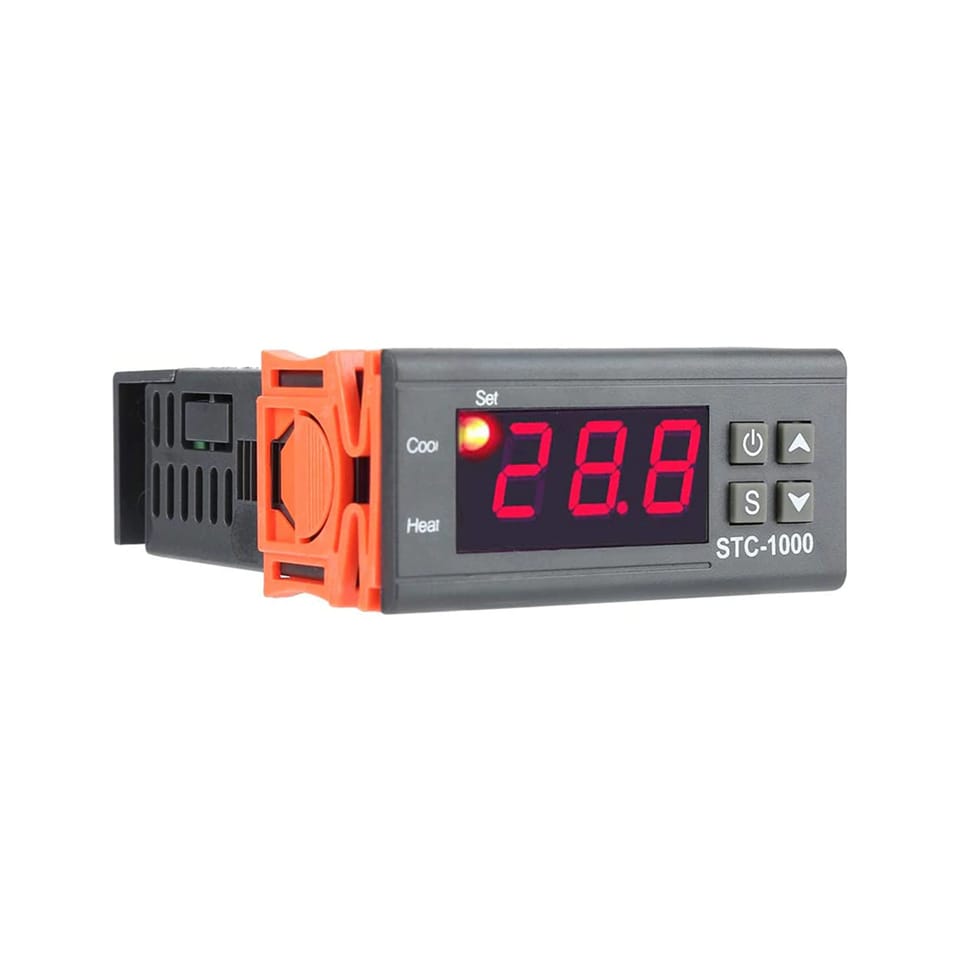

Front panel: 75 (L) x 34 (W) [mm]

Product dimensions: 75 (l.) x 34 (w.) x 85 (h.) [mm]

Installation dimensions: 70 (l.) x 27 (w.) [mm]

Sensor cable length: ~1 meter (including sensor)

Included:

Thermostat

Temperature sensor
