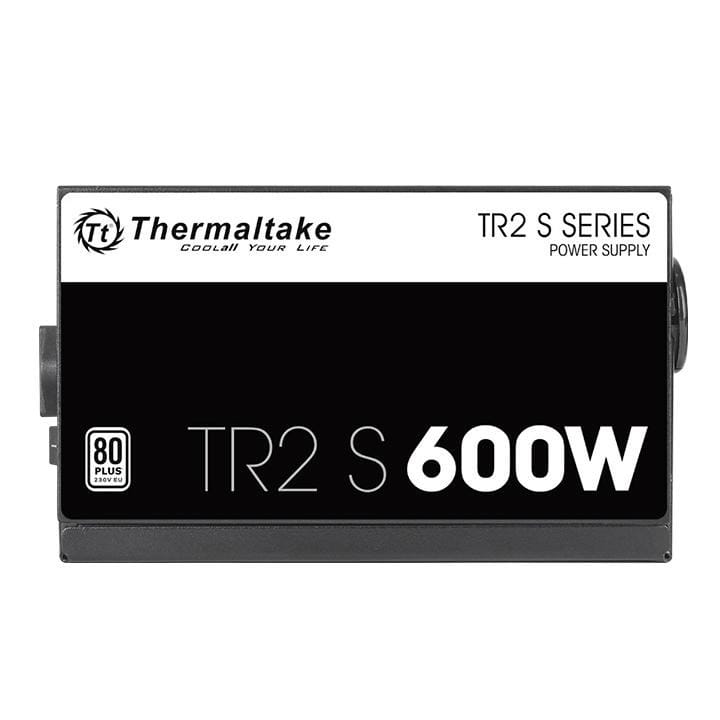

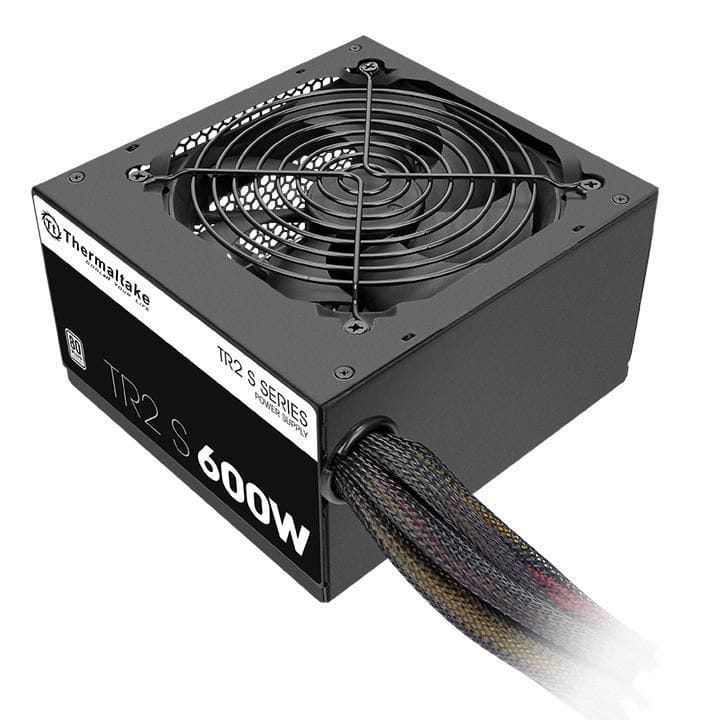

Thermaltake TRS-600AH2NK power supply unit 600 W 20+4 pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Thermaltake
- Product code:
- PS-TRS-0600NPCWEU-2 / 4717964401892
Share this product:
Specification
| 80 plus certification: | 80 PLUS |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 230 V |
| Atx version: | 2.3 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 504 W |
| Combined power (+3.3v): | 105 W |
| Combined power (+5v): | 105 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Depth: | 140 mm |
| Efficiency: | 86% |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Fan speed: | 1800 |
| Floppy disk drive connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Height: | 150 mm |
| Hold time: | 16 ms |
| Input current: | 8 A |
| Max output current (-12v): | 6 A |
| Max output current (+12v): | 42 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 17 A |
| Max output current (+5vsb): | 12.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 5 - 40 °C |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 500 ms |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -40 - 50 °C |
| Total power: | 600 W |
| Width: | 86 mm |
