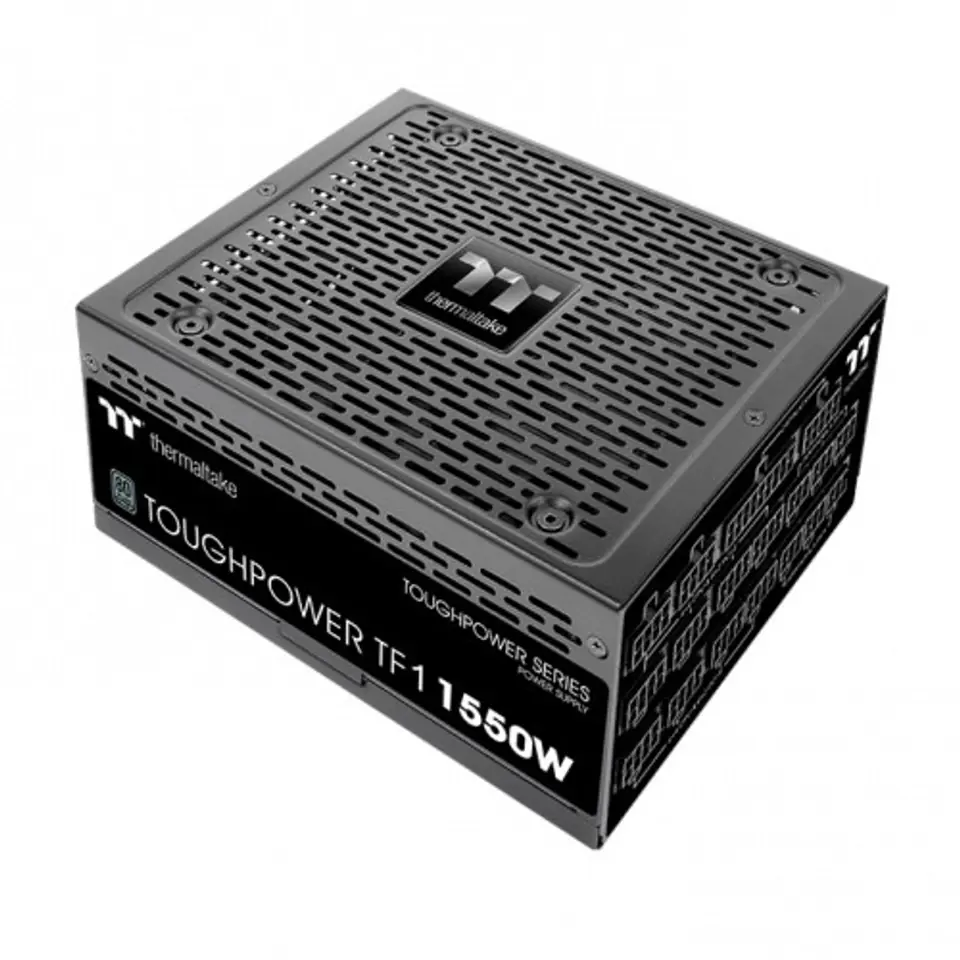

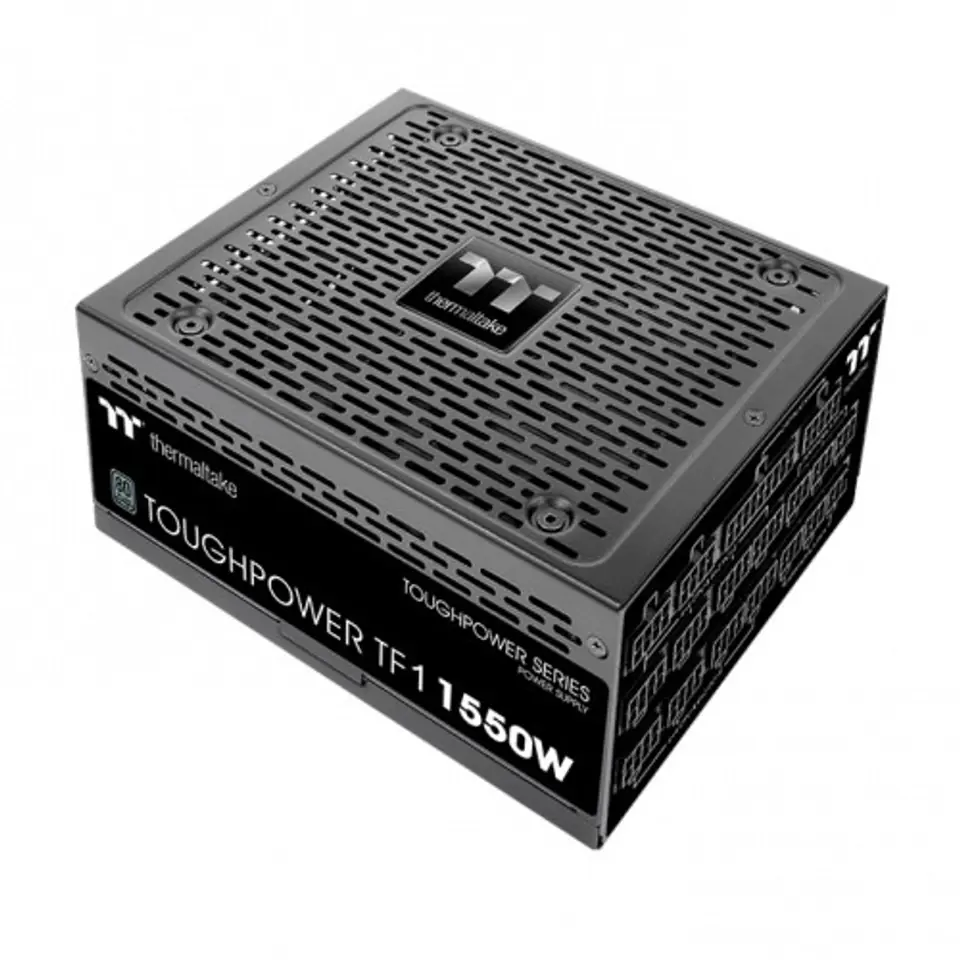

Thermaltake Toughpower TF1 1550W
This product is not available
- Availability:
- expected delivery
- Brand:
- Thermaltake
- Product code:
- PS-TPD-1550FNFATE-1 / 4713227528245
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 1549.92 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cpu power cable length: | 7 m |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 180 mm |
| Fan diameter: | 14 cm |
| Fan location: | Top |
| Floppy disk drive cable length: | 15 cm |
| Floppy disk drive connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 18 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 129.16 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 120000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 4 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Pci express power connectors (8-pin): | 4 |
| Peak power: | 1860 W |
| Peripheral (molex) power cable length: | 500 mm, 150 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor correction (pfc) type: | Active |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 150, 500 mm |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Supported motherboard form factors: | ATX |
| Total power: | 1550 W |
| Weight: | 2.4 kg |
| Width: | 150 mm |
