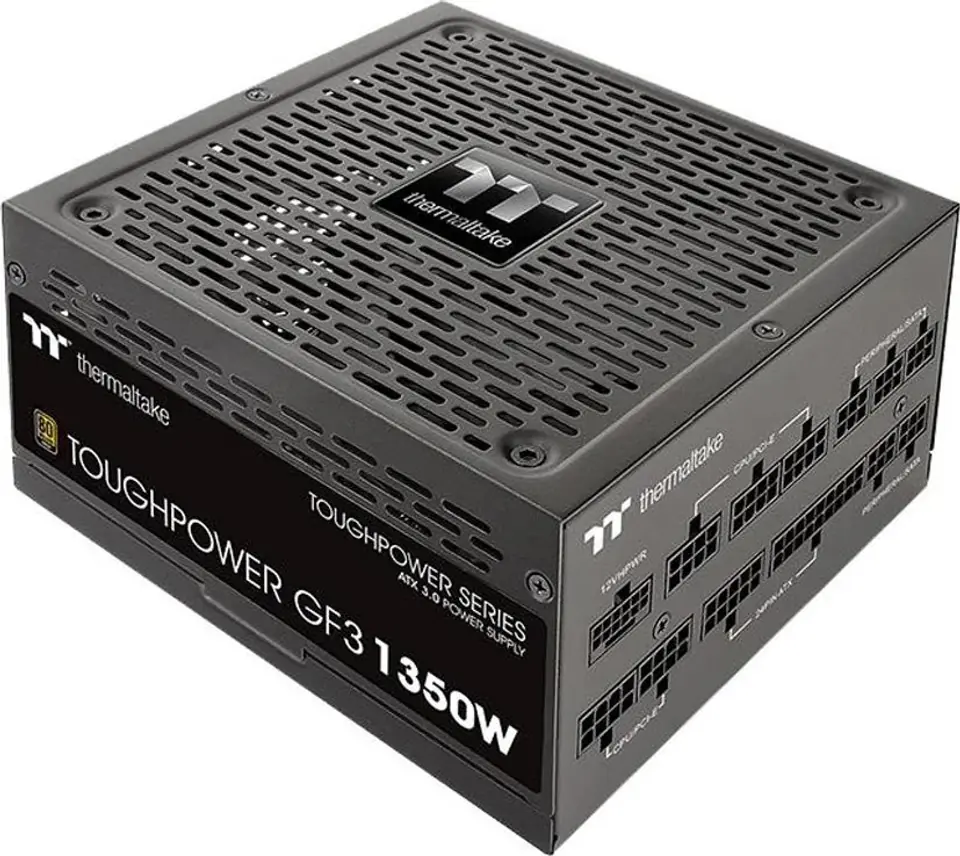

Thermaltake Toughpower GF3 power supply unit 1350 W 24-pin ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Thermaltake
- Product code:
- PS-TPD-1350FNFAGE-4 / 4713227534352
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Bearing technology: | HDB |
| Cable tie(s) included: | Y |
| Cabling type: | Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 1350 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |

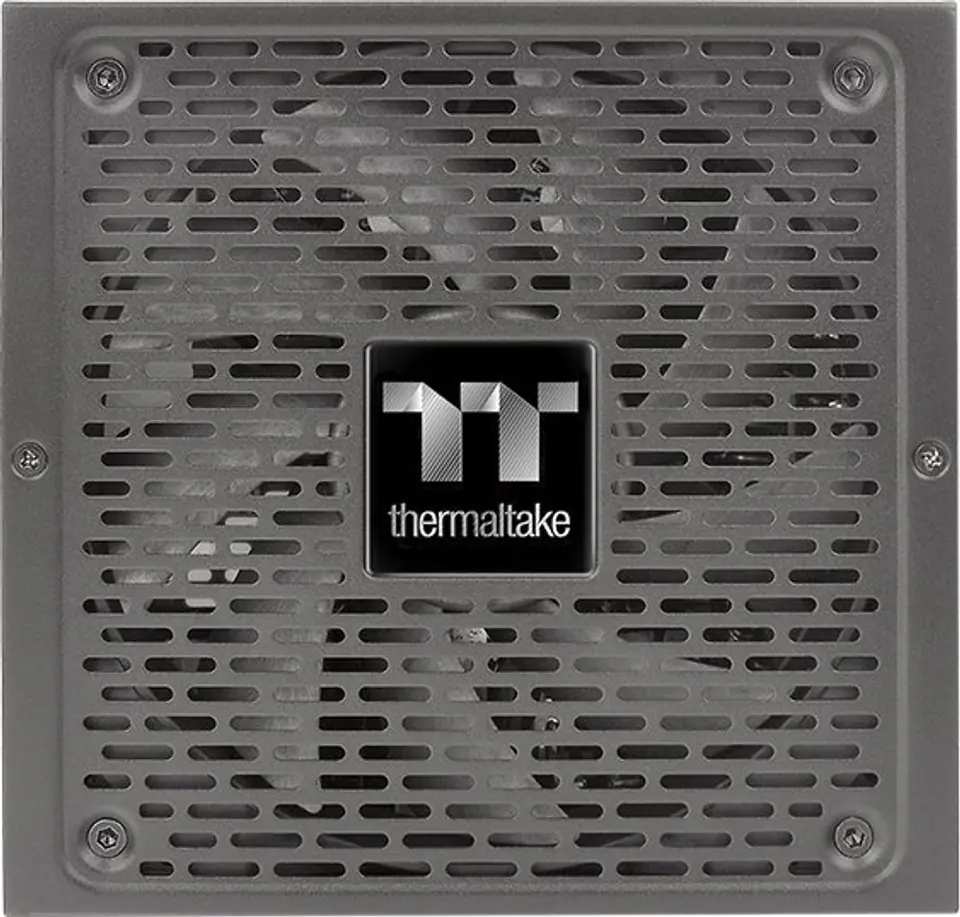

| Fan diameter: | 14 cm |
| Floppy drive power connector: | 1 |
| Height: | 86 mm |
| Hold time: | 17 ms |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 112.5 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 24 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 12 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package type: | Box |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (16-pin): | 1 |
| Pci express power connectors (6+2 pin): | 6 |
| Peripheral (molex) power cable length: | 950 mm, 500, 650, 800 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Under voltage, Over current, Short circuit, Over voltage, Over power |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500, 650, 800 |
| Silent mode: | Yes |
| Storage relative humidity (h-h): | 20 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Total power: | 1350 W |
| Weight: | 1.83 kg |
| Width: | 150 mm |
