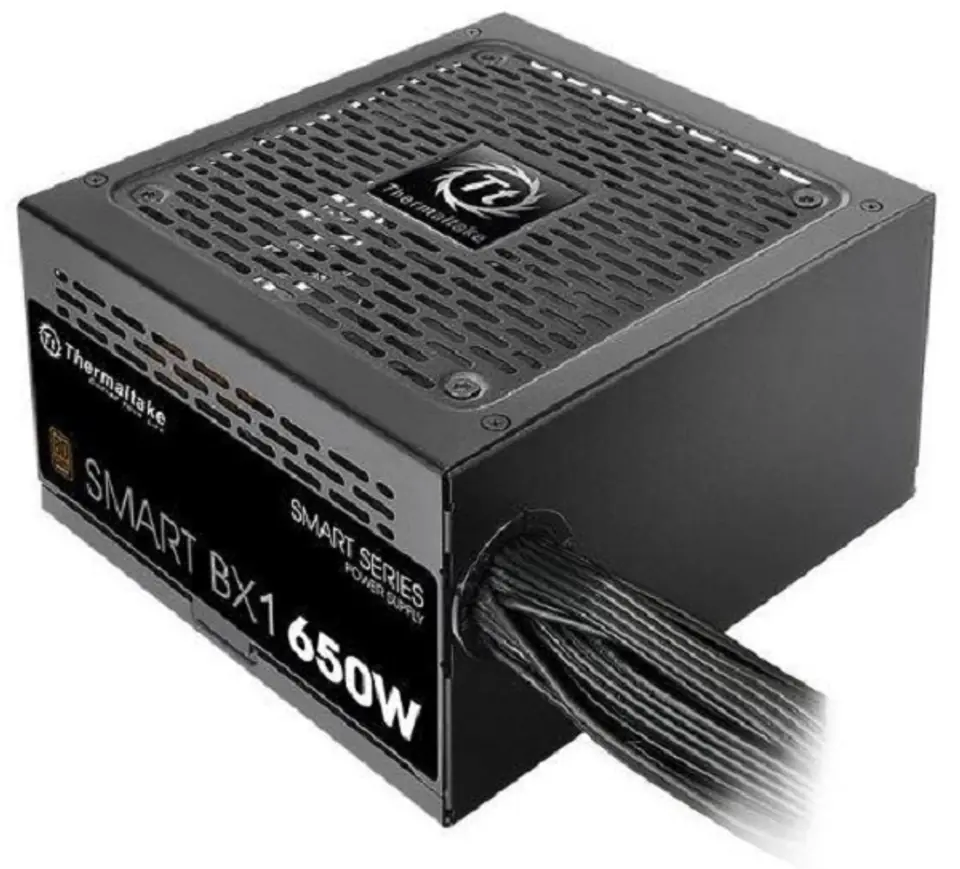

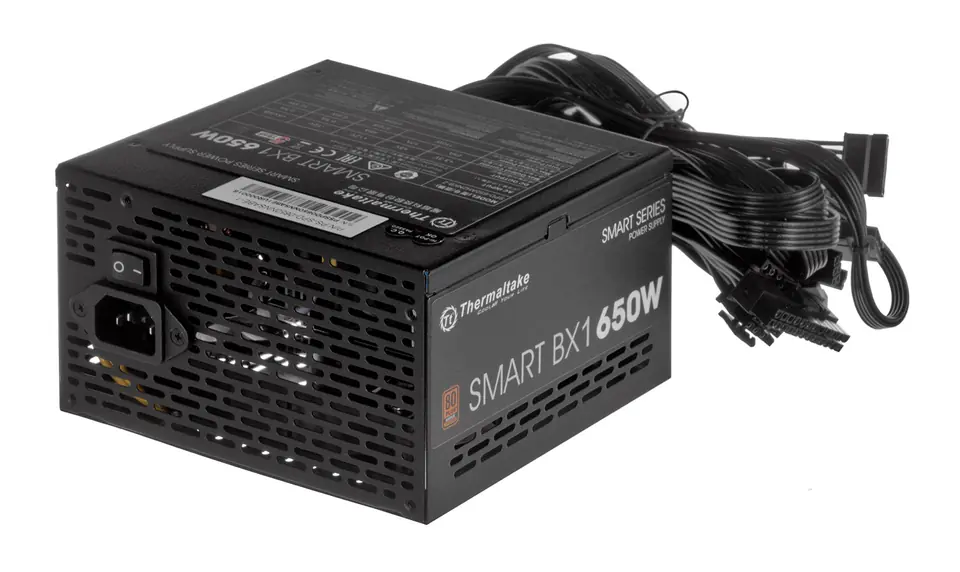

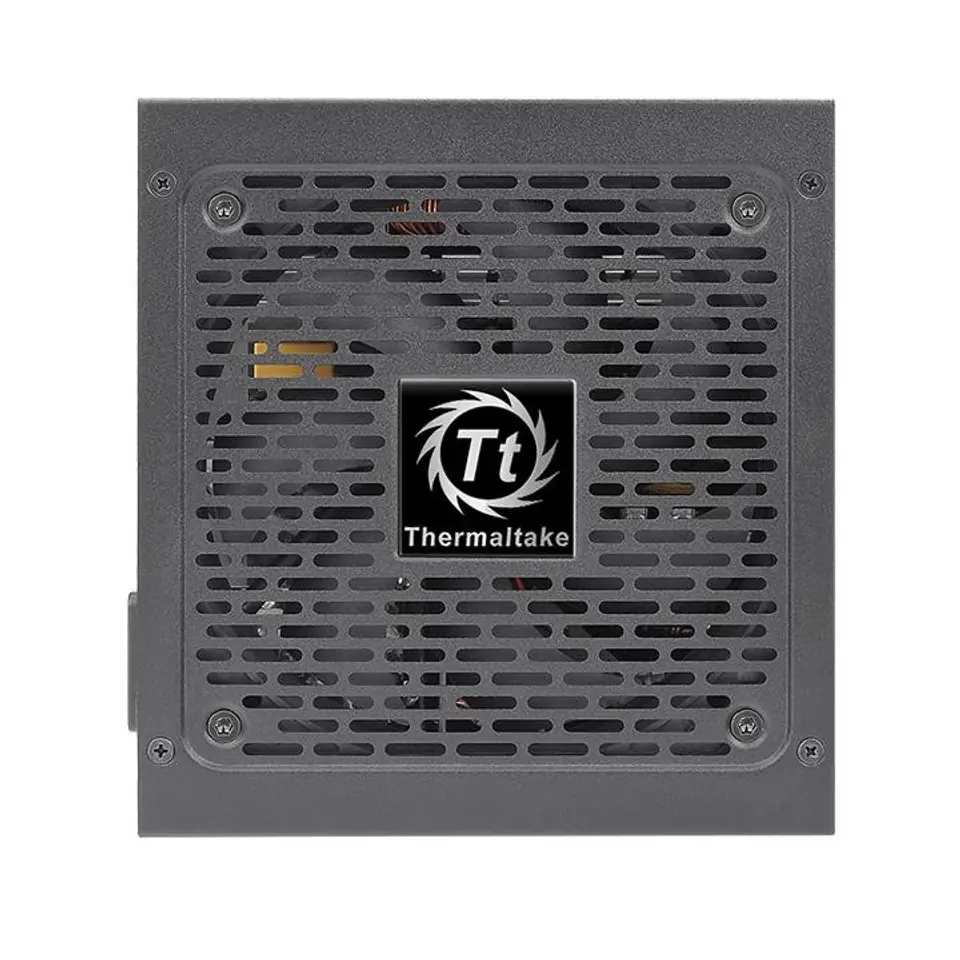

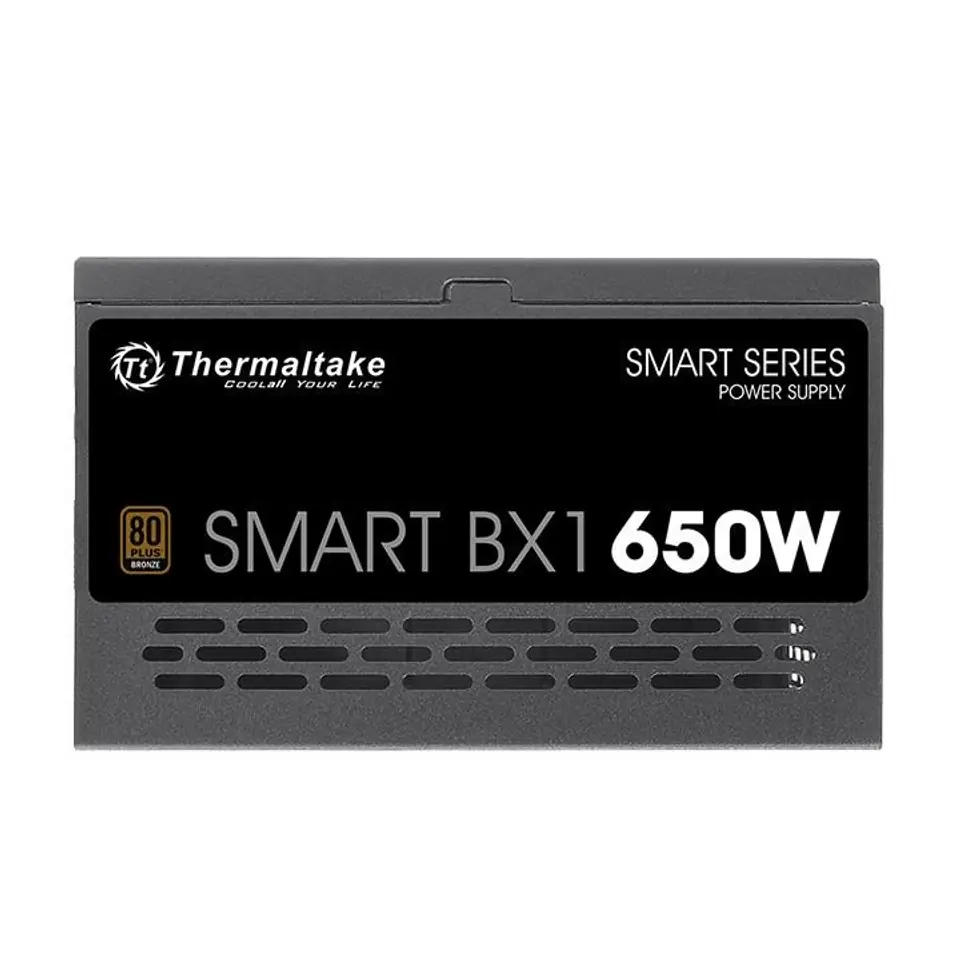

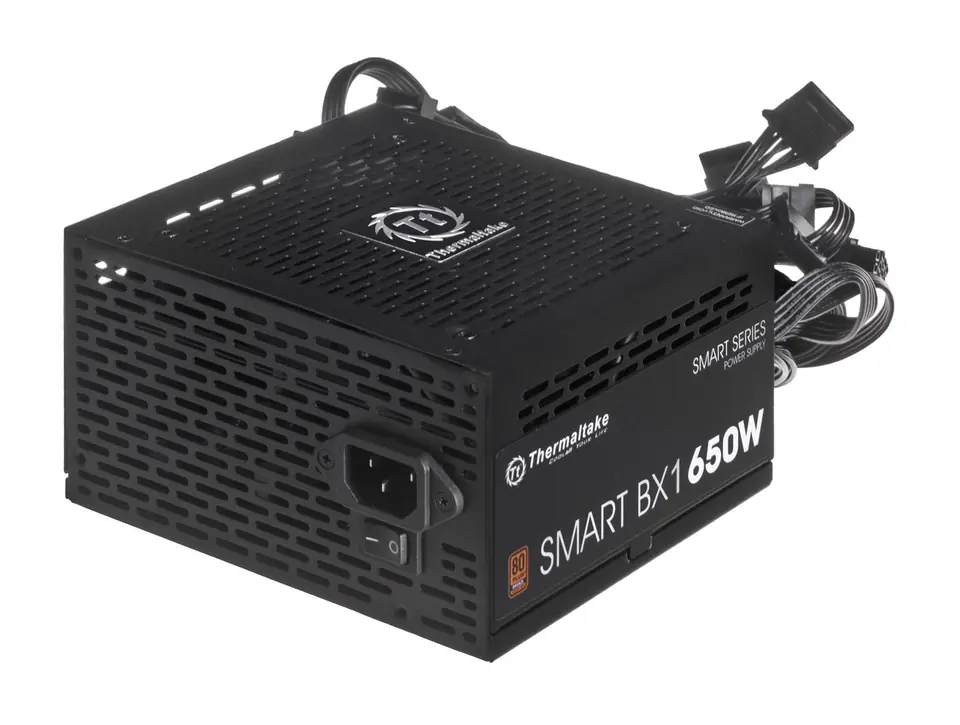

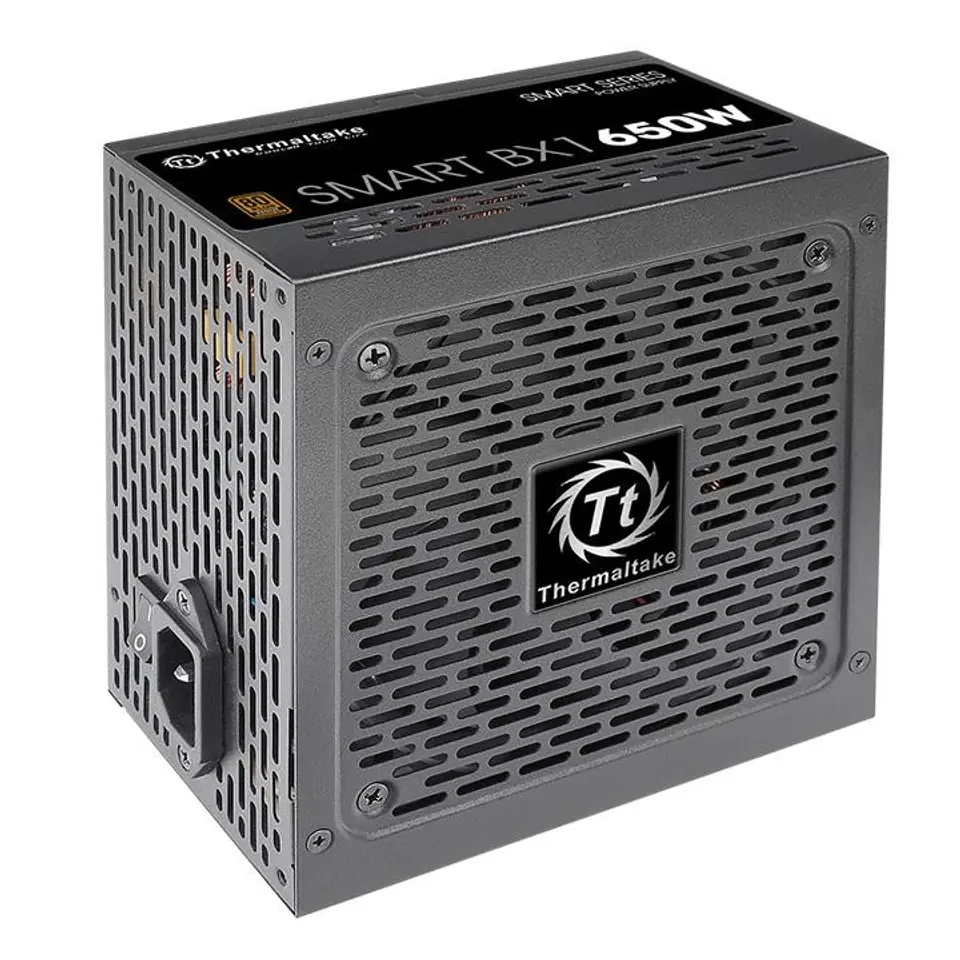

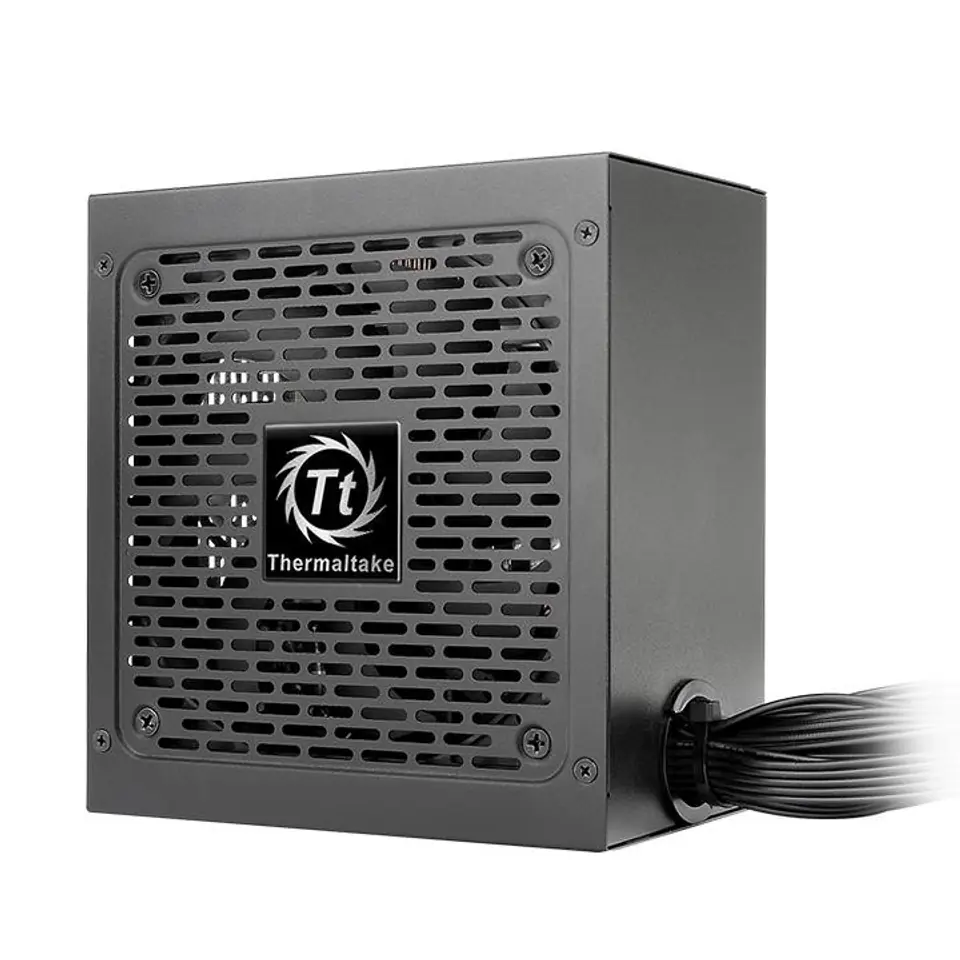

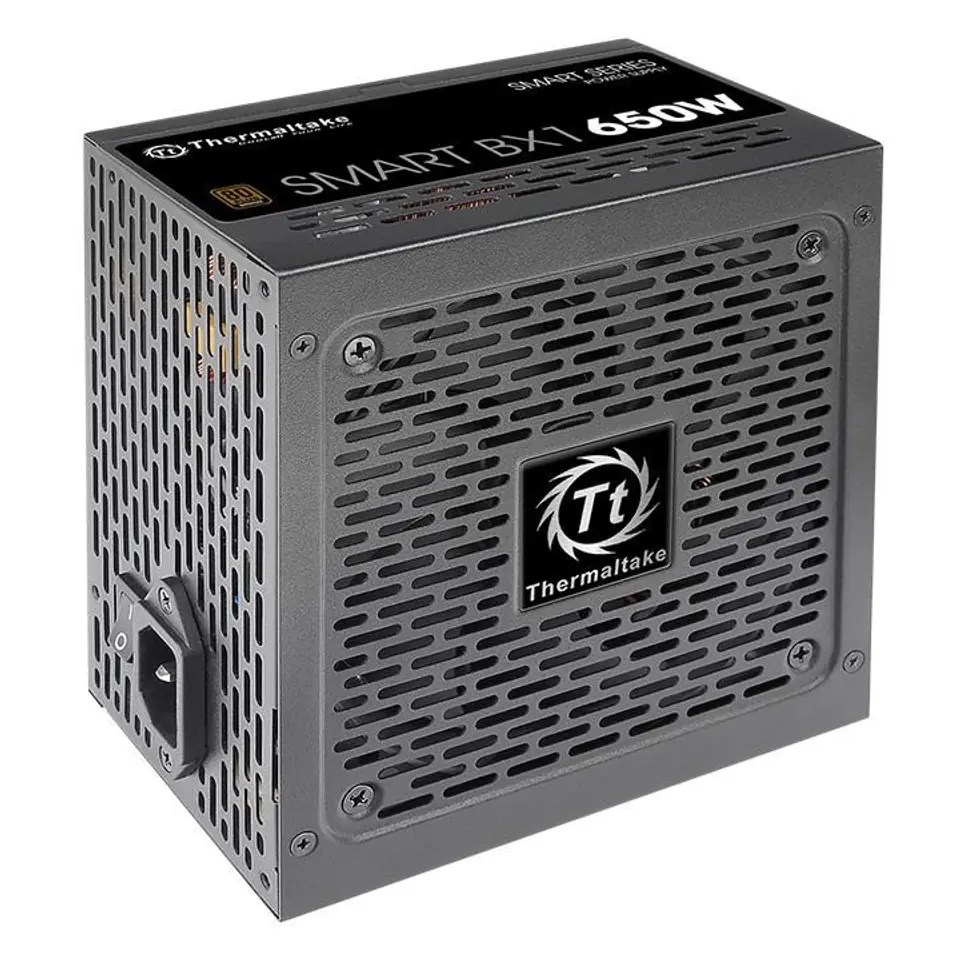

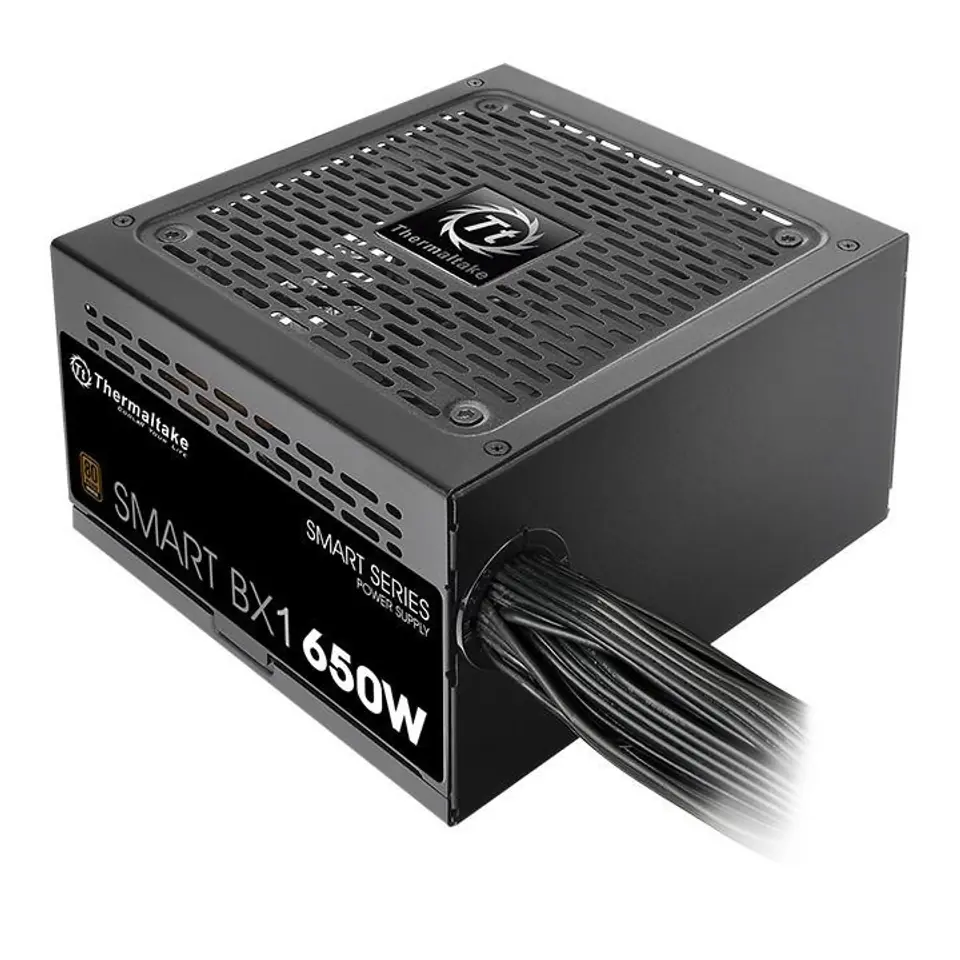

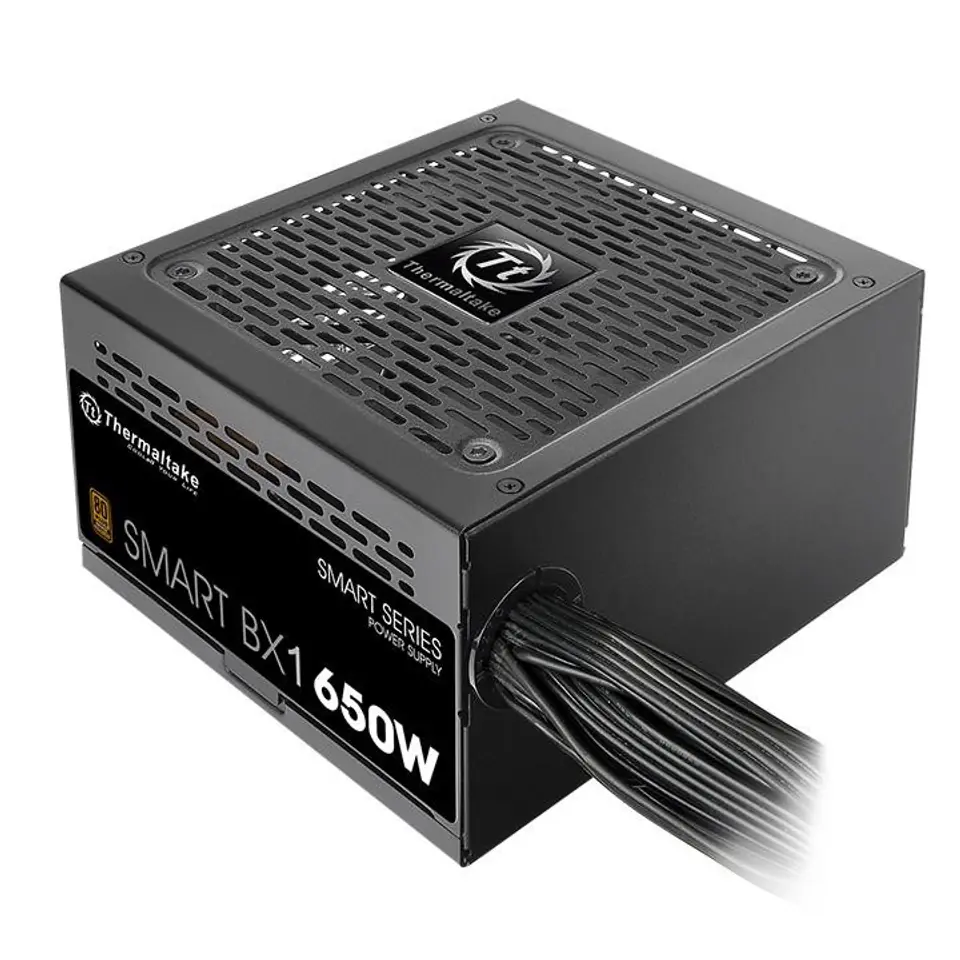

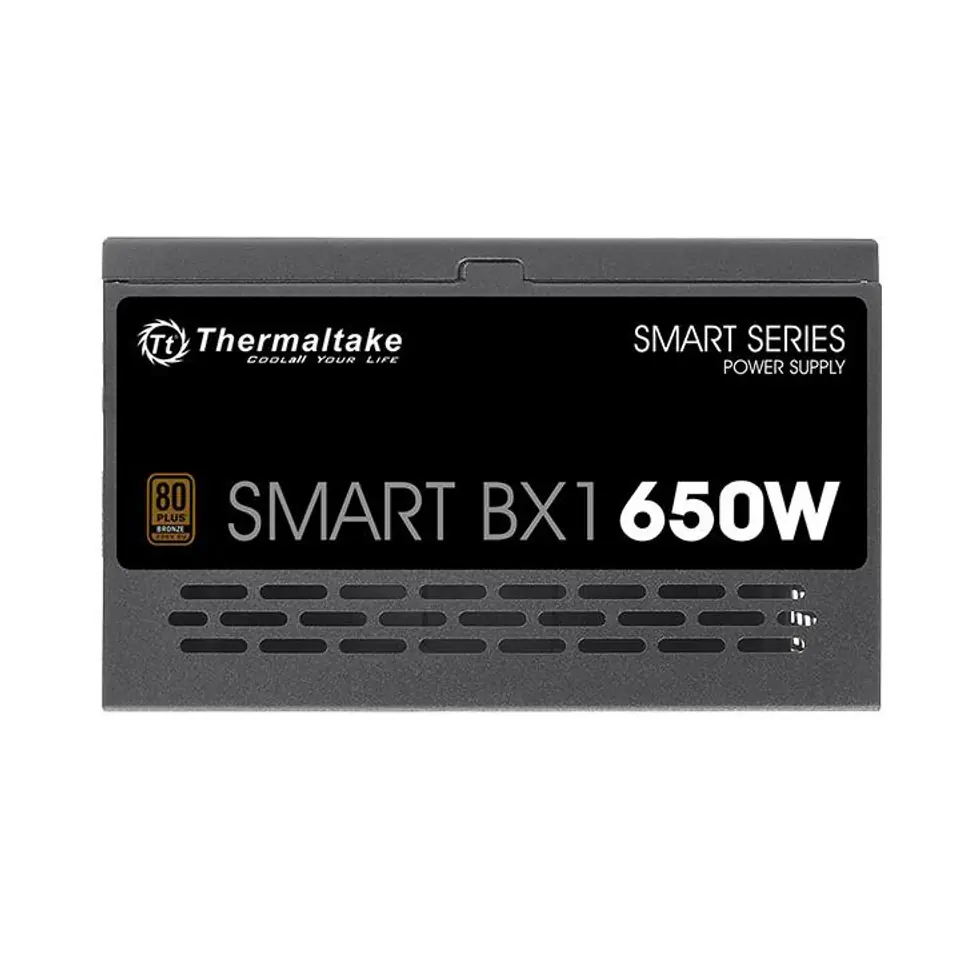

Thermaltake Smart BX1 power supply unit 650 W 24-pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Thermaltake
- Product code:
- PS-SPD-0650NNSABE-1 / 4711246875258
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx version: | 2.3 |

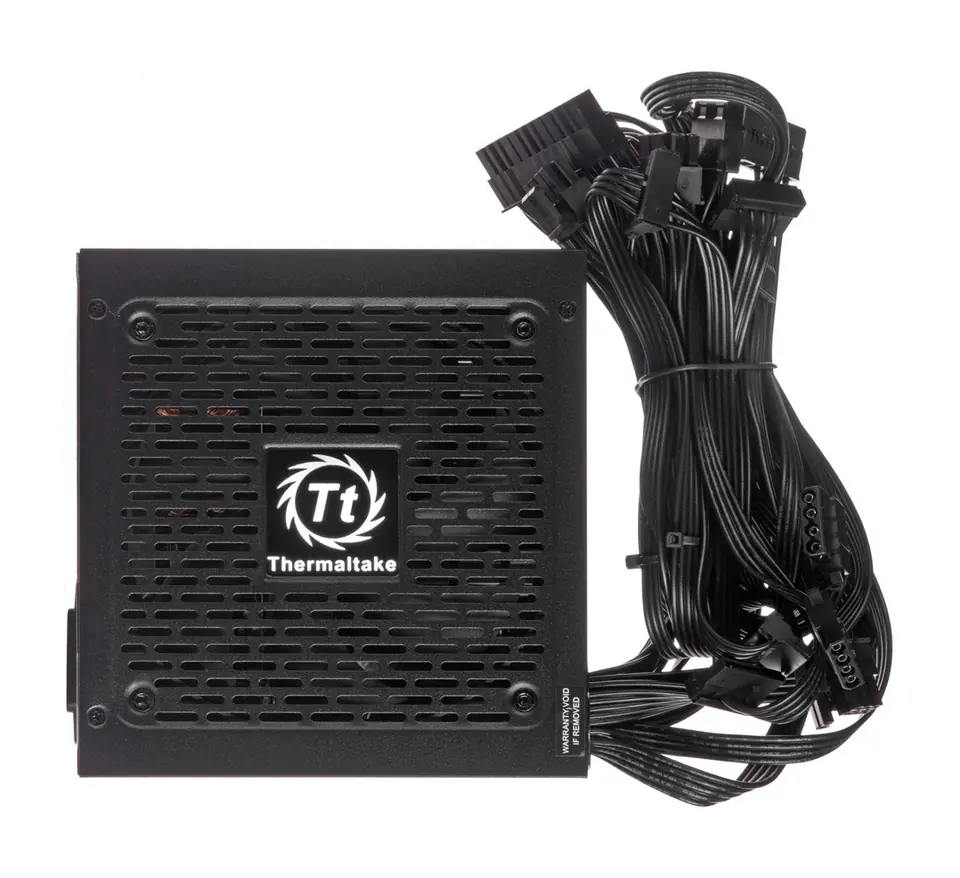

| Cables included: | CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cabling type: | Non-Modular |

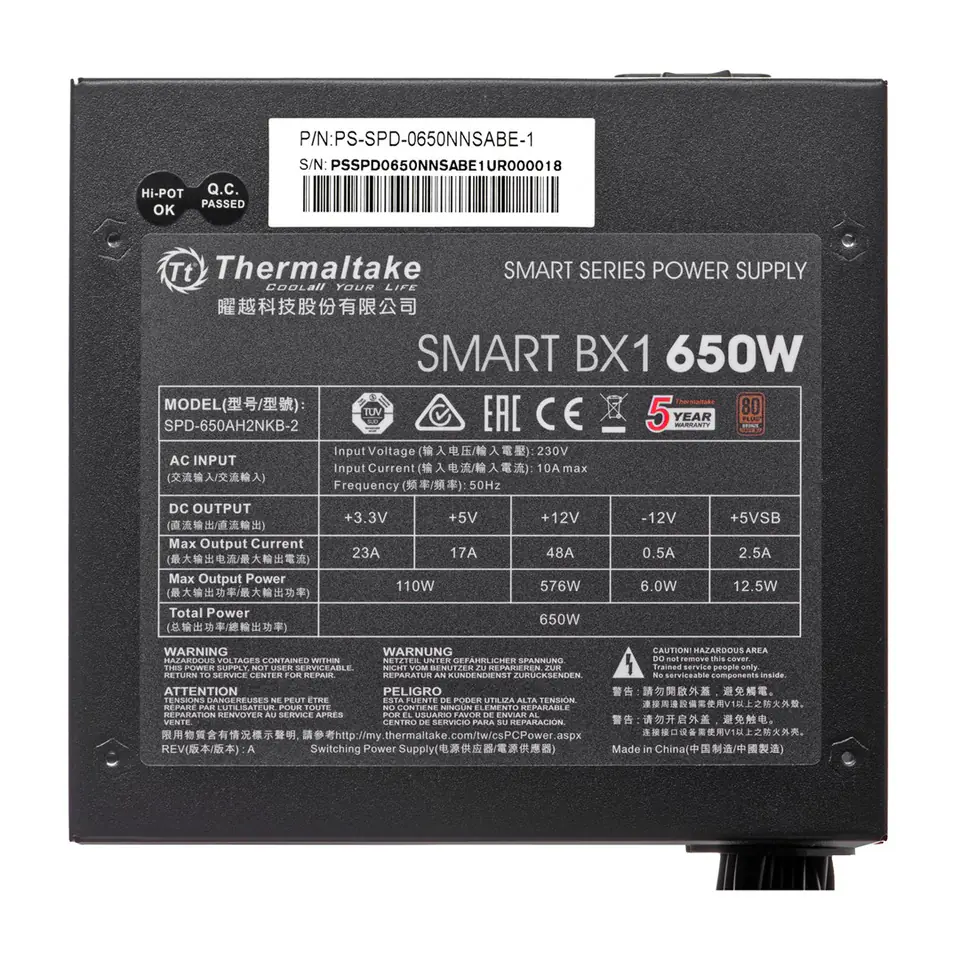

| Combined power (-12v): | 6 W |
| Combined power (+12v): | 576 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 1 mm |
| Cpu power connector (4+4 pin): | Y |
| Depth: | 140 mm |
| Eps version: | 2.92 |
| Fan diameter: | 12 cm |
| Height: | 86 mm |
| Input current: | 12 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 48 A |
| Max output current (+3.3v): | 23 A |
| Max output current (+5v): | 17 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Y |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 5 - 40 °C |
| Pci express connector: | Y |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Peak power: | 80 W |
| Peripheral (molex) power cable length: | 500 mm, 150 |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500 mm, 150 |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -40 - 55 °C |
| Total power: | 650 W |
| Width: | 150 mm |
