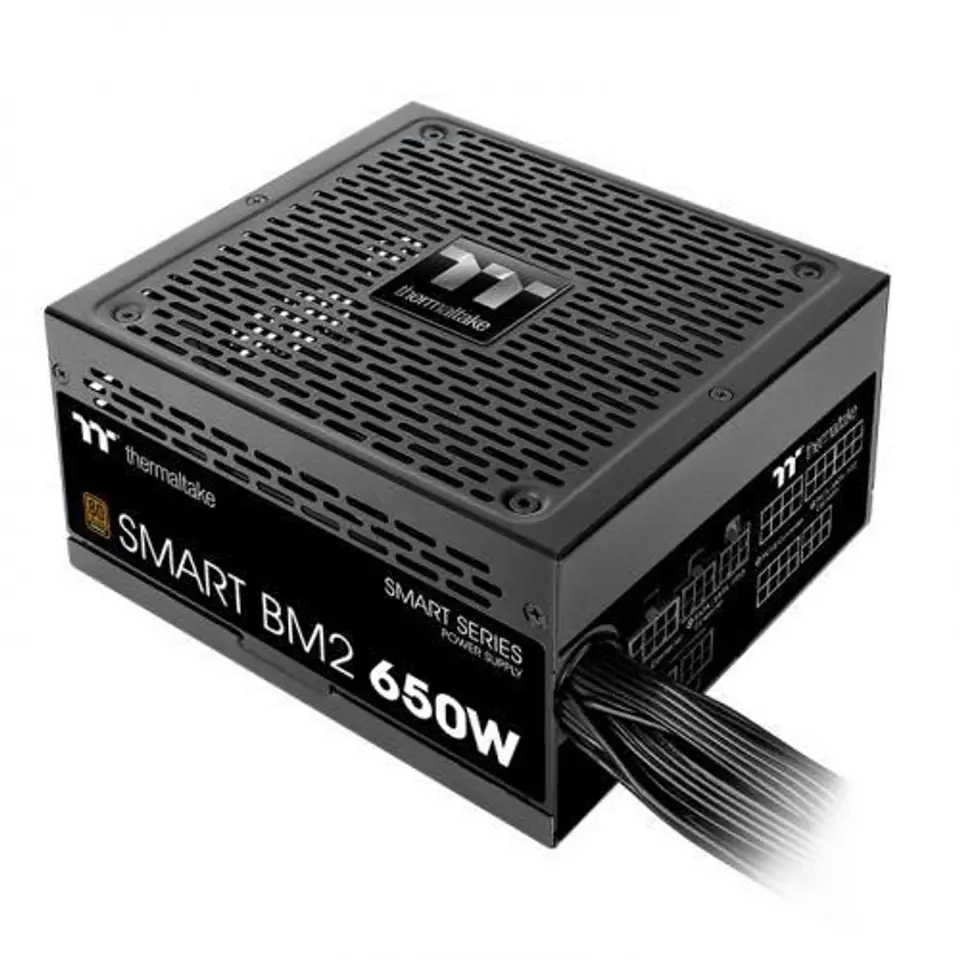

Thermaltake Smart BM2 650W - TT Premium Edition
€90.75
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Thermaltake
- Product code:
- PS-SPD-0650MNFABE-1 / 4713227525510
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |

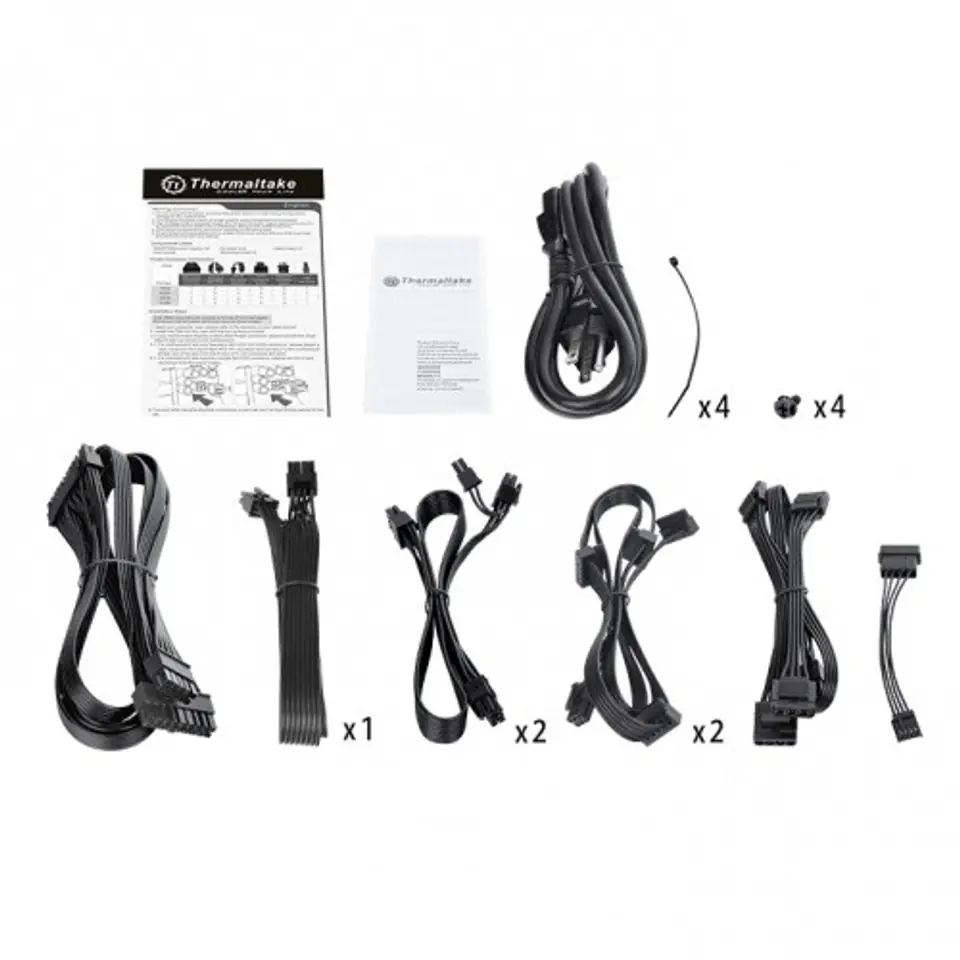

| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cabling type: | Semi-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 648 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Fan diameter: | 14 cm |
| Fan location: | Top |
| Fan speed: | 0 - 2300 RPM |
| Floppy disk drive cable length: | 15 cm |
| Floppy drive power connector: | 1 |
| Height: | 86 mm |
| Hold time: | 12 ms |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 3 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Peripheral (molex) power cable length: | 150, 500 mm |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500 mm, 150 |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -20 - 70 °C |
| Total power: | 650 W |
| Width: | 150 mm |
