- Automatic High and Low Temperature Tracking - Using algorithms optimized for thermal imaging, the thermal imaging device automatically captures the heat footprint of all objects over a large area, allowing the detection of cold and hot spots (from -10°C to 400°C/- 50°F to 752°F)
- Reliability at work- With 2.8-inch screen, 120*90 IR resolution and 25Hz refresh rate, you can watch live images smoothly
- Edge fusion- The latest technology makes the contour of the tested object very clear
- Video and photo recording- Thermal imaging camera allows you to record videos and save photos
- Quick fault location - with the help of thermal graphics you can immediately detect overheating objects and measure temperatures up to 400°C
- Built-in 8Gb memory - Is able to take photos and videos right out of the box

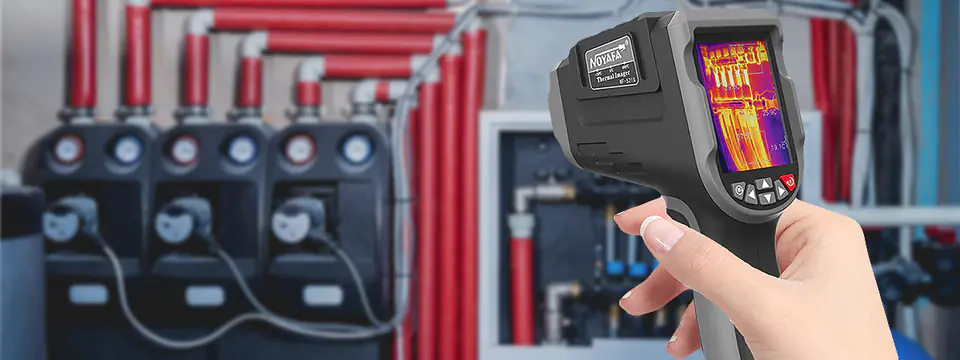

- Reduced maintenance costs - With advanced infrared imaging, changes in HVAC system conditions can be easily monitored. Taking targeted action before problems become serious can help reduce maintenance costs
- 8 Picture Modes- With 8 color palettes including White Hot, Black Hot, Iron Red, Rainbow and more, you can find the perfect color scale for your work
- Create and share - by connecting the thermal imaging camera to your laptop, you can read thermography using free software. Share your creations with whomever you want
- Home & Industrial Applications- Thermal imaging cameras are ideal for home inspection, fire protection, agriculture, transportation, electronics manufacturing, etc.
- Package contents- Handheld thermal imaging camera *1, USB cable? *1, User manual
Technical Specifications
- Model: NF-521S
- Resolution: 120 x 90
- Infrared spectral bandwidth : 8~14μm
- Frame rate: 25Hz
- NETD: <70mK@25°C
- FOV: 33°X 50°
- Emissivity: 0.1~0.99
- Low temperature: -20~150°C
- High temperature: 120~400°C
- Measurement accuracy: +/-2°C or +/-2% of reading
- Screen size: 2.8 inch
- Picture modes: Edge fusion, Overlay fusion, Picture-in-picture,
- Single infrared, Single visible light
- Color palettes: Iron red, rainbow, hot red, hot black, hot white, high contrast, hot green, lava pattern.
- Temperature Measurement: Supports the highest point, lowest point, midpoint temperature measurement on the whole screen, and regional temperature measurement.
- Visible light camera: one million pixels
- Visible field angle: H=83°V=55°
- Resolution: 720 P
- Language: English/Chinese
- Interface: USB-C (charging and data transfer)
- Battery: 2600mAh lithium battery
- Capacity: 8Gb memory
- Picture/Video Format: JPEG/Mp4
- Auto power off function: Yes
- Certification: CE
- Storage Temperature: -20°C~65°C
- Operating temperature: -10°C~60°C
- Drop resistance: 2m
- Net weight: 310g
