THERMAL IMAGING CAMERA GTC 400 C

Technical Specifications

Manufacturer: Bosch
Manufacturer no: 601083101
Applications: Thermal image
Battery voltage: 12
Measuring range: -10 °C to +400 °C
IR measurement accuracy: ± 3.0°C* (*plus additional deviation depending on application)
Data transmission: Micro USB, Wi-Fi
Thermal sensitivity (NETD): <50 mK
Resolution: 0.1°C
IR sensor size: 160x120 px
Number of measuring points: 19 200
Field of View (FOV): 53x43°
Power and working time: 4 x 1.5V LR6 (AA) batteries 1 GBA 12V battery 1 GBA 10.8V battery
Image memory (number of images): 500
Memory Type: Internal Memory
Image File Format: .jpg
Protection against dust and water: IP 53
Weight: 0.54 kg
Supported Android devices: Android smartphone from version 6.0
Supported iOS devices: iPhone with iOS 11 or later
Display size: 3.5"
Operating temperature: -10 – 45 °C
Storage temperature: -20 – 70 °C
Aiming distance, min.: 0.3m



Thermal imaging camera GTC 400C

Instant visualization of temperature differences thanks to intelligent documentation of work results
Fast data exchange and easy documentation of thermal images with the Bosch Thermal app
Picture-in-picture technology allows you to display a thermal image superimposed on the real image and easier location of the measurement
Flexible power supply: with 12V Li-ion battery or standard alkaline batteries


**

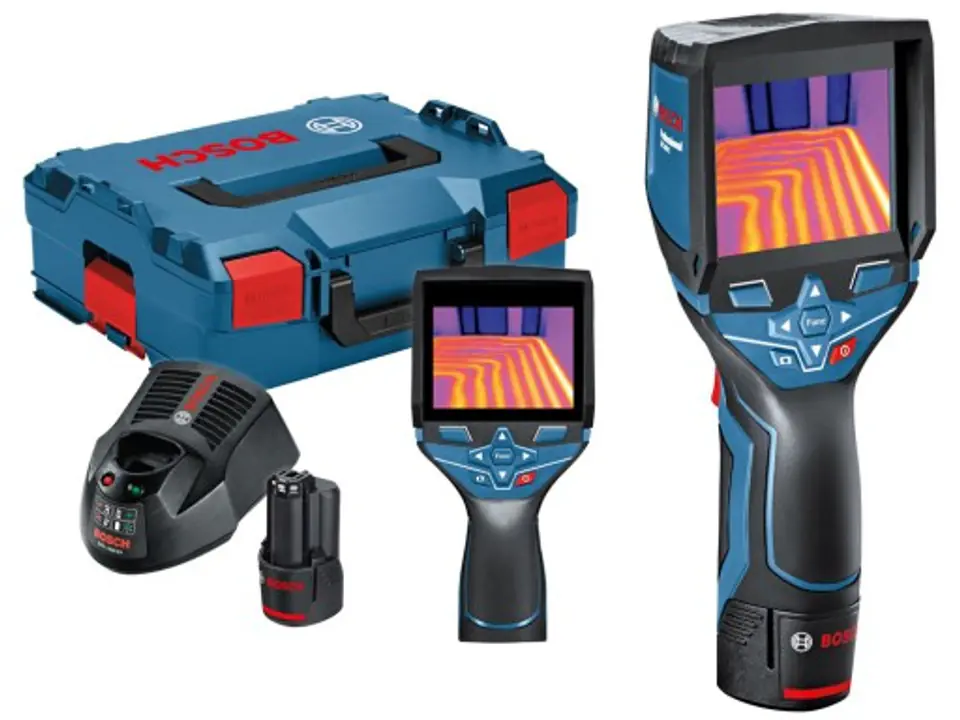

Illustrative photos
