| 80 plus certificate: | 80 PLUS Gold |
|---|---|
| 80 plus certification: | 80 PLUS Gold |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Applied backlight: | no |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.4 |
| Atx version: | 2.4 |
| Bulk box width (external): | 326 mm |
| Cable ties included: | Yes |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 480 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Compliant standards: | ATX 2.4 |
| Cpu connector (4+4 pin): | yes |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 150 mm |
| Depth (mm): | 150 |
| Destiny: | PC |
| Diameter of fan canopy: | 12 cm |
| Efficiency: | 92% |
| Efficiency: | 92% |
| Energy star certified: | Y |
| Energystar certified: | yes |
| Equipment: | Power cable |
| Fan diameter: | 12 cm |
| Floppy disk drive connector: | Yes |
| Floppy disk drive slot: | yes |
| Floppy plugins: | 1 |
| Gross weight of main (external) enclosure: | 15.2 kg |
| Height: | 86 mm |
| Height (mm): | 86 |
| Height of reference box (external): | 241 mm |
| Hold time: | 23 ms |
| Input current: | 8 A |
| Line: | Pure Power |
| Line current: | +12V1 - 28A, +12V2 - 20A, -12V - 0.3A, +3.3V - 24A, +5Vsb - 3A, +5V - 15A |
| Line load: | -12V - 3.6W, +12V - 480W, +3.3V/+5V - 120W, +5Vsb - 15W |
| Main box length (outer): | 514 mm |
| Manual: | Yes |
| Master (outer) case gross weight: | 15.2 kg |
| Master (outer) case height: | 241 mm |
| Master (outer) case length: | 514 mm |
| Master (outer) case width: | 326 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 28 A |
| Max output current (+12v2): | 20 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 3 A |
| Maximum output current (-12 v): | 0.3 A |
| Maximum output current (+12 v1): | 28 amps |
| Maximum output current (+12 v2): | 20 amps |
| Maximum output current (+3.3v): | 24 amps |
| Maximum output current (+5 v): | 15 amps |
| Maximum output current (+5 vsb): | 3 A |
| Molex plugins: | 3 |
| Motherboard cable length: | 55 cm |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level (at full load, 100 %): | 21.6 dB |
| Noise level (full-load mode, 100%): | 21.6 dB |
| Noise level (quiet mode, 50%): | 9.6 dB |
| Noise level (silent mode, <30 %): | 9.3 dB |
| Noise level (silent mode, <30%): | 9.3 dB |
| Noise level (silent mode, 50 %): | 9.6 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 3 |
| Number of sata power connectors: | 6 |
| Other connectors: | 1 x CPU 4+4 (8) pin |
| Other parameters: | Rifle bearing |
| Package depth: | 240 mm |
| Package height: | 96 mm |
| Package weight: | 2.33 kg |
| Package width: | 210 mm |
| Pause time: | 23 ms |
| Pci express power cable length: | 50 cm |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 2 |
| Pci express power connectors (6+2 pin): | 2 |
| Pci-e 6-pin slots: | no |
| Pci-e 8-pin plugs (6+2): | 2 |
| Pci-e 8-pin slots: | no |
| Peak power: | 550 W |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor: | 0.99 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Under voltage, Over current, Overheating, Short circuit, Over voltage, Over power |
| Power supply (w): | 500 |
| Power supply efficiency (%): | 92 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Product depth: | 150 mm |
| Product height: | 86 mm |
| Product weight: | 2.05 kg |
| Product width: | 150 mm |
| Products in the main (outer) case: | 6 pcs. |
| Products per master (outer) case: | 6 pc(s) |
| Purpose: | PC |
| Rohs compliance: | Y |
| Rohs compliance: | yes |
| Sata plugs: | 6 |
| Sata power cable length: | 500 mm, 800, 650 mm |
| Screws included: | Yes |
| Total power: | 500 W |
| Total power (-12v): | 3.6 W |
| Total power (+12 v): | 480 watts (Printing) |
| Total power (+3.3 v): | 120 watts (Printing) |
| Total power (+5 v): | 120 watts (Printing) |
| Total power (+5 vsb): | 15 watts |
| Type of cooling: | Fan 120 mm |
| Type of power supply (psu): | ATX |
| User's guide: | yes |
| Warranty: | 3 years |
| Weight: | 2.05 kg |
| Weight (g): | 2050 |
| Weight with packaging: | 2.33 kg |
| Width: | 150 mm |
| Width (mm): | 150 |

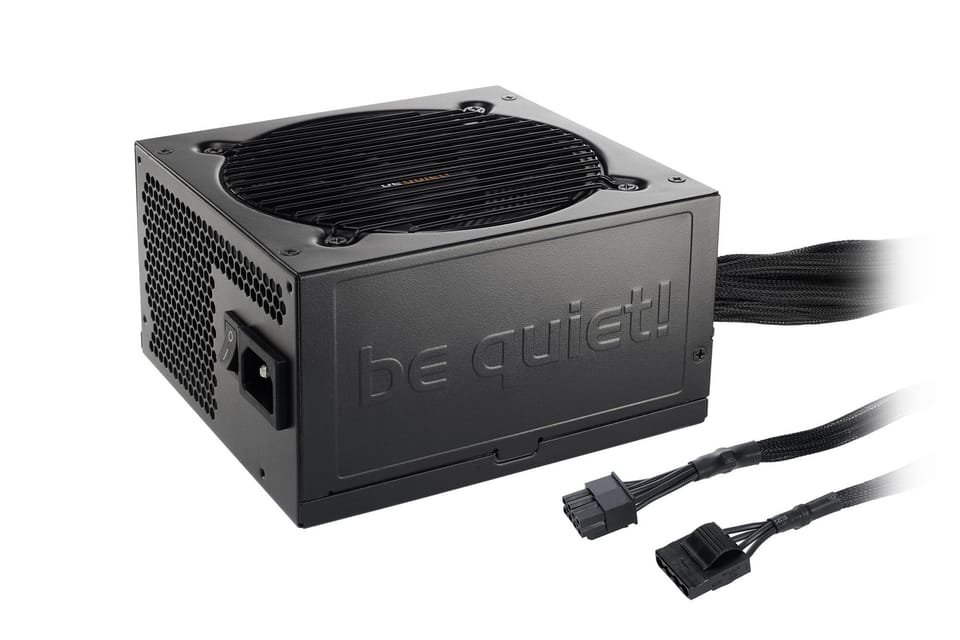

Pure Power 11 500W offers high reliability and a best-in-class feature set. If you're building a very quiet system, upgrading an existing one, or building a powerful gaming system with multiple video cards, your PC with this power supply is the best solution.
150 x 86 x 150 mm
