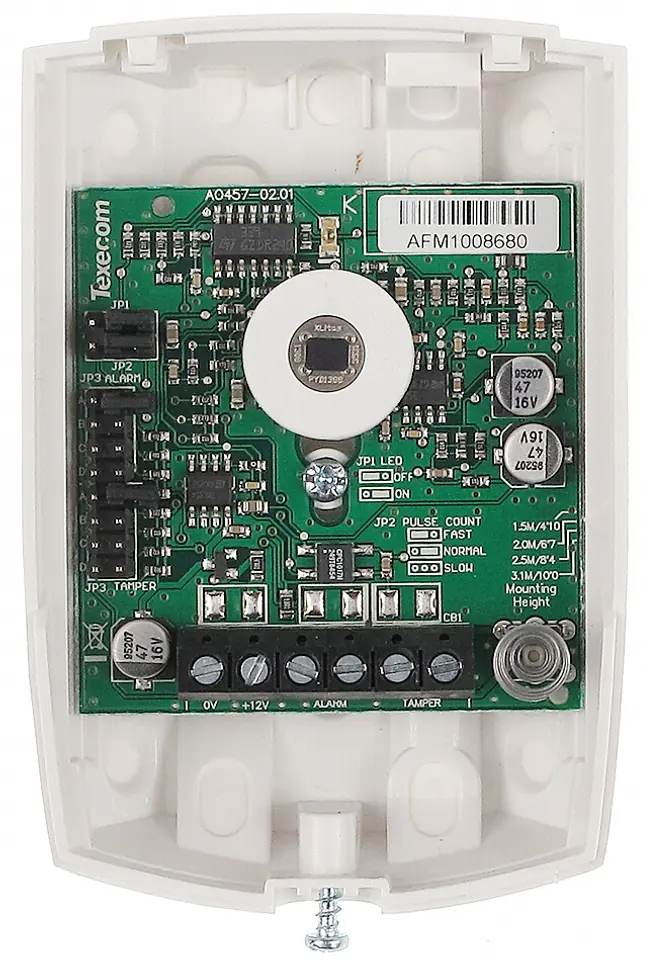

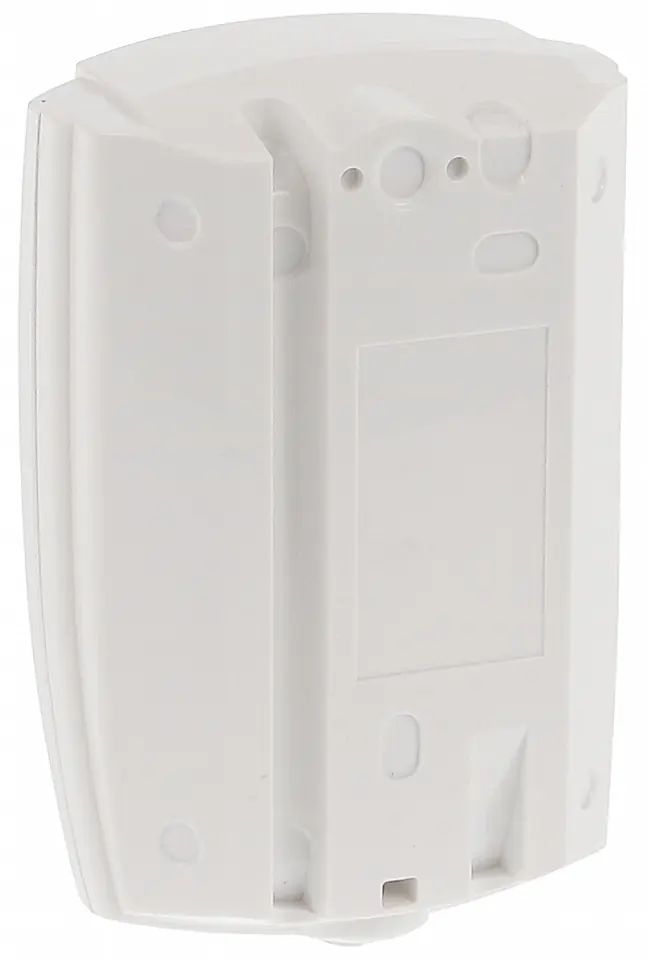

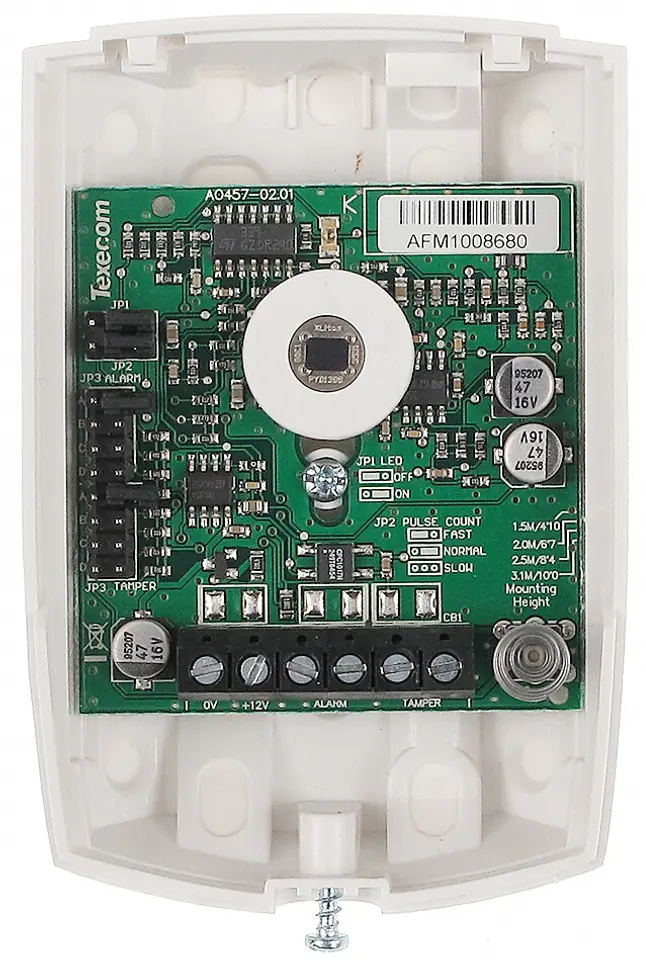

ACD-0001 is a modern PIR motion sensor in an elegant, miniature, white housingRange of 12 m at a detection angle of 90°, precise, sealed Fresnel optics and pulse counter ensure good detection efficiency in eliminating false alarms
TEXECOM PIR DETECTOR ACD-0001
€14.22
Shipping from warehouse: D4
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- TEXECOM
- Product code:
- ACD-0001 / 0653522108886
Share this product:
Specification
| Alarm output: | 24 V / 50 mA NC |
|---|---|
| Detectable movement speed: | 0.3 ... 3 m/s |
| Detection angle: | 90 ° |
| Dimensions: | 95 x 63 x 41 mm |
| Infringement signalling time: | > 2 sec |
| Operating temperature: | -10 °C ... 55 °C |
| Power: | 9 volts ... 15 VDC / 10.6 mA |
| Producer / brand: | TEXECOM |
| Range: | 12 m |
| Sensitivity adjustment: | 3-step |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
