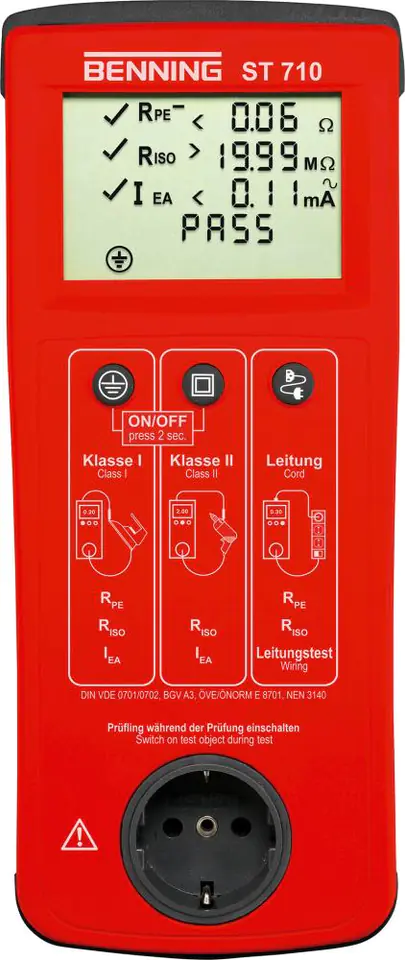

ST 710 Equipment Test Tool
Execution: automatic test run with good/bad result display for class I, II (III) devices and cable test. Voltage measurement on an external socket with grounding. Three-phase objects can be controlled using optional adapters. The limit values of VDE standards are set. Battery capacity for 2500 measurements. Delivery with transport bag with belt, control wire with clamp for measurements, power cord with IEC plug and batteries.
Application: for technical safety tests (DGUV regulation, 3 tests) of electrical equipment and work equipment according to VDE 0701-0702, DGUV, regulation 3, ÖVE/ÖNORM E 8701, NEN 3140. Designed for use in electrical installations, in industry, for repairs, service and in local administrations.
Work with batteries. Checking electrical appliances/tools with on/off function, heat generating appliances, motor appliances, piping, multiple distributors and household appliances. Protective/touch conductor current using the equivalent leakage current measurement method.
Protective conductor current/touch current determined by the equivalent leakage current method.
0.1 mA – 20 mA
Power test:
RPE, RISO, System continuity/phase conductor short-circuit/neutral circuit checking Protective conductor current/touch current determined by the equivalent leakage current method.
0.1 mA – 20 mA
Power test:
RPE, RISO, System continuity/phase conductor/neutral circuit check
