Tentacles for internal measurements, analog./digital. 20-40mm KRÖPLIN

€706.88
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Jan 24 - Mon, Jan 27
14 days returnUnconditional return policy
Availability:
running out
Brand:
Kroeplin
Product code:
L220 / 4332163400615

Specification

Depth of measurement:85 mm
Error limit:0.03 mm
Fixed arm length:7.3 mm
Groove depth:7 mm
Groove width:1.2 mm
Length of movable arm:7.3 mm
Measuring load:1.1-1.6 N
Measuring range:20-40 mm
No:G220
Read:0.01 mm
Repeatability limit:0.01 mm
Type of measuring tip::ball Ø 1 (2) mm

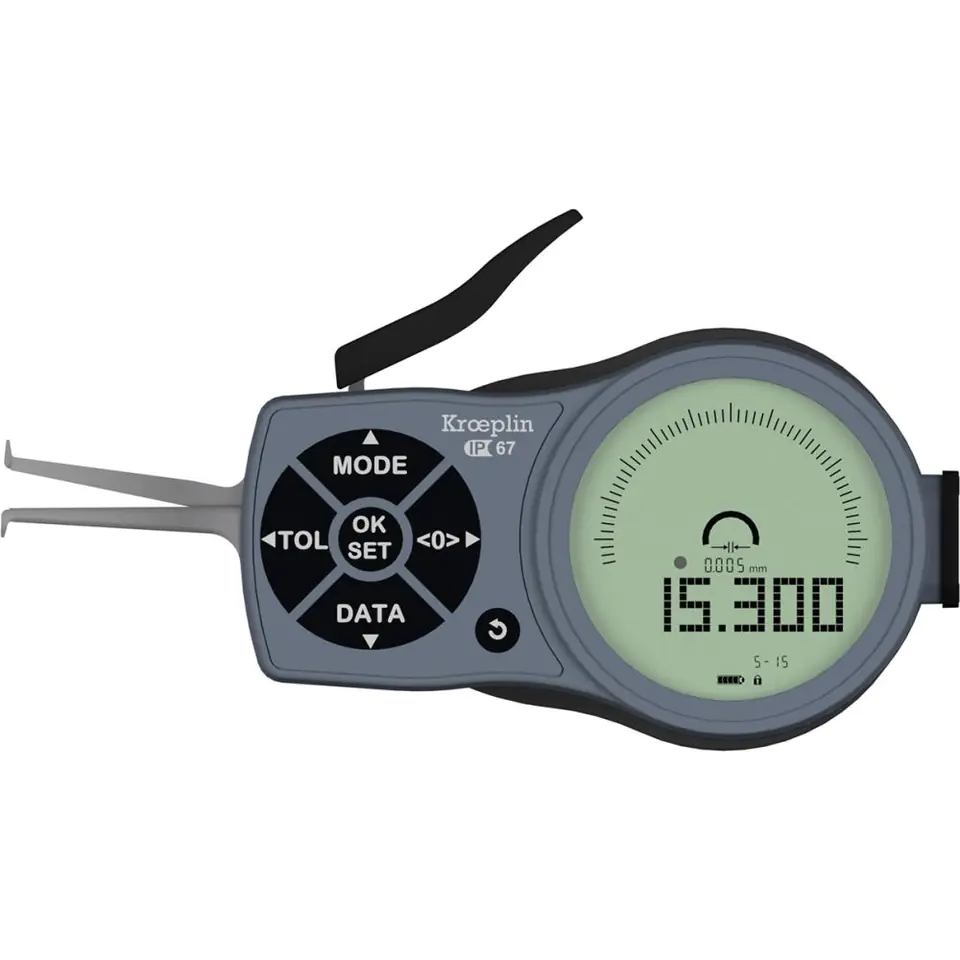

Macacles for internal measurements with analog and digital display

Design: the measuring tentacles are characterized by a clearly made LCD display, which facilitates the correct reading of the measured values. Supplied with screwdriver and 2 AAA/LR03 batteries, 1.5 V, in a shipping package.

Functions: absolute and relative measurement program, mm/inch switching, red-green traffic lights for tolerance measurements, possibility to set the numerical increment value.

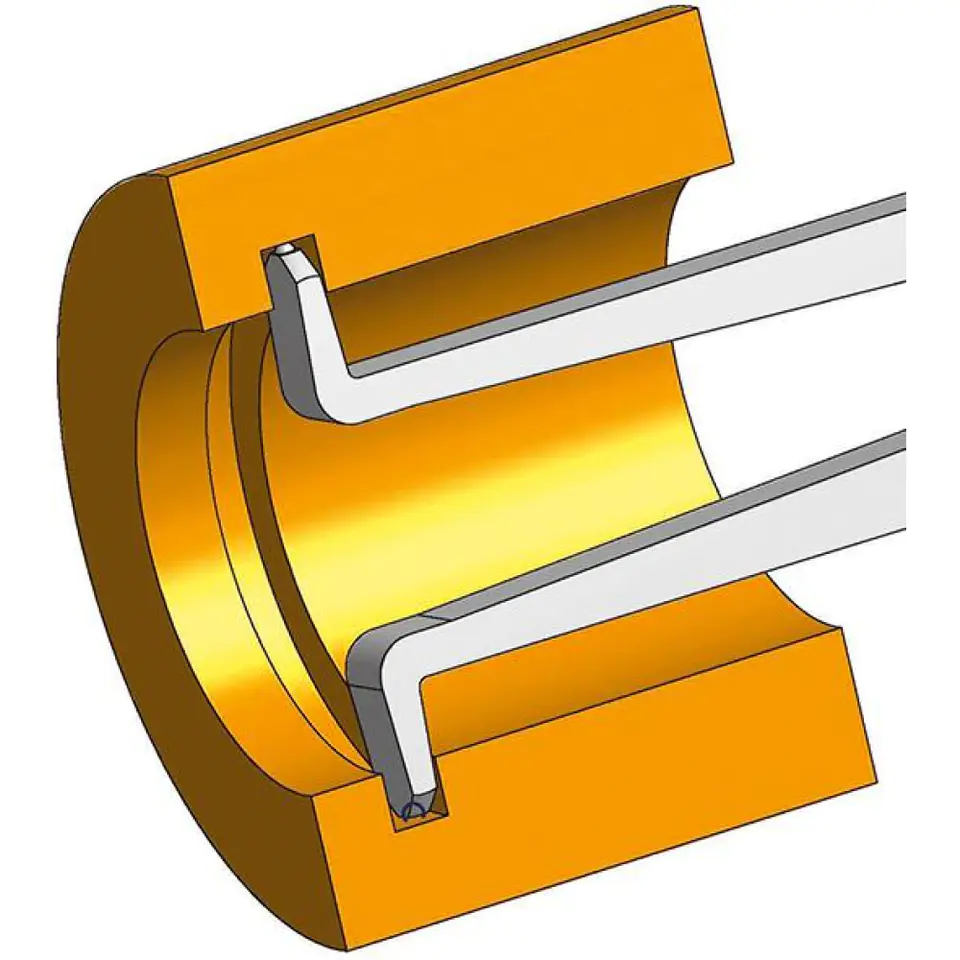

Application: for measuring grooves and holes.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
