| Depth of measurement: | 35 mm |
|---|---|
| Error limit: | 0.015 mm |
| L. fixed measuring tip: | 18.6 mm |
| L. measuring tip movement.: | 19.1 mm |
| Measuring load: | 0.8–1.2 N |
| Measuring range: | 0-10 mm |
| Read: | 0.005 mm |
| Repeatability limit: | 0.005 mm |
| Type of measuring tip: | :ball Ø 1.5 (1) mm |

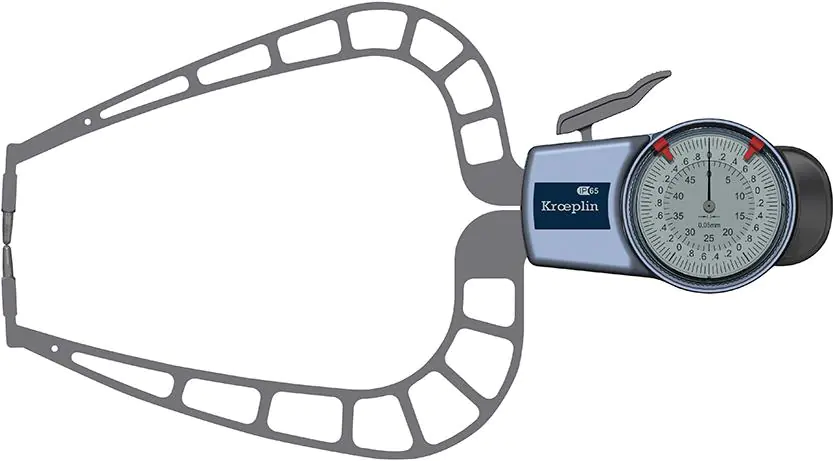

Precision tentacles for external measurements Oditest

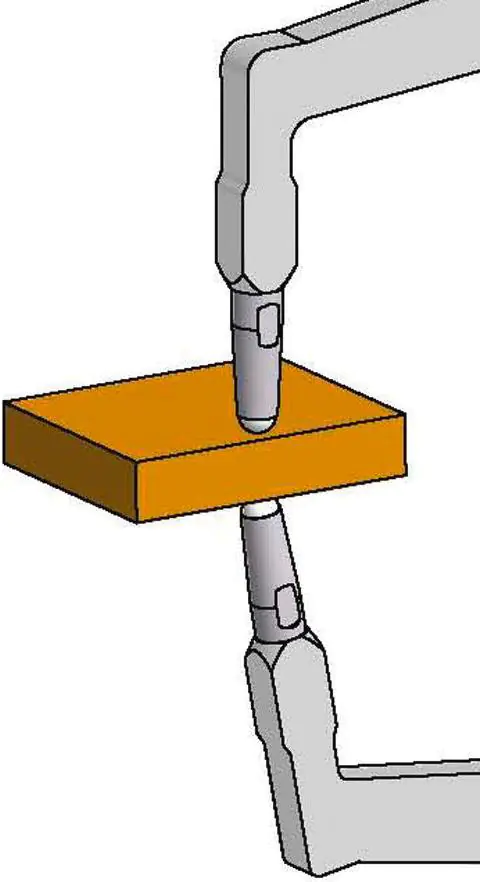

Design: with one fixed and one movable sensor arm, direct measurement result at sensor arm deflection. The movable touch arm is bent, the measuring surfaces are made of cemented carbide. Delivery in transport packaging.
Application: for quick measurement of pipes, hollow solids, etc.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
