Tentacles for external measurements 0-50mm KRÖPLIN

€936.40
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Kroeplin
Product code:
K450 / 4053569108898

Specification

Depth of measurement:167 mm
Error limit:0.06 mm
L. fixed measuring tip:30.0 mm
L. measuring tip movement.:30.0 mm
Measuring load:0.8–1.7 N
Measuring range:0-50 mm
Read:0.02 mm
Repeatability limit:0.04 mm
Type of measuring tip:ball Ø 3,0 mm

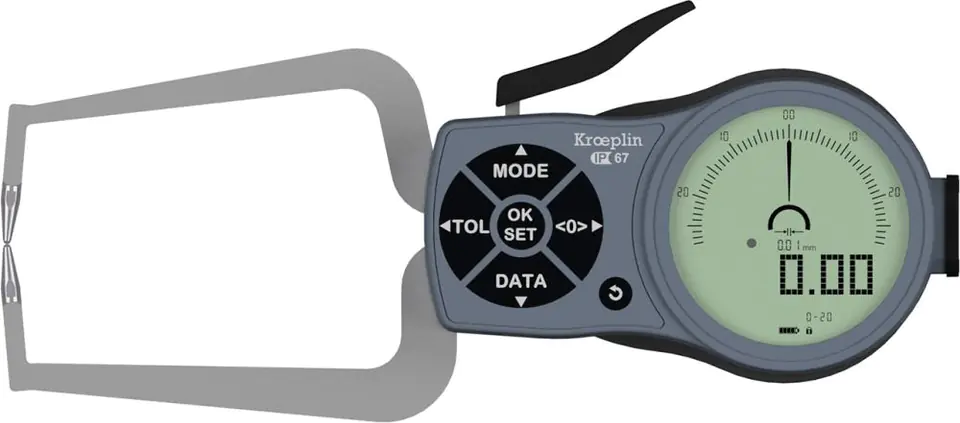

Tentacles for external measurements with digital and analog display

Design: the measuring tentacles are distinguished by a clearly made LCD dial, which facilitates the correct reading of the measured values. Supplied with 2 AAA/LR03 batteries, 1.5 V (for 4267 0020 with screwdriver), in transport packaging.
Functions: absolute and relative measurement program, mm/inch switching, red-green traffic lights for tolerance measurements, numerical increment value switching.

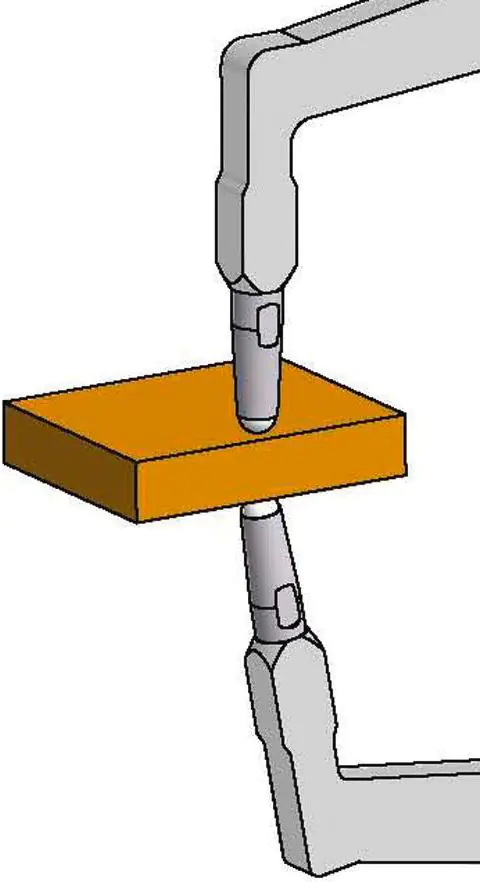

Application: for quick measurement of grooves, holes and wall thicknesses.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
