| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |

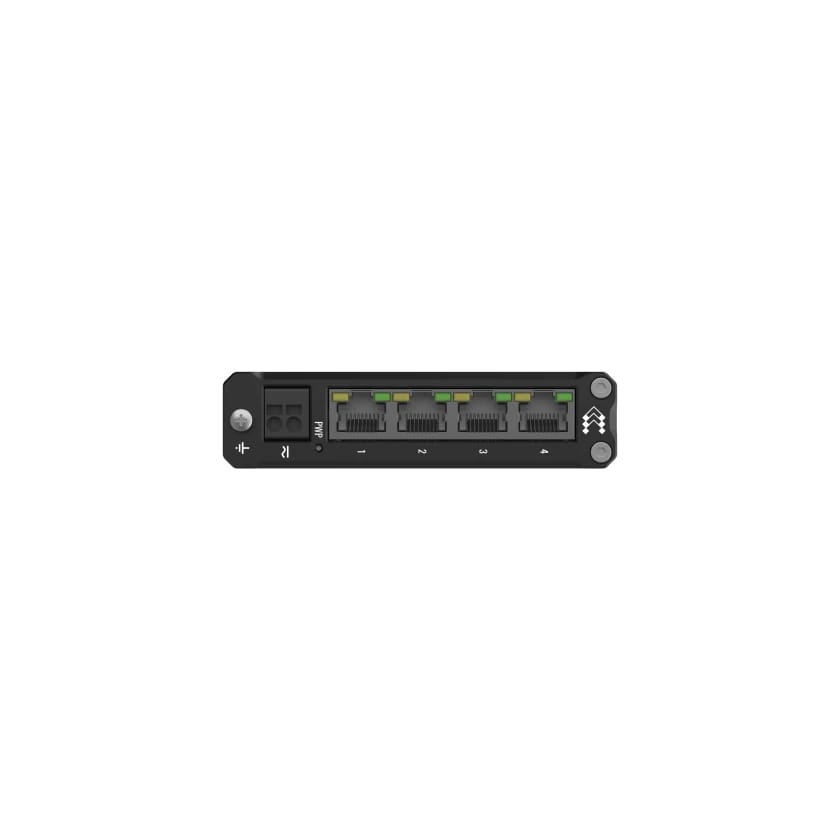

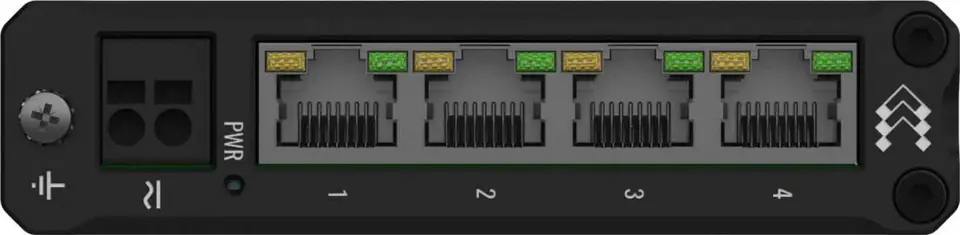

| Basic switching rj-45 ethernet ports quantity: | 4 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Dc input voltage: | 7 - 57 V |
| Depth: | 81.5 mm |

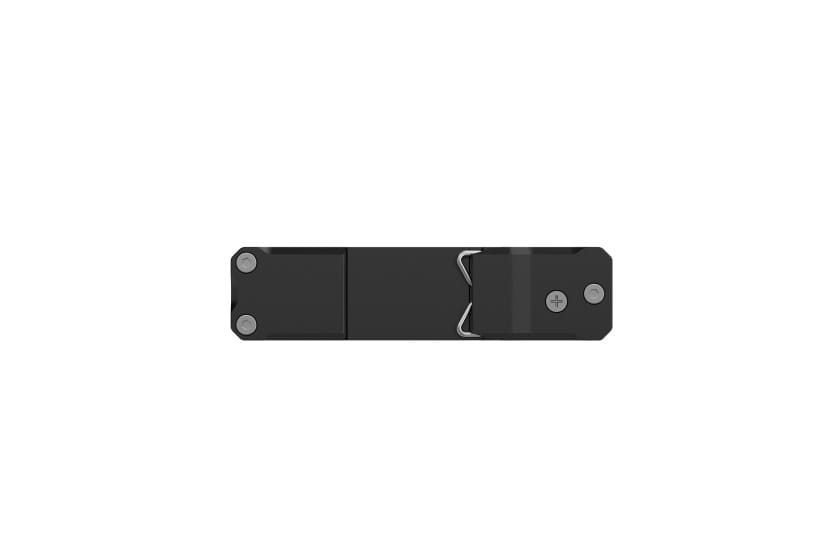

| Din rail mounting: | Yes |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Height: | 25 mm |
| Housing material: | Aluminium |
| Input voltage: | 9 - 40 V |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Power, Status |
| Mac address table: | 2000 entries |
| Networking standards: | IEEE 802.3az, IEEE 802.3u, IEEE 802.3 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -40 - 75 °C |
| Packet buffer memory: | 0.128 MB |
| Power consumption (max): | 1.44 W |
| Power consumption (typical): | 0.26 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) type supported: | Passive PoE |
| Power source: | AC/DC |
| Product colour: | Black |
| Switching capacity: | 8 Gbit/s |
| Wall mountable: | Yes |
| Weight: | 210 g |
| Width: | 102 mm |

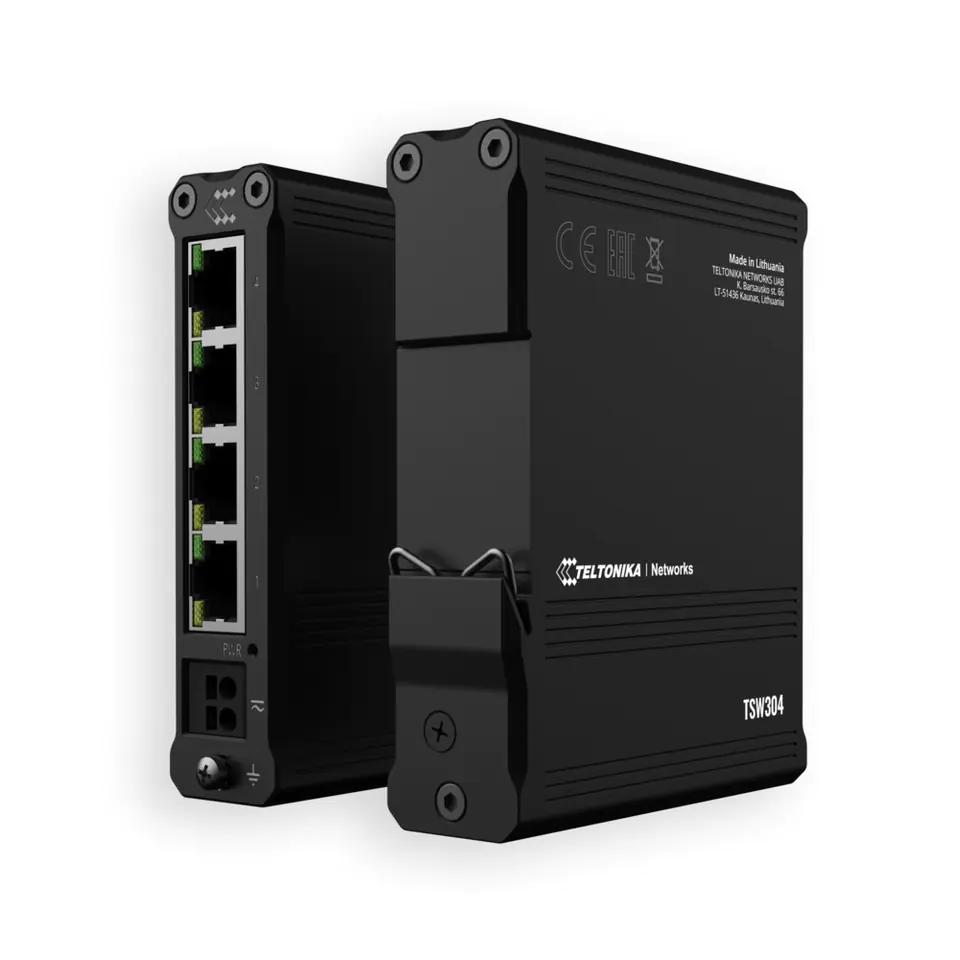

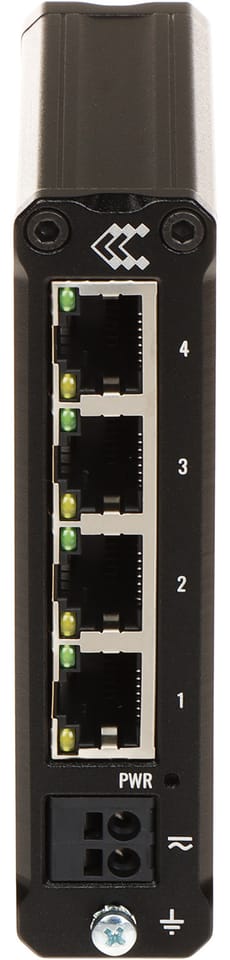

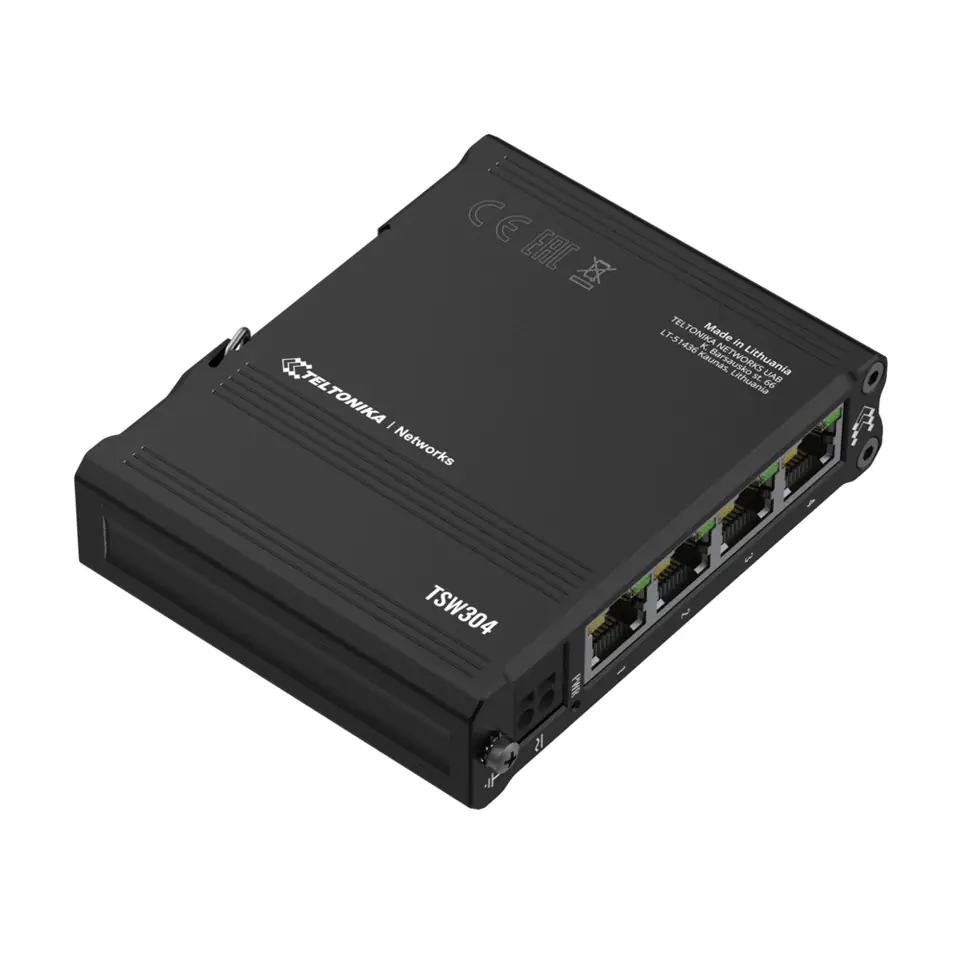

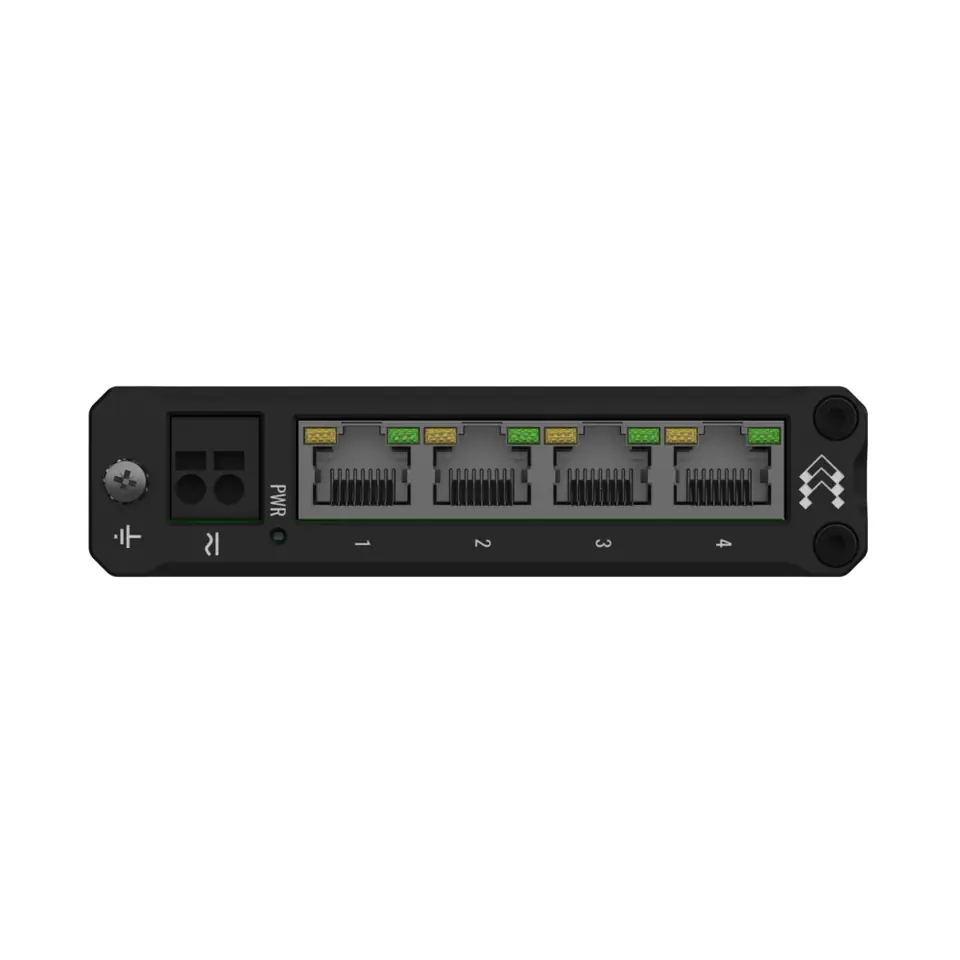

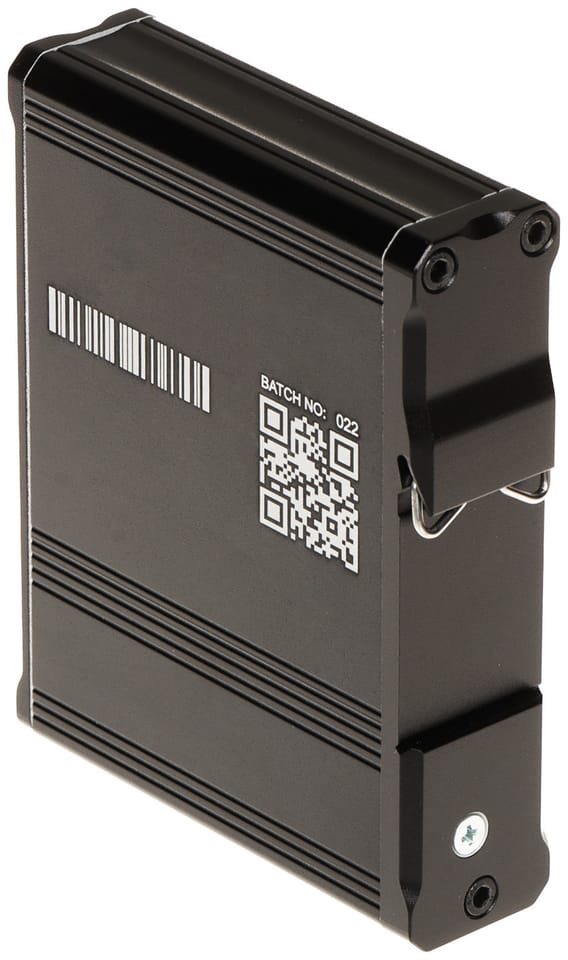

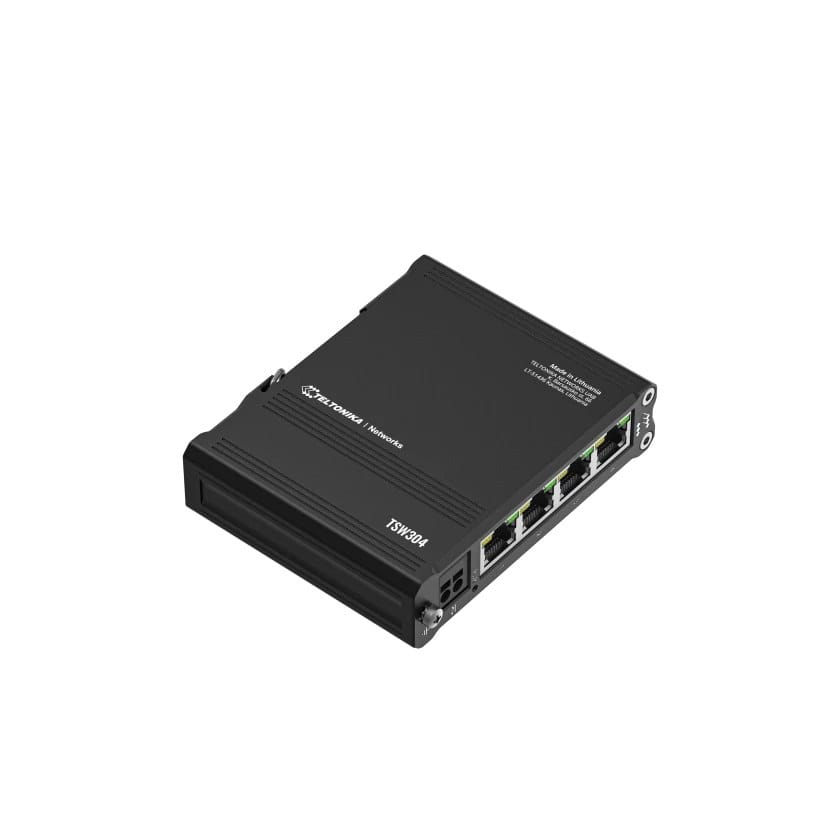

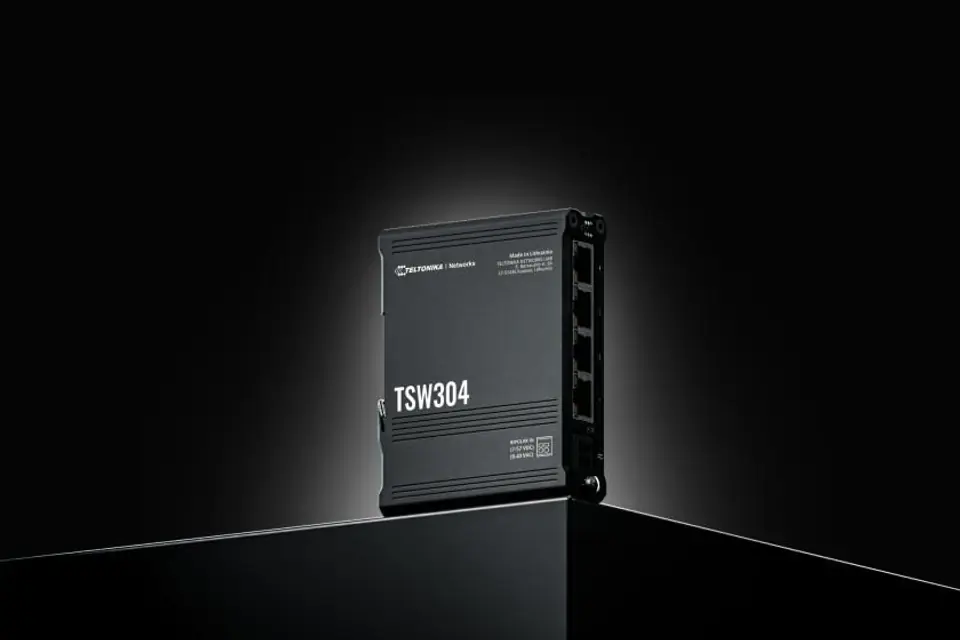

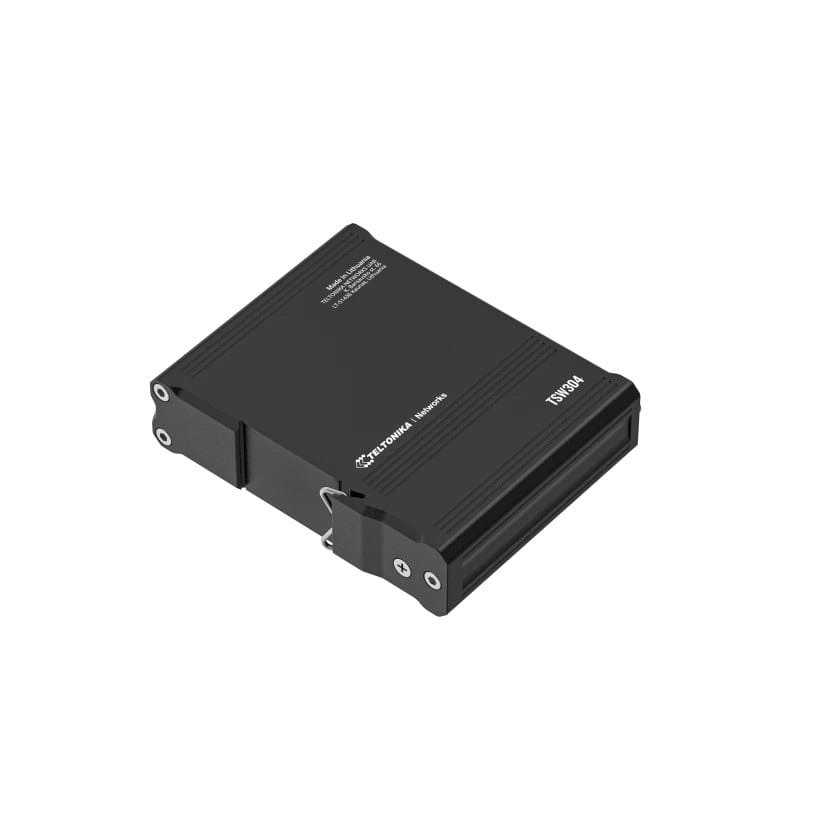

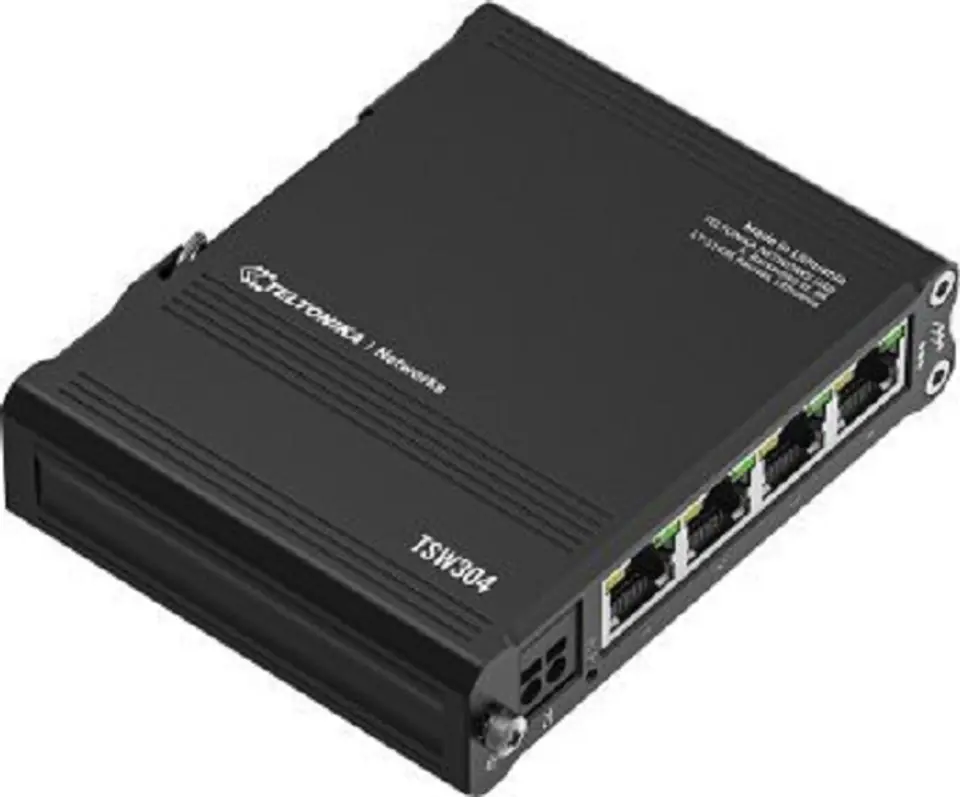

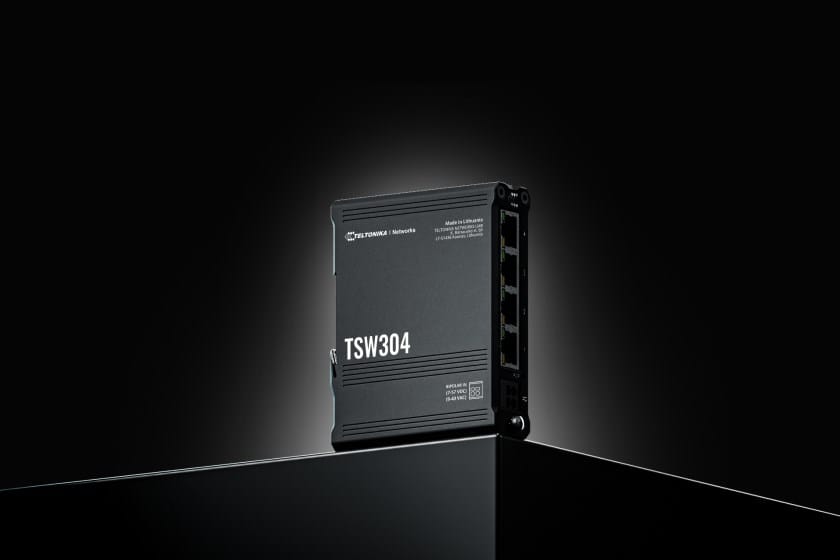

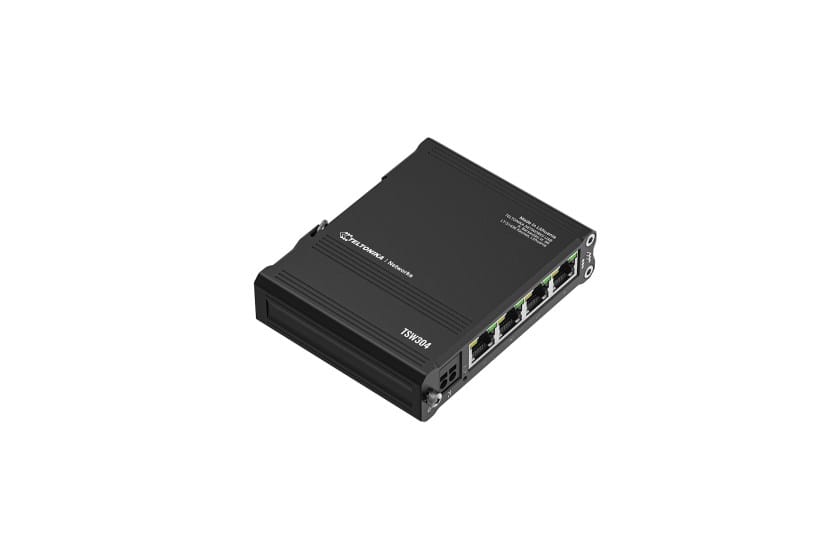

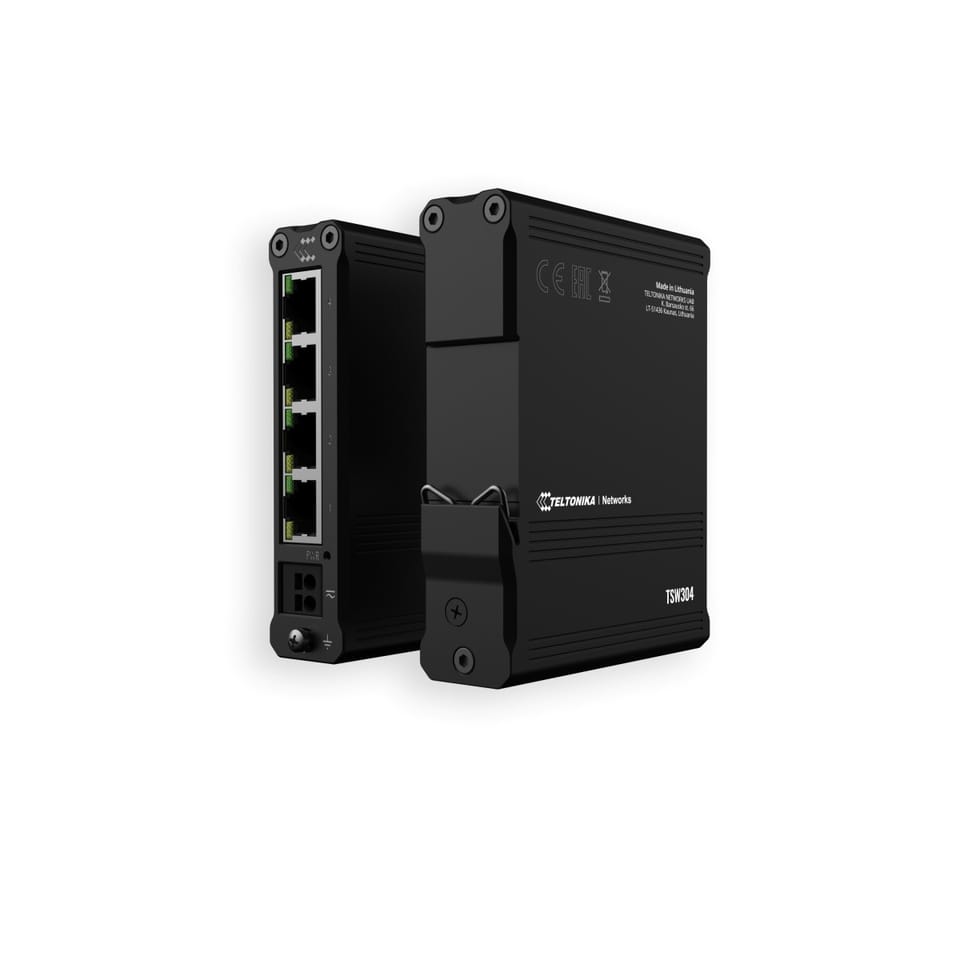

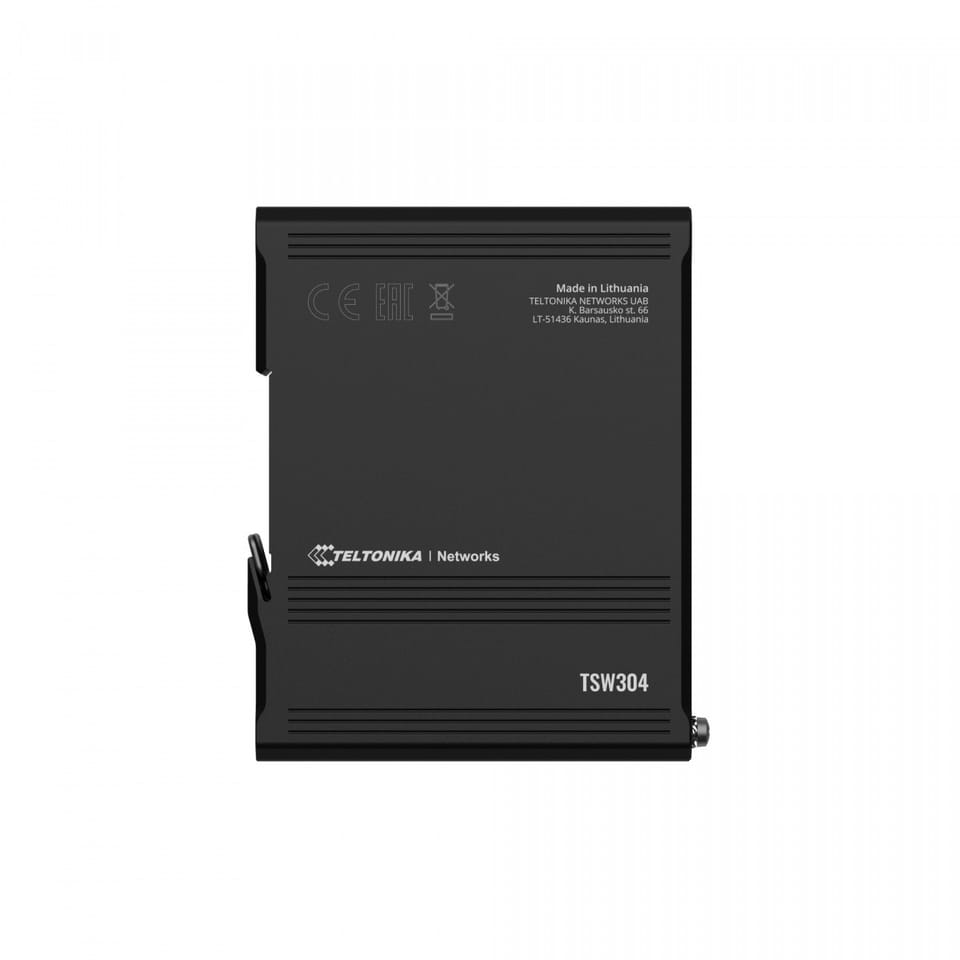

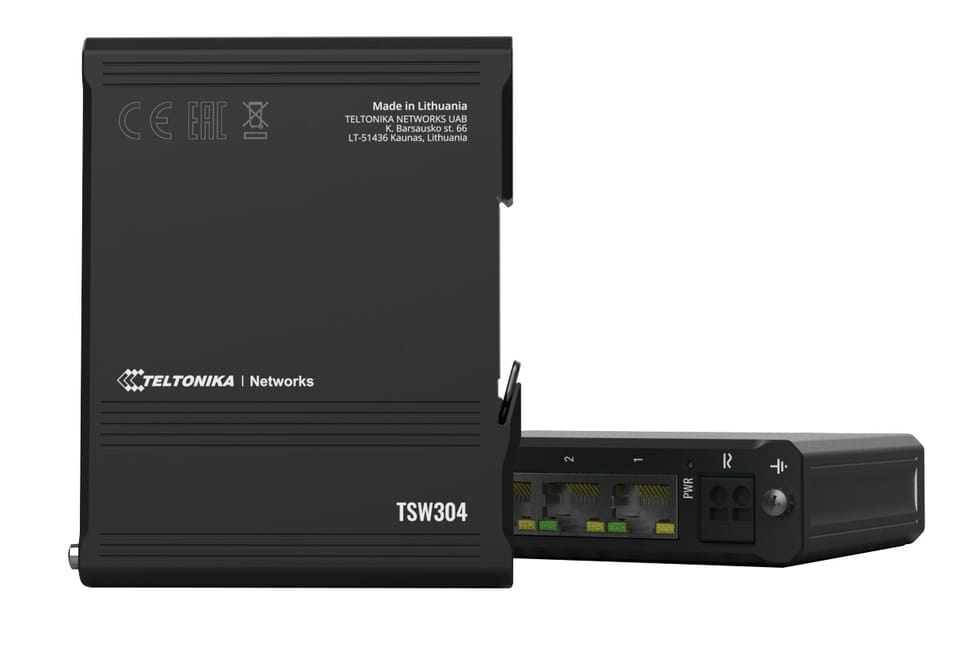

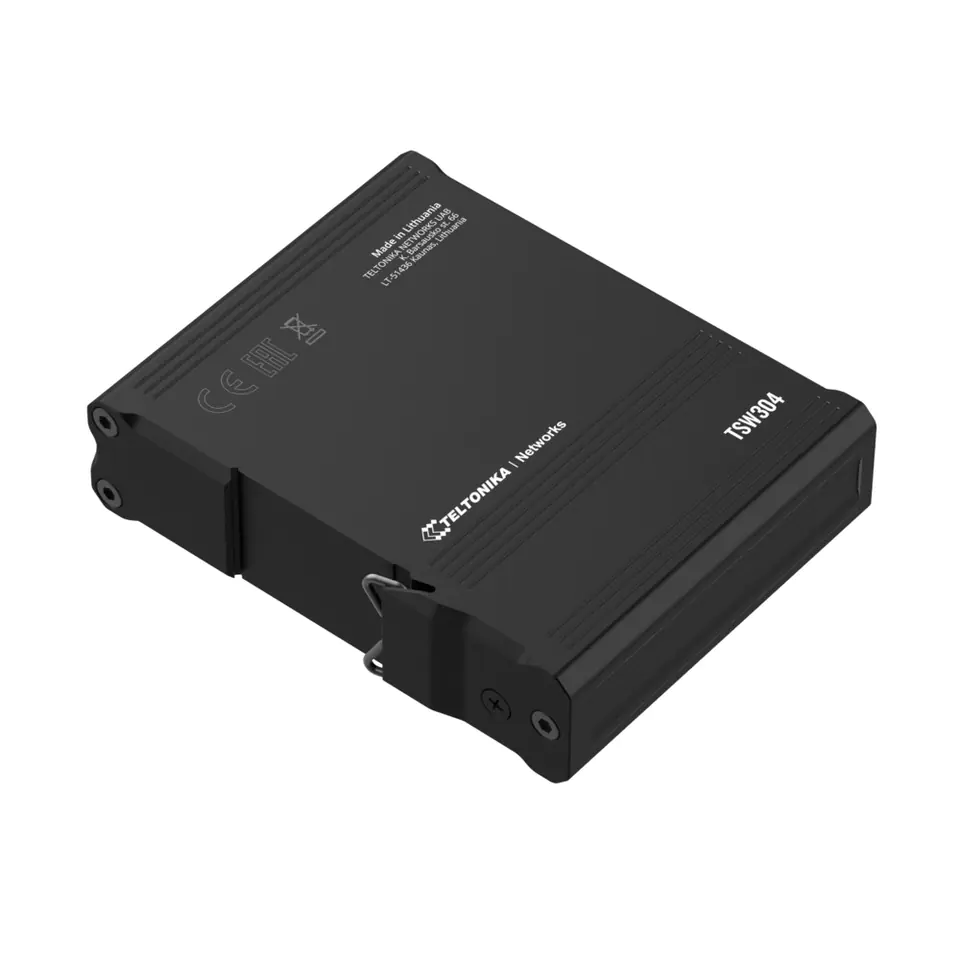

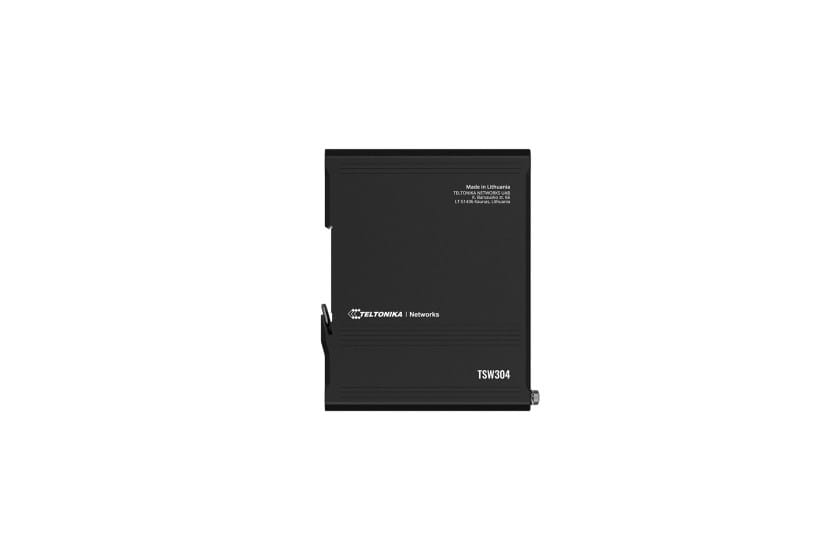

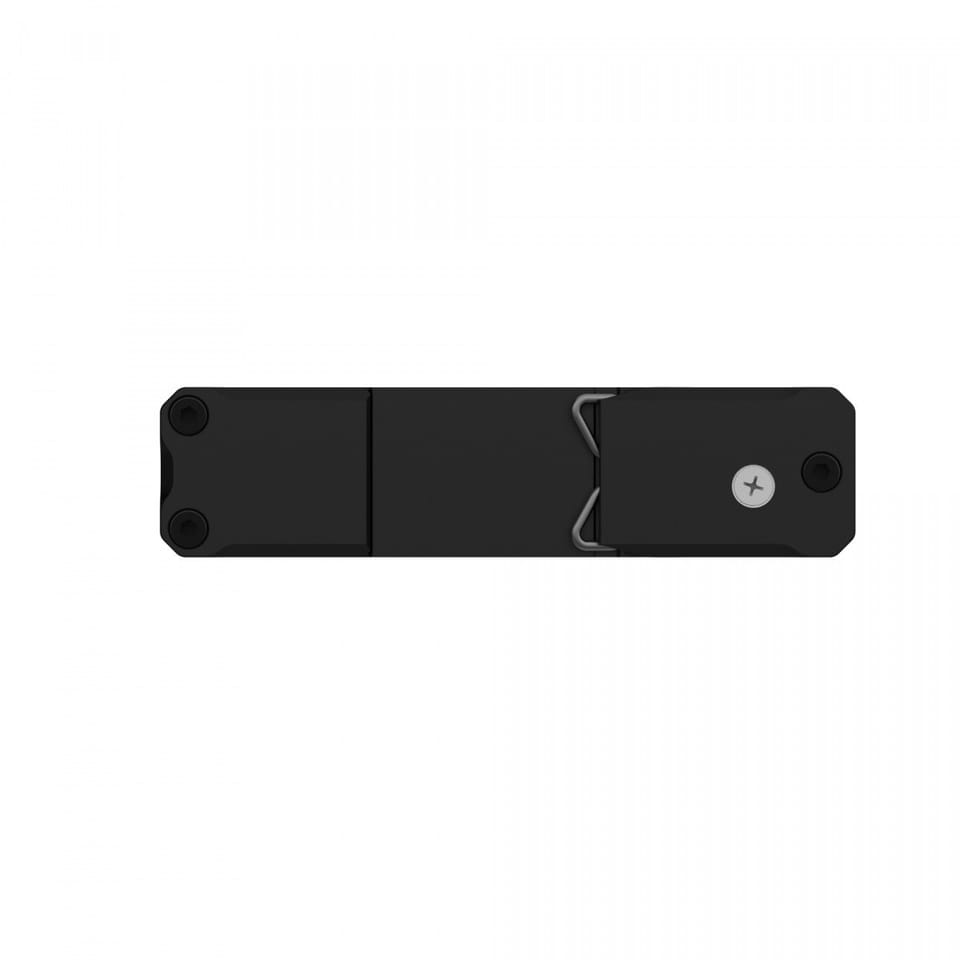

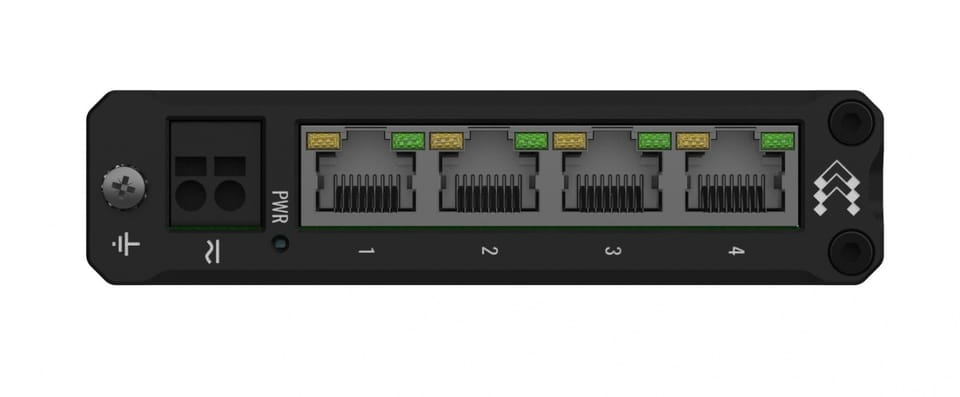

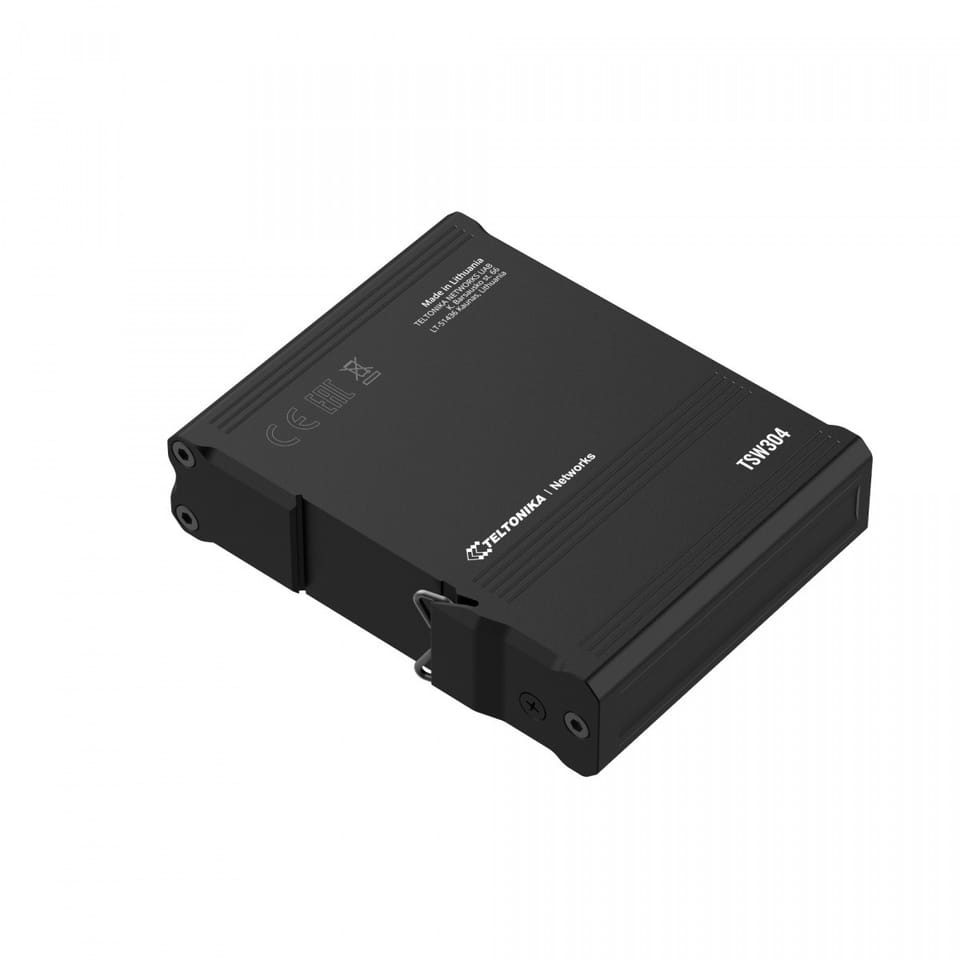

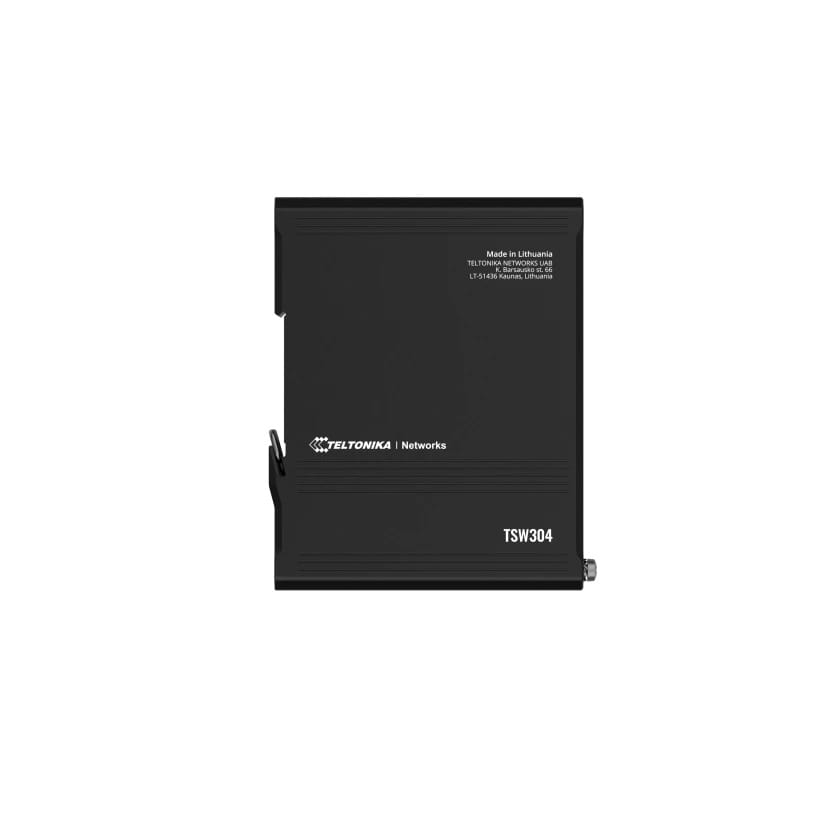

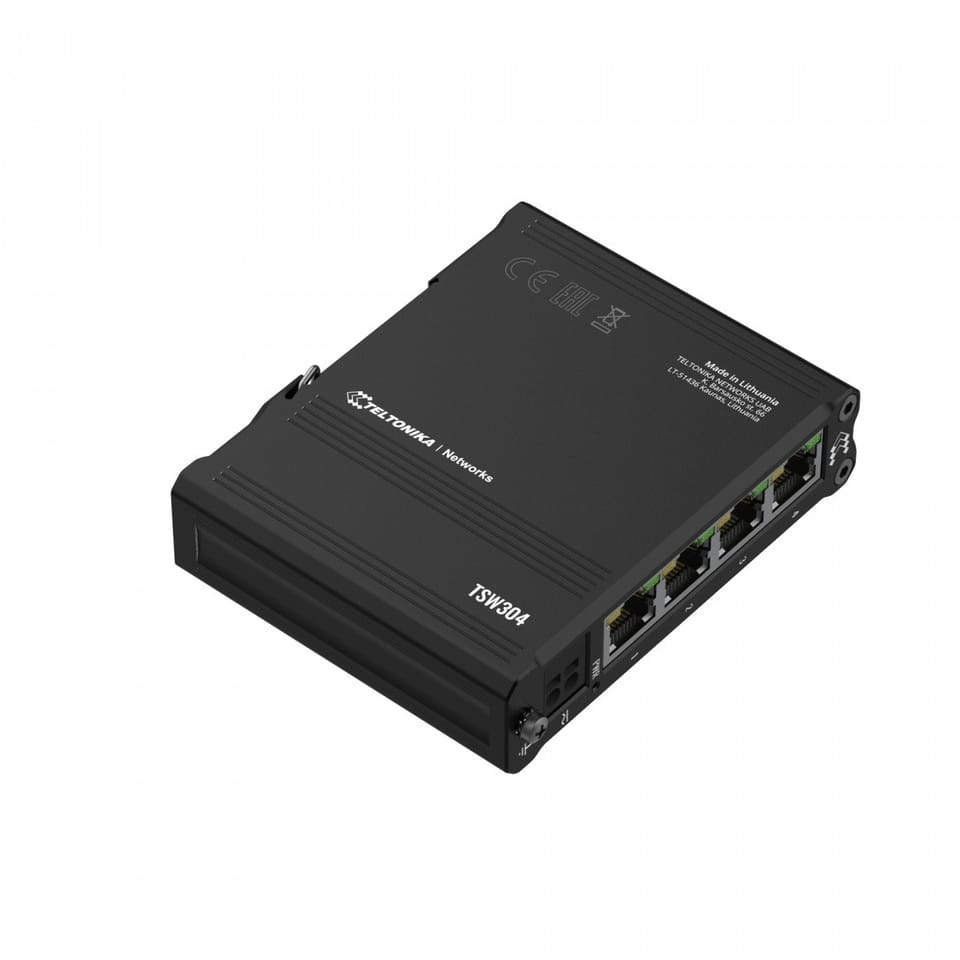

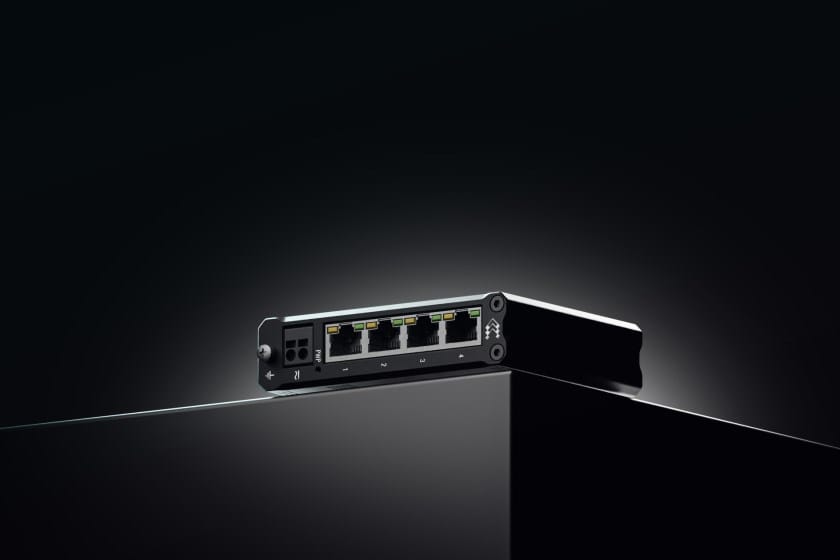

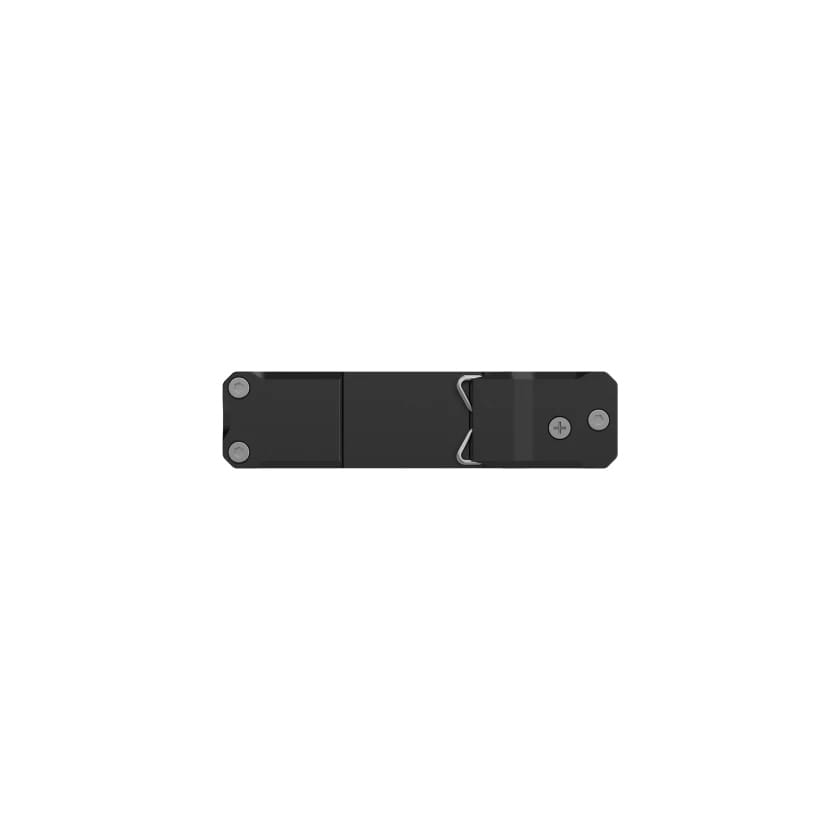

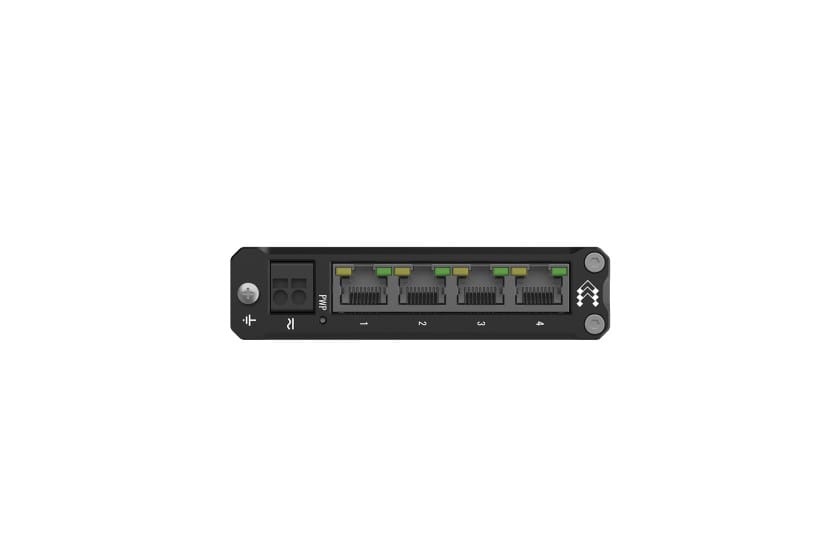

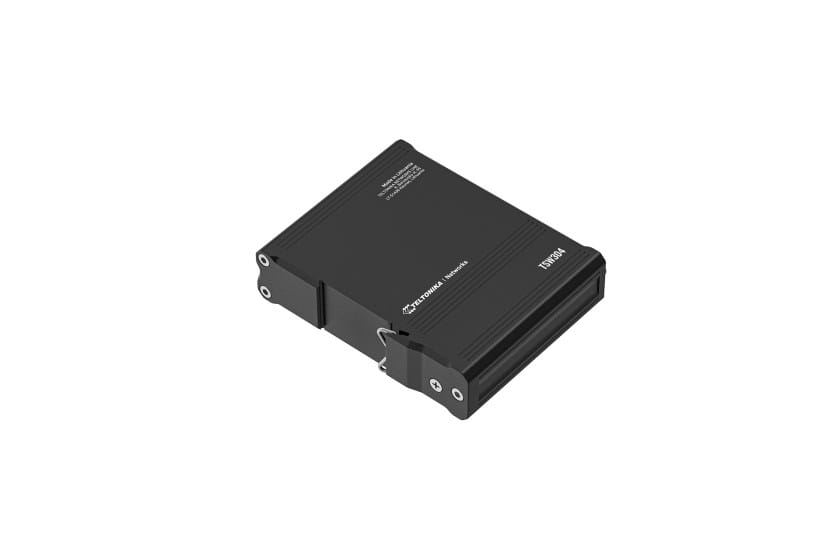

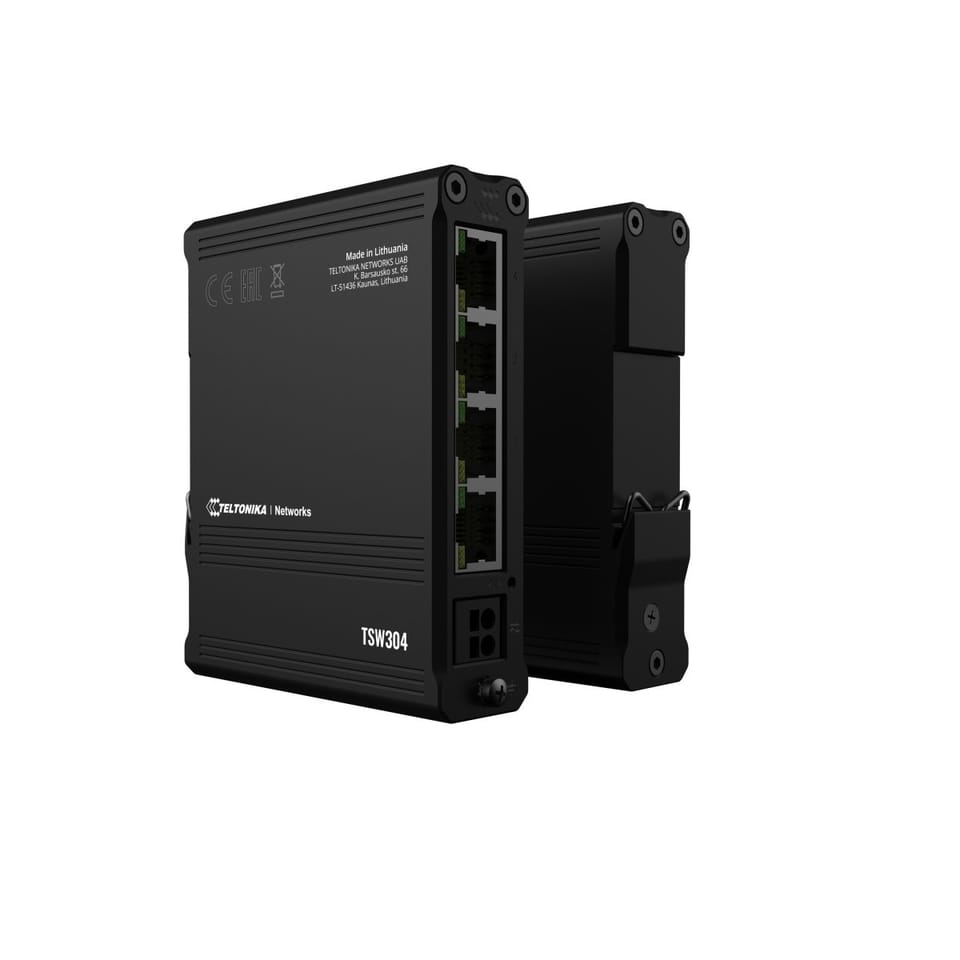

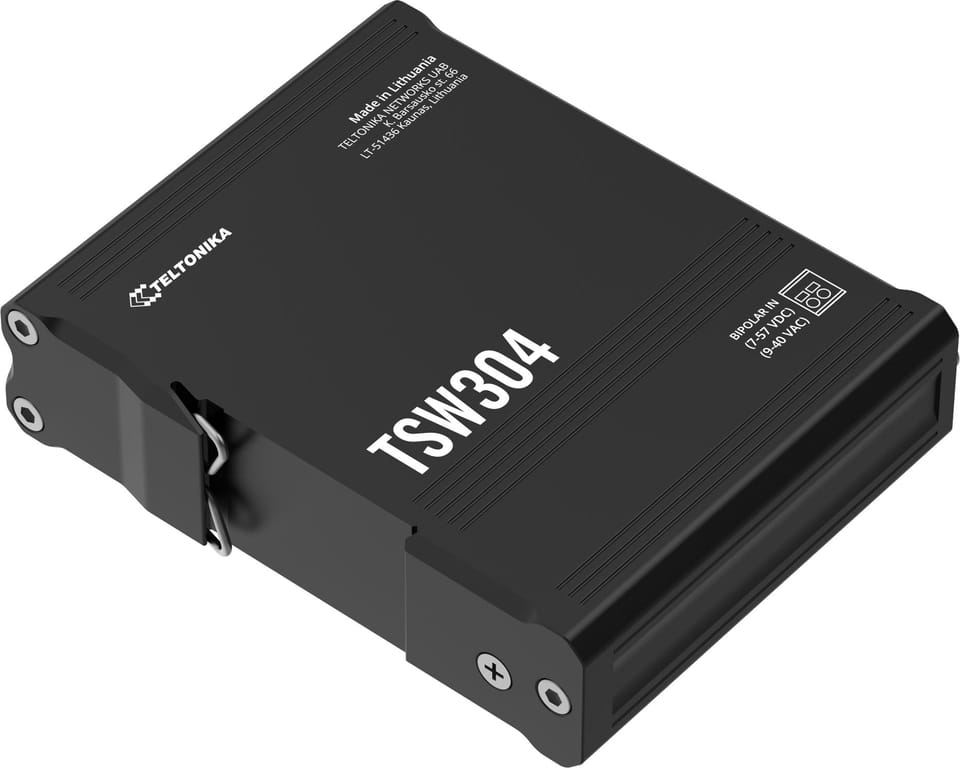

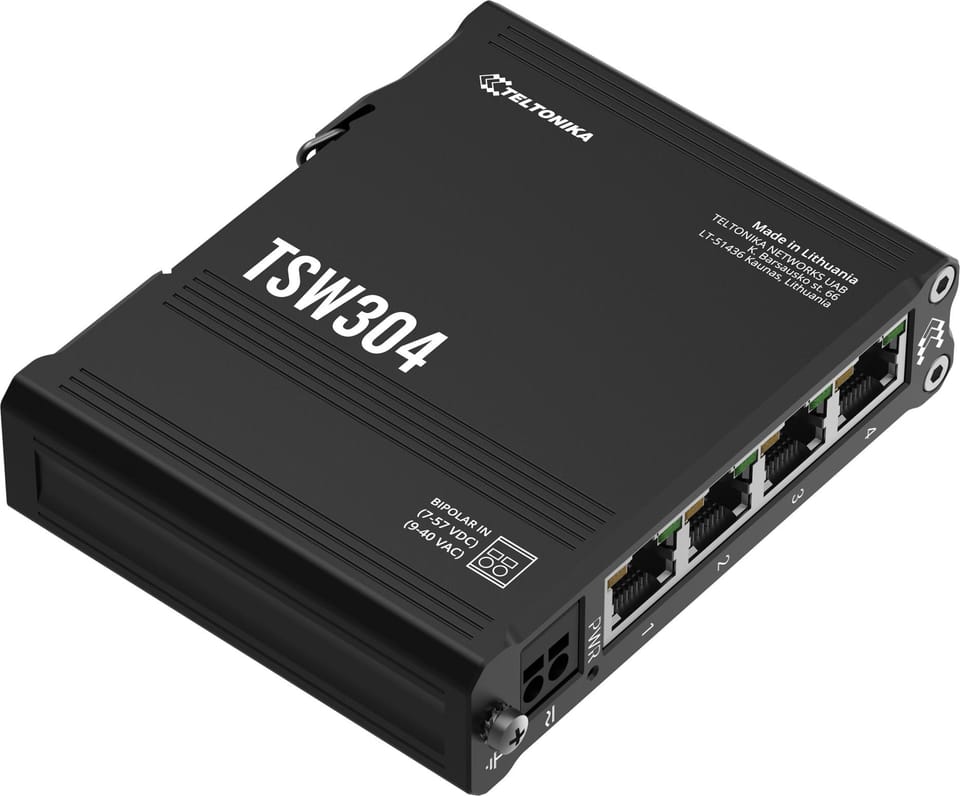

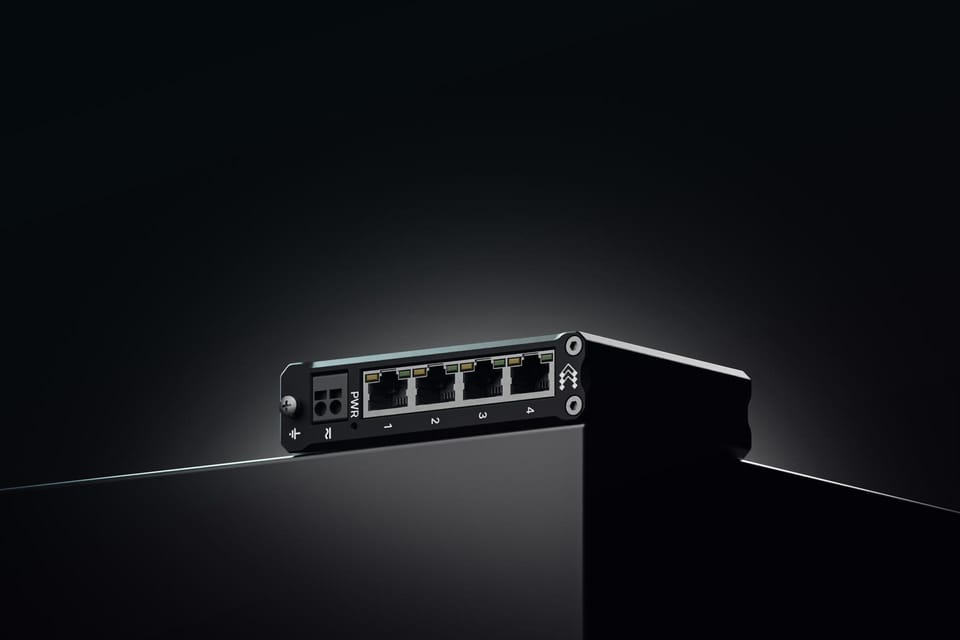

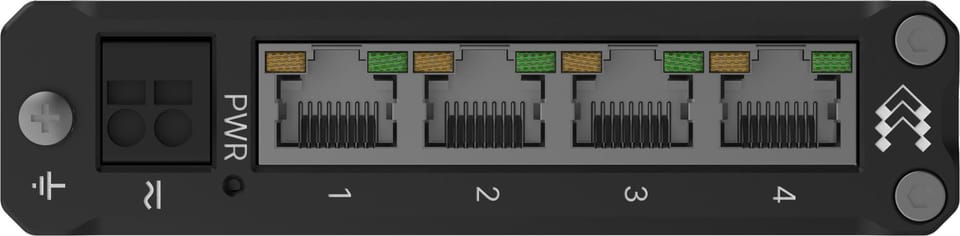

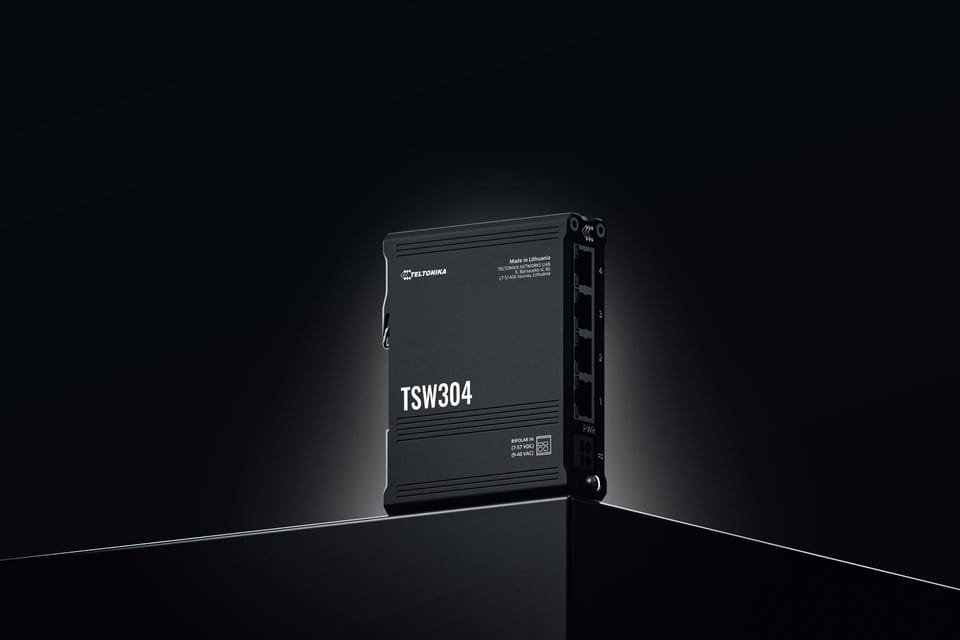

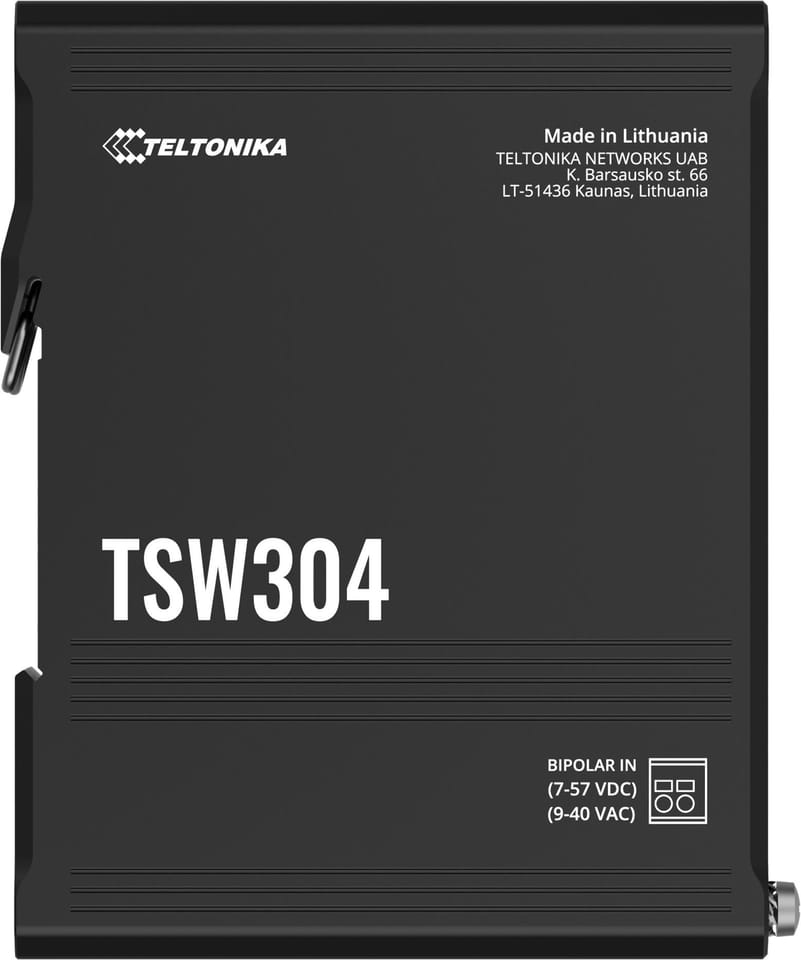

TSW304 switch
TSW304 is the smallest switch in the Teltonika Networks offer, designed for industrial applications. This very small device is equipped with an integrated DIN rail mounting option and will easily find its place in any server rack. The rugged design and shock-resistant housing make it ideal for even the most demanding industrial environments. It is equipped with 4 x Gigabit Ethernet (up to 1000 Mbps) and a wide range of supply voltages 9-57 V.
