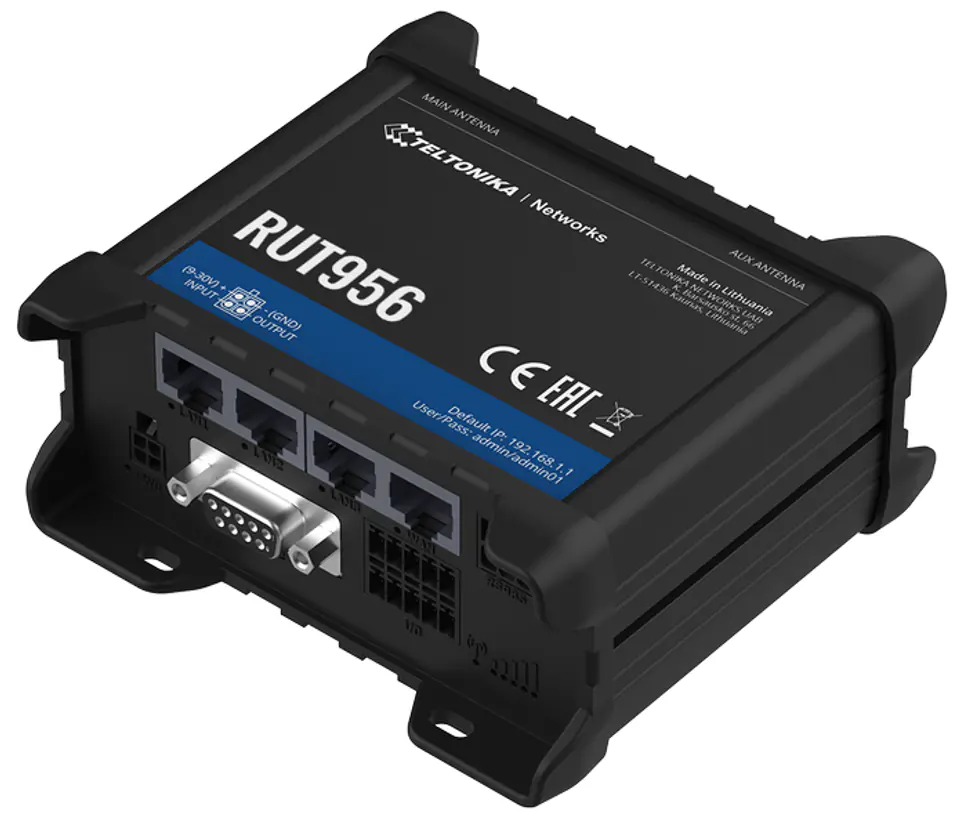

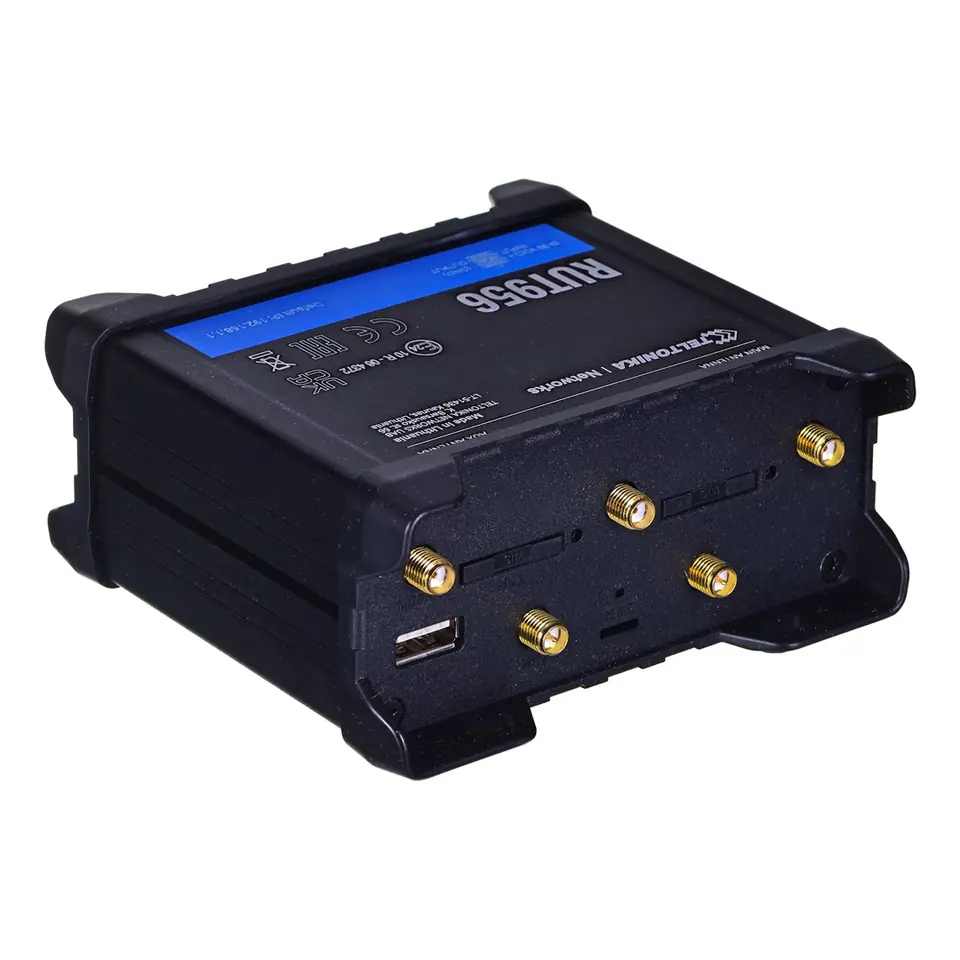

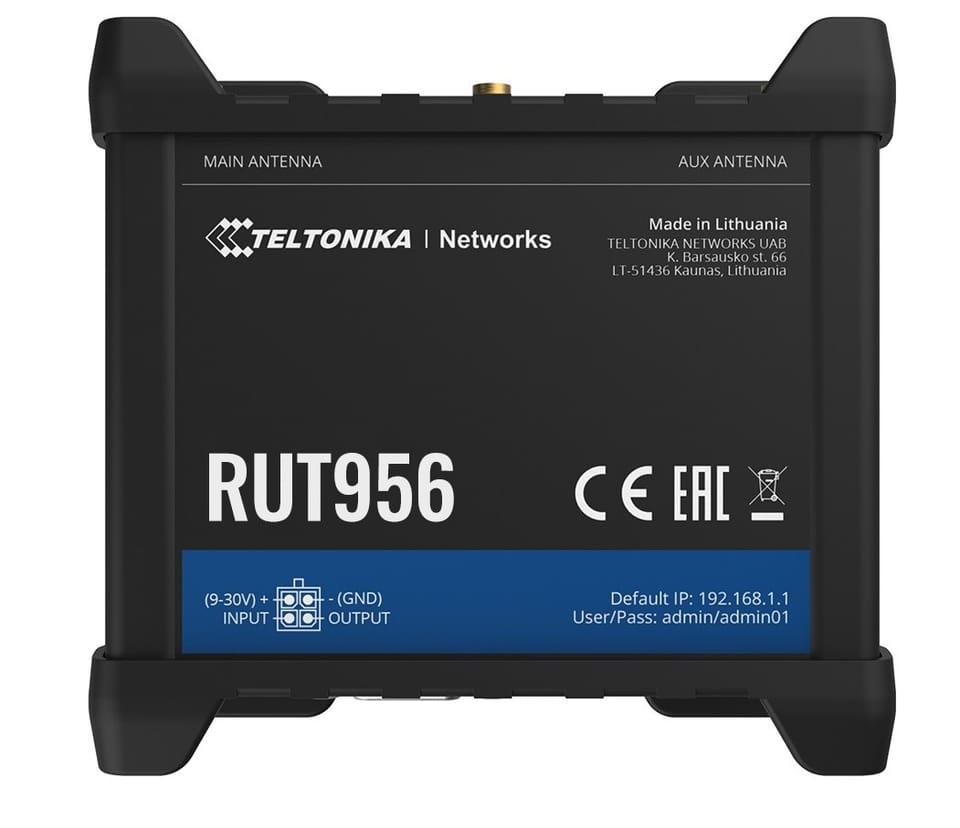

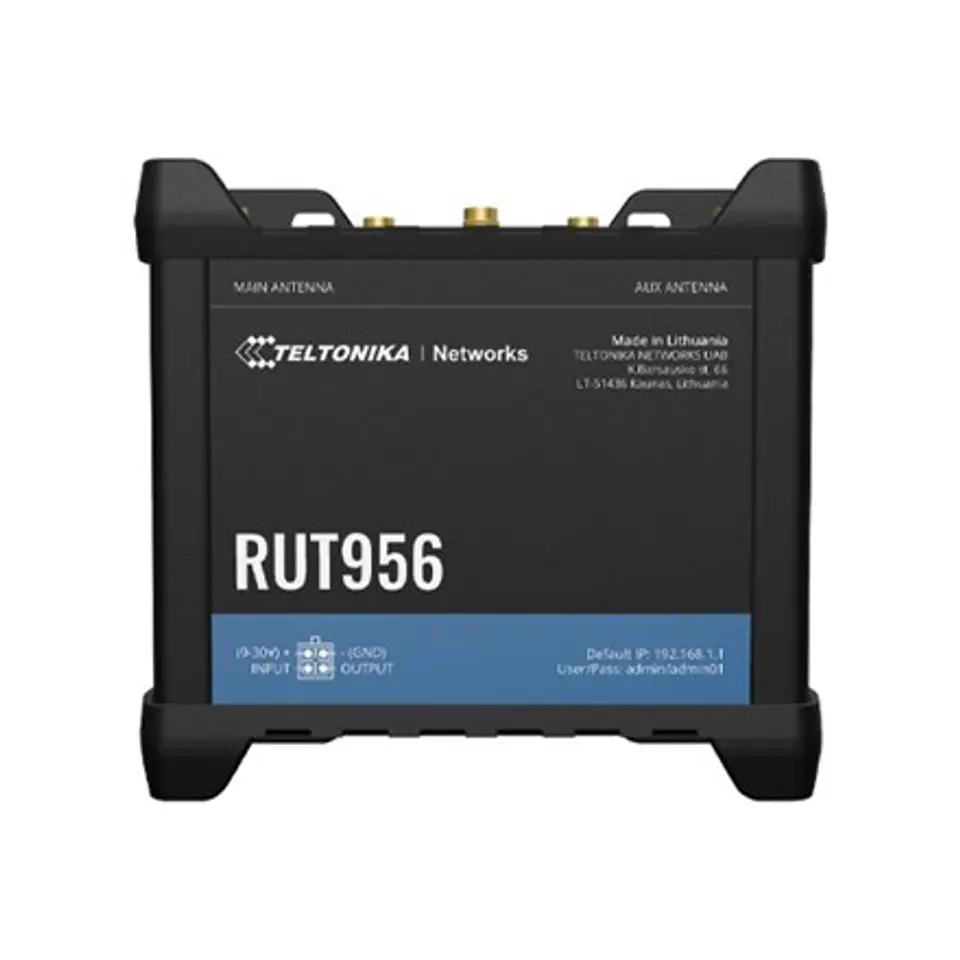

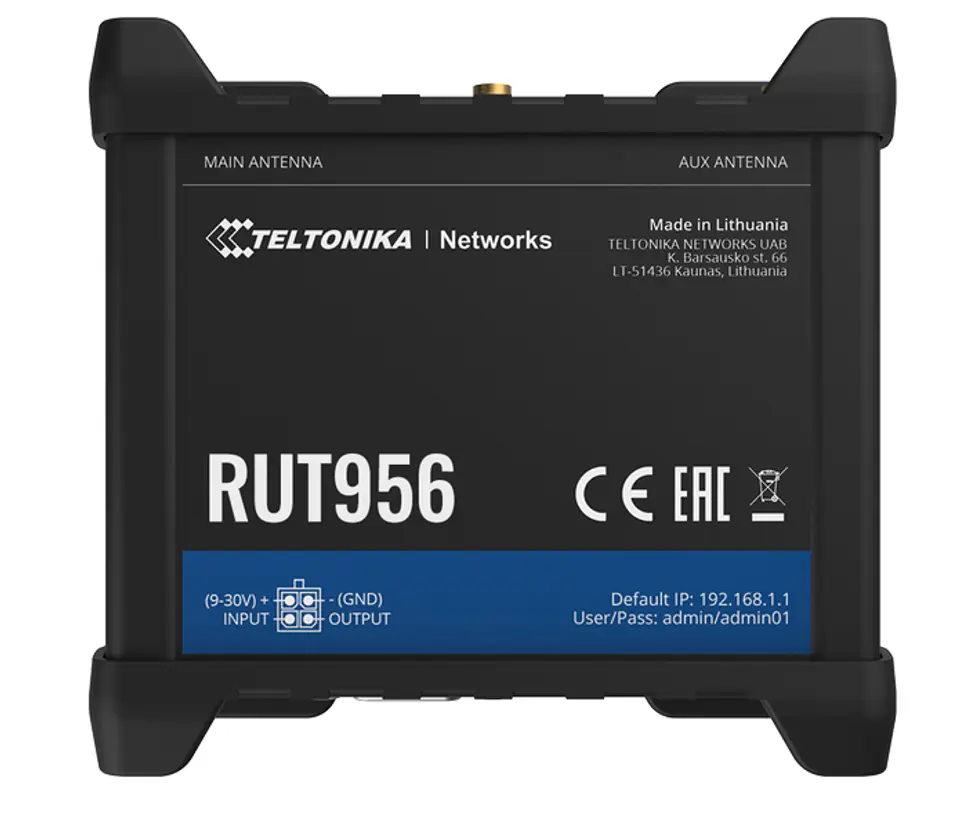

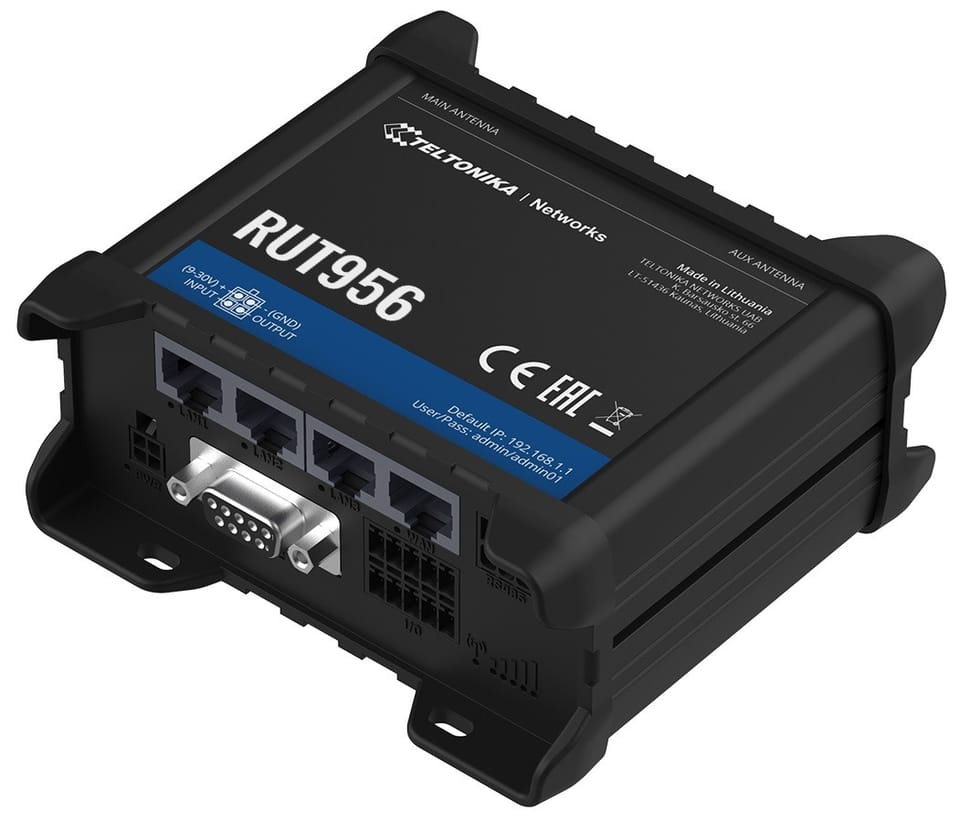

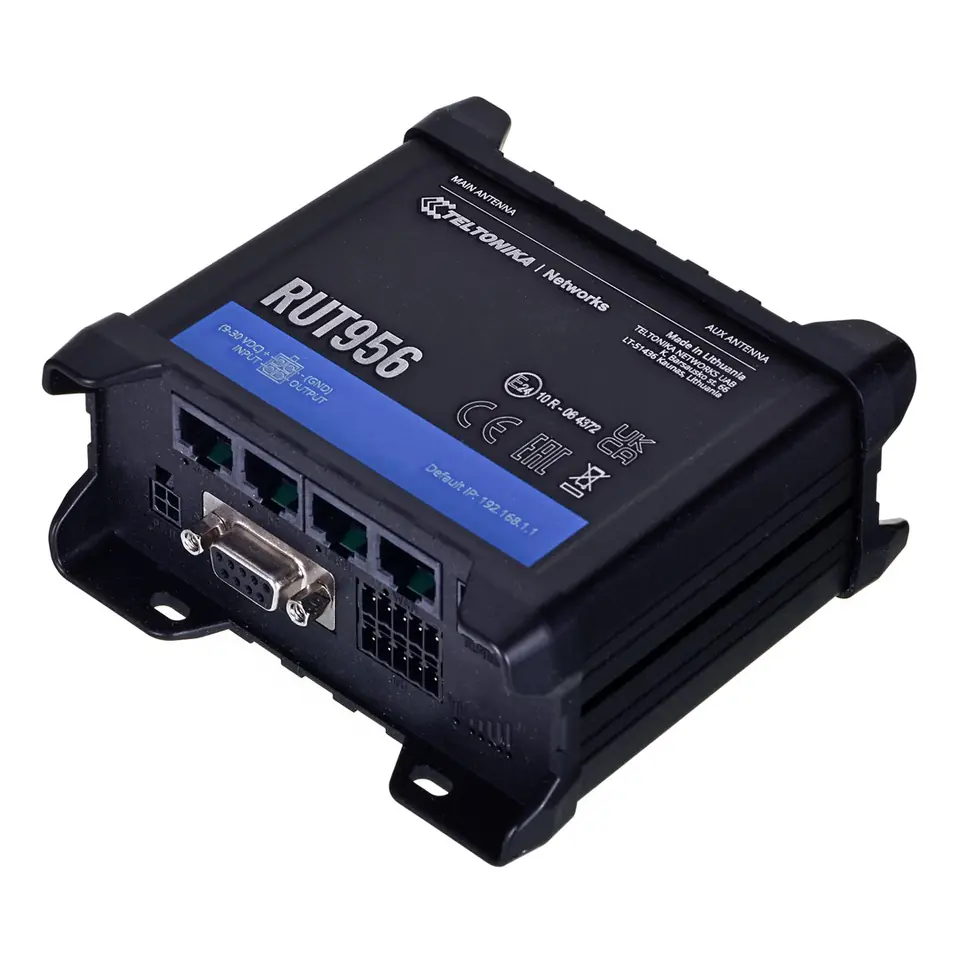

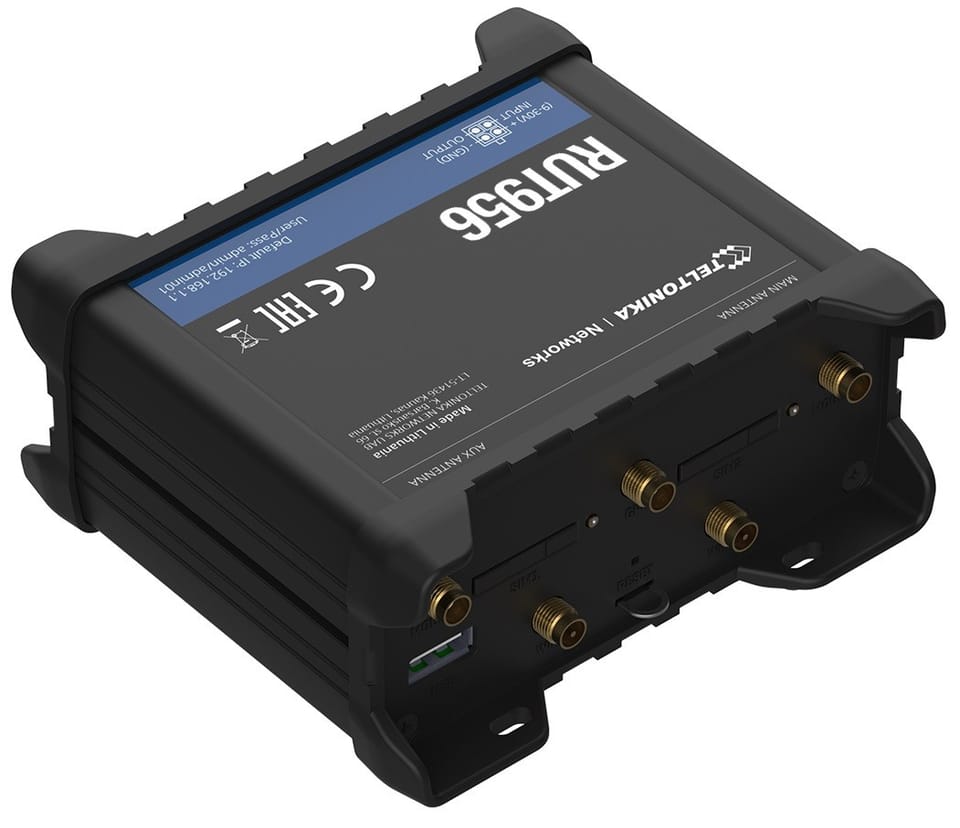

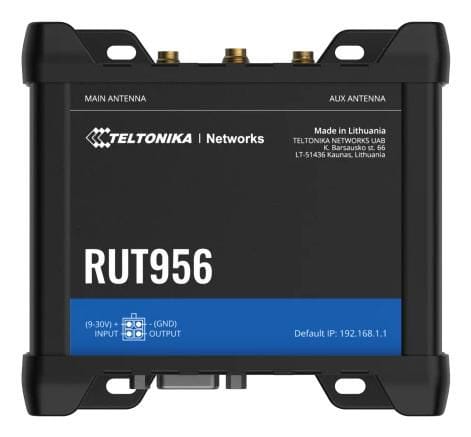

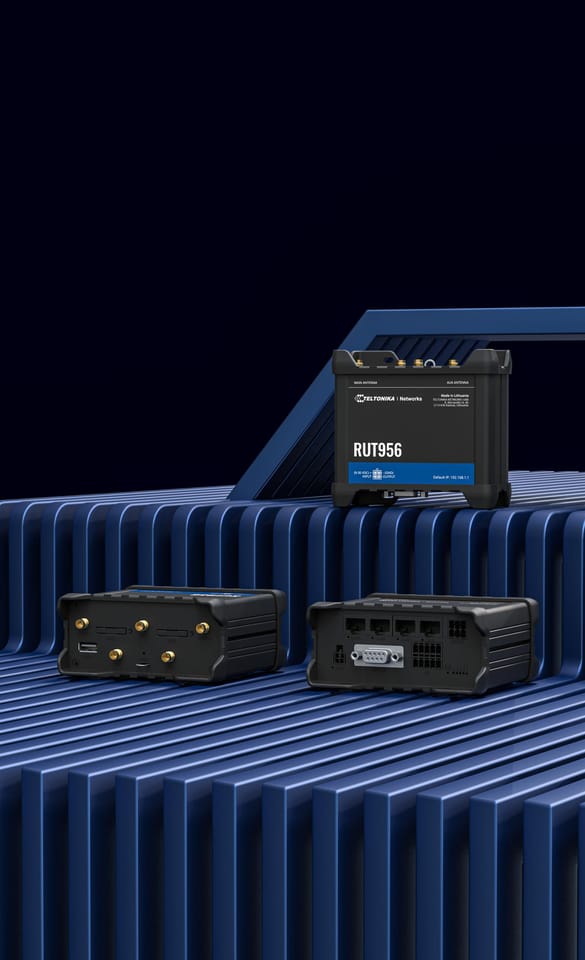

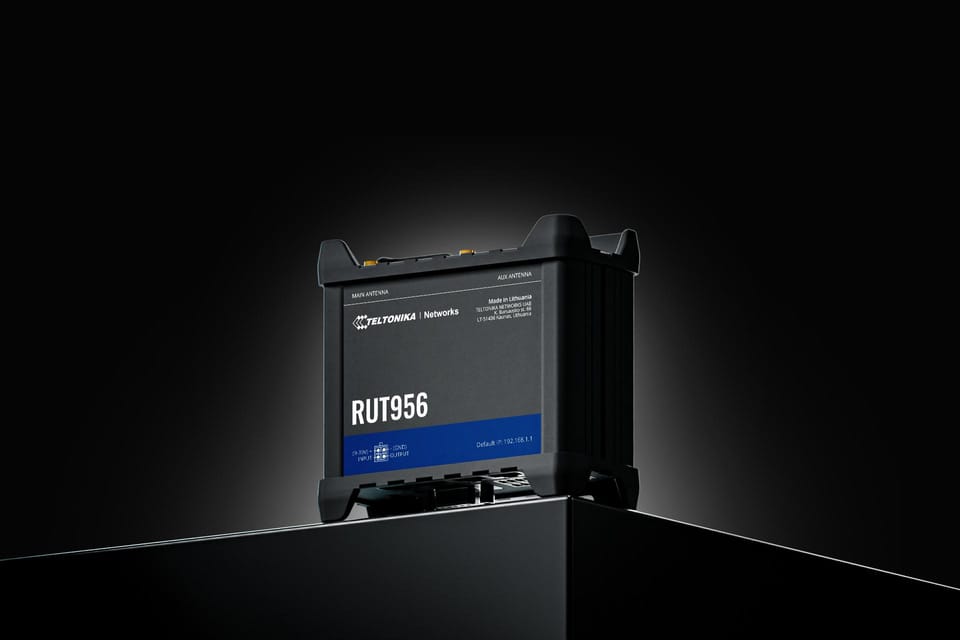

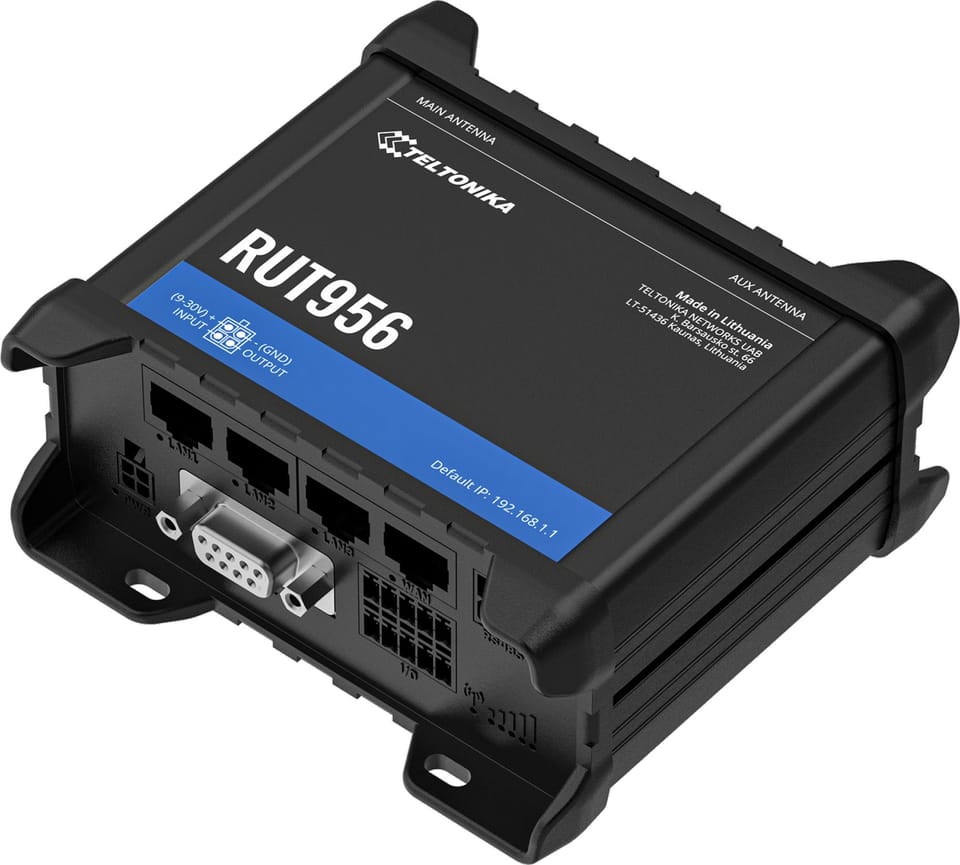

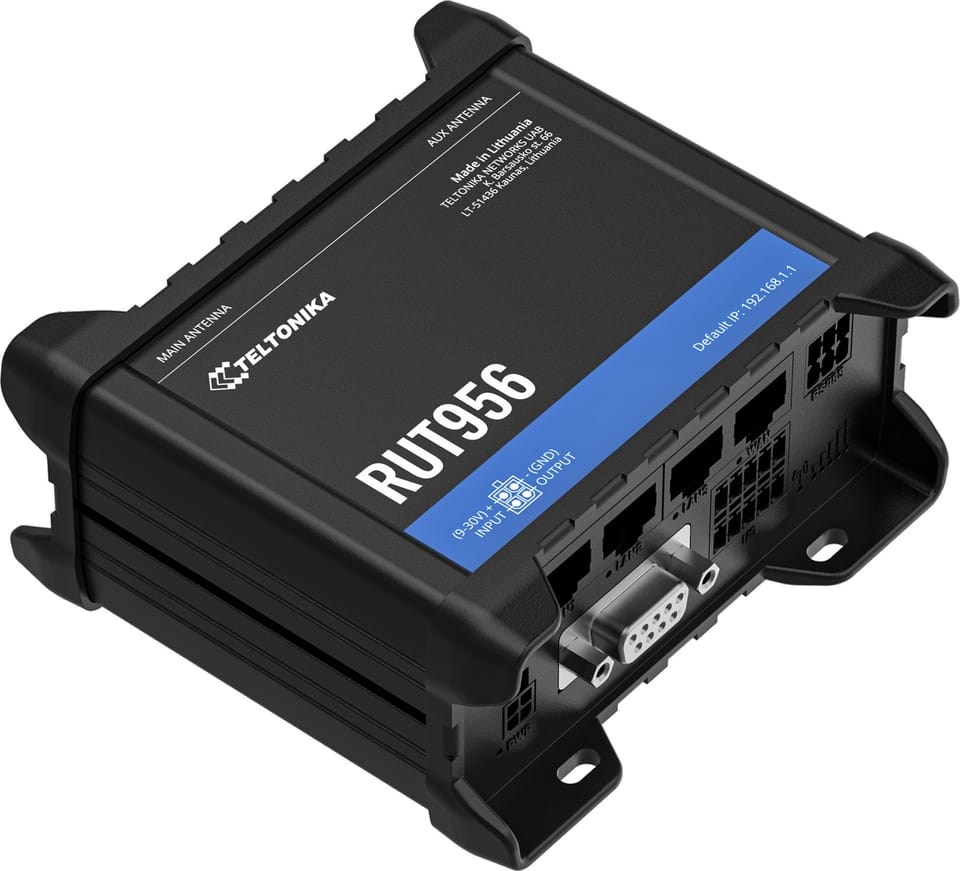

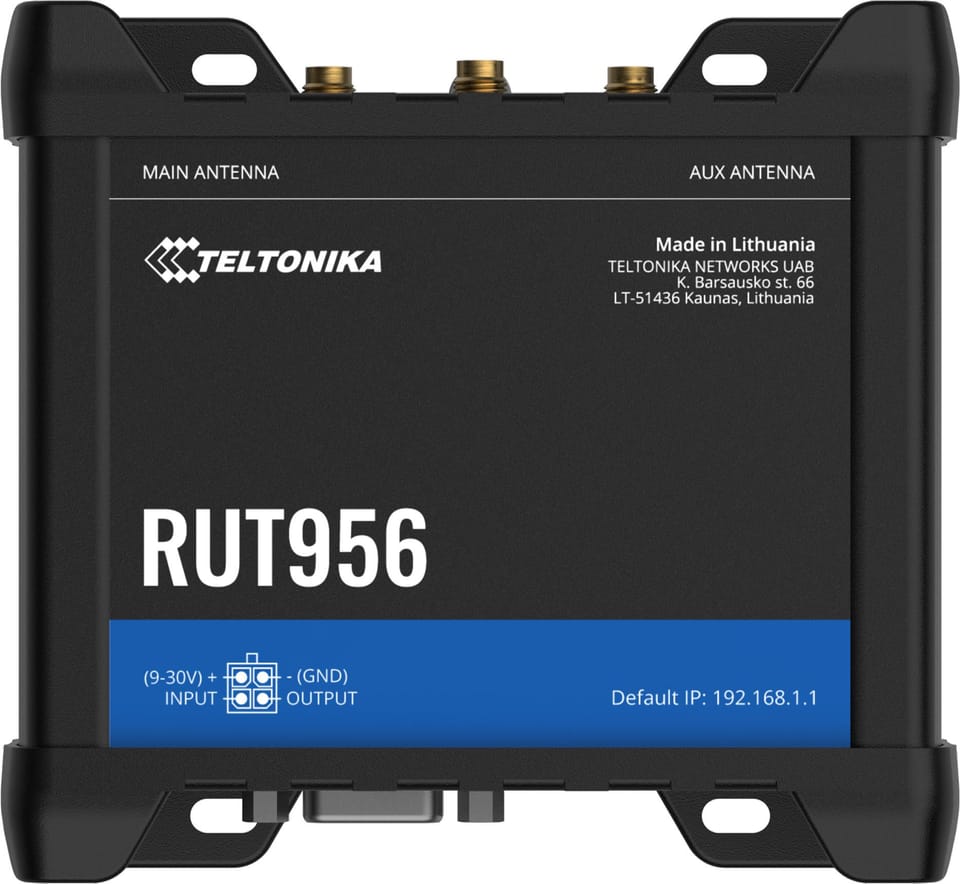

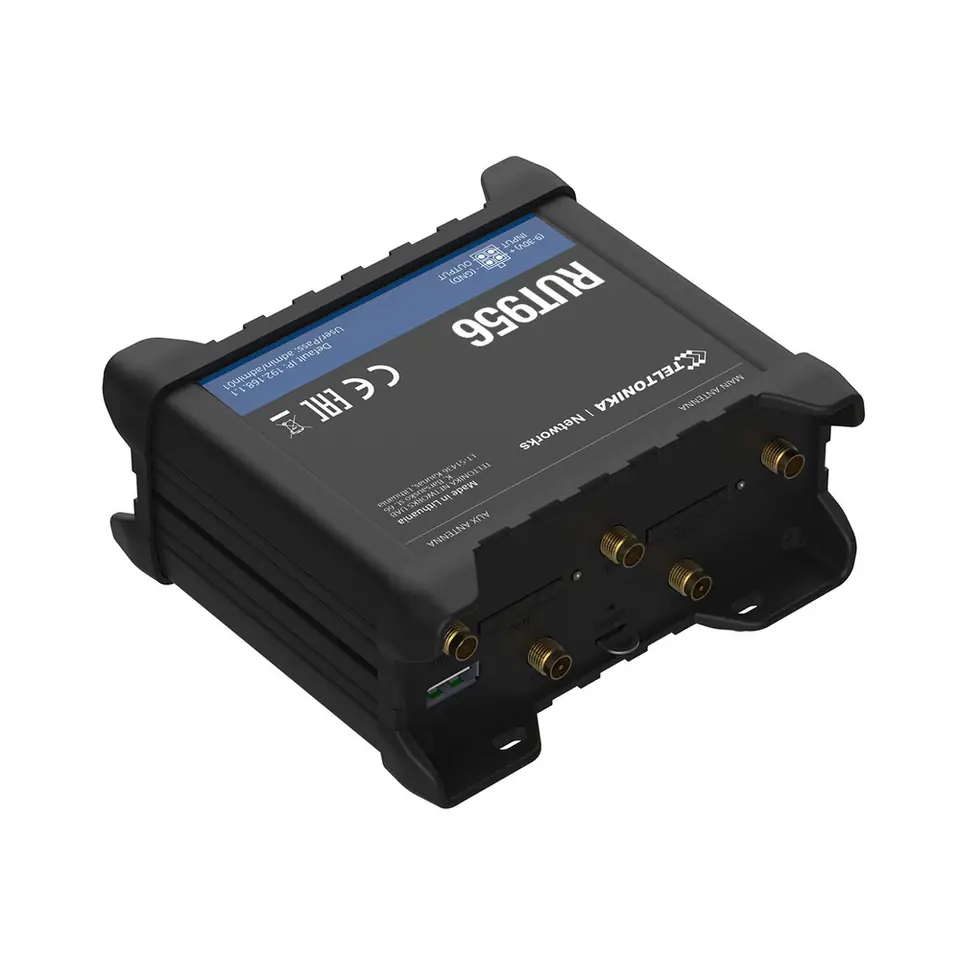

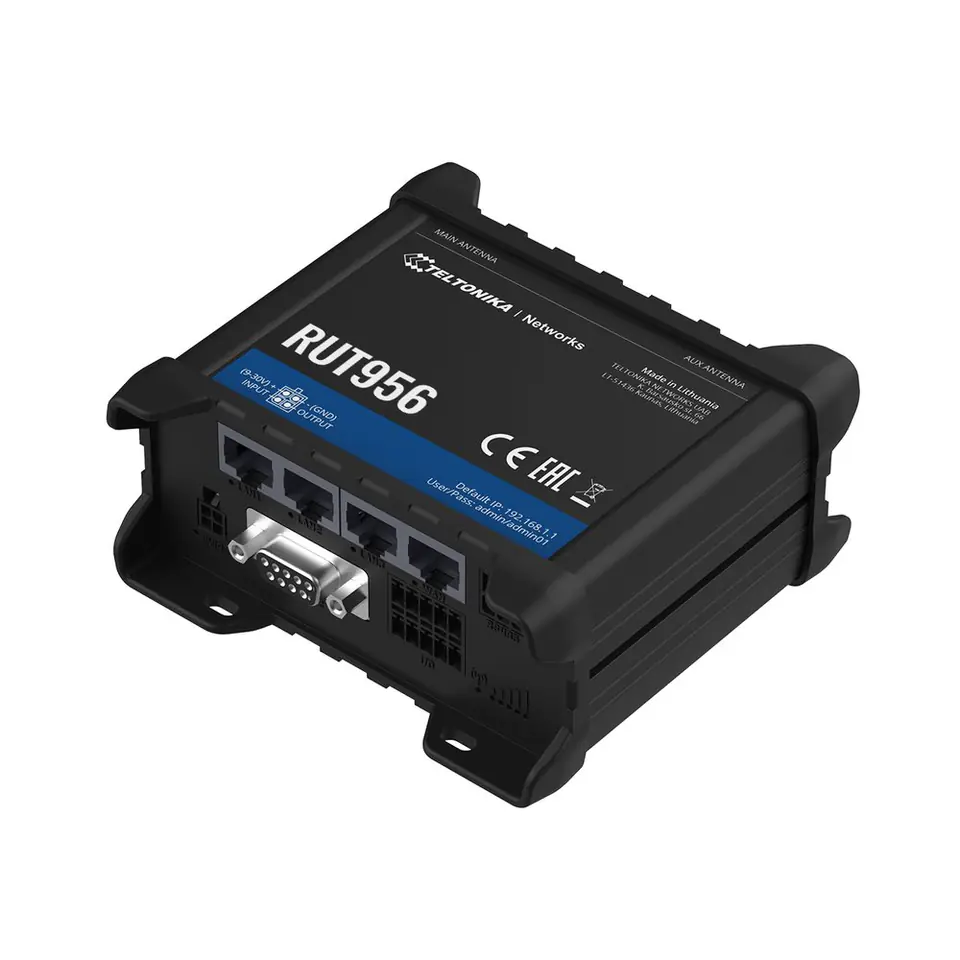

Router Teltonika RUT956 4G LTE 300 Mbps
The RUT956 is a highly reliable Cat 4 industrial LTE router that provides high performance and GNSS localization capabilities. Ethernet, digital and analog I/O, RS232, RS485, GNSS (GPS), microSD and USB interfaces allow for an incredible variety of industrial applications.
Dual SIM
The router allows for smoothness in critical situations thanks to the Dual SIM failover function.
RutOS Software
Built on top of LinuxOS, RutOS is a unified operating system for all Teltonika Networks routers that makes the device highly secure and customizable.
Specification:
Hardware- 4G mobile network (LTE): 4G/LTE (Cat 4), 3G, 2G
- Processor: Atheros, MIPS 24Kc, 580 MHz- Memory: 16 MBytes Flash, 128 MBytes RAM

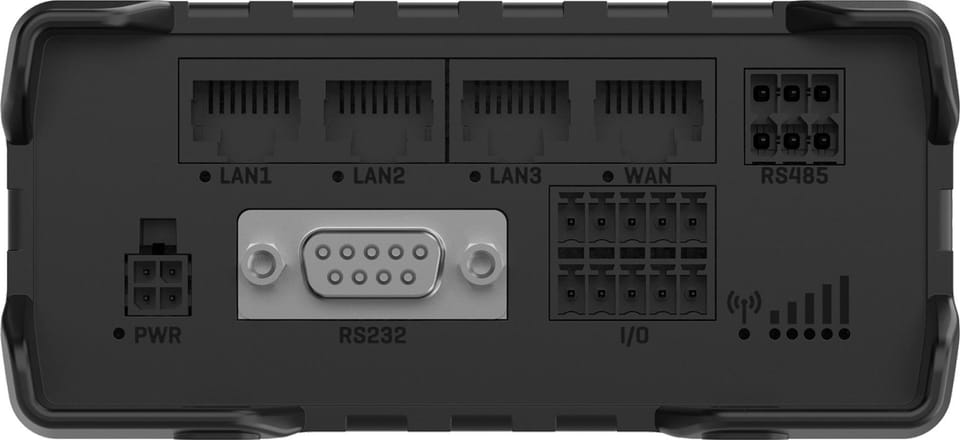

- Ethernet: 4x10/100 Ethernet ports, 1x WAN (Configurable as LAN), 3x LAN- Wifi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
- Power supply: 9-30 VDC, DC connector 4-pin
- Inputs/Outputs on 4 pin socket: 1 x Digital Input, 1 x Digital Open Collector Output on power connector: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching)

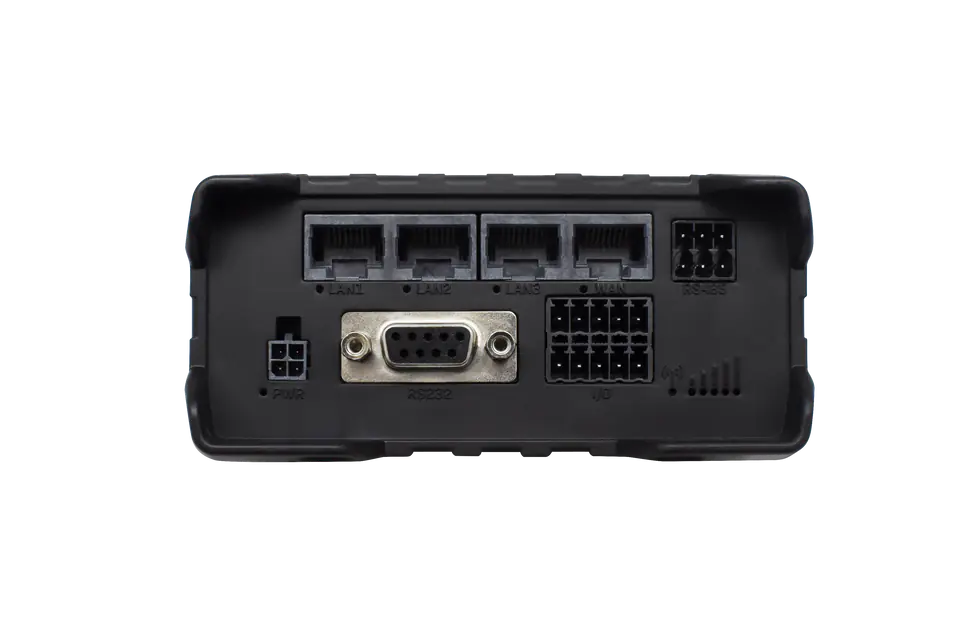

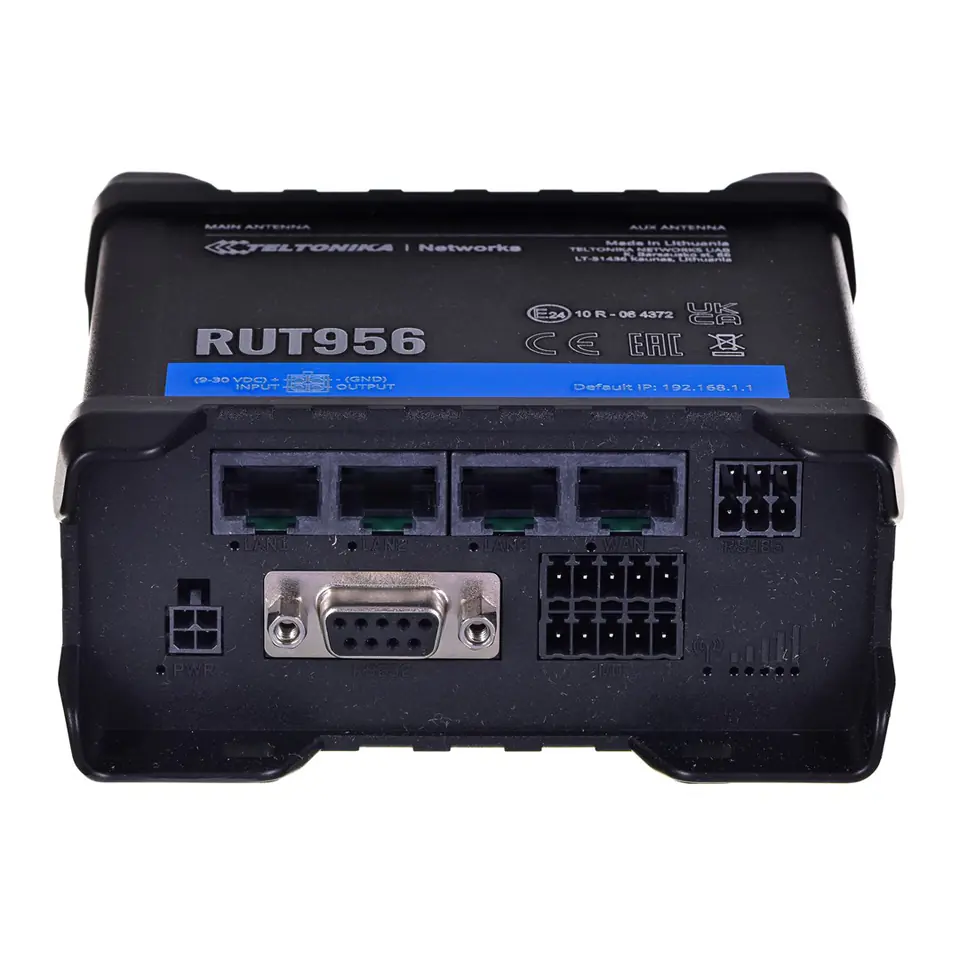

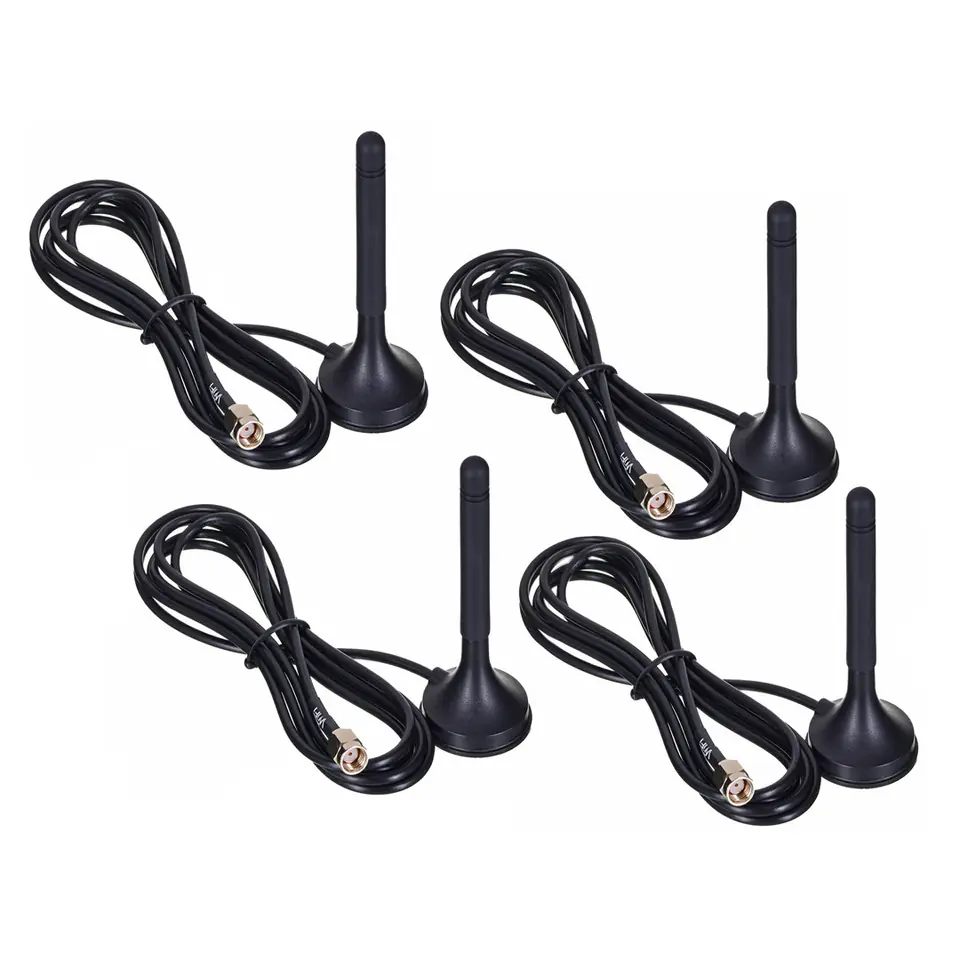

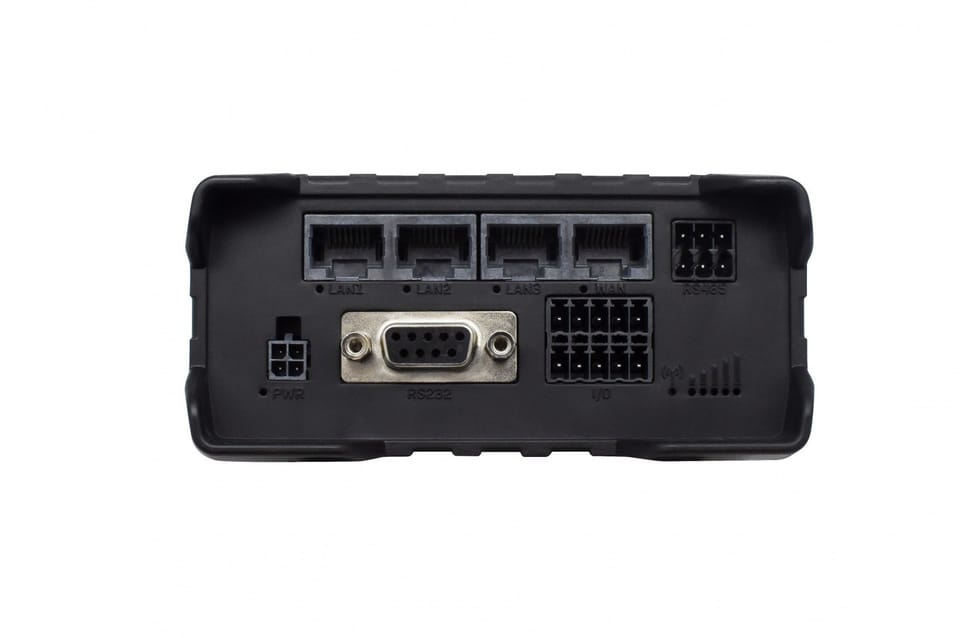

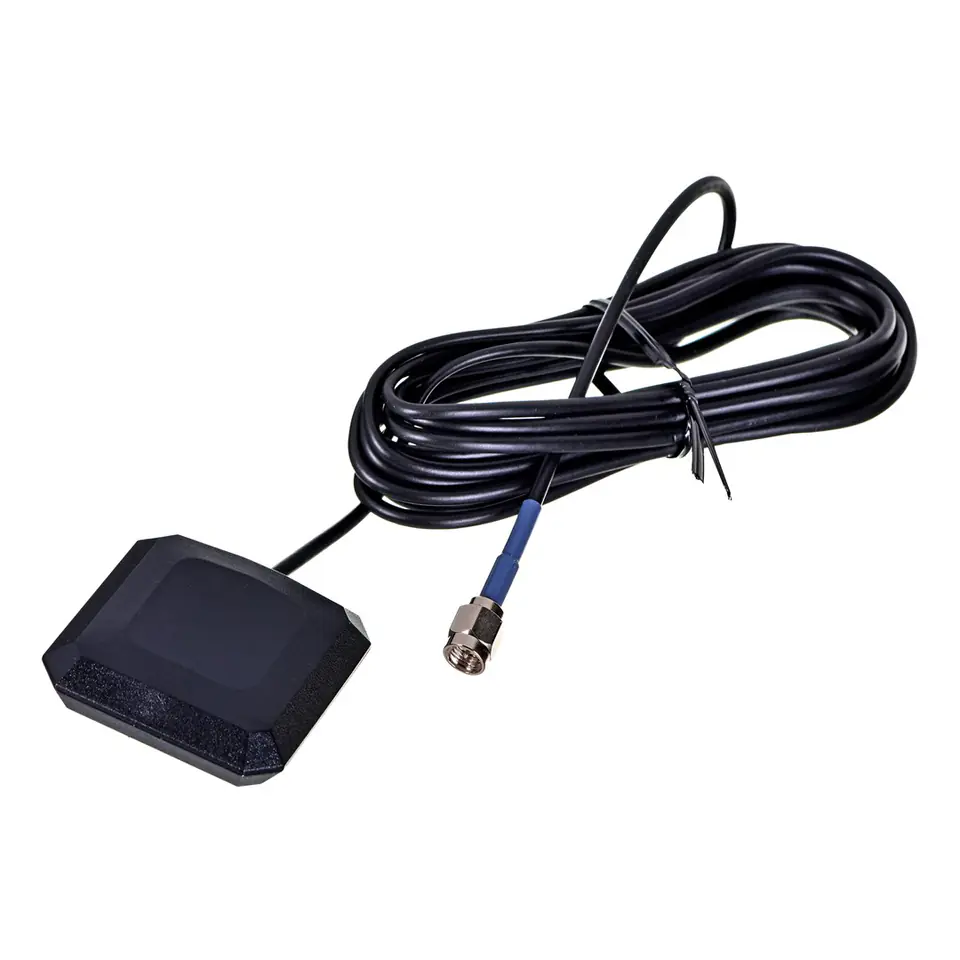

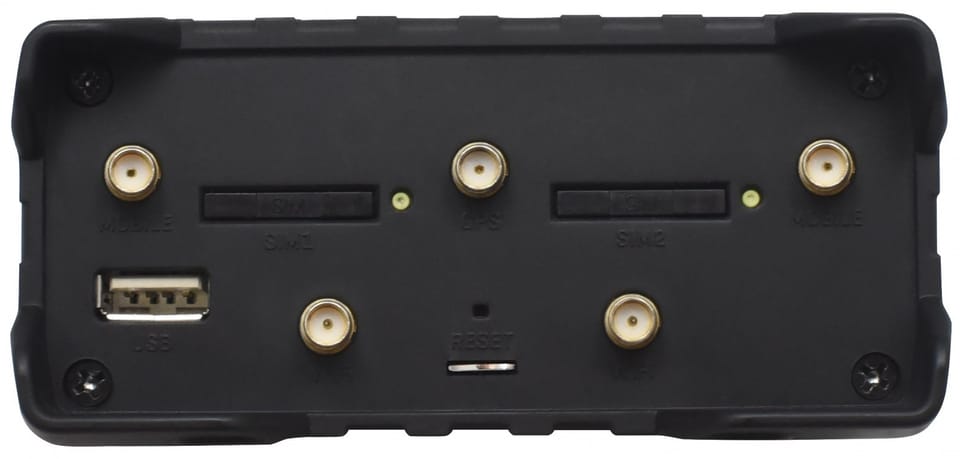

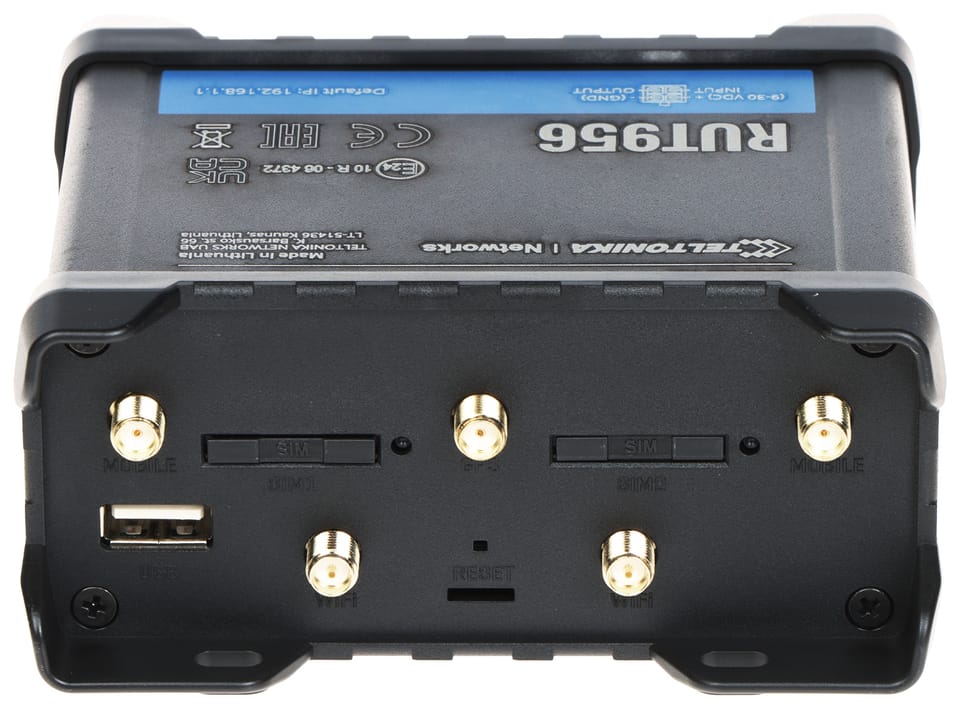

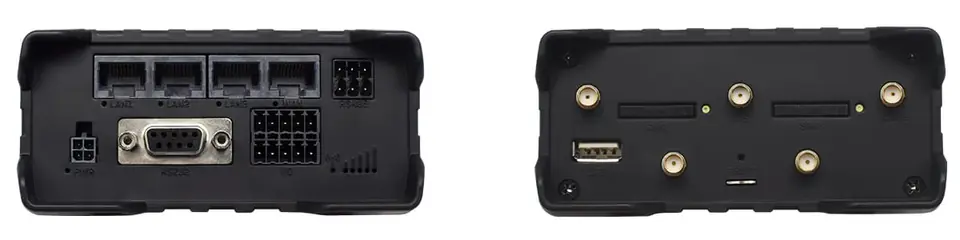

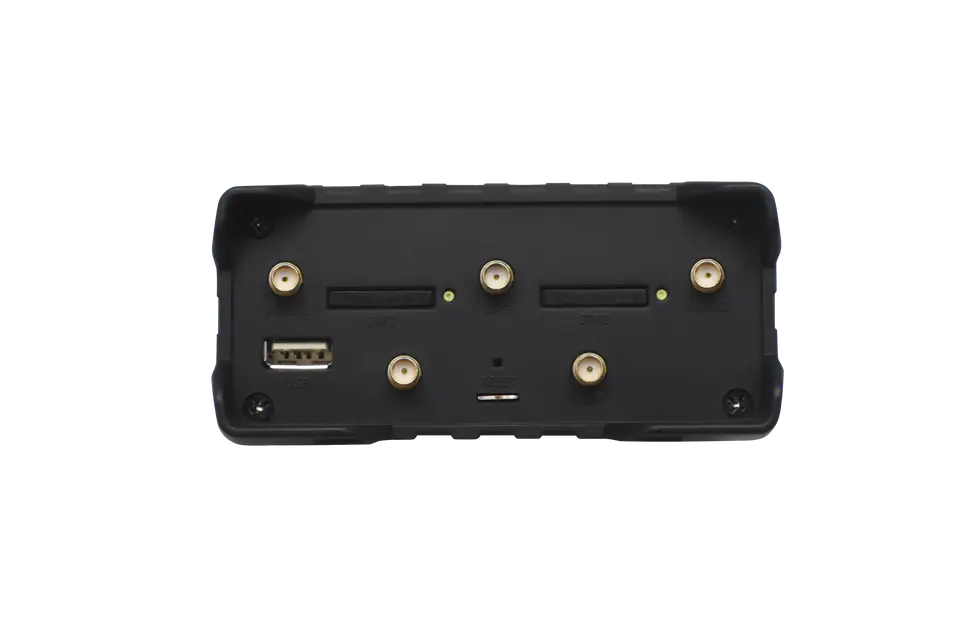

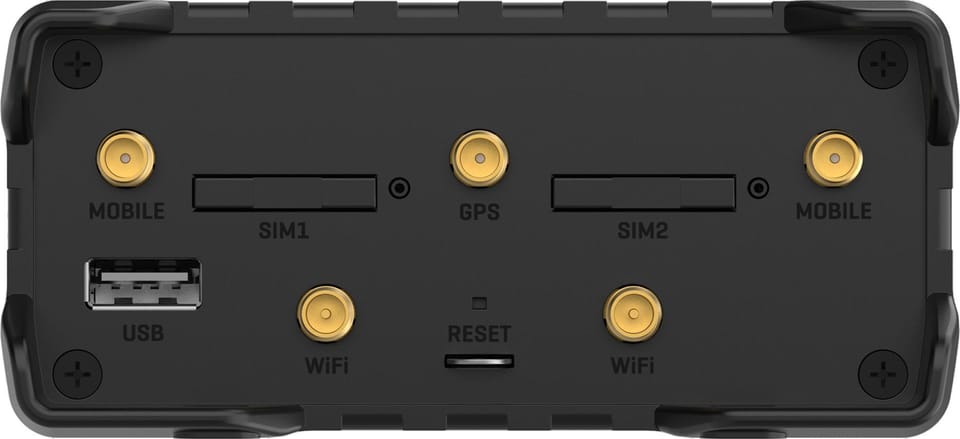

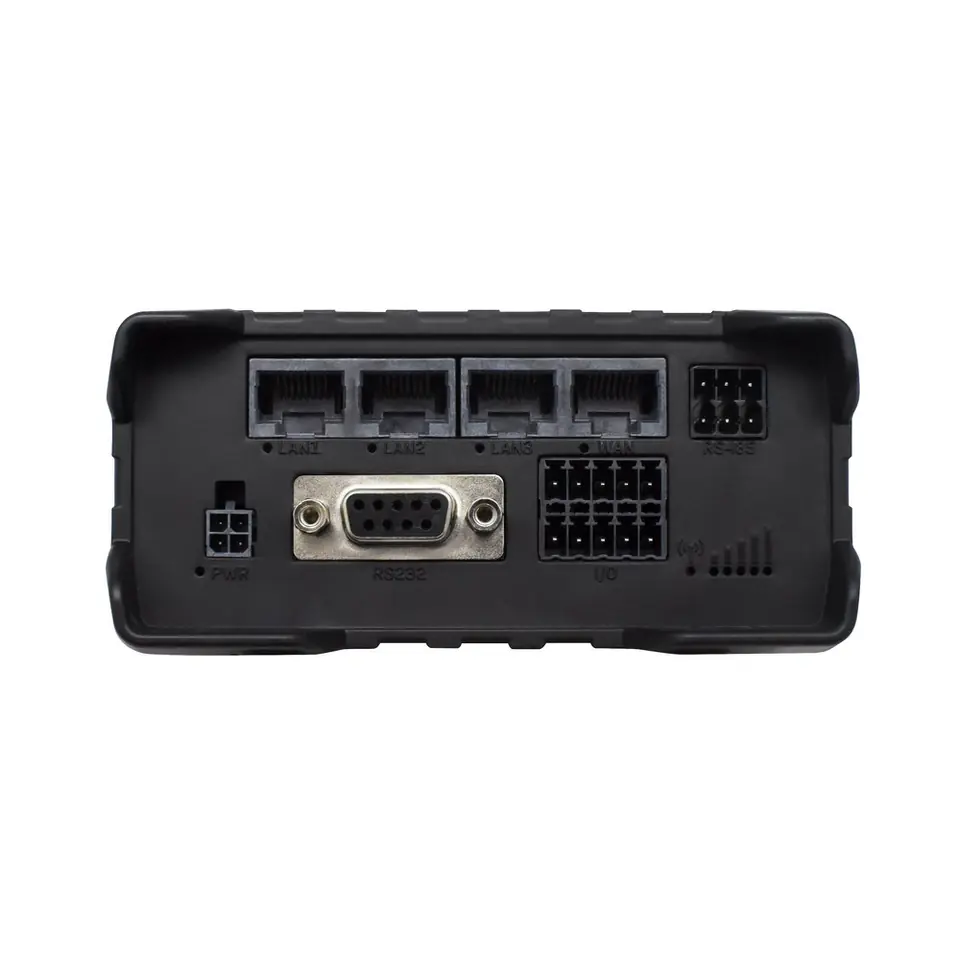

- Connectors: Power supply 4-pin, 2x Mobile SMA, 2x Wifi RP-SMA 1x SMA GPS, 1x RS232, 1xRS485, 1x USB slot, 1x MicroSD card slot
- SIM: 2x SIM slot (2FF)
- LEDs: 1x two-color connection status, 5x signal strength, 4x LAN status, 1x Power supply
- Operating temperature: from -40°C C to 75st. C
- Housing type: Aluminum with DIN mounting
- Dimensions: 109mm x 50mm x 103mm
Software- Operating system: RutOS (OpenWrt based on LinuxOS)- Mobility: Band lock, SIM switch, Operator black/white list, Data/SMS limits
- Networks: Failover (Network backup), VLAN, QoS, Load Balancing - Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS- Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx- NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator- GNSS: NMEA forwarding, AVL, Geofencing
- Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT
- Serial: Console, Over IP, Modem, NTRIP, Modbus
Leaflet to download
Download data sheet Quick Start Guide download
