Opening socket ERGOLINE SPS-D33B V2 (black)

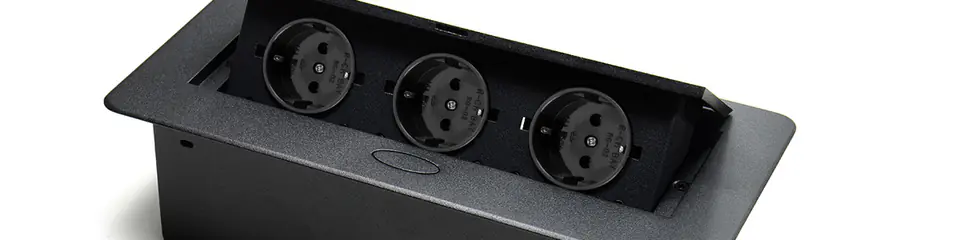

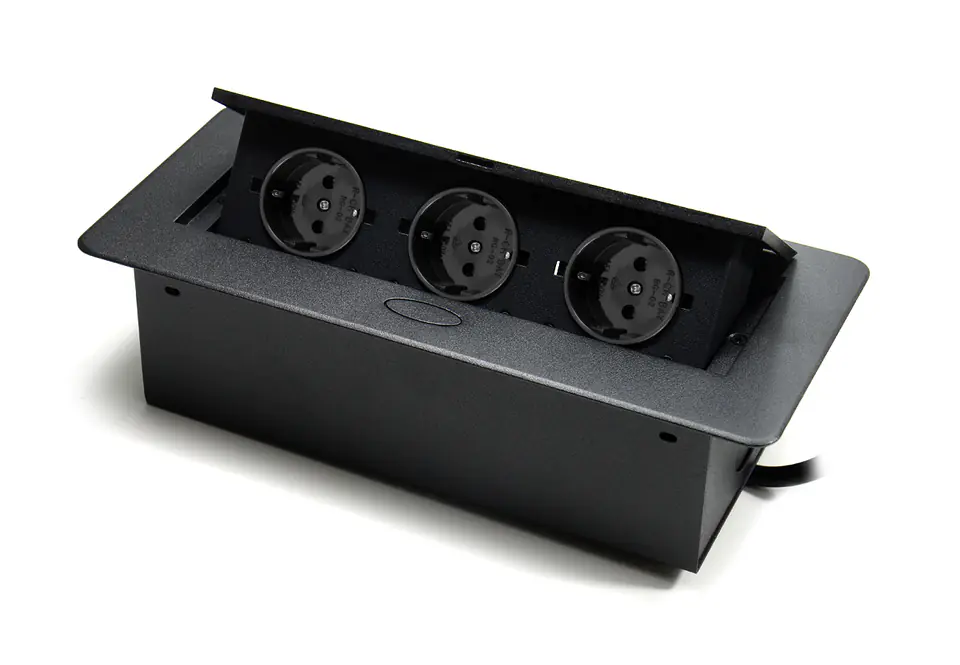

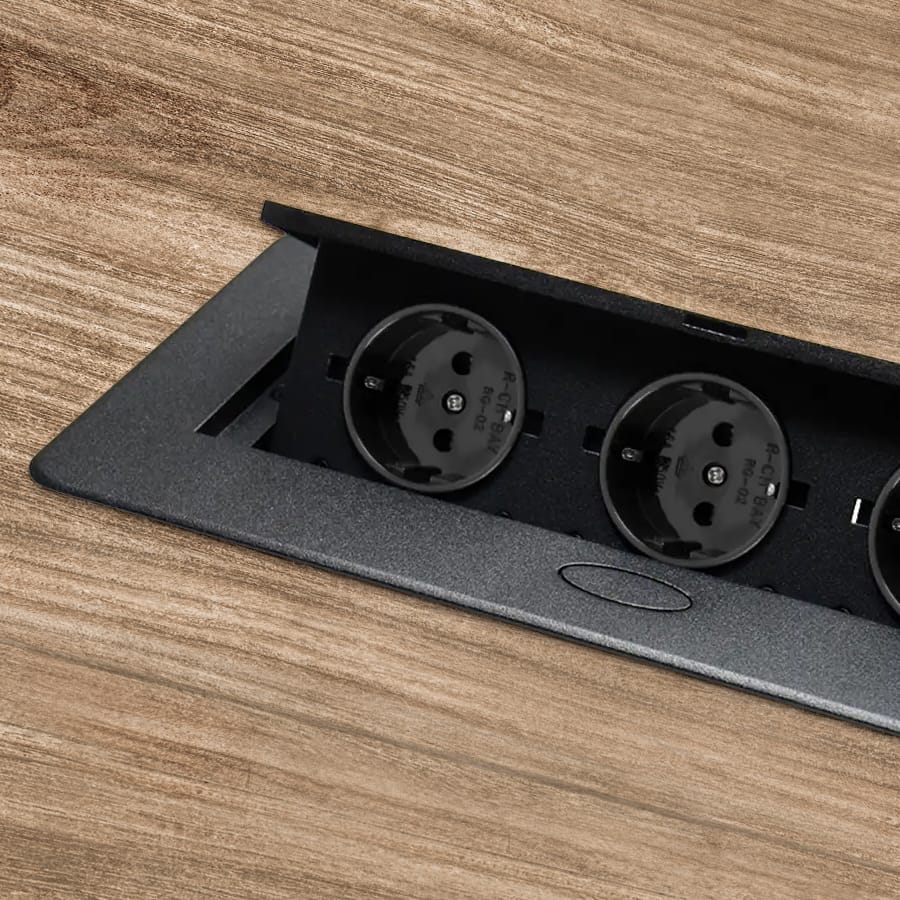

Mediaport Spacetronik ERGOLINE SPS-D33B V2 is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. Press the button and the sockets will open smoothly. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables, both vertically and horizontally, providing access to sockets. Mediaport is equipped with 3 sockets 110-250 V (type Schuko/German).
The Spacetronik series of mediaports is distinguished by an original design that will meet the needs of even the most demanding users. Made with attention to every detail, mediaport will perfectly fit into the workplace, interior showroom or conference room.
Installation of the opening table top socket is very easy.
1. Press the button to open mediaport.
2. Unscrew the 2 screws on the sides on the top of the mediaport.
3. Pull off the top panel.
4. Check connections.
5. Cut a hole of suitable dimensions.
6. Place the mediaport in the hole and screw it.
- Cable length: 1.5 m
- Mains power: 230 V 50 Hz
- 3x Schuko socket 110-250 V (16 A)
- Can dimensions: 22 cm x 10.8 cm x 6.7 cm (width / height / depth)
- External dimensions: 26.6 cm x 11.8 cm
Declaration of conformity (Polish / English)
