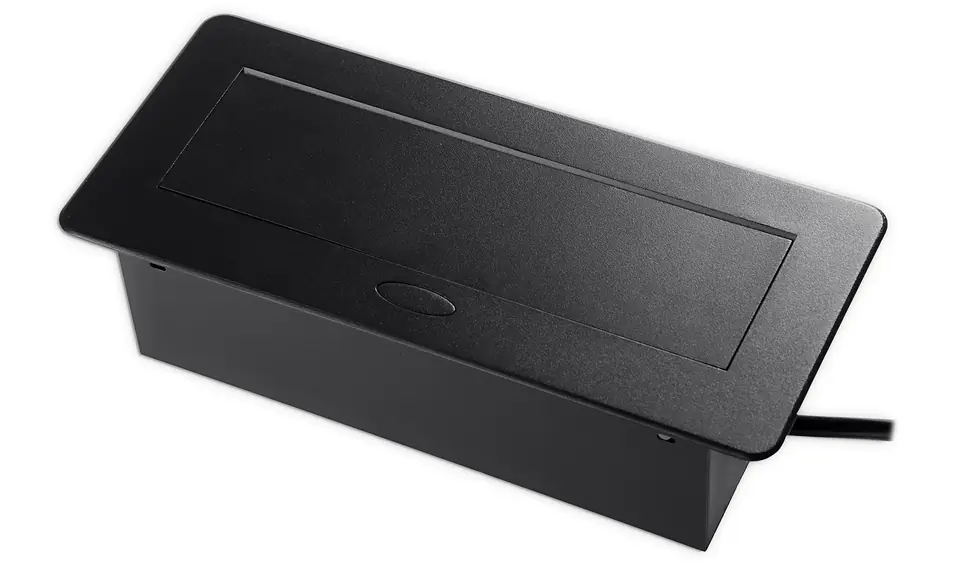

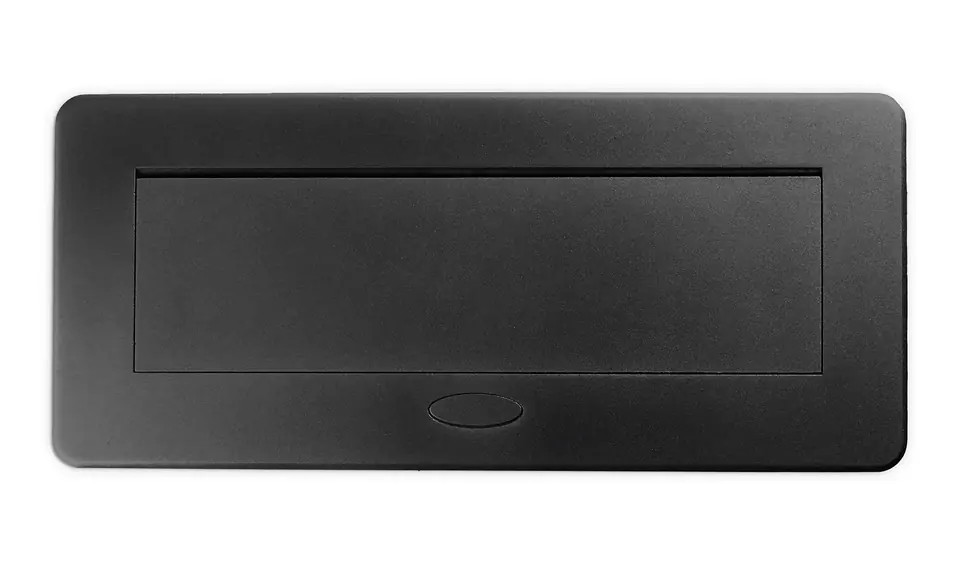

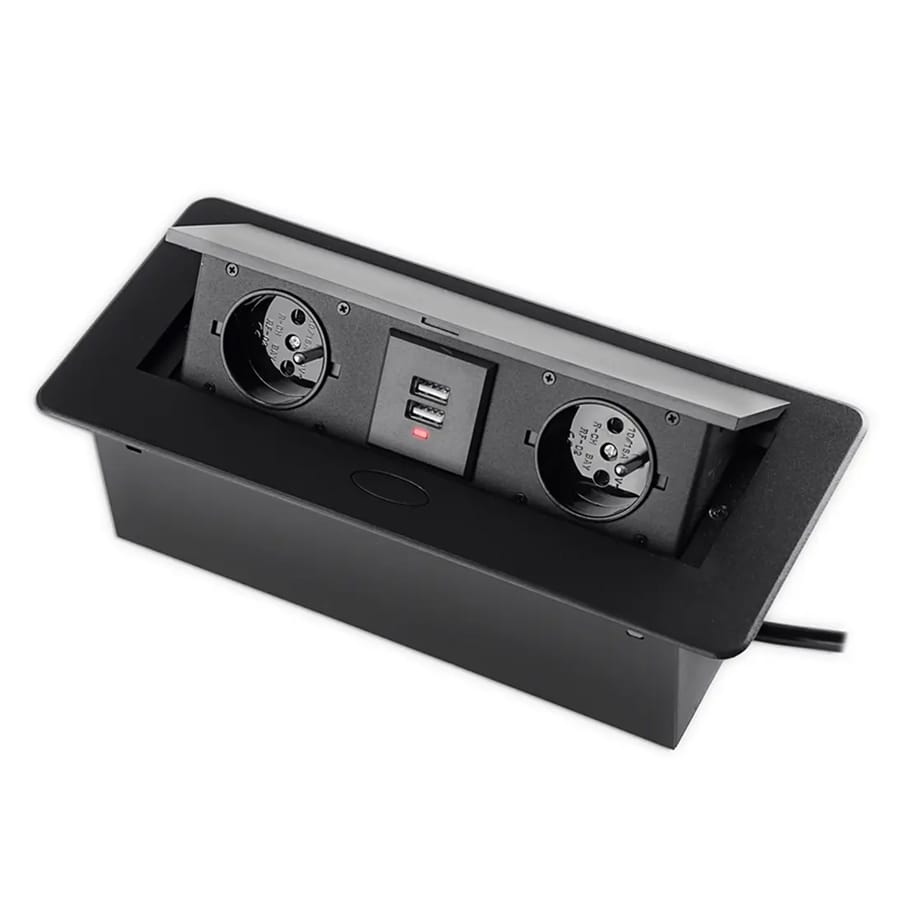

Opening socket ERGOLINE SPS-D24B (black)

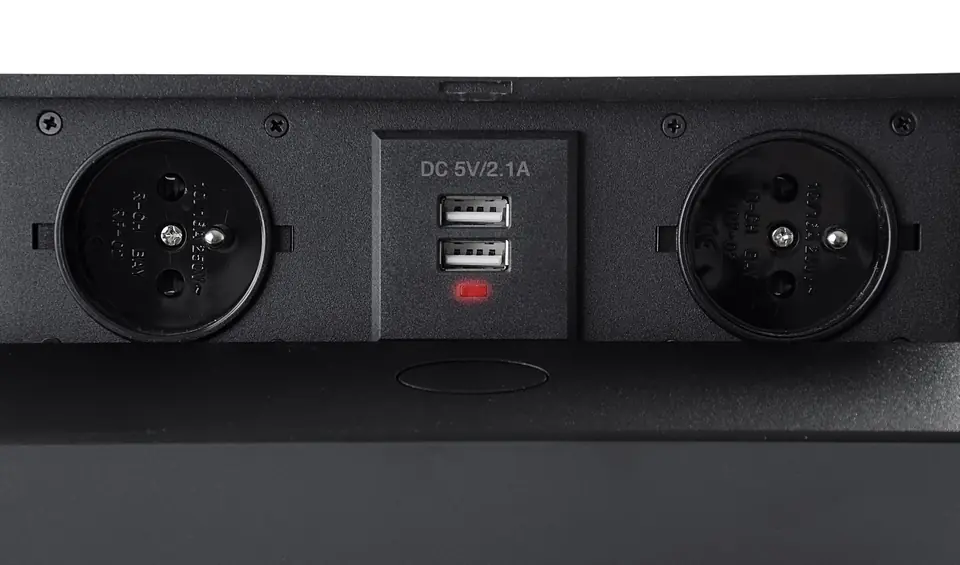

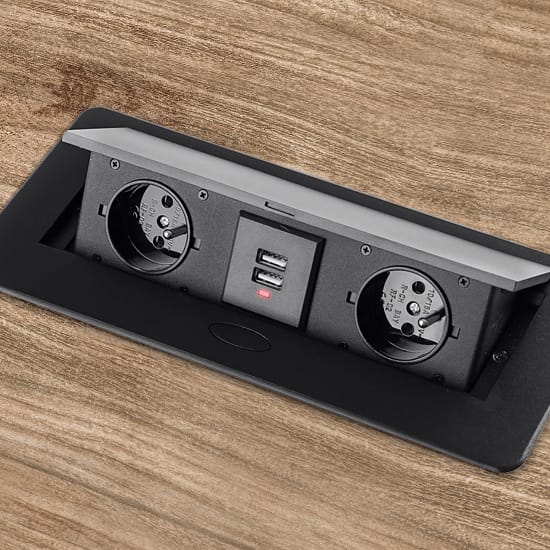

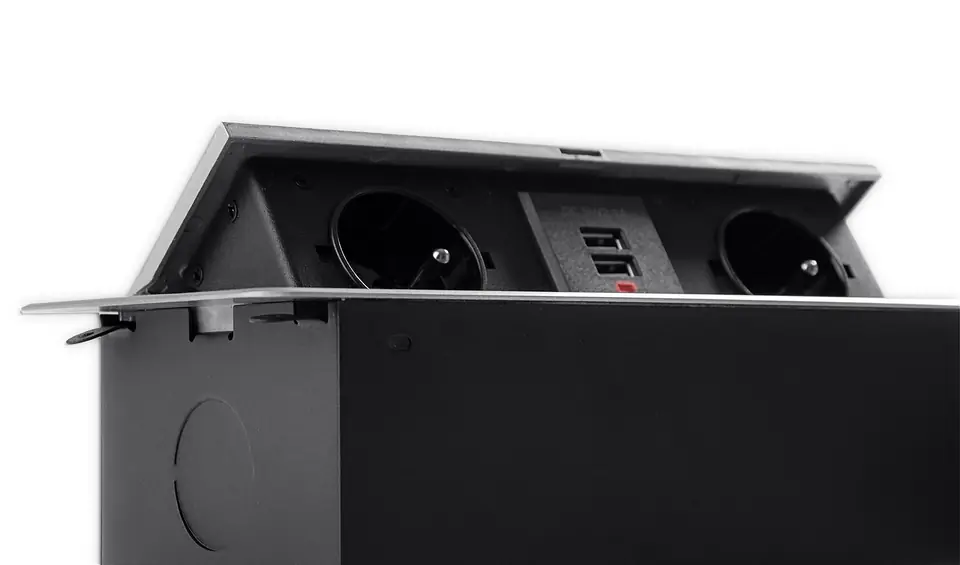

Mediaport Spacetronik ERGOLINE SPS-D24B is a modern solution that is used in stores, showrooms, conference rooms, offices and at home. Press the button and the sockets will open smoothly. Made of aluminum and high quality components. The product is designed for indoor installation in desks, countertops and tables, both vertically and horizontally, providing access to sockets. Mediaport is equipped with 2 110-250 V sockets (French type) and a dual USB charger.

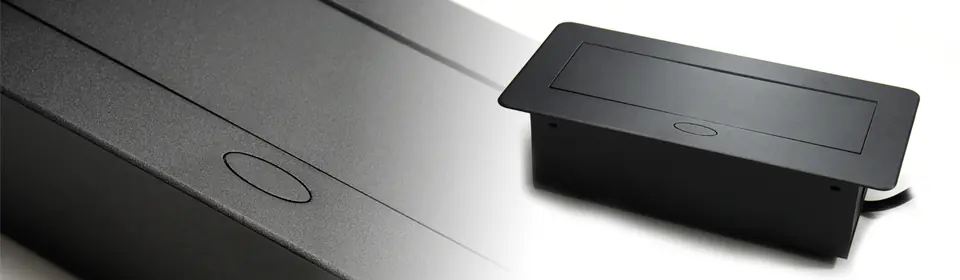

The ERGOLINE mediaports series is distinguished by a remarkable design that will meet the needs of even the most demanding users. Made with attention to every detail, mediaport will perfectly fit into the workplace, interior showroom or conference room.

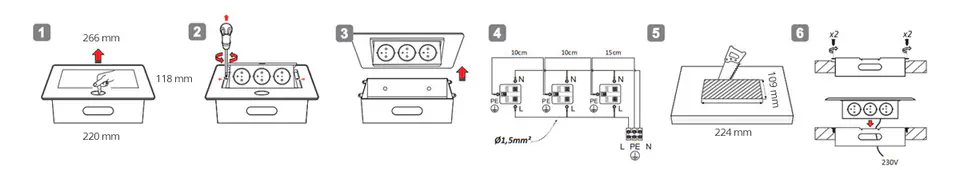

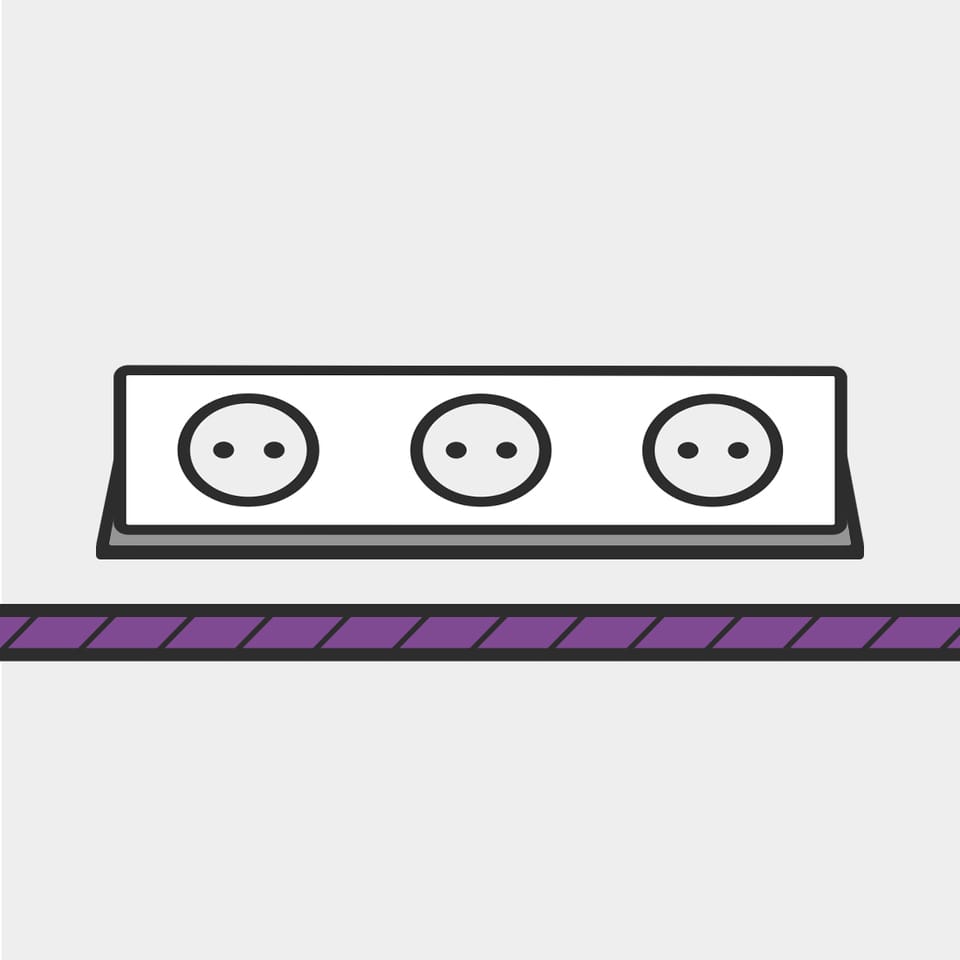

Installation of the opening table top socket is very easy.
1. Press the button to open mediaport.
2. Unscrew the 2 screws on the sides on the top of the mediaport.
3. Pull off the top panel.
4. Check connections.
5. Cut a hole of suitable dimensions.
6. Place the mediaport in the hole and screw it.
- Cable length: 1.5 m
- Mains power: 230 V 50 Hz
- 2x French type socket 110-250 V (16 A)

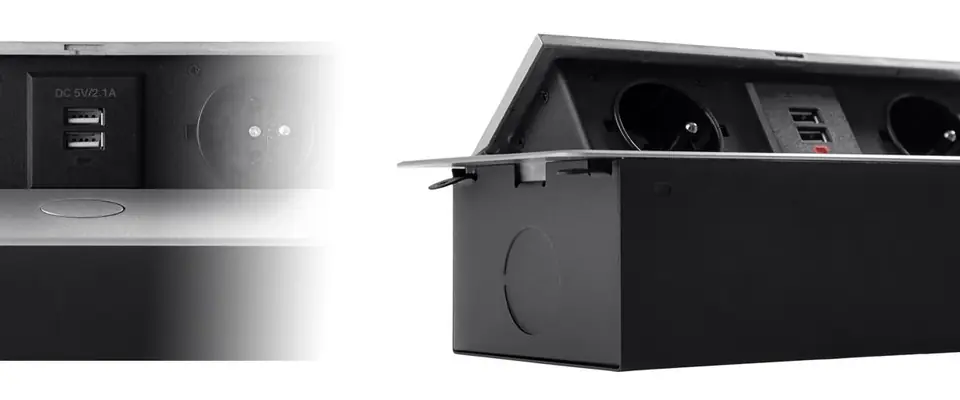

- 1 x Dual USB Charger (2 A)
- Can dimensions: 22 cm x 10.8 cm x 6.7 cm (width / height / depth)
- External dimensions: 26.6 cm x 11.8 cm
- Suggested hole dimension in the tabletop: 109 mm x 224 mm
