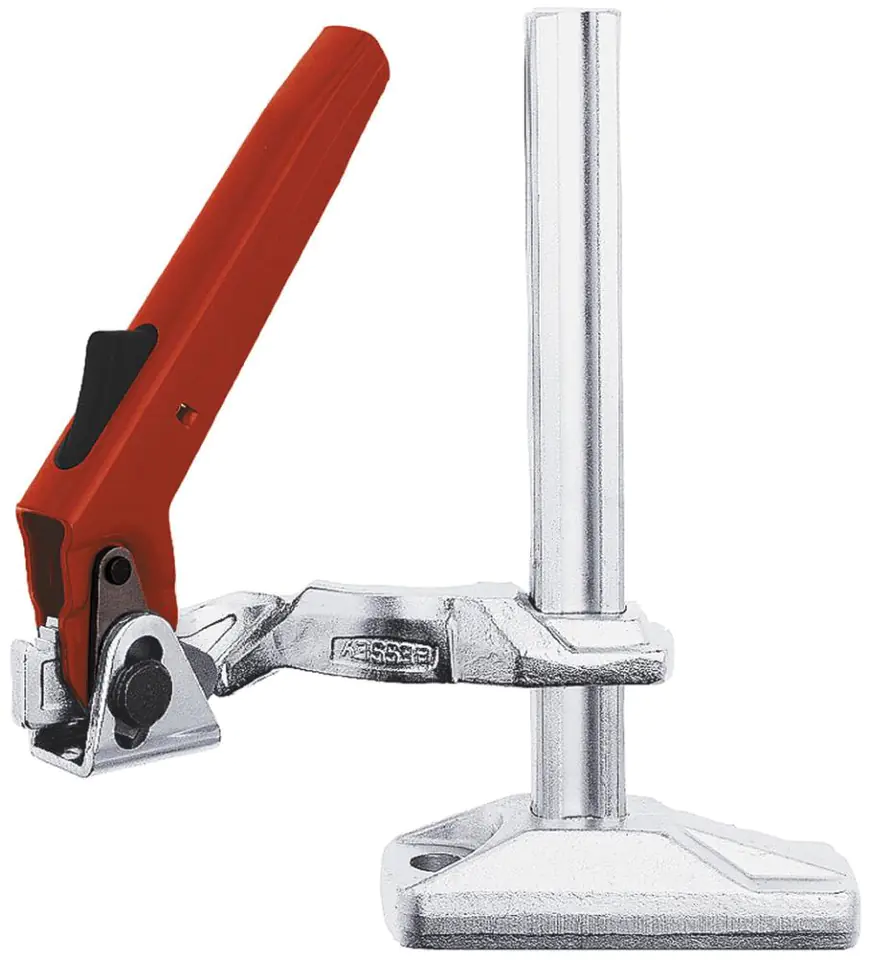

Table pressure,machine.BS,great. 3 200x120mm BESSEY

This product is not available
Availability:
expected delivery
Brand:
BESSEY
Product code:
BS3N / 4008158018140

Specification

Clamping force at a clamping height of 50 mm approx.:5.5 kN
Hole for mounting screw:13 mm
Mounting height:200 mm
Outreach:120 mm
Rail:22.0 x 10.5 mm
Size:3

Table pressure, machine BS

Material: rail and sliding bar made of heat-treated steel, galvanized surface, steel base, drop forged, plastic-coated steel lever. Tilting, smooth height adjustment, with a lever mechanism for quick clamping and loosening.
Application: for light drilling and milling work. Fastening on the machine table is carried out using a T-nut and a screw with a hexagon socket.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
