TABLE GRINDER LSG 200H

Technical Specifications

Brand: Lindahl and Nermark
Wheel diameter (mm): 200.00
Grinding wheel thickness (mm): 32.00
Wheel hole diameter (mm): 32.00
Spindle speed (rpm): 2950 rpm at 50Hz 3540 rpm. at 60 Hz
wheel spacing (mm): 370.00
Shaft diameter (mm): 18.00
Spindle axis height (mm): 140.00
Motor power: 900 W
Number of phases: 1-phases.
Rated current (A): 4
Weight (kg): 28.00
Box dimensions (mm): 320x320x530
Polybag quantity: 1
EAN code: 7311662240646



Table grinder LSG 200H

Table grinding machines for industrial and service use. Ball bearing spindle. Closed type wheel guards and drop-down protective screens. Engine and other electrical equipment tightness class - IP 23. All speeds refer to the mains frequency of 50 Hz. spindles 60 Hz 3540 rpm. Spacing of holes in the base plate width× depth: 250×160 mm. Supplied with grinding wheels and adjustable kickstand, and 1.5 m power cable. The grinders are supplied with one grinding wheel with a grain size of 36 and another with a grain size of 60.


**

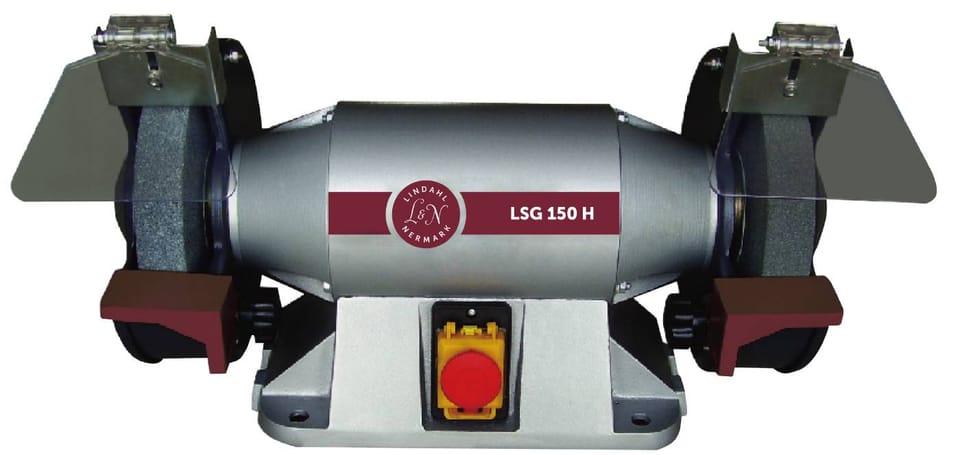

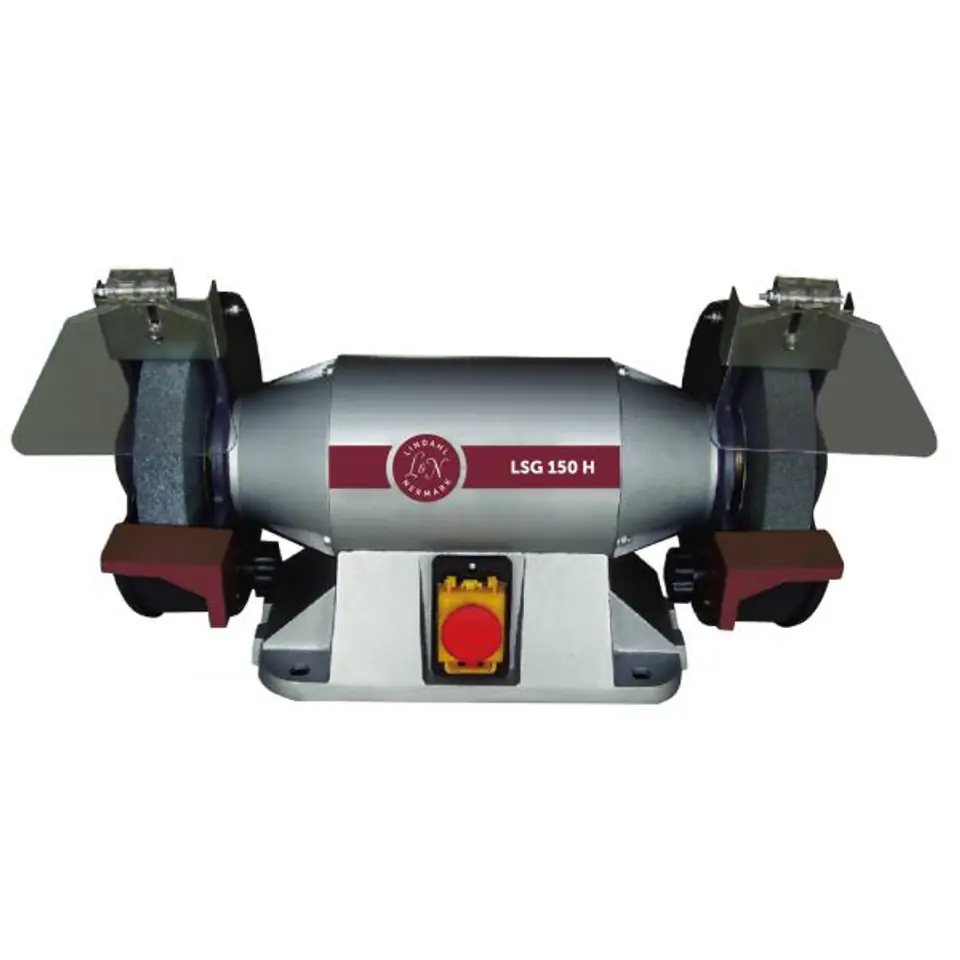

Illustrative photos
