TABLE GRINDER LSG 150H

Technical Specifications

Brand: Lindahl and Nermark
Wheel diameter (mm): 150.00
Grinding wheel thickness (mm): 25.00
Wheel hole diameter (mm): 32.00
Spindle speed (rpm): 2950 rpm at 50Hz 3540 rpm. at 60 Hz
wheel spacing (mm): 330.00
shaft diameter (mm): 14.00
Spindle axis height (mm): 125.00
Motor power: 520 W
Number of phases: 1-phases.
Rated current (A): 2
Weight (kg): 16.00
Box dimensions (mm): 250x255x470
Polybag quantity: 1
EAN code: 7311662240615

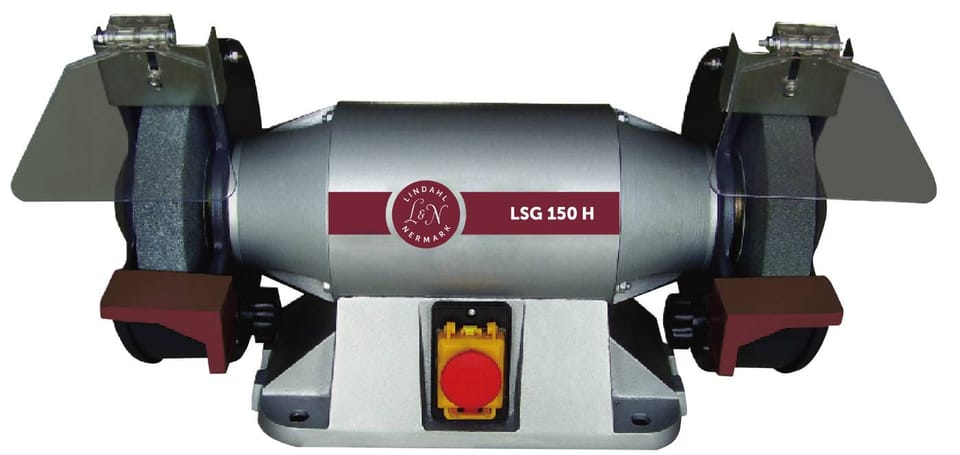

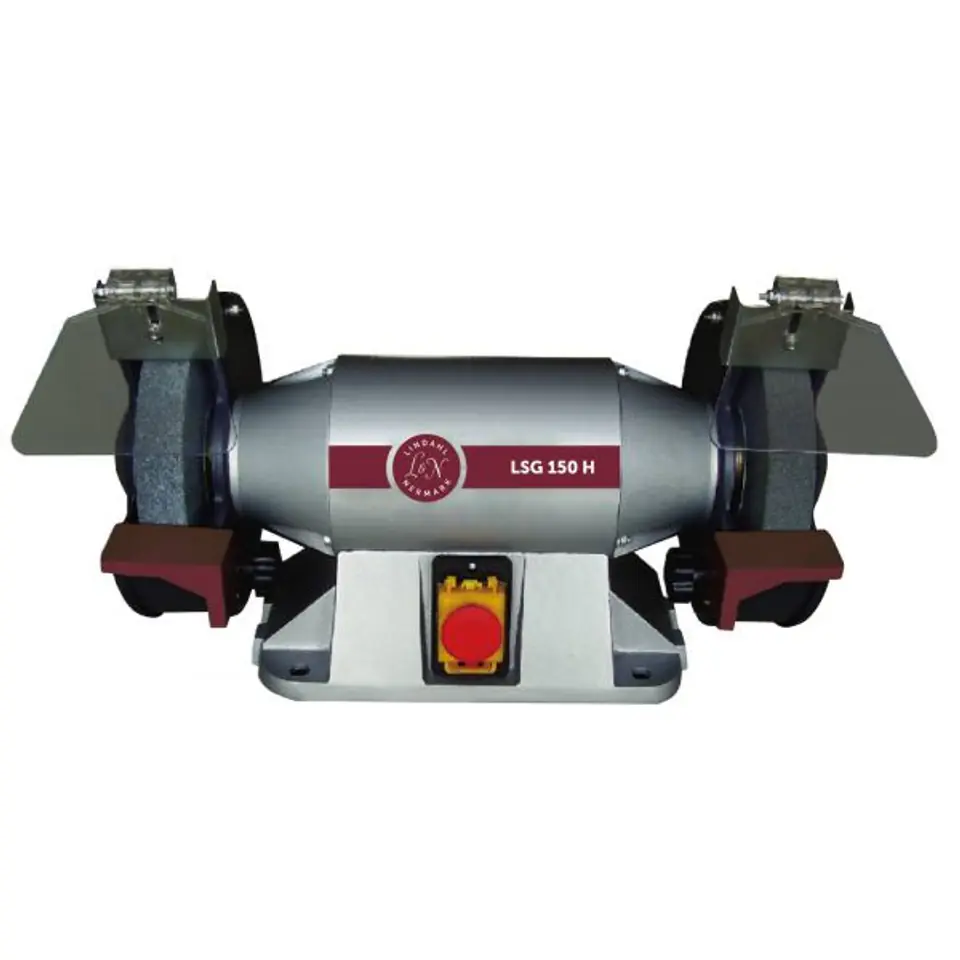

Table grinder LSG 150H

Table grinding machines for industrial and service use. Ball bearing spindle. Closed type wheel guards and drop-down protective screens. Engine and other electrical equipment tightness class - IP 23. All speeds refer to the mains frequency of 50 Hz. spindles 60 Hz 3540 rpm. Hole spacing in base plate width× depth: 200×130 mm. Supplied with grinding wheels and adjustable kickstand, and 1.5 m power cable. The grinders are supplied with one grinding wheel with a grain size of 36 and another with a grain size of 60.


**

Illustrative photos
