Specifications:
230V.
85W.
50 – 60Hz.Three speeds 1,800, 4,700 and 8,500rpm.
Very high rotation accuracy. Feed 30mm.
Drill outreach 140mm (distance from base to end of mandrel ).
Six triple, precise MICROMOT tool clamps with diameters of 1 – 1.5 – 2– 2.4 – 3 – 3.2mm included.
3/8" thread. Weight 3.3kg.
High quality die-cast aluminium (220 x 120mm) die-cast worktop with parallel guide and scale.
Threaded holes for fixing the KT 70 coordination table.
Strong steel column (20 x 340 mm).
Very stable die-cast head with quiet and durable 230V motor (VDE compliant motor).
Power transmitted by aluminum pulleys and drive belt.
Three spindle speeds (triple torque at low speed).
Manual feed lever with adjustable drilling depth scale.

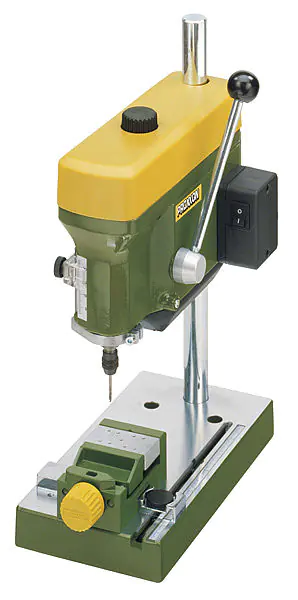

NOTE: The MS4 vice shown in the picture is not included.
It is offered as a separate item
TABLE DRILLING MACHINE TBM 220
€246.68
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PROXXON
- Product code:
- 4006274281288
Share this product:
Specification
| Colour: | Green-yellow |
|---|---|
| Effective power (w): | 85 |
| Kind: | Drill |
| Maximum speed (rpm): | 8500 |
| Number of gears: | 3 |
| Other parameters: | On state lock |
| Speed control: | yes |
| Warranty: | 2 years |
| Weight (kg): | 3.3 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
