Technical data:
Nominal power710 W
No-load rotational speed (1st / 2nd gear)200 – 850 / 600 – 2.500 min-1
Laser type650 nm, <1 mW
Laser class2
Max. drilling diameter in steel13 mm
Max. drilling diameter in wood40 mm
Drill chuck clamping range1.5 – 13 mm
Stroke90 mm
Base dimensions (WxDxH)330 x 350 x 30 mm
Machine weight11.2 kg
Package dimensions (width)375 mm
Package dimensions (length)750 mm
Package dimensions (height)285 mm
Box dimensions (width x length x height)375 x 750 x 285 mm
Weight with packaging13.88 kg
Voltage230 V
Features
Laser for easy cutting
Integrated LED
Noise and vibration information
Sound pressure level77 dB(A)
Sound power level90 dB(A)
Measurement error K3 dB
Enjoy easy, comfortable and precise drilling
Digital display with drilling speed and depth indications
Quick-clamping clamp allows convenient attachment of round parts as well, ensuring drilling accuracy
Precise, tool-free chuck automatically corrects drill bit mounting
2-speed transmission: high power in first gear and high speed in second gear
With Bosch Electronic, you can adjust the speed to get a better result
Parallel guide 1 600 A00 0UA
Quick-release clamp 1 600 A00 0TT
**

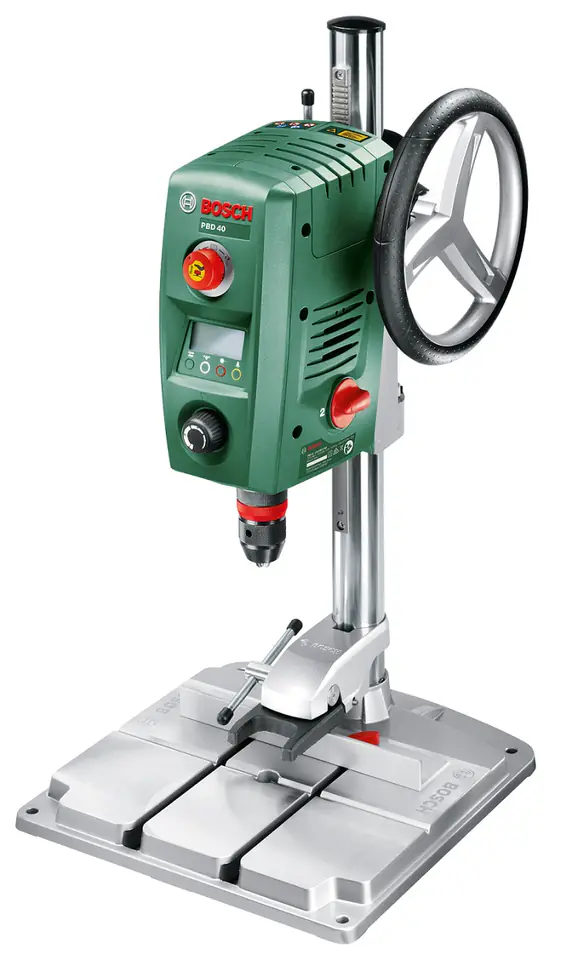

The photo has an illustrative function.
Nominal power710 W
No-load rotational speed (1st / 2nd gear)200 – 850 / 600 – 2.500 min-1
Laser type650 nm, <1 mW
Laser class2
Max. drilling diameter in steel13 mm
Max. drilling diameter in wood40 mm
Drill chuck clamping range1.5 – 13 mm
Stroke90 mm
Base dimensions (WxDxH)330 x 350 x 30 mm
Machine weight11.2 kg
Package dimensions (width)375 mm
Package dimensions (length)750 mm
Package dimensions (height)285 mm
Box dimensions (width x length x height)375 x 750 x 285 mm
Weight with packaging13.88 kg
Voltage230 V
Features
Laser for easy cutting
Integrated LED
Noise and vibration information
Sound pressure level77 dB(A)
Sound power level90 dB(A)
Measurement error K3 dB
Enjoy easy, comfortable and precise drilling
Digital display with drilling speed and depth indications
Quick-clamping clamp allows convenient attachment of round parts as well, ensuring drilling accuracy
Precise, tool-free chuck automatically corrects drill bit mounting
2-speed transmission: high power in first gear and high speed in second gear
With Bosch Electronic, you can adjust the speed to get a better result
Parallel guide 1 600 A00 0UA
Quick-release clamp 1 600 A00 0TT
**

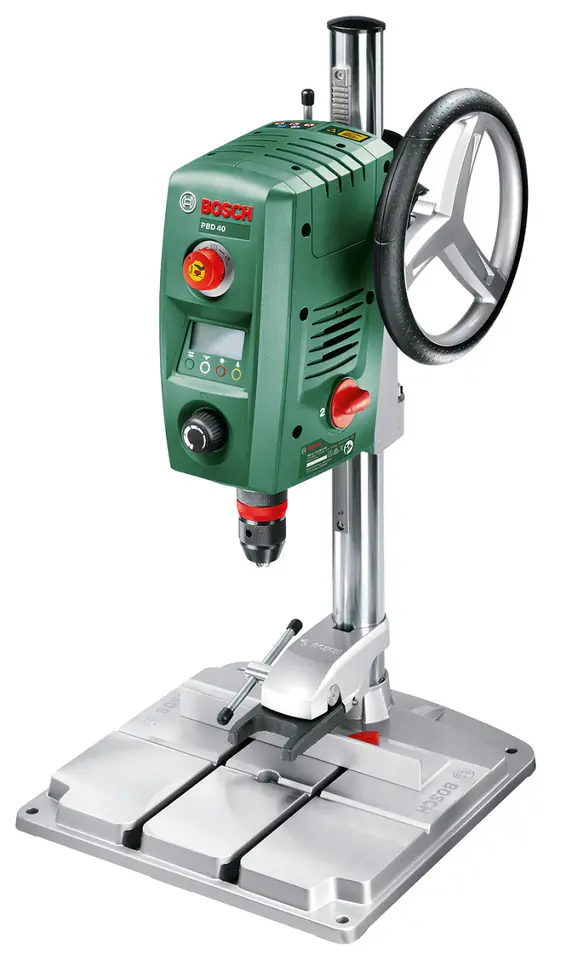

The photo has an illustrative function.
