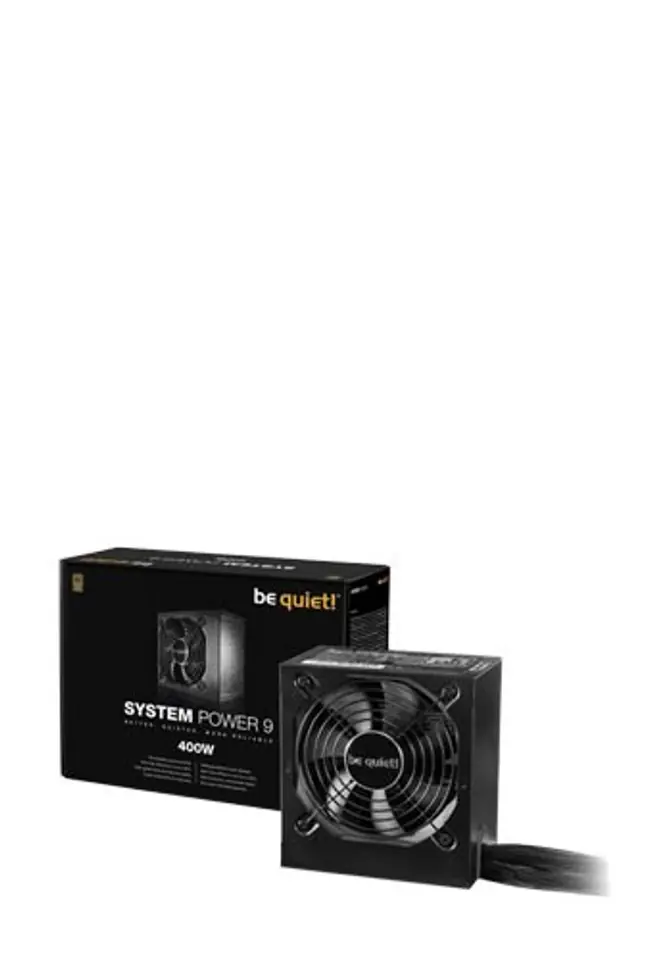

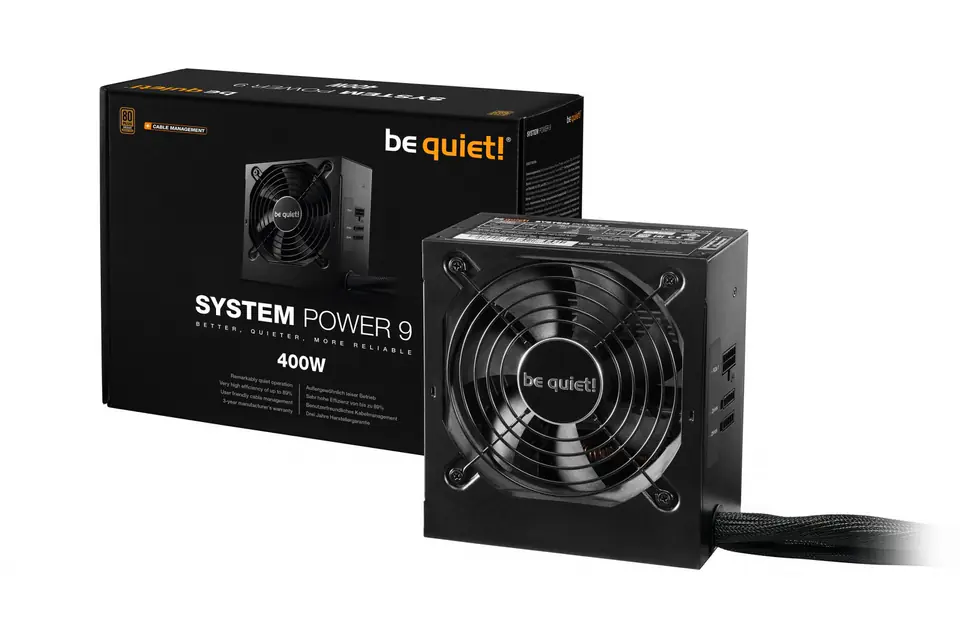

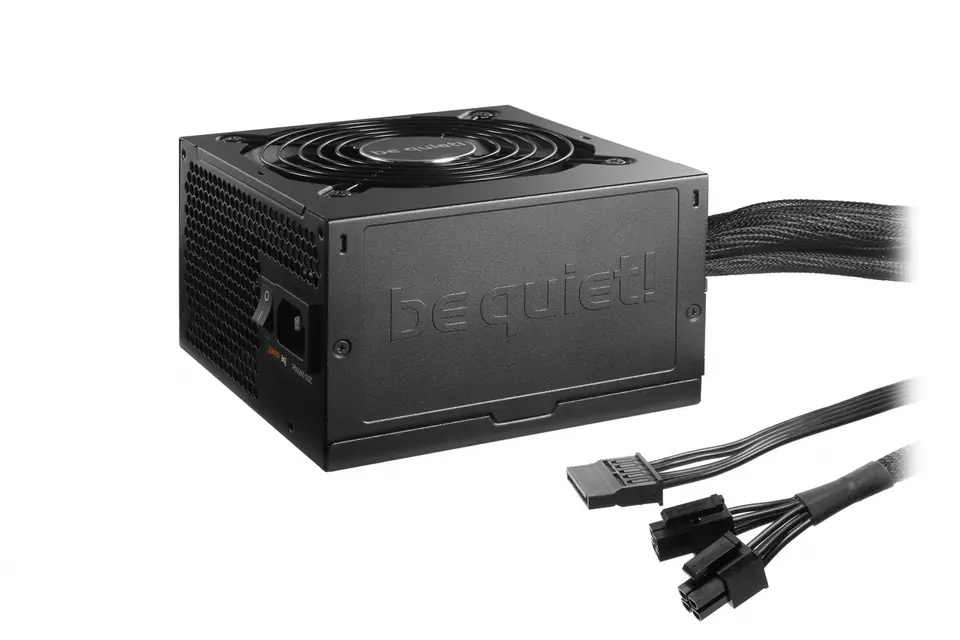

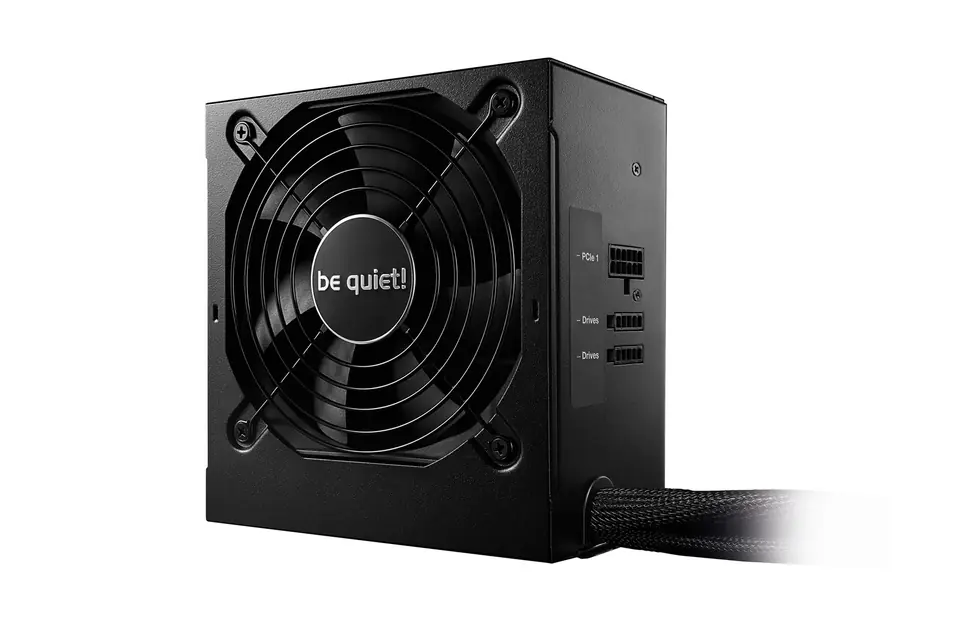

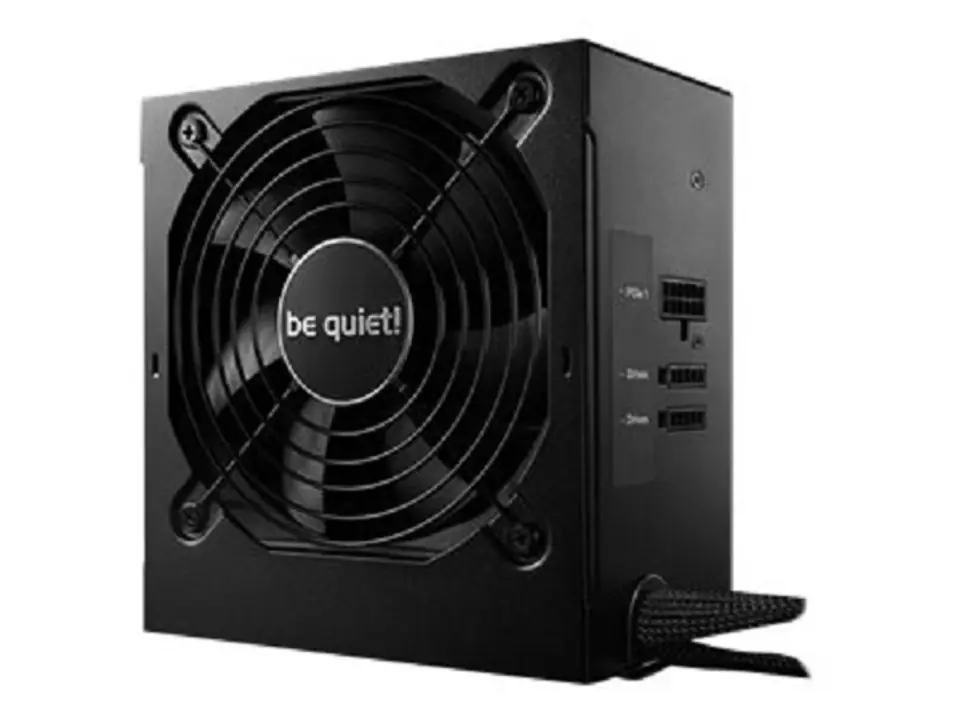

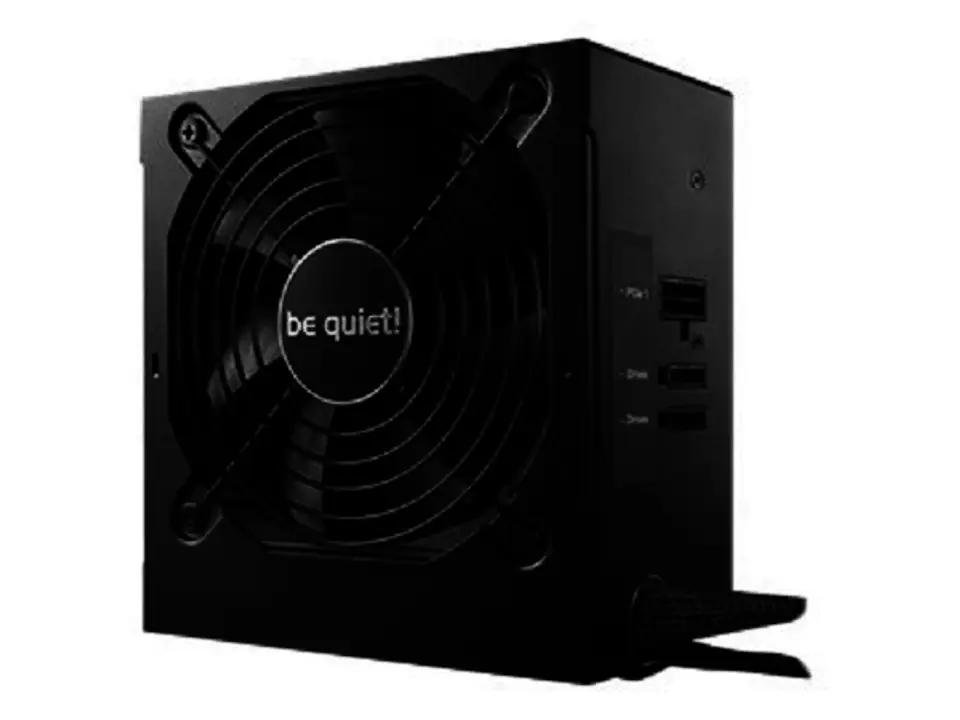

SYSTEM POWER 9 CM 400W PROVEN RELIABILITY AND GOOD PERFORMANCE
be quiet! System Power 9 CM 400W offers the quietness and renowned reliability of be quiet! for all PC system integrators.
80 plus certification: | 80 PLUS Bronze |
---|---|
Ac input frequency: | 50 Hz |
Ac input voltage: | 200 - 240 V |
Atx version: | 2.51 |
Cables included: | SATA, PCIe |
Combined power (-12v): | 3.6 W |
Combined power (+12v): | 384 W |
Combined power (+3.3v): | 103 W |
Combined power (+5v): | 103 W |
Combined power (+5vsb): | 15 W |
Cooling type: | Active |
Cpu power cable length: | 60 cm |
Cpu power connector (4+4 pin): | Yes |
Depth: | 140 mm |
Efficiency: | 89% |
Energy star certified: | Y |
Fan diameter: | 12 cm |
Floppy drive power connector: | 1 |
Height: | 86 mm |
Hold time: | 17 ms |
Input current: | 4 A |
Manual: | Yes |
Master (outer) case gross weight: | 13.4 kg |
Master (outer) case height: | 556 mm |
Master (outer) case length: | 215 mm |
Master (outer) case width: | 311 mm |
Max output current (-12v): | 0.3 A |
Max output current (+12v1): | 22 A |
Max output current (+12v2): | 18 A |
Max output current (+3.3v): | 24 A |
Max output current (+5v): | 15 A |
Max output current (+5vsb): | 3 A |

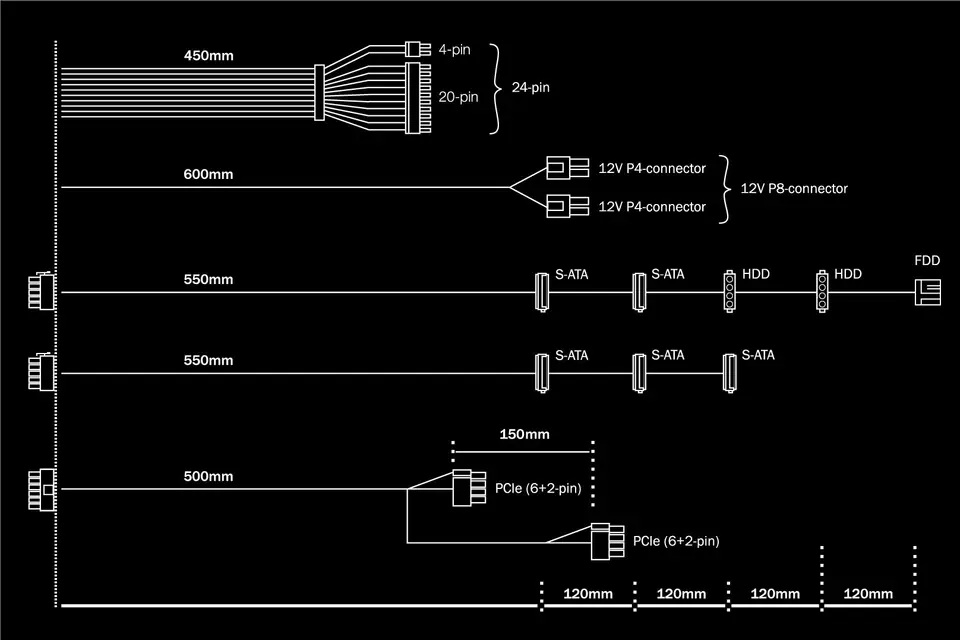

Motherboard power cable length: | 45 cm |
Motherboard power connector: | 20+4 pin ATX |

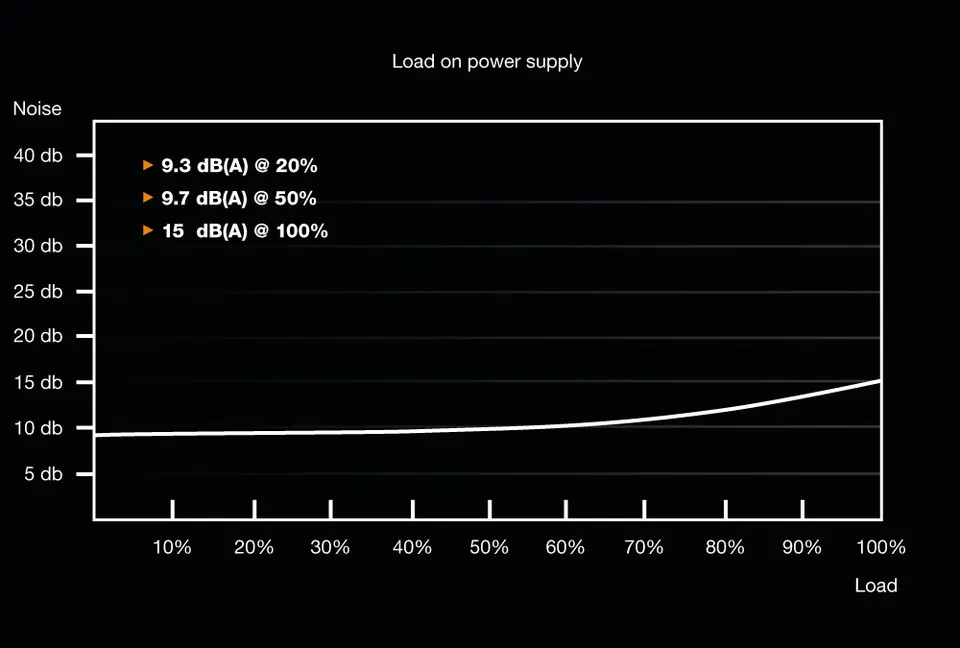

Noise level (full-load mode, 100%): | 15 dB |
Noise level (quiet mode, 50%): | 9.7 dB |
Noise level (silent mode, <30%): | 9.3 dB |
Number of fans: | 1 fan(s) |
Number of pata power connectors: | 2 |
Number of sata power connectors: | 5 |
Package depth: | 268 mm |
Package height: | 195 mm |
Package weight: | 2.11 kg |
Package width: | 97 mm |
Pci express power cable length: | 50 cm |
Pci express power connectors (6+2 pin): | 2 |
Power factor: | 0.95 |
Power factor correction (pfc) type: | Active |
Power protection features: | Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage |
Power supply unit (psu) form factor: | ATX |
Product colour: | Black |
Products per master (outer) case: | 6 pc(s) |
Rohs compliance: | Y |
Sata power cable length: | 670 mm, 550 |
Screws included: | Yes |
Total power: | 400 W |
Weight: | 1.49 kg |
Width: | 150 mm |
SYSTEM POWER 9 CM 400W PROVEN RELIABILITY AND GOOD PERFORMANCE
be quiet! System Power 9 CM 400W offers the quietness and renowned reliability of be quiet! for all PC system integrators.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
