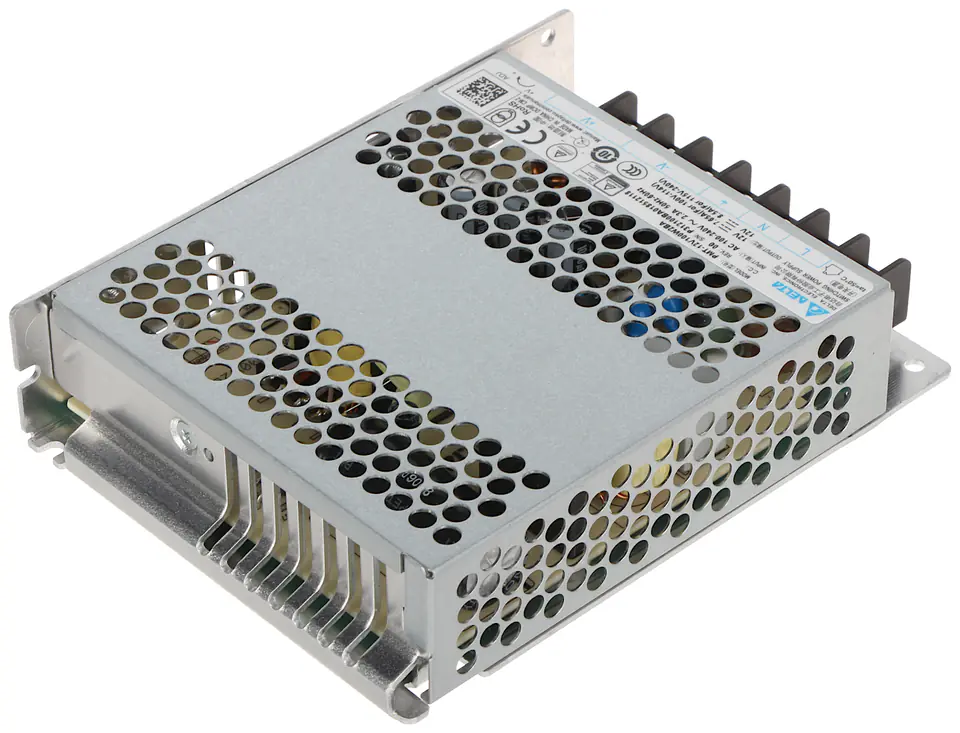

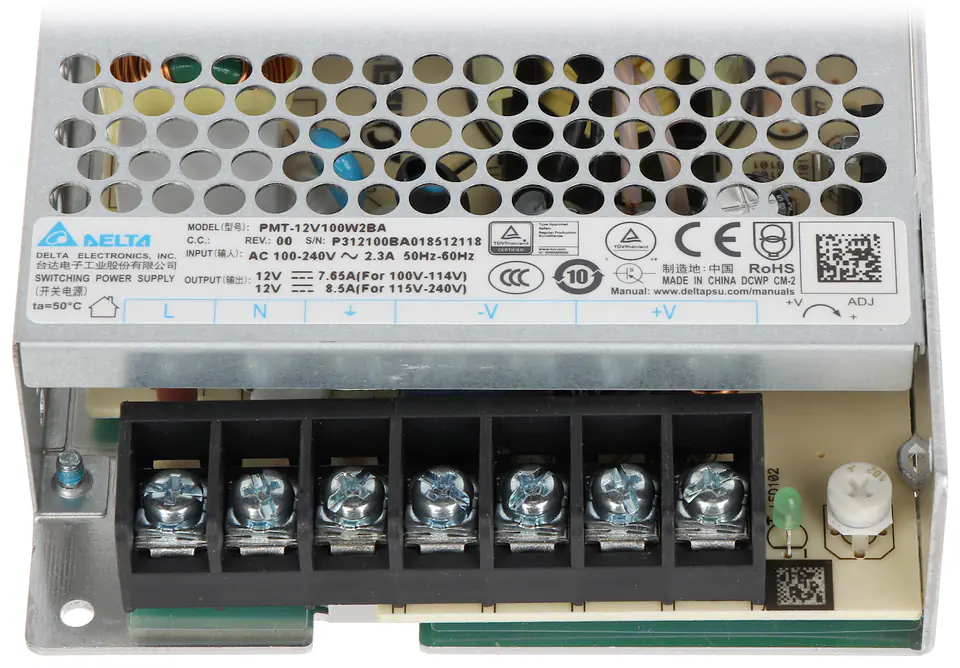

SWITCHING POWER SUPPLY PMT-12V100W2BA Delta Electronics

€22.24
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
DELTA ELECTRONICS
Product code:
PMT-12V100W2BA / 5902887055454

Specification

Current efficiency of the power supply::8.5 A

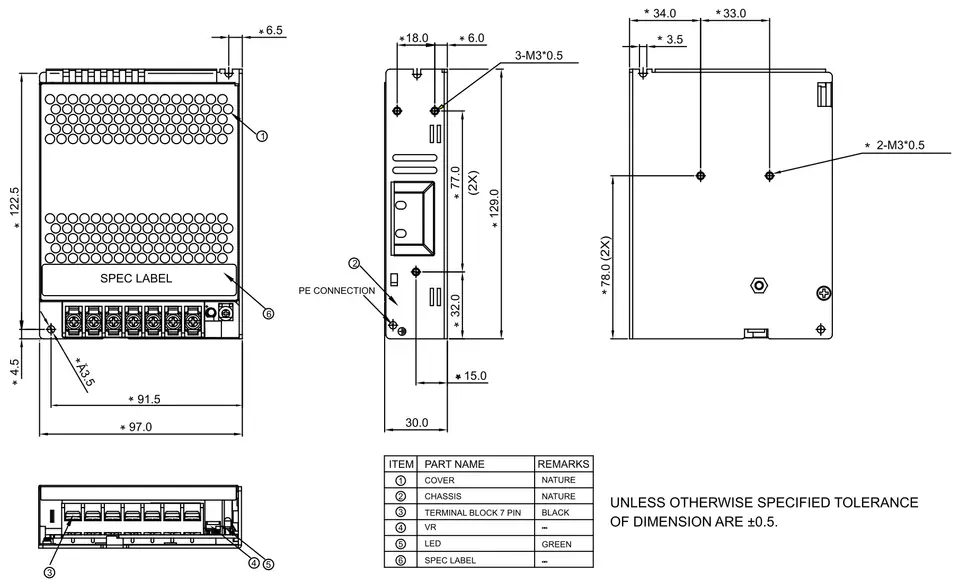

Dimensions::127 x 97 x 30 mm
Manufacturer / brand::Delta Electronics
Mtbf (mean time between failures)::> 700000 h
Number of outputs::2 pcs.
Operating temperature / relative humidity::-30 °C ... 70 °C / 5 % ... 95 %
Output voltage adjustment::10.8  ... 13.2 volts
Output voltage::12 VDC
Power supply type::Pulse
Power supply::102 watts (Printing)
Scales::0.29 kg
Security::Short-circuit Overload Thermal Surge Protector
Supply voltage::100 V ... 240 V AC
Warranty::5 years

Dual-output switching power supply with small size

Special attention should be paid to the proper cooling of the power supply during operation! In rack cabinets and poorly ventilated places, we recommend using the following elements together with the power supply: A19-W12 fan and FR-1 rotation controller

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
