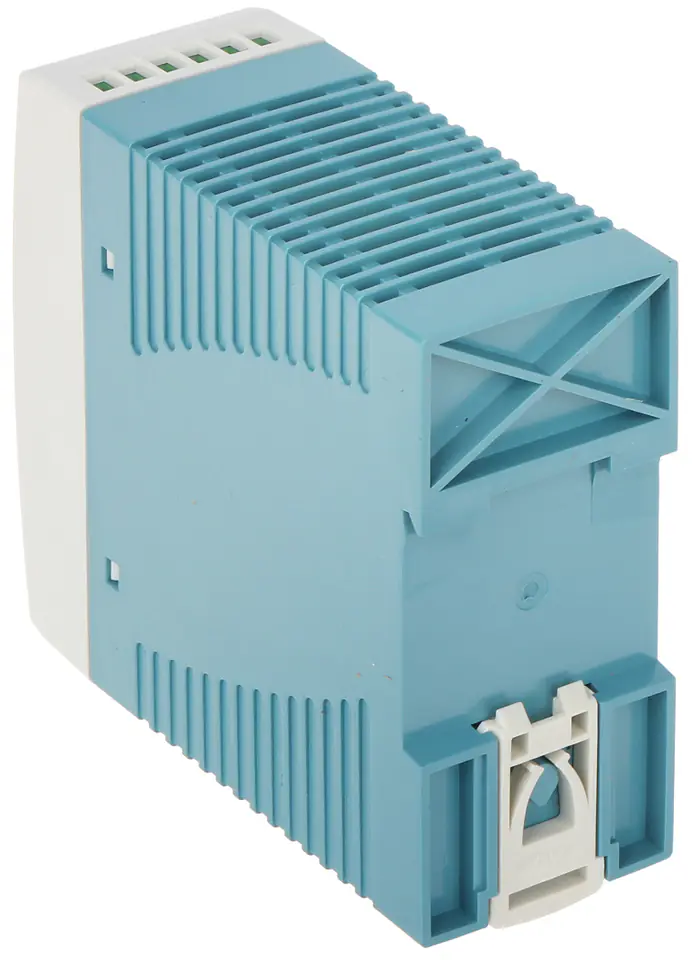

Switch-mode power supply installed on TS35/7.5 or 15 DIN rail
SWITCHING POWER SUPPLY MDR-40-48 MEAN WELL
This product is not available
- Availability:
- expected delivery
- Brand:
- MEAN WELL
- Product code:
- MDR-40-48 / 5902135302279
Share this product:
Specification
| Current efficiency of the power supply:: | 0.83 A |
|---|---|

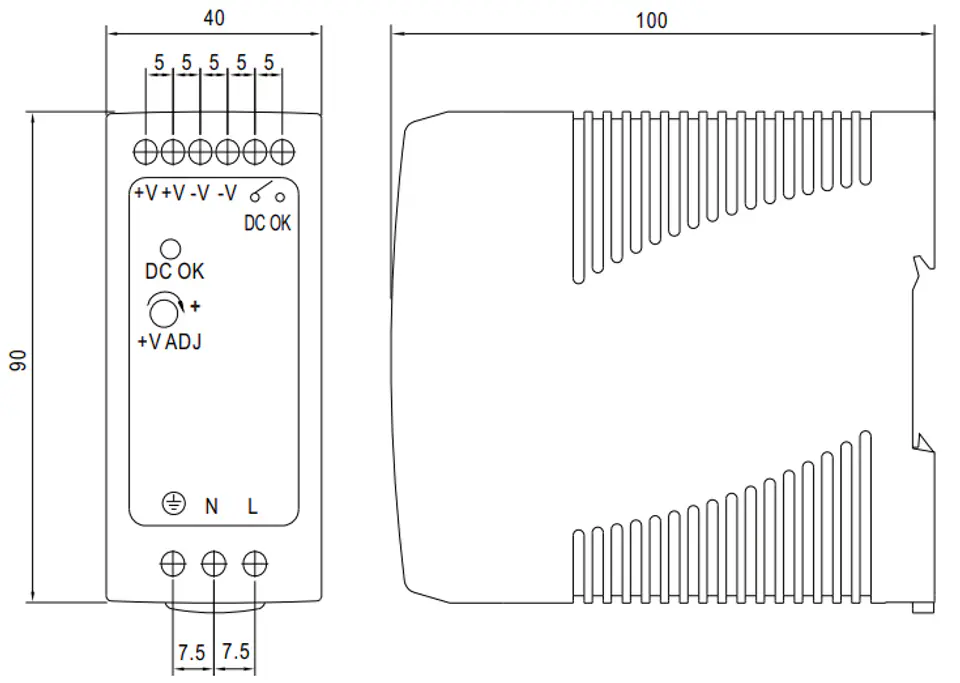

| Dimensions:: | 40 x 100 x 90 mm |
| Efficiency:: | 88 % |
| Housing type:: | DIN |
| Manufacturer / brand:: | MEAN WELL |
| Mtbf (mean time between failures):: | Min. 301700 hours |
| Number of outputs:: | 2 pcs. |
| Operating temperature / relative humidity:: | -20 °C ... 70 °C / 20 % ... 95 % |
| Output voltage adjustment:: | 48 ... 56 volts |
| Output voltage:: | 48 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 39.8 watts |
| Scales:: | 0.26 kg |
| Security:: | Short-circuit Surge Protection Overload Protection |
| Supply voltage:: | 85 ... 264 V AC / 120 ... 370 VDC |
| Vibration resistance:: | IEC60068-2-6, 10 ... 500 Hz max. 2 G |
| Voltage tolerance:: | ± 1 % |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
