SWITCHING POWER SUPPLY MDR-100-48 MEAN WELL

€44.62
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
MEAN WELL
Product code:
MDR-100-48 / 5901643194611

Specification

Current efficiency of the power supply::2 A

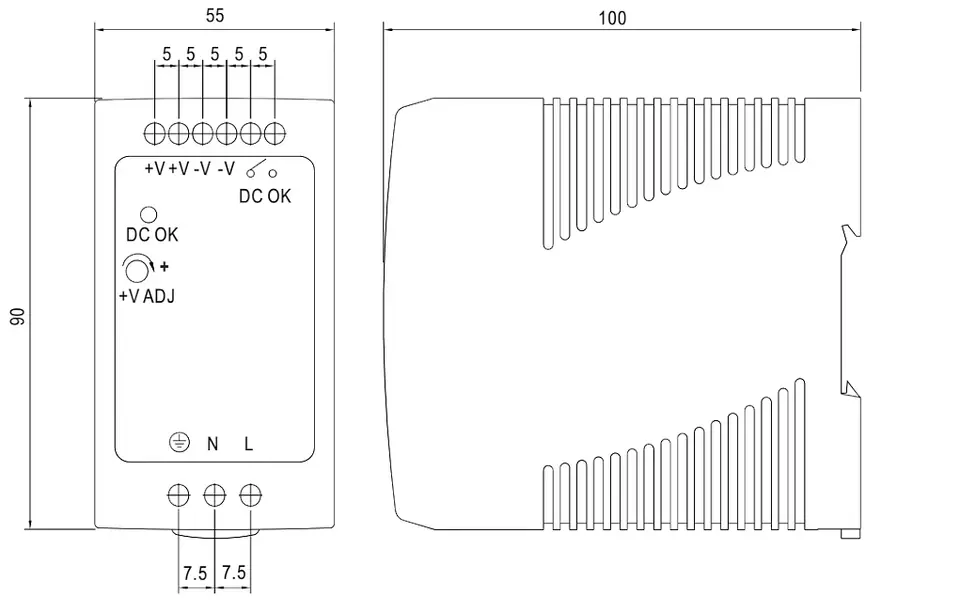

Dimensions::55 x 100 x 90 mm
Efficiency::87 %
Housing type::DIN
Manufacturer / brand::MEAN WELL
Mtbf (mean time between failures)::Min. 346000 hours
Number of outputs::2 pcs.
Operating temperature / relative humidity::-10 °C ... 60 °C / 20 % ... 90 %
Output voltage adjustment::48  ... 56 volts
Output voltage::48 VDC
Power supply type::Pulse
Power supply::96 watts (Printing)
Scales::0.4 kg
Security::Short-circuit Surge Protection Overload Protection
Supply voltage::85  ... 264 V AC / 120 ... 370 VDC
Vibration resistance::IEC60068-2-6, 10 ... 500 Hz max. 2 G
Voltage tolerance::± 1 %
Warranty::3 years

Switch-mode power supply installed on TS35/7.5 or 15 DIN rail
