Switched-mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)
SWITCHING POWER SUPPLY MDR-10-12
€23.76
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- MDR-10-12 / 5901643191603
Share this product:
Specification
| Current efficiency of the power supply:: | 0.84 A |
|---|---|

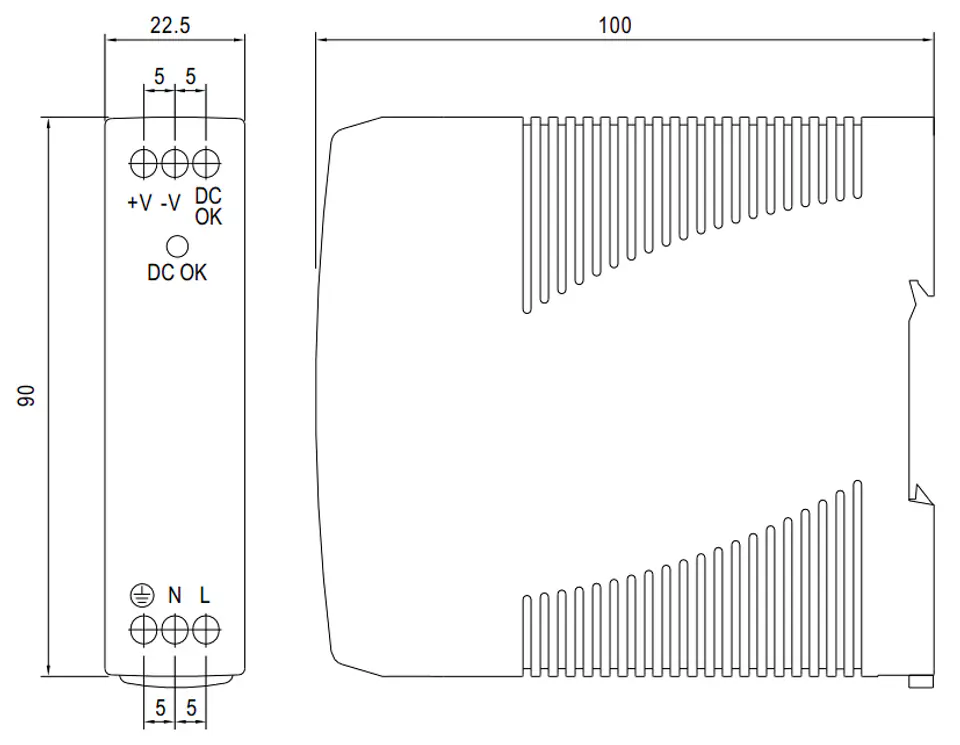

| Dimensions:: | 22.5 x 100 x 90 mm |
| Efficiency:: | 81 % |
| Housing type:: | DIN |
| Mtbf (mean time between failures):: | 584000 hrs |
| Number of outputs:: | 1 pc. |
| Operating temperature / relative humidity:: | -20 °C ... 70 °C / < 95 % |
| Output voltage adjustment:: | 10.8 ... 13.2 volts |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 10 watts |
| Scales:: | 0.14 kg |
| Security:: | Short-circuit Surge Protection Overload Protection |
| Supply voltage:: | 100 ... 240 V AC |
| Vibration resistance:: | IEC60068-2-6, 10 ... 500 Hz max. 2 G for 90 minutes |
| Voltage tolerance:: | ± 1 % |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
