| Ac input frequency:: | 50 / 60 Hz |
|---|---|
| Average operating efficiency:: | 88.0 % |
| Case:: | Plastic |
| Dimensions:: | 127 x 56 x 32 mm |
| Efficiency at low load (10%):: | 60.8 % |
| Input voltage:: | 220 - 240 VAC |
| Joint:: | 2.1/5.5 mm plug on the cable |
| Model identifier:: | 48V/1.5A/5.5 |
| Operating temperature / relative humidity:: | 0 ... 55 °C / 10 ... 90 % |
| Output power:: | 72.0 watts |
| Output voltage:: | 48.0 VDC |
| Output:: | 1.5 A |
| Power consumption in no-load state:: | < 0.21 W |
| Scales:: | 0.38 kg |
| Warranty:: | 2 years |

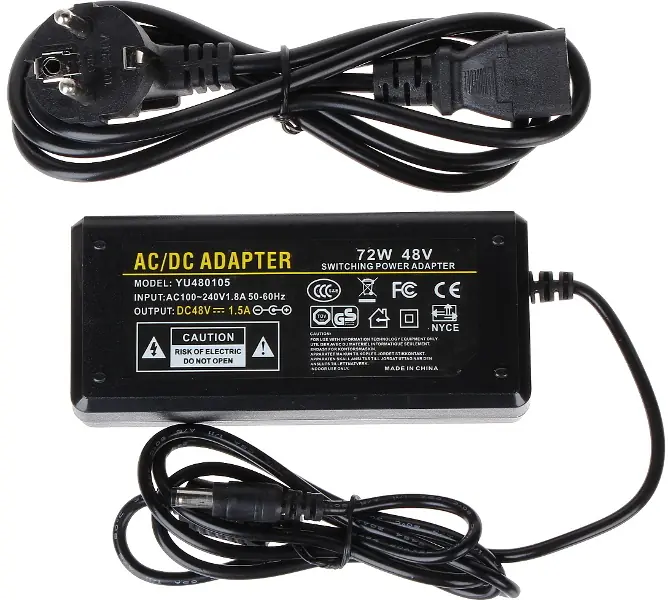

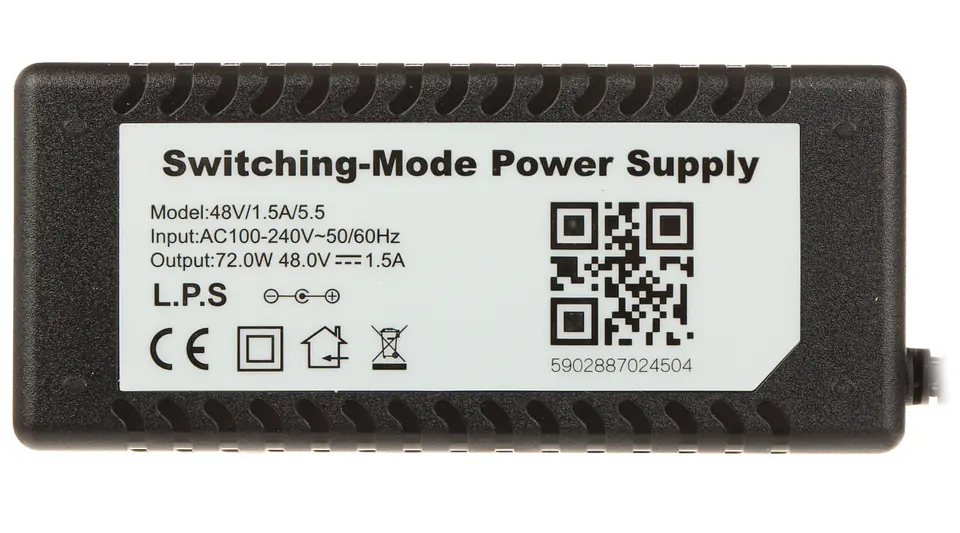

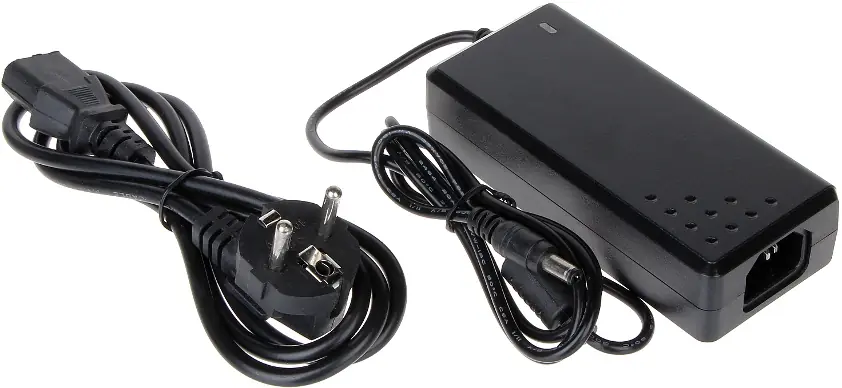

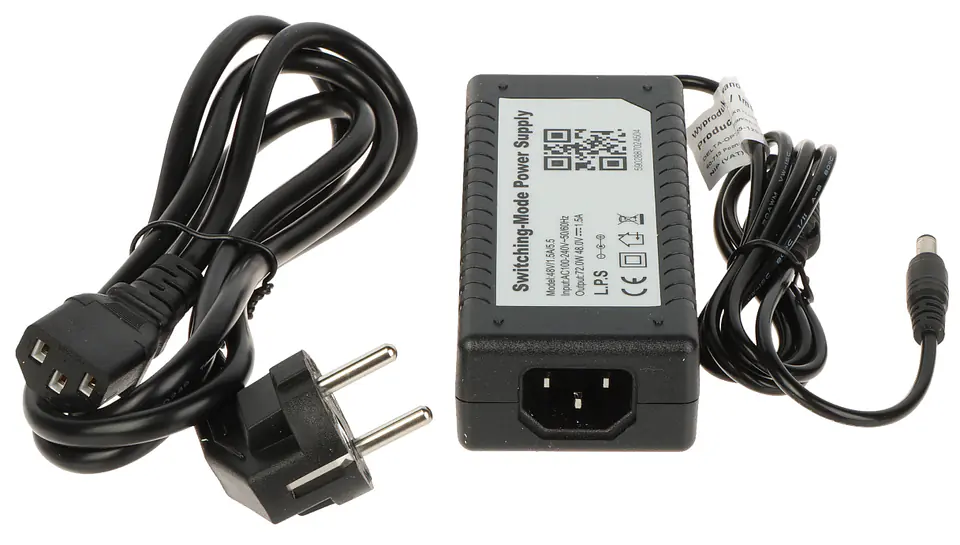

Switching power supply, designed for IP devices powered in the PoE standard
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
